DDS015 Single Phase Digital LCD Energy Meter — 5-80A, 230V, 50Hz, DIN Rail Mount
Take full control of your household or commercial electricity consumption with the DDS015 Single Phase Digital Energy Meter. Designed for straightforward 35mm DIN rail installation, this compact watt meter delivers accurate, reliable readings through a crisp LCD backlight display — making it easy to monitor both temporary and total power usage at a glance.
Key Features

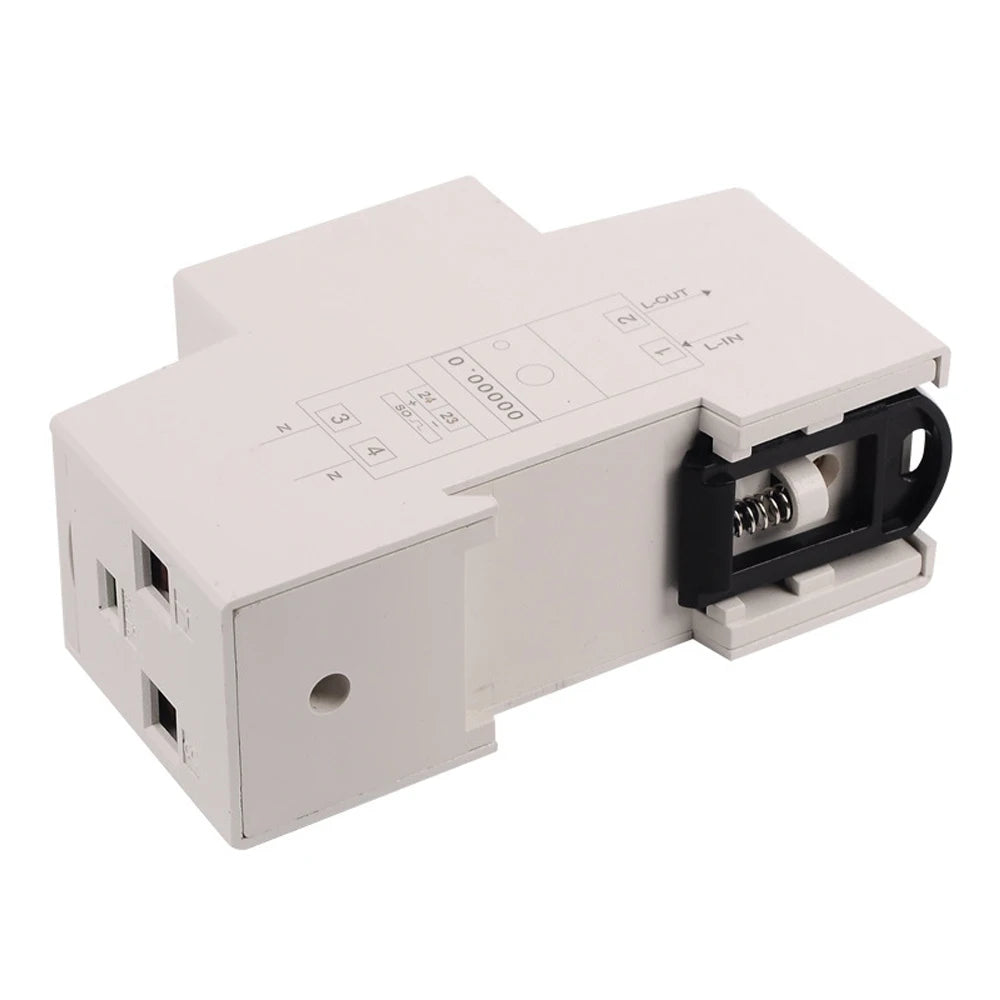

- Compact & Lightweight: Space-saving design mounts directly onto a standard 35mm DIN rail — ideal for distribution boards and electrical panels.
- High Accuracy & High Overload Capacity: Microelectronics and digital signal processing technology ensure precise active energy measurement across a wide current range of 5–80A.

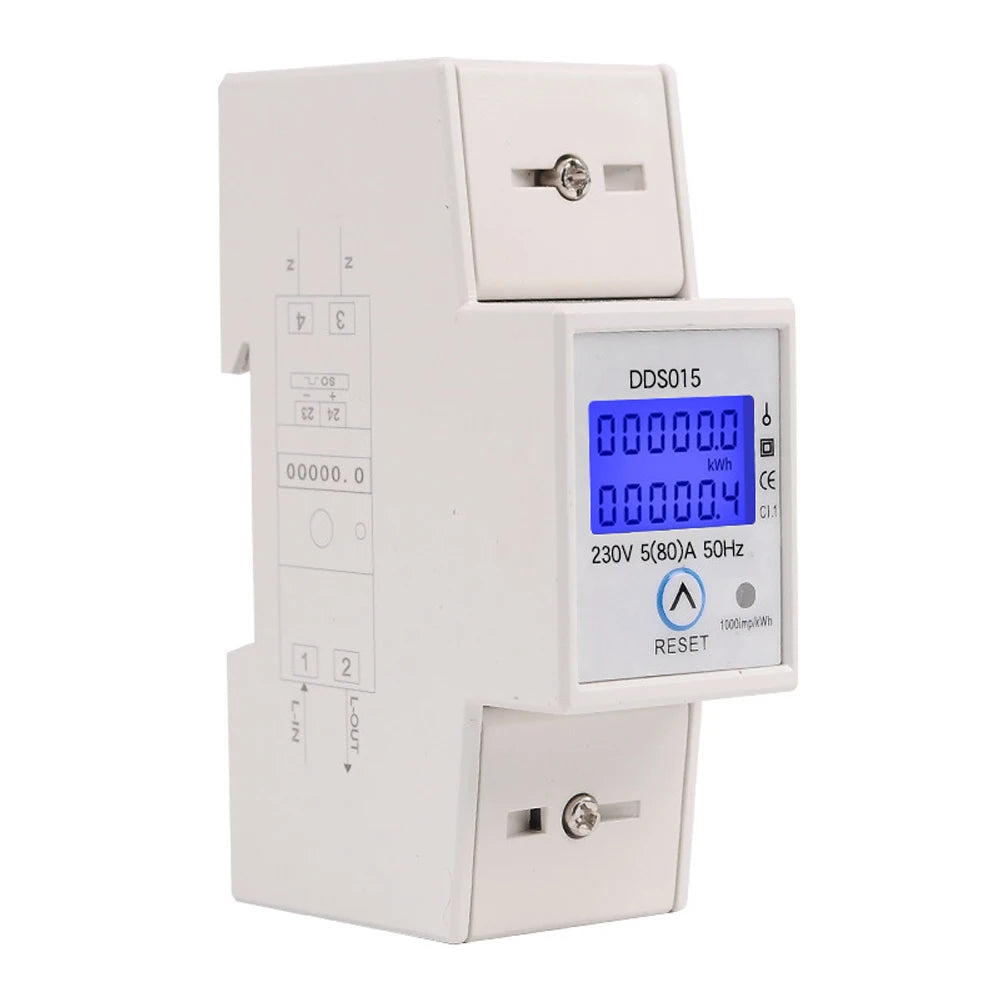

- Dual-Row LCD Display: The upper row shows a resettable temporary consumption reading; the lower row displays cumulative total consumption (non-resettable) for permanent record-keeping.
- Anti-Tamper Design: Built-in electricity anti-stealing feature for added security and integrity of your readings.
- Low Power Consumption: Precision SMT (Surface Mount Technology) integrated circuitry ensures minimal self-consumption and strong electromagnetic interference (EMI) resistance.
- Visual Indicators: Green LED for power-on status; Red LED pulse indicator for real-time energy sampling feedback (~80ms per pulse).
- Wide Operating Range: Functions reliably from -25°C to 55°C and up to 95% relative humidity — suitable for indoor and sheltered outdoor environments.
Specifications
| Model | DDS015 |
| Rated Voltage | 230V AC |
| Rated Current | 5–80A |
| Frequency | 50Hz |
| Load Capacity | 0.05Ib to Imax (direct access type) |
| Display | LCD with backlight |
| Power Indicator | Green LED |
| Pulse Indicator | Red LED (~80ms per pulse) |
| Mounting | 35mm DIN Rail |
| Operating Temp. | -25°C to +55°C |
| Humidity | ≤95% RH |
| Country of Origin | Made in China |
What's in the Box
- 1× DDS015 Digital Energy Meter
Important Notes
- Due to lighting and screen variations, the product color may differ slightly from images shown.
- Please allow 1–3cm measurement tolerance due to manual measurement.
- This meter is intended for installation by qualified electricians. Always follow local electrical codes and safety regulations when working with electrical panels.
For electrical safety guidance, visit the U.S. Consumer Product Safety Commission — Electrical Safety Resource.
Frequently Asked Questions
Q: What is the maximum current this single phase energy meter can handle?
A: The DDS015 energy meter supports a rated current range of 5–80A (direct access type), making it suitable for most standard household and light commercial single-phase electrical circuits running at 230V / 50Hz.
Q: Can I reset the energy readings on the DDS015 watt meter?
A: The DDS015 features a dual-row LCD display. The upper row shows a temporary consumption reading that can be cleared/reset, while the lower row shows the total cumulative consumption and cannot be cleared, ensuring a permanent and tamper-resistant energy record.
Q: How is the DDS015 digital energy meter installed?
A: The meter is designed for quick and easy mounting on a standard 35mm DIN rail inside a distribution board or electrical enclosure. Installation should be performed by a qualified electrician following all applicable local electrical safety codes.
Q: Is this energy meter compatible with my electrical system?
A: The DDS015 is designed for single-phase, 230V AC, 50Hz electrical systems, which are standard in most of Europe, the UK, Australia, and many parts of Asia and Africa. It is not intended for 120V / 60Hz North American residential systems — please verify your local voltage and frequency before purchasing.
