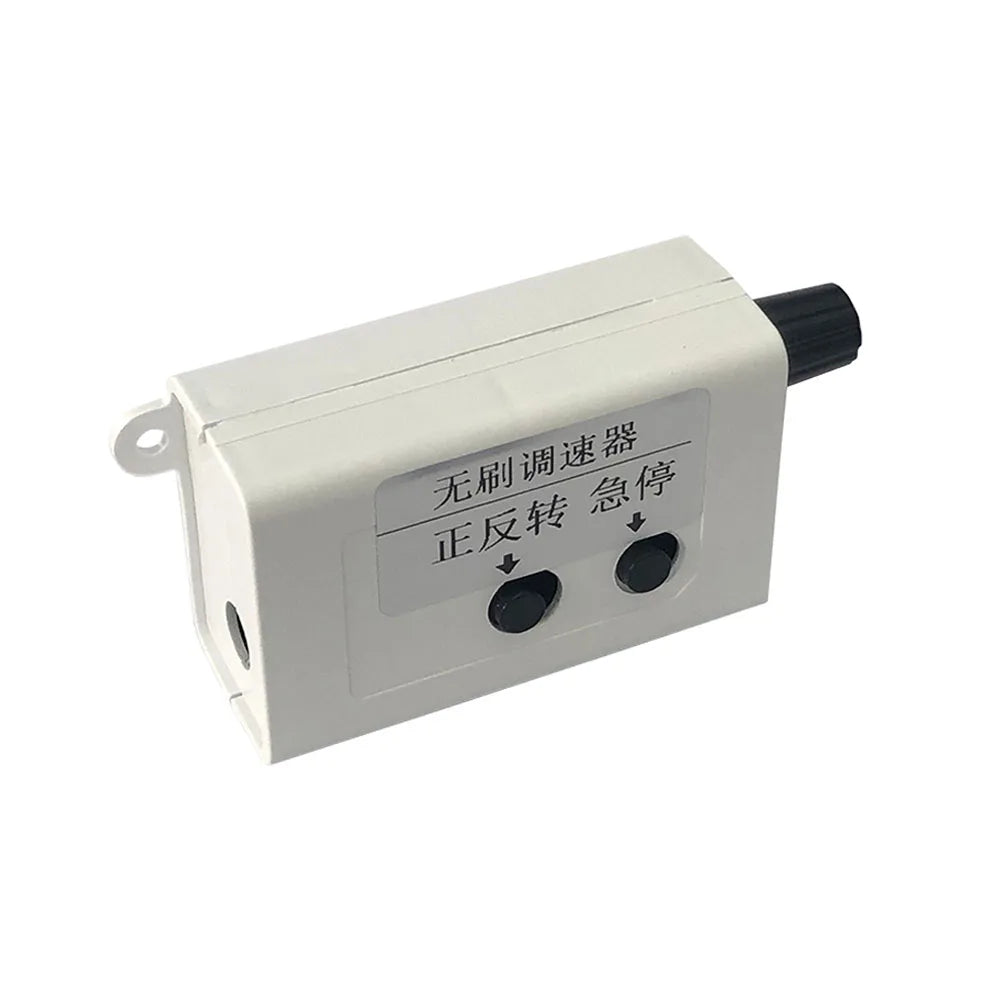

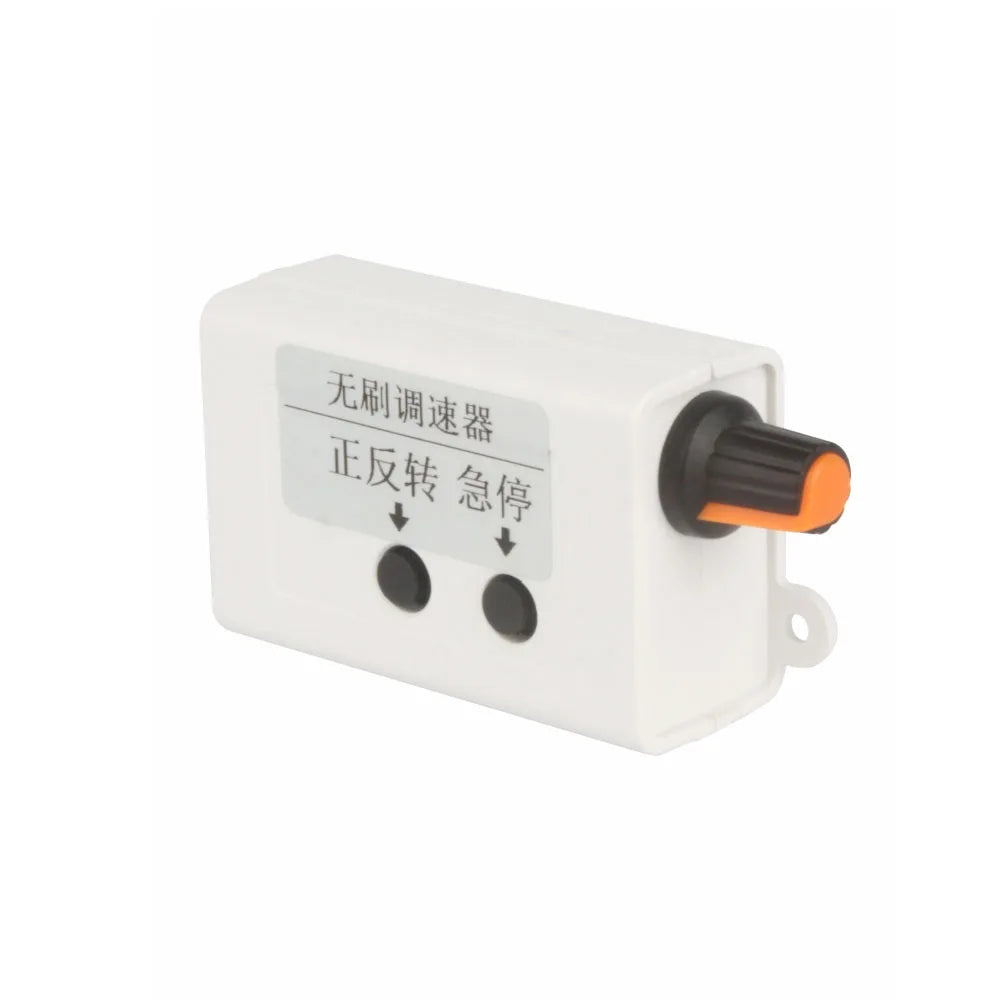

DC24V Brushless Motor PWM Speed Controller – Forward, Reverse & Braking
Take precise control of your brushless DC motor with this compact and reliable DC 24V Pulse Width Modulation (PWM) Motor Speed Regulator. Designed for makers, engineers, and hobbyists alike, this stepless variable speed controller lets you smoothly dial in the exact RPM you need — from a near stop all the way to full speed — without the jumpy steps of traditional switched controllers.
Key Features
- Stepless Speed Control: Smooth, continuous speed adjustment via an integrated control knob — no abrupt transitions.
- Forward & Reverse Operation: Easily switch motor rotation direction to suit your project or application setup.
- Emergency Stop / Braking: Built-in braking function allows for rapid, safe motor shutdown when needed.
- PWM Technology: Pulse Width Modulation ensures efficient power delivery, minimizing heat and energy waste.
- DC 24V Input: Optimized for 24-volt DC brushless motors — a common standard in automation, robotics, and DIY projects.
- Compact & Durable Build: Constructed from plastic and PCB materials for a lightweight yet sturdy form factor.
Specifications
| Operating Voltage | DC 24V |
| Motor Type | Brushless DC Motor |
| Control Method | Pulse Width Modulation (PWM) |
| Speed Adjustment | Stepless (continuous knob) |
| Functions | Forward rotation, Reverse rotation, Emergency stop/braking |

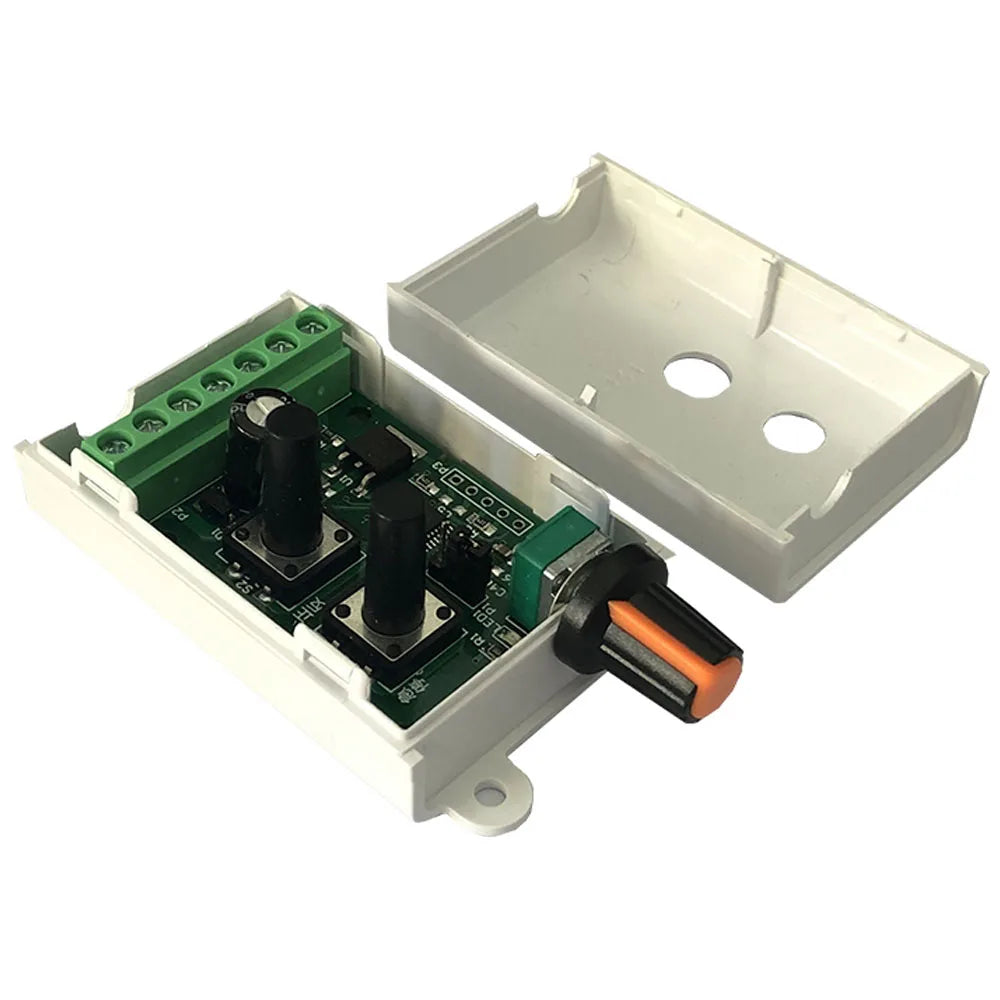

| Materials | Plastic + PCB |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× DC24V Brushless Motor PWM Speed Controller
Important Notes
- Due to lighting and display screen differences, the actual product color may vary slightly from images shown.

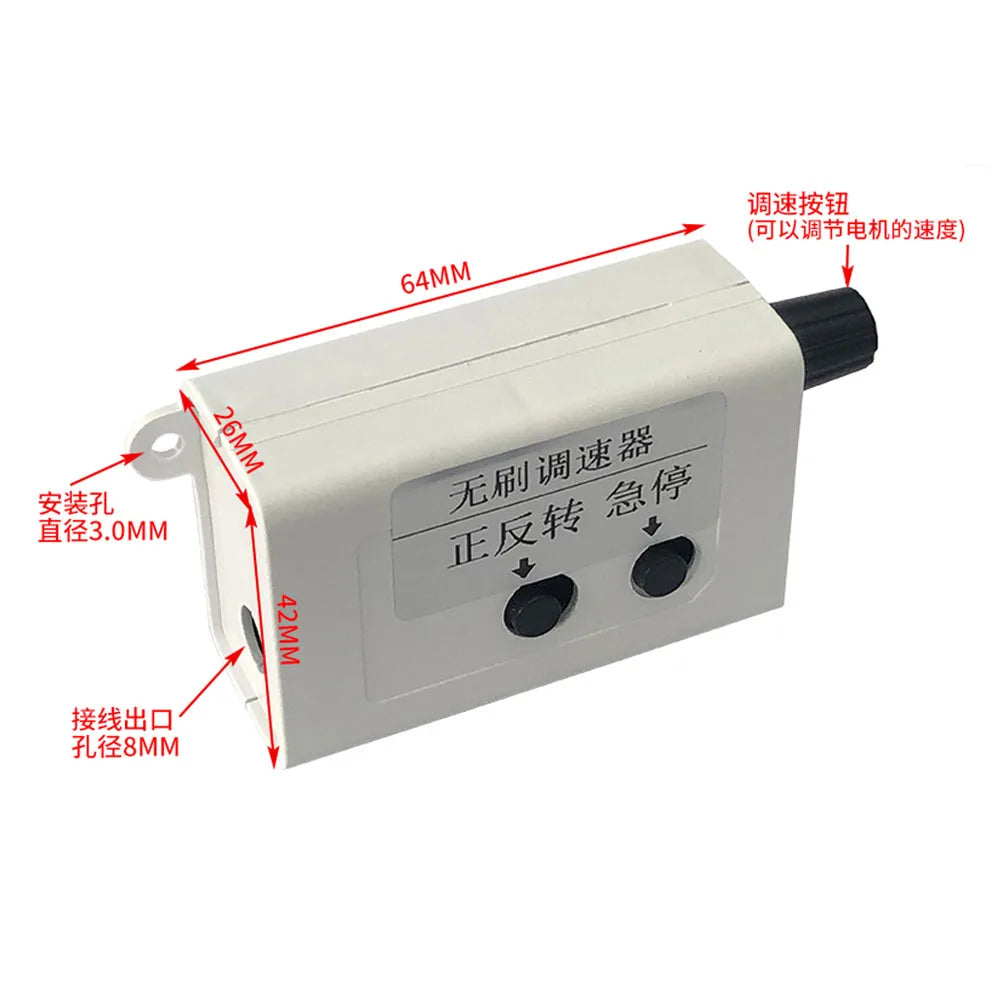

- Please allow a tolerance of 1 mm–1 cm due to manual measurement.
Learn More About PWM Motor Control
Pulse Width Modulation is a widely used technique in electronics and industrial automation. For technical background on electrical safety standards relevant to motor controllers, visit OSHA's Electrical Safety Guidelines.
Frequently Asked Questions
Q: What type of motors is this DC24V PWM speed controller compatible with?
A: This controller is specifically designed for brushless DC motors operating at 24V. It is not intended for brushed motors or AC motors. Always verify your motor's voltage and type before connecting.
Q: Can I use this motor speed regulator for both clockwise and counterclockwise rotation?
A: Yes! The controller includes a forward and reverse function, allowing you to switch the direction of rotation easily — ideal for robotics, conveyor systems, and automation projects that require bidirectional movement.
Q: How does the stepless speed control work?
A: The built-in PWM (Pulse Width Modulation) knob lets you continuously vary the motor speed from minimum to maximum without discrete steps. This gives you smooth, precise control over your motor's RPM at all times.
Q: What does the emergency stop/braking function do?
A: The braking function applies a rapid stop signal to the motor, bringing it to a halt quickly rather than letting it coast to a stop. This is especially useful in safety-critical applications where immediate motor shutdown is required.
