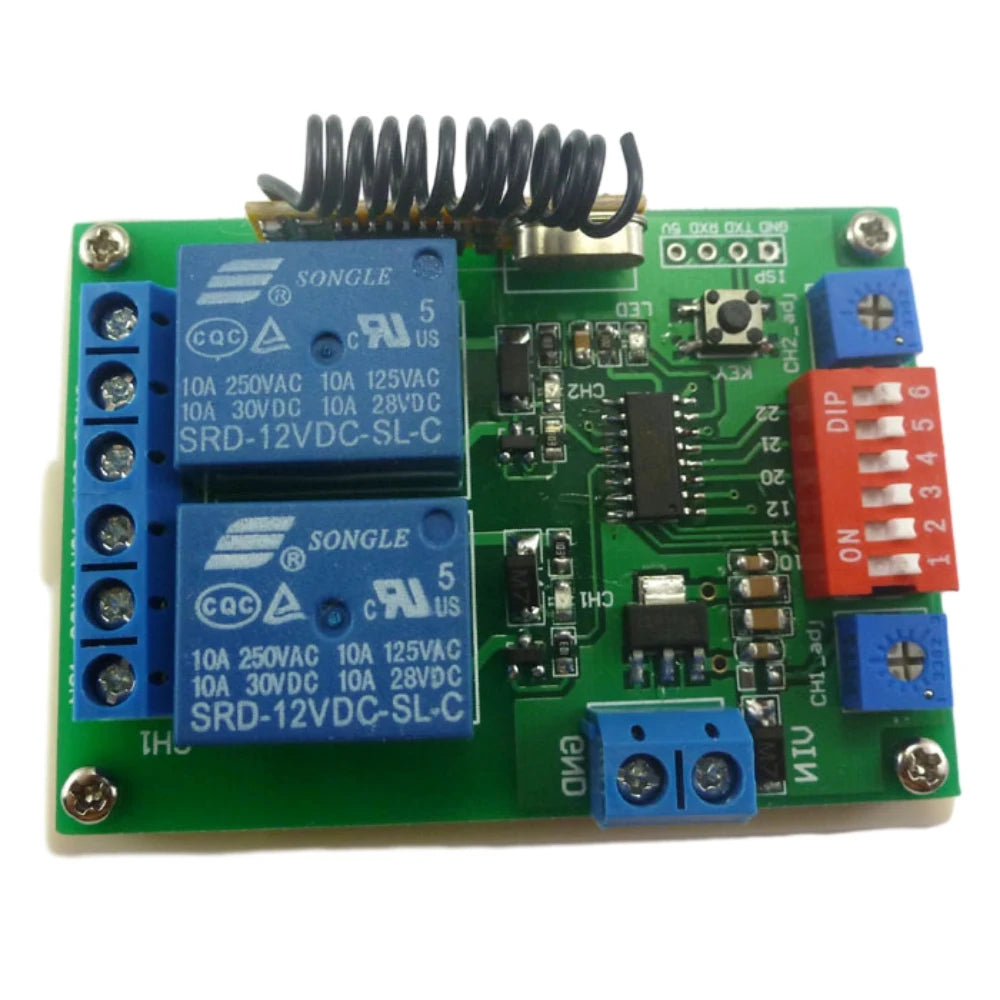

CE029 Multifunction Wireless Controller Timer Delay Relay Module
Take full control of your automated systems with this versatile DC 9V–13V Wireless Timer Delay Relay Module. Compatible with popular EV1527 and PT2262 learning-code protocols over 433.92 MHz, this compact two-channel relay module lets you wirelessly manage loads with precision timing, self-locking, and interlock modes — all without complex wiring or programming.
Whether you're automating garage doors, lighting systems, irrigation valves, or industrial switching circuits, the CE029 delivers professional-grade performance in a compact, easy-to-install package. Store up to 16 remote controls and configure each channel independently for maximum flexibility.
Key Features
- Wide Voltage Range: Operates on DC 9V–13V (DC 12V recommended) for compatibility with common power supplies
- Dual Independent Channels: Each relay channel can be configured with its own working mode independently
- Multiple Working Modes: Point, self-locking, interlock, and delay — maximum delay up to 500,000 seconds
- Universal Learning Code: Compatible with EV1527, PT2262, ASK, and OOK remote control protocols; stores up to 16 remotes
- High Sensitivity Reception: 433.92 MHz frequency with -108 dBm sensitivity for reliable long-range wireless performance

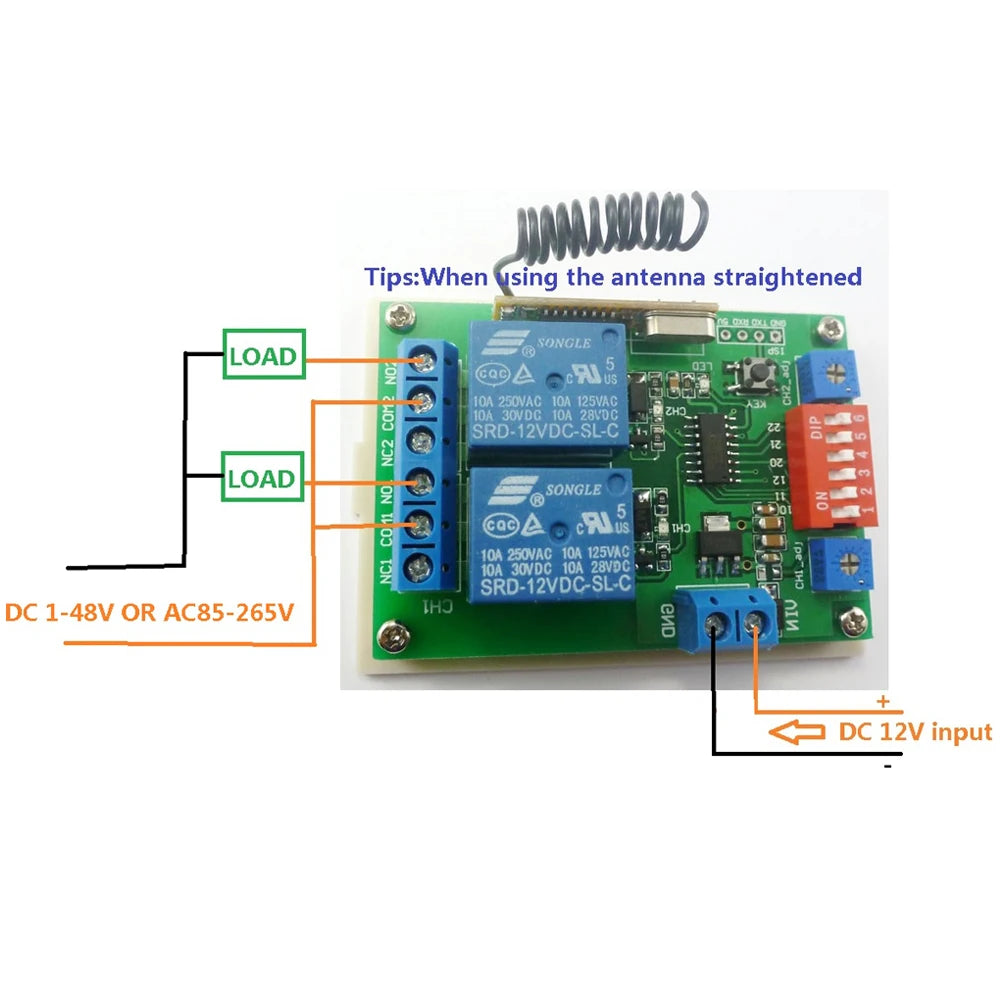

- High Load Capacity: Rated at 10A/250VAC, 10A/125VAC, 10A/30VDC — handles a wide range of real-world loads
- Low Standby Current: Only 14.5 mA with all relays off, keeping energy consumption minimal

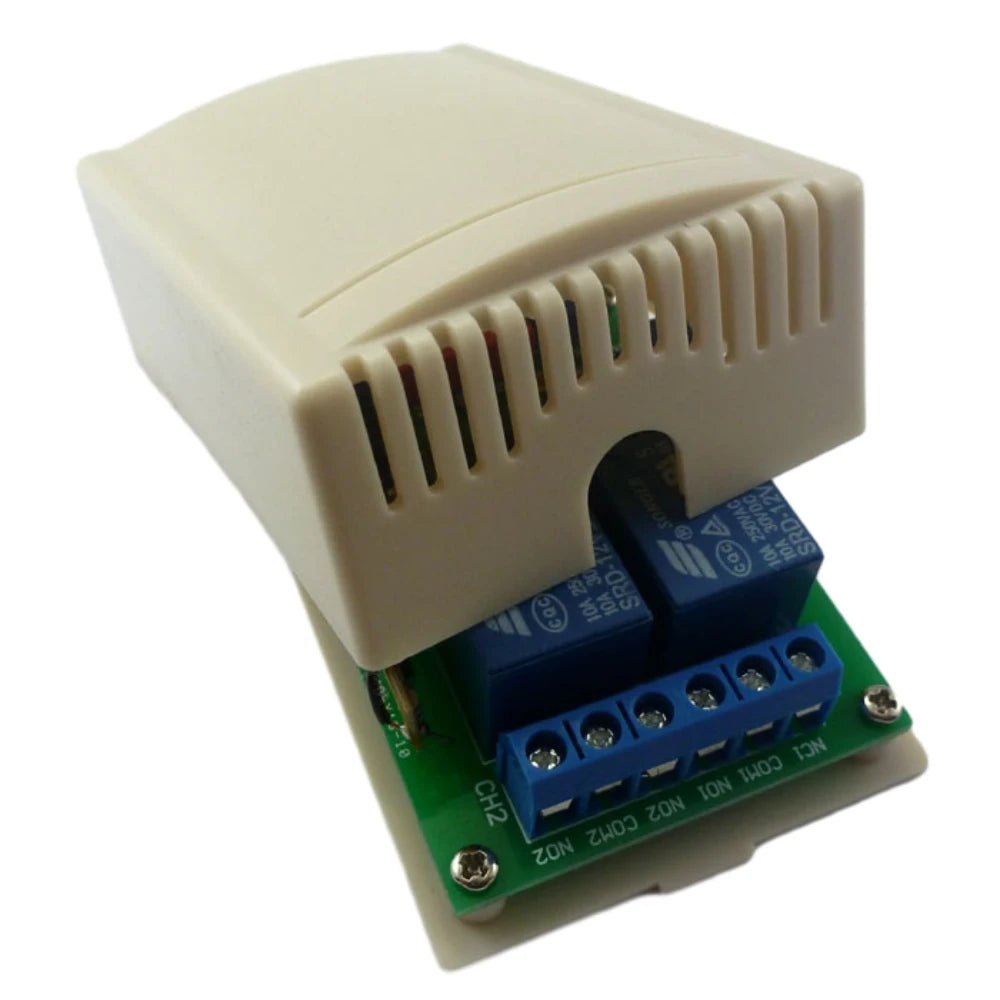

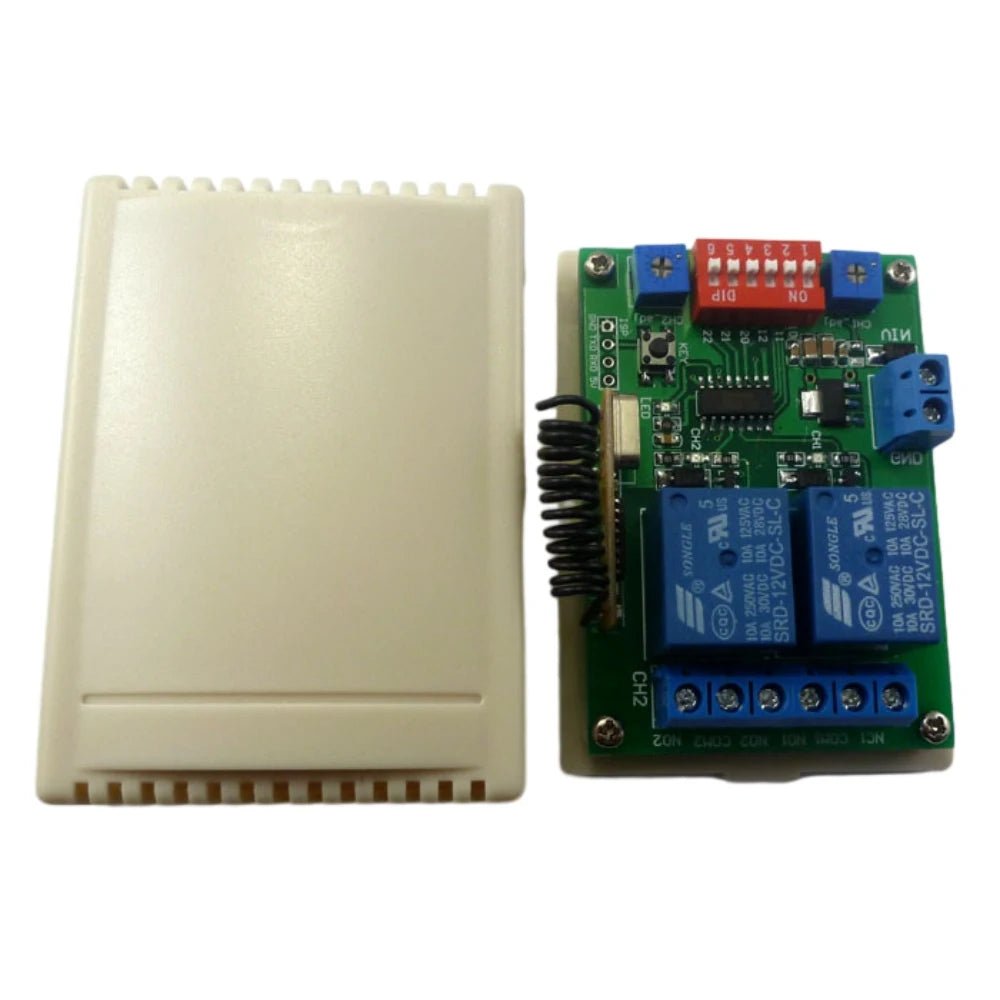

- Compact Enclosure: Shell dimensions 75 × 54 × 28 mm — fits easily into control panels and enclosures
Technical Specifications
| Working Voltage | DC 9V–13V (DC 12V recommended) |
| Operating Current | 14.5 mA (all off) / 43 mA (1 relay on) / 71 mA (2 relays on) |
| RF Frequency | 433.92 MHz |
| Reception Sensitivity | -108 dBm |
| Decoding Type | Learning code — EV1527, PT2262, ASK OOK compatible |
| Remote Storage | Up to 16 remote controls |
| Max Delay | 500,000 seconds |
| Max Load | 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC |
| Dimensions | 75 × 54 × 28 mm (including shell) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× CE029 Wireless Timer Delay Relay Module
Important Notes
- Due to differences in lighting and screen calibration, the actual product color may vary slightly from images shown.
- Please allow 1–10 mm variance due to manual measurement.
For guidance on safe electrical installation and load switching, refer to the OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: Which remote control protocols are compatible with this wireless relay module?
A: The CE029 relay module uses a universal learning-code decoder compatible with EV1527, PT2262, ASK, and OOK remote control protocols operating at 433.92 MHz. It can store up to 16 different remote controls simultaneously.
Q: What working modes does the CE029 timer delay relay module support?
A: The module supports point (momentary), self-locking (toggle), interlock, and programmable delay modes. Each channel can be configured independently, and the delay timer can be set for up to 500,000 seconds — offering exceptional flexibility for automation projects.
Q: What is the maximum electrical load this relay module can handle?
A: Each relay is rated for a maximum load of 10A at 250VAC, 10A at 125VAC, or 10A at 30VDC, making it suitable for controlling lighting, motors, valves, and other common electrical loads.
Q: What power supply does this relay module require?
A: The CE029 operates on DC 9V to 13V. A standard DC 12V power supply is recommended for optimal performance and stability.
