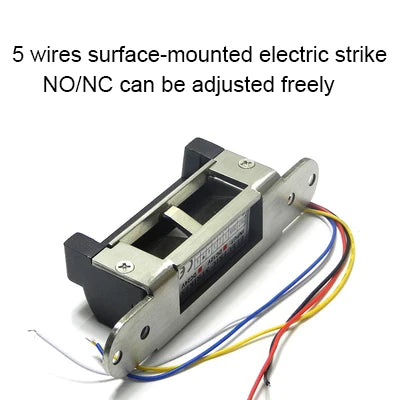

DC 12V Stainless Steel Fail Secure ANSI Electric Strike Lock
DC 12V Stainless Steel Fail Secure ANSI Electric Strike Lock
DC 12V Stainless Steel Narrow Frame Fail Secure ANSI Electric Strike Lock
Upgrade your access control system with this heavy-duty DC 12V ANSI Standard Electric Strike Lock. Built from thick stainless steel with built-in full copper coils, this electronically controlled door lock delivers a powerful 1000 kg holding strength while maintaining a sleek, narrow-frame profile — ideal for glass doors, stainless steel doors, and any framed door installations.
NO vs. NC — Which Mode Do You Need?
- NO (Normally Open / Fail Secure): Door is locked when power is OFF, unlocked when power is ON. Best for security-critical applications where the door must remain locked during a power outage.
- NC (Normally Closed / Fail Safe): Door is locked when power is ON, unlocked when power is OFF. Ideal for emergency egress doors that must open freely if power is lost.
Key Features
- Heavy-Duty Construction: Thick stainless steel body with high-quality electromagnetic materials for long-lasting durability.
- Residual Magnetism-Free: Special manufacturing process ensures no residual magnetism after extended operation, maintaining reliable performance.

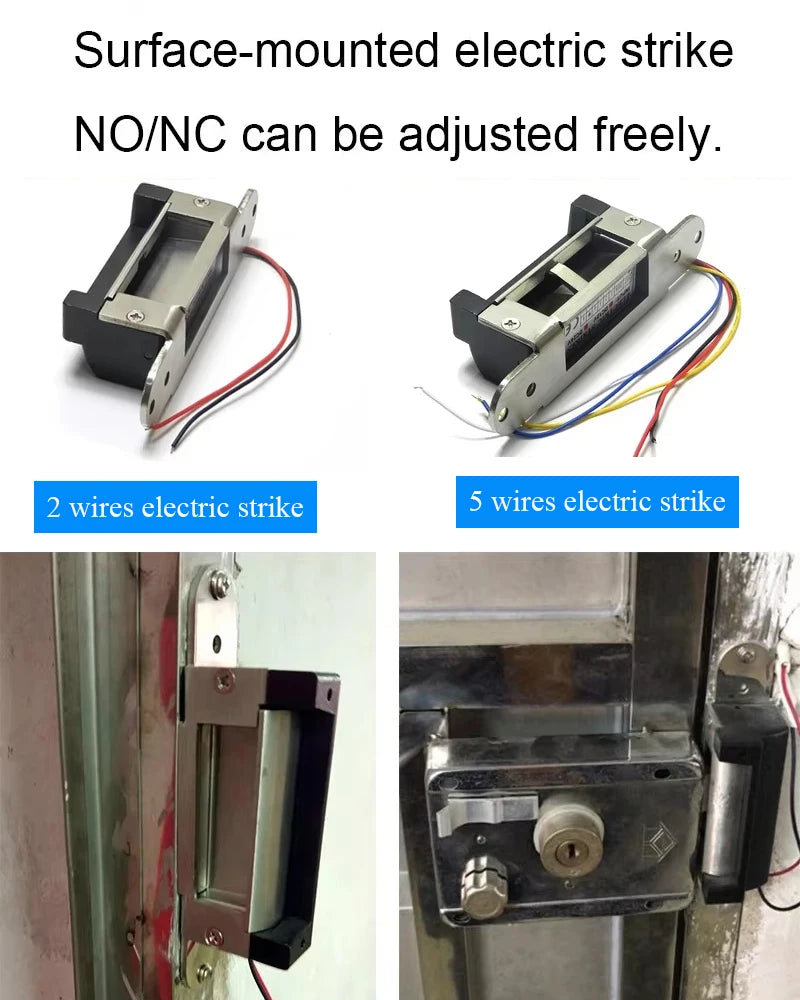

- Slim Narrow Frame Design: Embedded installation fits neatly into most standard and narrow door frames for a clean, professional appearance.
- Full Copper Coils: Premium copper coil internals provide stable electromagnetic performance and energy efficiency.
- CE Certified: Meets CE safety and quality standards for peace of mind.
- Versatile Compatibility: Works with virtually any access control system — keypads, card readers, intercoms, and more.
Specifications
| Model | 124A / 124B |
| Operating Voltage | 12V DC |
| Current Draw | 220mA (NO) / 170mA (NC) |
| Holding Strength | 1,000 kg |
| Lock Size | 124L × 43W × 32H mm / 140L × 42W × 33H mm |
| Bolt Structure | Stainless Steel |
| Weight | 0.6 kg |
| Certification | CE |
| Compatible Doors | Glass doors, stainless steel doors, framed doors |
| Country of Origin | Made in China |

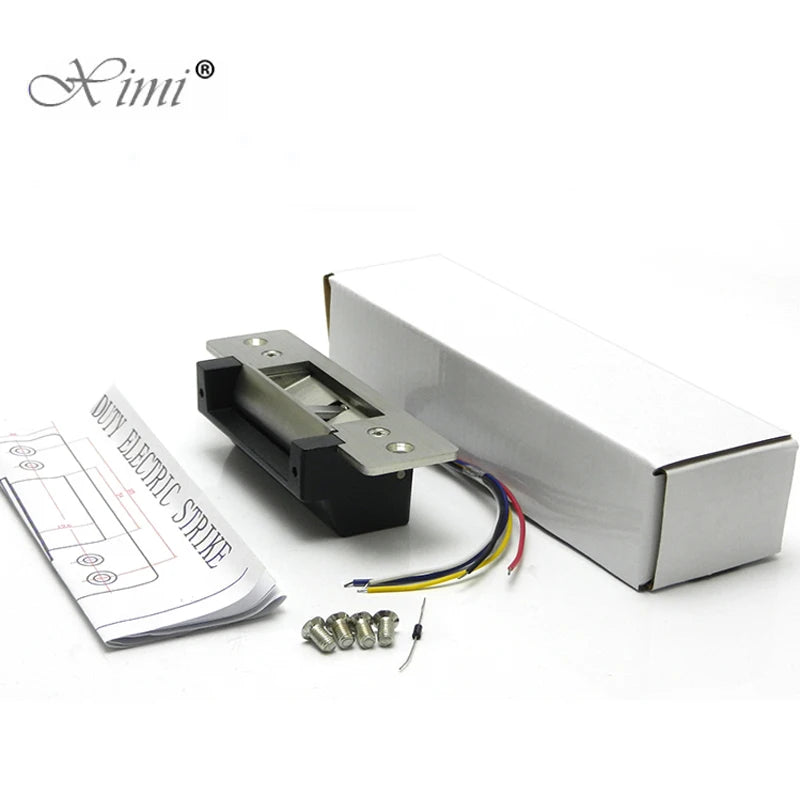

What's in the Box?
- 1 × DC 12V ANSI Electric Strike Lock (NO or NC configuration)
- Mounting hardware
Installation & Safety Resources
For guidance on safe installation of electronic access control hardware, refer to the U.S. Consumer Product Safety Commission (CPSC) for general product safety standards and best practices when installing electrical security devices in residential and commercial settings.
Frequently Asked Questions
Q: What is the difference between Fail Secure (NO) and Fail Safe (NC) electric strike locks?
A: A Fail Secure (NO) electric strike lock remains locked when power is cut, making it ideal for high-security doors where unauthorized entry must be prevented even during a power outage. A Fail Safe (NC) lock automatically unlocks when power is lost, which is required for emergency egress doors so occupants can exit safely. Choose the mode that matches your building's safety and security requirements.
Q: Is this electric strike lock compatible with my existing access control system?
A: Yes. This DC 12V ANSI standard electric strike lock is compatible with virtually all standard access control systems, including keypad controllers, RFID card readers, biometric readers, and video intercom systems — as long as the controller outputs a 12V DC signal. Always verify your controller's output voltage before installation.
Q: Can this lock be installed on a glass door?
A: Absolutely. The narrow-frame, embedded design of this electric strike lock makes it especially well-suited for glass door frames and slim stainless steel door frames. Its compact dimensions (as small as 124L × 43W × 32H mm) allow for clean, flush installation without bulky hardware.
Q: What is the holding strength of this electric strike lock?
A: This heavy-duty electric strike lock provides a holding strength of 1,000 kg (approximately 2,200 lbs), making it highly robust for both commercial and residential access control applications.
