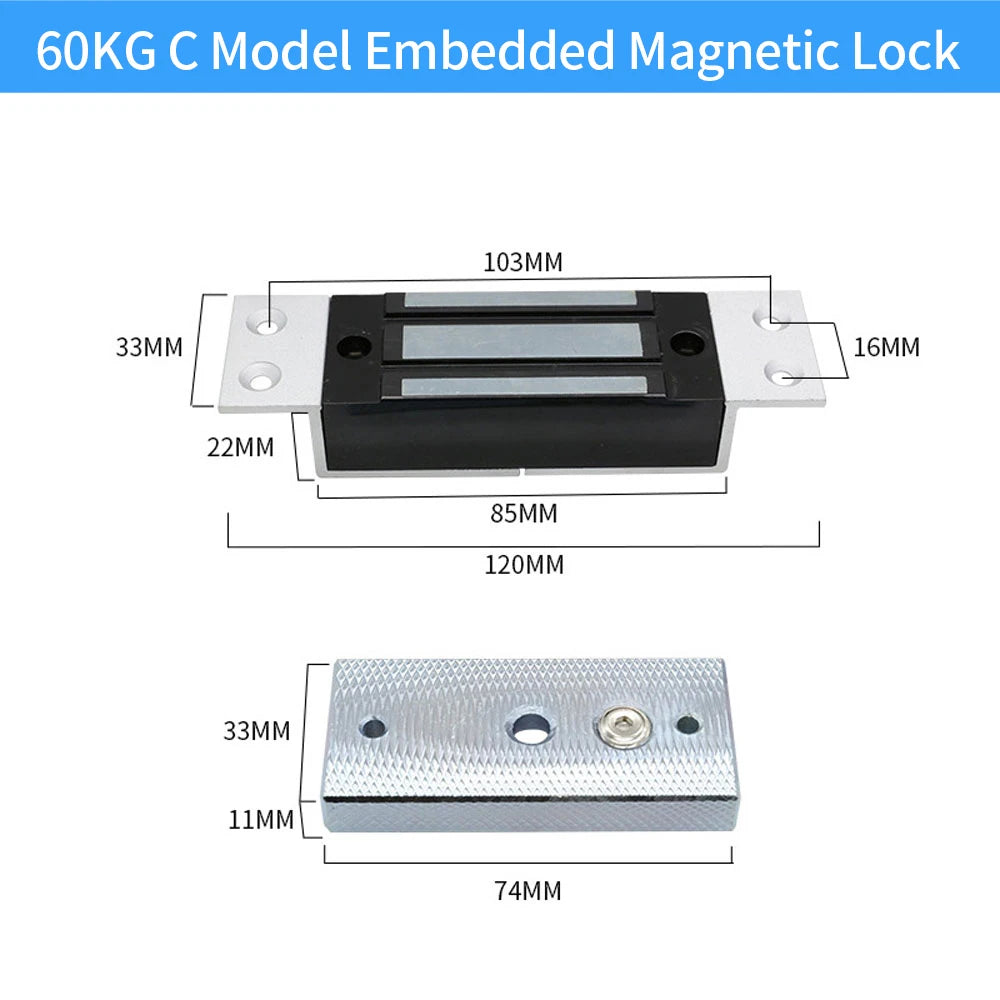

Asia-Teco Mini DC 12V Electromagnetic Door Lock — 60 kg (100 lbs) Holding Force
Keep cabinets, small gates, and interior doors securely latched with this compact DC 12V Electromagnetic Lock from Asia-Teco. Operating on a fail-safe principle — power on to lock, power off to release — it integrates effortlessly into any standard access-control system. Its embedded design keeps installation clean and discreet while delivering a reliable 60 kg (100 lbs) holding force.
Made in Mainland China.
Key Features
- Reliable Holding Force: 60 kg (≈100 lbs) electromagnetic clamping keeps doors firmly closed under normal operating conditions.
- Fail-Safe Operation: Lock engages when power is on; automatically releases when power is cut — ideal for emergency-egress compliance.
- Built-In Reverse-Current Protection (MOV): Internal metal oxide varistor guards your control board against voltage spikes.
- Embedded / Flush-Mount Design: Low-profile housing mounts flush into the door frame for a neat, tamper-resistant finish.
- Wide Compatibility: Works with file cabinets, shopping display cabinets, locker doors, and other small interior doors.
- Corrosion-Resistant Shell: Hard-anodised aluminium housing stands up to daily use and humidity up to 90%.
- Multiple Release Options: Compatible with push-button exits, remote controllers, RFID readers, keypads, and more.
- 1-Year Warranty: Covered against manufacturing defects (excludes accidental or force-majeure damage).
Technical Specifications
| Input Voltage | DC 12V ±10% |
| Working Current | 0.30 A |
| Holding Force | 60 kg (100 lbs) |
| Working Mode | Fail-Safe (power-on to lock) |
| Suitable For | File cabinets, display/shopping cabinets, small doors |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Surface Temperature | ≥ 20% lower than ambient temperature |
| Humidity | 0 – 90% RH |
| Net Weight | 0.6 kg |
| Warranty | 1 Year (manufacturing defects) |

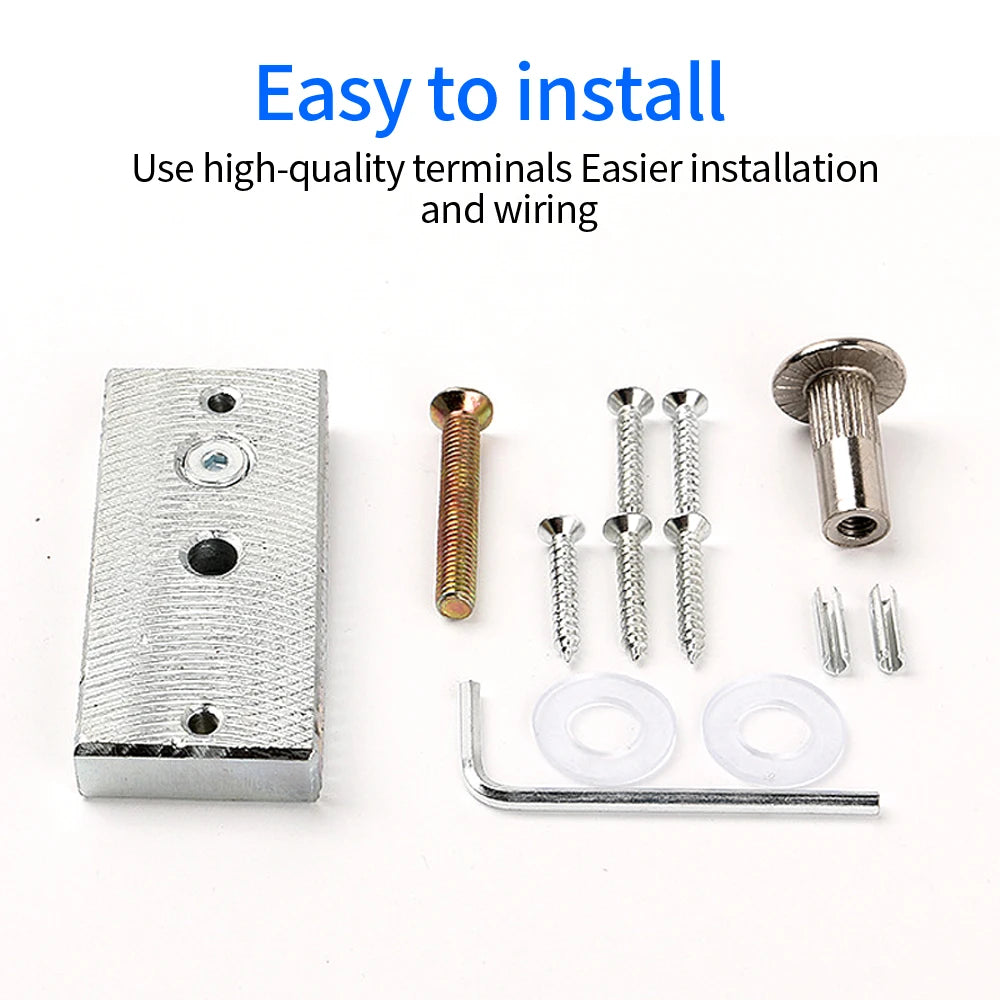

What's in the Box
- 1 × Electromagnetic Lock Body
- 1 × Armature Plate
- 1 × Installation Hardware Kit
- 1 × Rubber/Foam Pad
Safety & Standards Reference
For general guidance on access-control hardware and electrical safety in building applications, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the holding force of this electromagnetic door lock, and is it enough for a cabinet door?
A: This mini electromagnetic lock provides a holding force of 60 kg (approximately 100 lbs), which is well-suited for file cabinets, display cabinets, locker doors, and other compact interior doors. For heavier full-size doors, consider a higher-capacity model (180 kg–500 kg).
Q: Does this lock require a constant power supply to stay locked?
A: Yes — this is a fail-safe electromagnetic lock, meaning it locks when power is applied and automatically releases when power is cut. This design is commonly used in access-control and emergency-egress applications because it allows doors to open freely during a power outage.
Q: What access-control devices can I use to release this lock?
A: The lock is compatible with a wide variety of release devices, including push-button exit switches, RFID card readers, keypads, remote controllers, and access-control panels that support DC 12V electromagnetic locks. Simply wire the release device to interrupt power to the lock.
Q: Is this lock suitable for outdoor or high-humidity environments?
A: The lock is rated for humidity up to 90% RH and temperatures from -10 °C to 55 °C, making it suitable for indoor environments with moderate humidity. For exposed outdoor installations, additional weatherproofing measures are recommended.
