DC 12V Fail-Safe Solenoid Electromagnet 7kg Holding Force

DC 12V Compact Electromagnet Solenoid – 7kg (70N) Holding Force

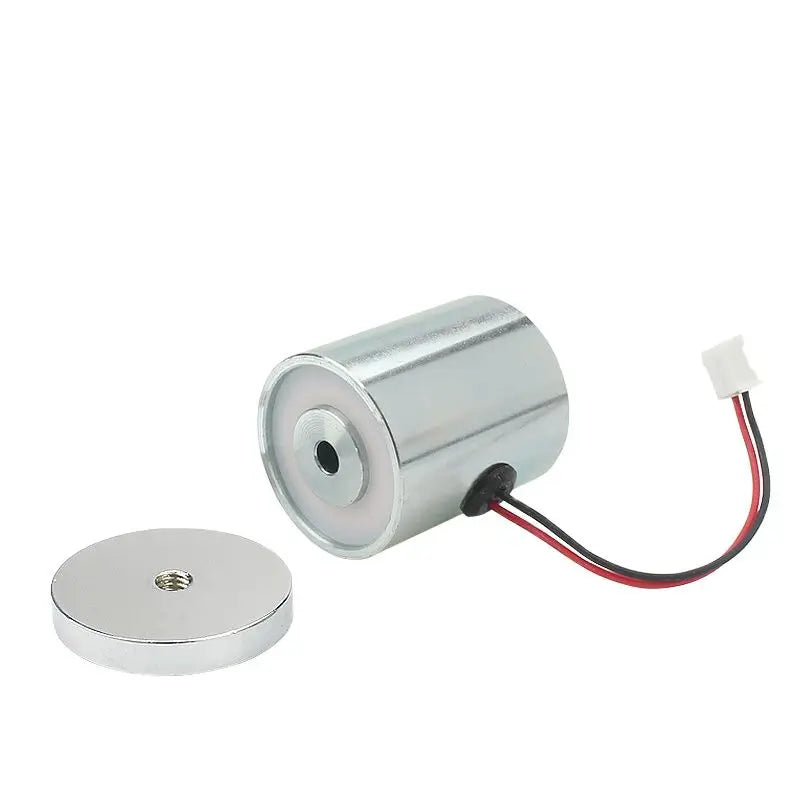

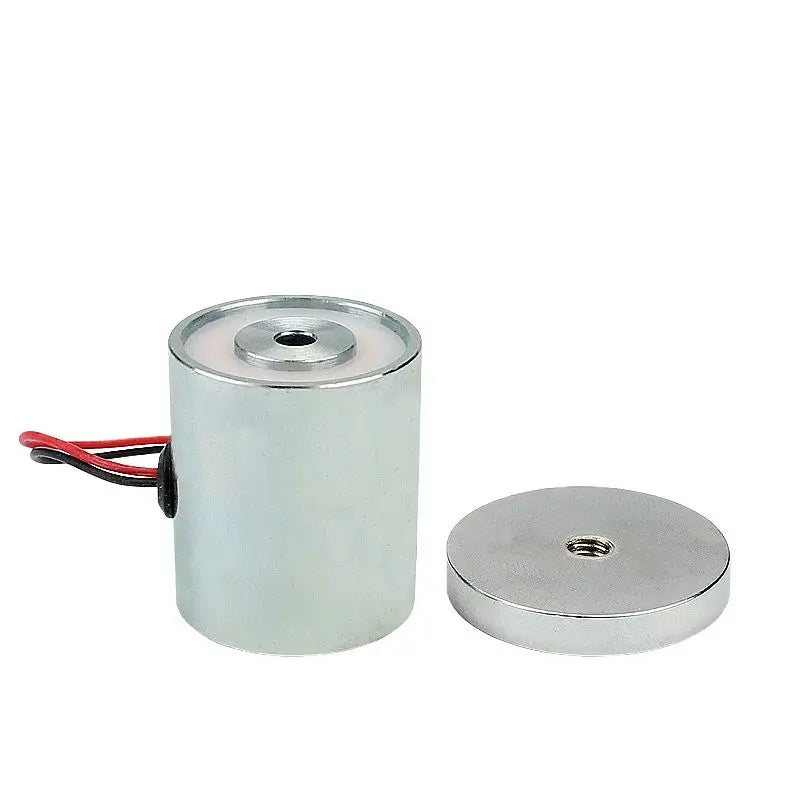

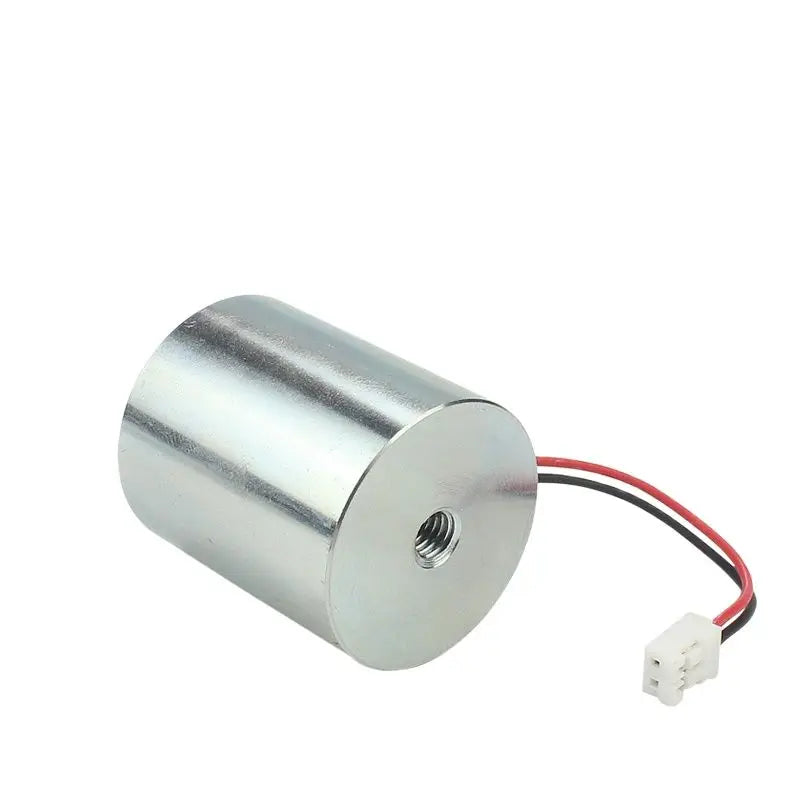

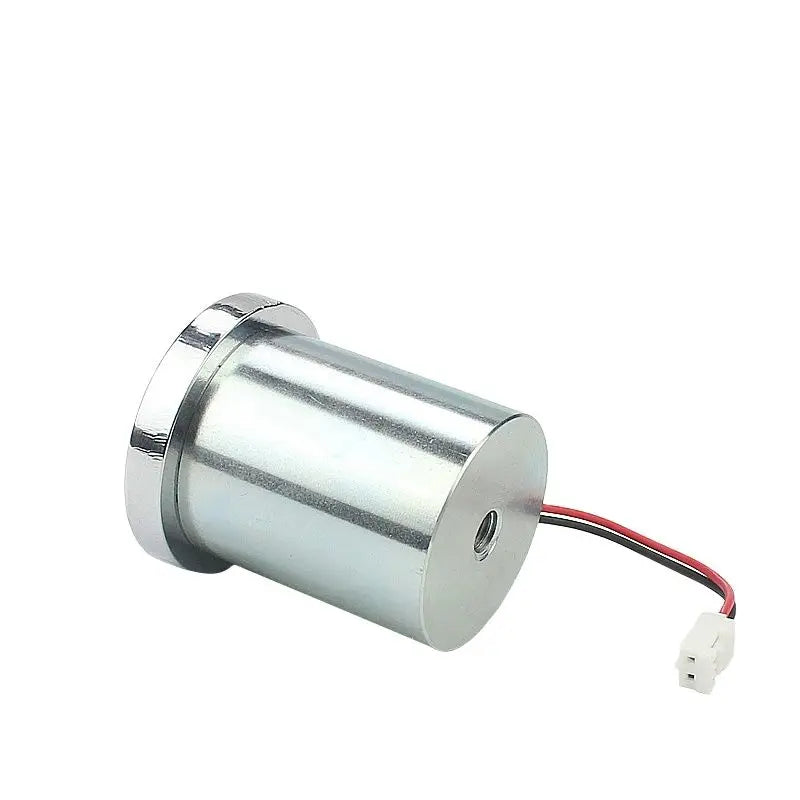

Meet the SARY LY-2529 Fail-Safe Electromagnet — a compact, energy-efficient DC 12V solenoid designed for automation systems, robotic arms, sorting machines, assembly lines, and experimental setups. Its unique non-energized magnetic (fail-safe) operation means: power OFF = magnetic force ON, power ON = magnetic force OFF. This makes it ideal for safety-critical applications where you need to hold an object in place when power is removed.

Made in Mainland China.

Key Features

• Fail-Safe Operation: Magnetic force is active when power is OFF — perfect for secure holding without continuous power draw
• 7kg / 70N Holding Force: Impressive gripping strength in a compact 25mm × 29mm stick-style form factor
• Low Power Consumption: Operates at only 7.2W (DC 12V / 0.6A), keeping energy costs minimal
• Durable Metal Construction: Smooth, flat silver-finish surface ensures consistent contact and maximum holding performance
• Wide Application Range: Automation assembly lines, robotic mechanical arms, sorting equipment, experimental labs, and more
• High Temperature Tolerance: Rated for ambient temperatures up to 130°C
• M5 Thread Size: Easy to mount and integrate into existing systems

Product Specifications

Wiring Instructions

Important: This electromagnet uses a reversed polarity wiring convention:
🔴 Red wire → Negative (–) pole of power supply
⚫ Black wire → Positive (+) pole of power supply

Conditions for Maximum Holding Force

To achieve the rated 7kg holding force, ensure all of the following conditions are met:

1. The target object must have good magnetic permeability (ferromagnetic material such as iron or steel).
2. Use the correct rated voltage (DC 12V).
3. The target object's surface must be flat and clean.
4. The contact area of the target object must be equal to or larger than the magnet surface.
5. The target object must be at least 8mm thick — holding force decreases as thickness decreases.
6. There must be direct contact between the magnet and target — no gaps, coatings, or intermediate objects.

Note: If any of the above conditions are not fully met, the effective holding force will be lower than the rated maximum.

Typical Applications

• Automated assembly lines
• Industrial sorting machines
• Robotic mechanical arms
• DIY electronics and engineering experiments
• Access control and locking mechanisms
• Laboratory automation setups
