DC 12V Metal Electric Rim Lock – Integrated Access Control for Any Door
Take control of your entryway with the Asia-Teco DC 12V Electric Rim Lock. This rugged, stainless-steel door lock integrates seamlessly with access control systems and works on wooden, steel, and stainless-steel doors. With automatic locking on door close, whisper-quiet operation, and a rated lifetime of 500,000 cycles, it's the smart choice for homes, offices, schools, hotels, and warehouses alike.
Key Features
- Auto-Locking: Engages automatically every time the door closes — no manual effort required.
- Low Power Consumption: Static current of just 25 mA keeps energy use minimal without compromising security.
- Corrosion-Resistant Finish: Steel wire-drawing surface treatment keeps the lock body durable and attractive over years of use.
- Ultra-Fast Unlock: Unlock response time ≤ 1 second for smooth, hassle-free entry.
- Universal Swing Compatibility: Designed for left-hand, right-hand, in-swing, and out-swing doors.
- Multiple Control Modes: Compatible with electrical access control systems, key operation, or manual hand release.

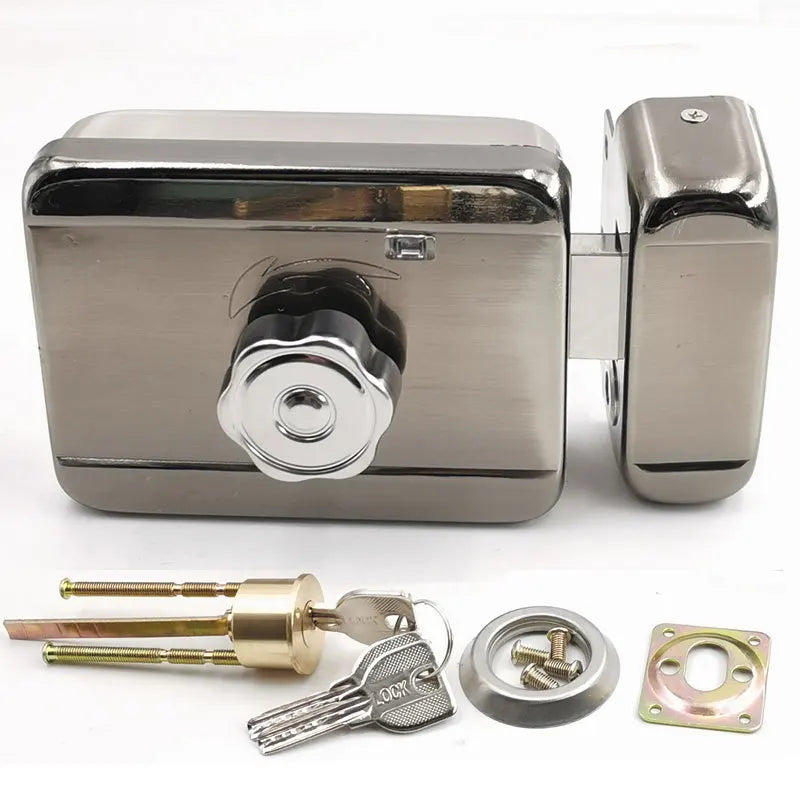

- Manual Override Included: 3 physical keys included — the lock can be opened from both inside and outside even during a power outage.
- Wide Application: Ideal for residential buildings, public entrances, schools, hotels, office buildings, factory gates, and warehouse doors.

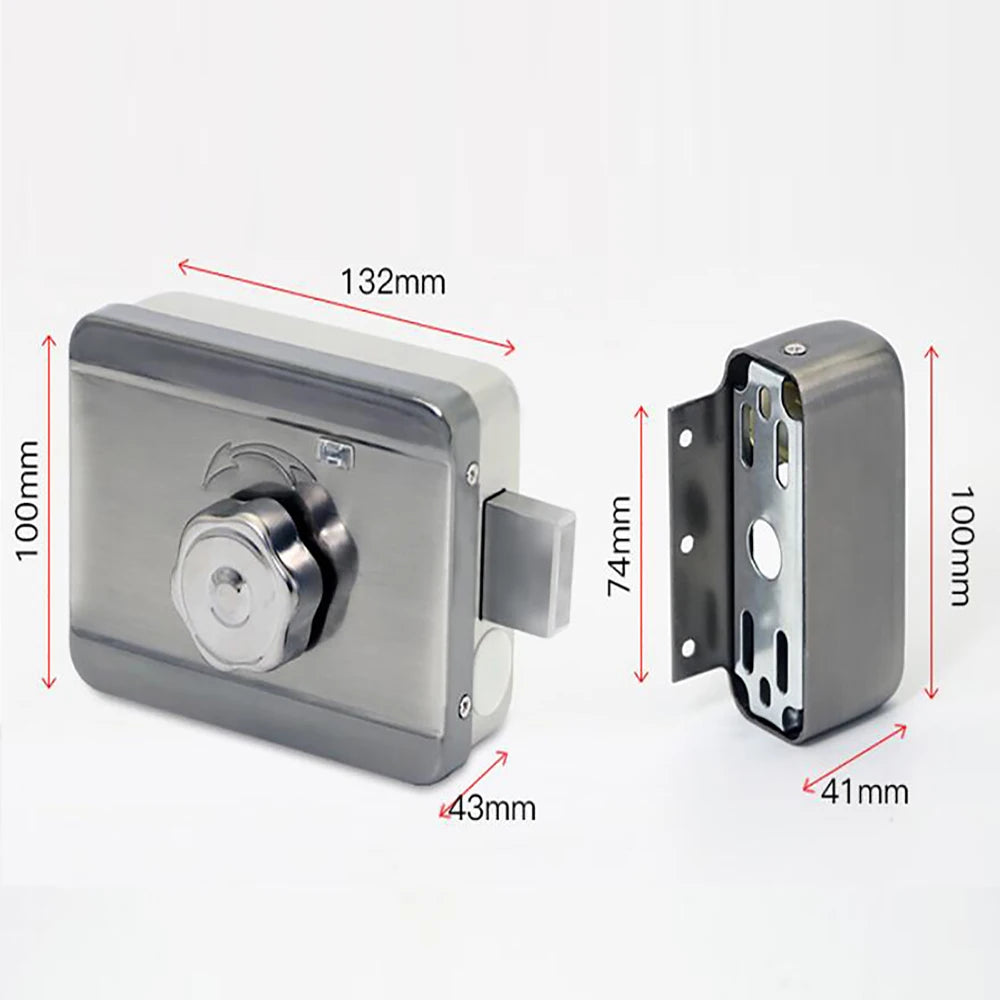

Technical Specifications
| Working Voltage | DC 12V – 18V |
| Unlock Current | < 350 mA |
| Static Current | 25 mA |
| Rated Lifetime | 500,000 cycles |
| Unlock Time | ≤ 1 second |
| Material | Stainless Steel |
| Lock Bolt Length | > 20 mm |
| Compatible Door Thickness | 4 – 11 cm |
| Operating Temperature | -40°C to 50°C |
| Operating Humidity | 10% – 90% RH |
| Installation Method | Drilling installation |
| Keys Included | 3 |
Country of Origin: Made in Mainland China.
For guidance on best practices in building security and access control, visit the U.S. Consumer Product Safety Commission – Home Safety Resources.
Frequently Asked Questions
Q: Is this electric rim lock compatible with standard home access control systems?
A: Yes. The DC 12V electric rim lock supports electrical control input (DC 12V–18V), making it compatible with most standard home and commercial access control systems, including keypad, card reader, and intercom setups. It also supports manual key and hand operation as a backup.
Q: Can the electric rim lock be used during a power outage?
A: Absolutely. The lock includes a manual override function with 3 physical keys provided. Even with no power supply, the door can be opened from both inside and outside using the included keys, ensuring you are never locked in or out.
Q: What types of doors is this electric rim lock compatible with?
A: This lock is designed for universal compatibility. It works with wooden doors, steel doors, and stainless-steel doors, and supports left-hand, right-hand, in-swing, and out-swing configurations. Door thickness must be between 4 cm and 11 cm for proper installation.
Q: How difficult is the installation process?
A: Installation requires basic drilling into the door frame and connecting to a 12V DC power supply. It is a surface-mounted (rim) lock, so no mortising is needed. Most users with basic DIY skills can complete the installation; a professional installer is recommended for wiring into an access control system.
