DC12V Electric Mortise Door Lock with Timer – Fail Safe & Fail Secure
Upgrade your access control system with this versatile DC12V Electric Mortise Door Lock (Model XM-200) from Ximiir. Designed for both residential and commercial applications, this 2-wire bolt lock offers dual operating modes — Fail Safe (unlocks when power is cut) and Fail Secure (remains locked when power is cut) — giving you the flexibility to suit your security requirements. Built with a durable aluminum alloy face plate and rated for normal and low-temperature environments, this lock delivers reliable, consistent performance year-round.
Key Features
- Dual Mode Operation: Choose between Fail Safe and Fail Secure modes to match your access control needs

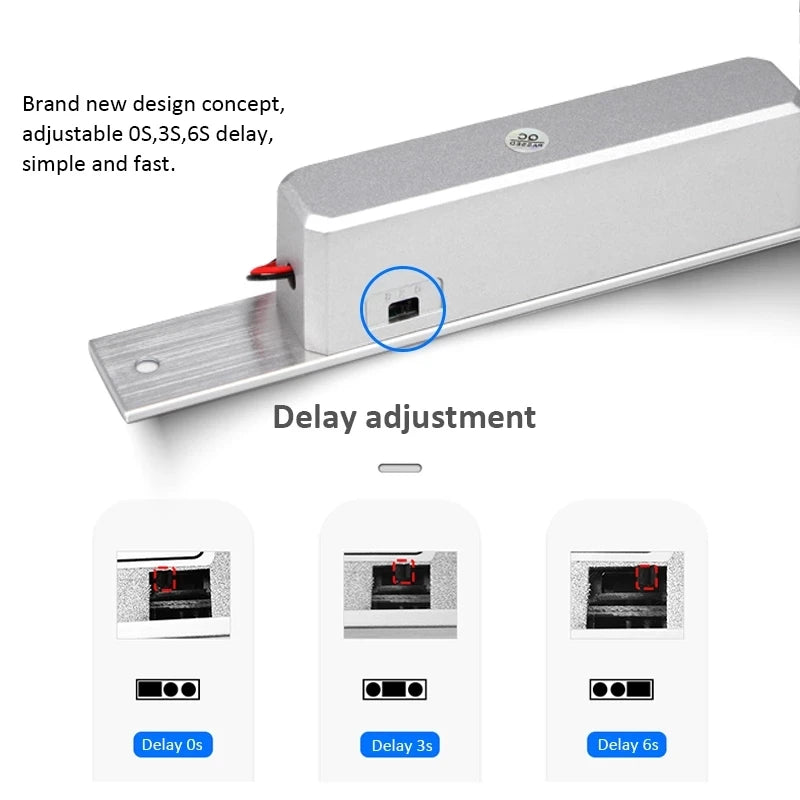

- Built-in Timer Function: Magnetic output with integrated timer for automated locking and unlocking cycles
- Simple 2-Wire Installation: Straightforward wiring makes setup quick and hassle-free
- DC12V Power Supply: Compatible with standard access control power sources; low standby current of just 130mA for energy efficiency
- Robust Bolt Design: 16mm throw and 16mm diameter bolt for a secure, positive engagement every time
- Aluminum Alloy Face Plate: Corrosion-resistant and built to withstand heavy daily use

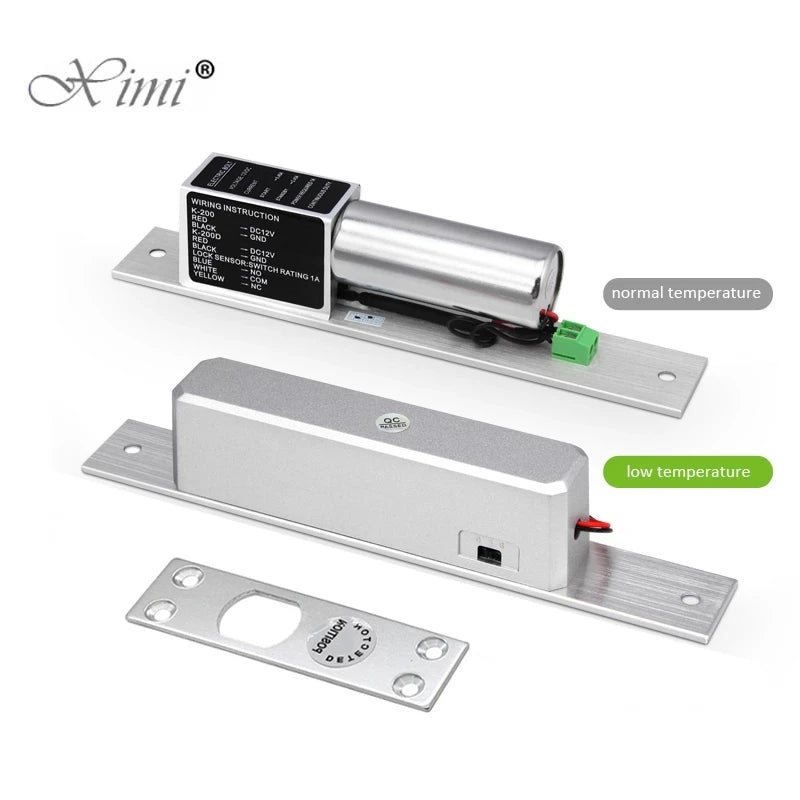

- Wide Temperature Range: Operates reliably in both normal and low-temperature environments
- CE Certified: Meets European conformity standards for safety and performance
Technical Specifications
| Model | XM-200 |
| Voltage | DC 12V |
| Start Current | 960mA |
| Standby Current | 130mA |
| Bolt Throw | 16mm |
| Bolt Diameter | 16mm |
| Strike Plate | 90L × 25W × 2H (mm) |
| Face Plate Material | Aluminum Alloy |
| Certification | CE |
| Temperature Range | Normal / Low Temperature |
| Country of Origin | Made in China |
Ideal Applications
- Office and commercial building access control
- Residential security doors
- Server rooms and restricted-access areas
- Apartment building entry points
- Storage facilities and warehouses
For guidance on home and building security best practices, visit the U.S. Consumer Product Safety Commission (CPSC), which provides helpful resources on product safety standards and compliance.
Frequently Asked Questions
Q: What is the difference between Fail Safe and Fail Secure modes on this electric mortise door lock?
A: In Fail Safe mode, the lock automatically unlocks when power is cut — ideal for emergency egress doors where people must be able to exit freely during a power outage. In Fail Secure mode, the bolt remains locked when power is removed, keeping the area secured even during a power failure. This DC12V electric mortise lock supports both modes, making it highly adaptable.
Q: What power supply do I need for this DC12V electric mortise lock?
A: This lock requires a DC 12V power supply. It draws 960mA at startup and drops to a low standby current of 130mA during normal operation, making it compatible with most standard access control power supplies and panels.
Q: Is the installation of this 2-wire electric bolt lock difficult?

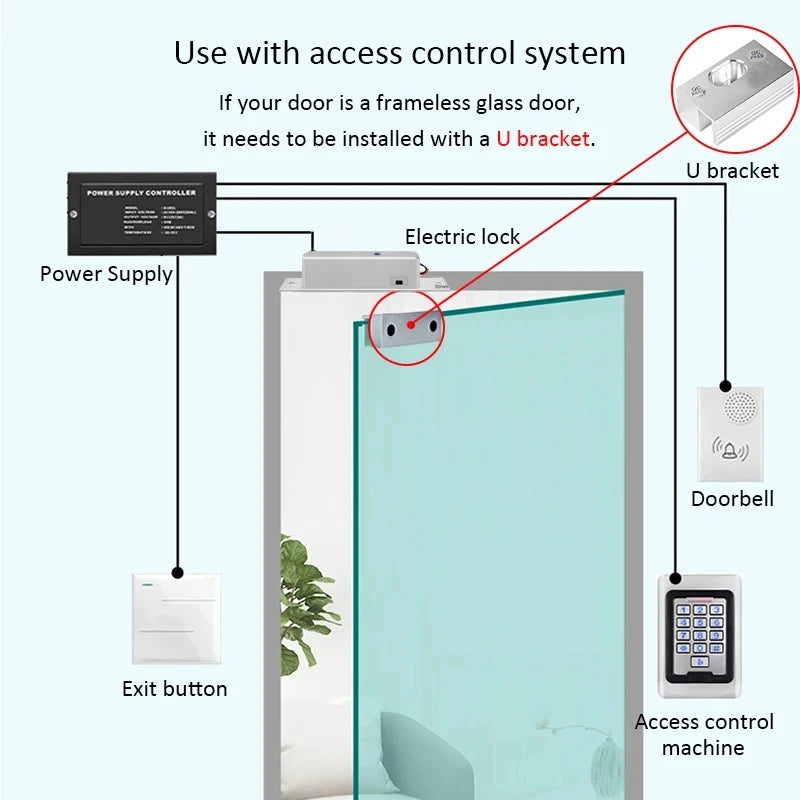

A: Not at all. The simple 2-wire connection means you only need to connect positive and negative leads to your power/control source. It is designed for integration with common access control systems, keypads, card readers, and intercoms, making installation straightforward for both professionals and experienced DIYers.
Q: Can this electric mortise door lock be used in cold environments?
A: Yes. The XM-200 is rated for both normal and low-temperature environments, ensuring dependable operation in cold storage areas, outdoor entryways in cooler climates, or any location subject to temperature fluctuations.
