Asia-Teco DC12V Electric Drop Bolt Lock – Fail Safe Electronic Mortise Lock
Upgrade your access control system with the Asia-Teco B1L Electric Drop Bolt Lock — a robust, aluminium alloy electronic mortise lock engineered for glass, wooden, metal, and frame doors. Operating on a reliable DC 12V power supply, this smart electric lock delivers dependable entry management for homes, offices, retail shops, and commercial properties. Made in Mainland China.
Key Features
- Fail Safe (NC Mode): Door locks when power is supplied and automatically unlocks when power is cut — ideal for emergency egress compliance.
- Adjustable Time Delay: Conveniently switch between 0, 3, or 6-second time delay settings to suit your access workflow.
- Magnetic Induction Locking: Special circuit design ensures the door remains unlocked only after power is removed, with no external interference for enhanced stability.
- Durable Aluminium Alloy Construction: High-grade alloy housing resists daily wear and provides a long service life.
- Wide Door Compatibility: Suitable for wooden doors, metal doors, and frame glass doors — a versatile choice for nearly any access point.
- Low Power Consumption: Low standby and operating current keeps energy costs minimal in always-on installations.
- 100% Brand New: Sourced directly from Asia-Teco, model B1L.
Product Specifications
| Brand | Asia-Teco |
| Model | B1L |
| Working Voltage | DC 12V |
| Start-up Current | 1.2A |
| Operating Current | 0.25A |
| Lock Mode | Magnetic Induction |
| Working Mode | Fail Safe – NC Mode (Locked when powered, unlocked when power off) |

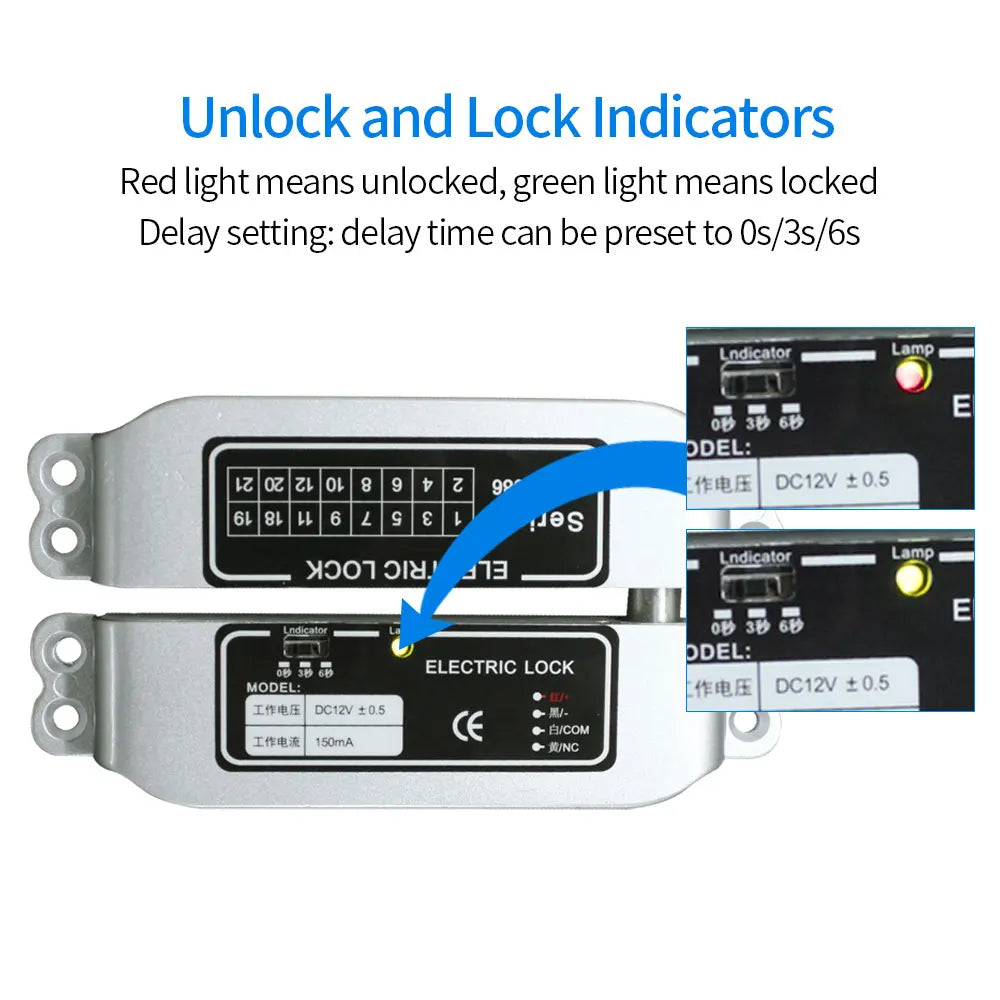

| Time Delay | 0 / 3 / 6 seconds (adjustable) |
| Material | Aluminium Alloy |
| Dimensions | 150 × 34 × 28 mm |
| Compatible Doors | Wooden, Metal, Frame Glass |
| Country of Origin | Mainland China |
Who Is This For?
The Asia-Teco B1L is perfect for property managers, security installers, small business owners, and homeowners who want a reliable, easy-to-integrate electric bolt lock for their access control systems. Its straightforward wiring and adjustable time delay make it a professional-grade solution without the complexity.
Safety & Standards Reference
For general guidance on electrical safety and building access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Electrical Safety resources for best practices when installing low-voltage locking hardware.
Frequently Asked Questions
Q: What does "Fail Safe" (NC Mode) mean on this electric drop bolt lock?
A: Fail Safe, or Normally Closed (NC) mode, means the lock engages and secures the door when power is supplied. If the power is interrupted or cut off, the bolt retracts automatically, allowing the door to open. This is an important safety feature for emergency egress in commercial and residential buildings, ensuring occupants can always exit if the power fails.
Q: What types of doors is the Asia-Teco B1L electric mortise lock compatible with?
A: The Asia-Teco B1L electric drop bolt lock is designed to work with wooden doors, metal doors, and frame glass doors, making it a versatile access control solution for a wide range of residential and commercial applications.
Q: How do I adjust the time delay on this electric bolt lock?
A: The lock features a simple adjustable time delay switch with three settings: 0 seconds (instant), 3 seconds, or 6 seconds. You can select the desired delay to control how long the lock waits before re-engaging after an access event, providing flexibility for your specific access control workflow.
Q: What power supply does the DC12V electric drop bolt lock require?
A: This lock operates on a DC 12V power supply with a start-up current of 1.2A and an operating current of 0.25A. It is designed for use with standard access control power supplies and is compatible with most access control system panels available on the market.
