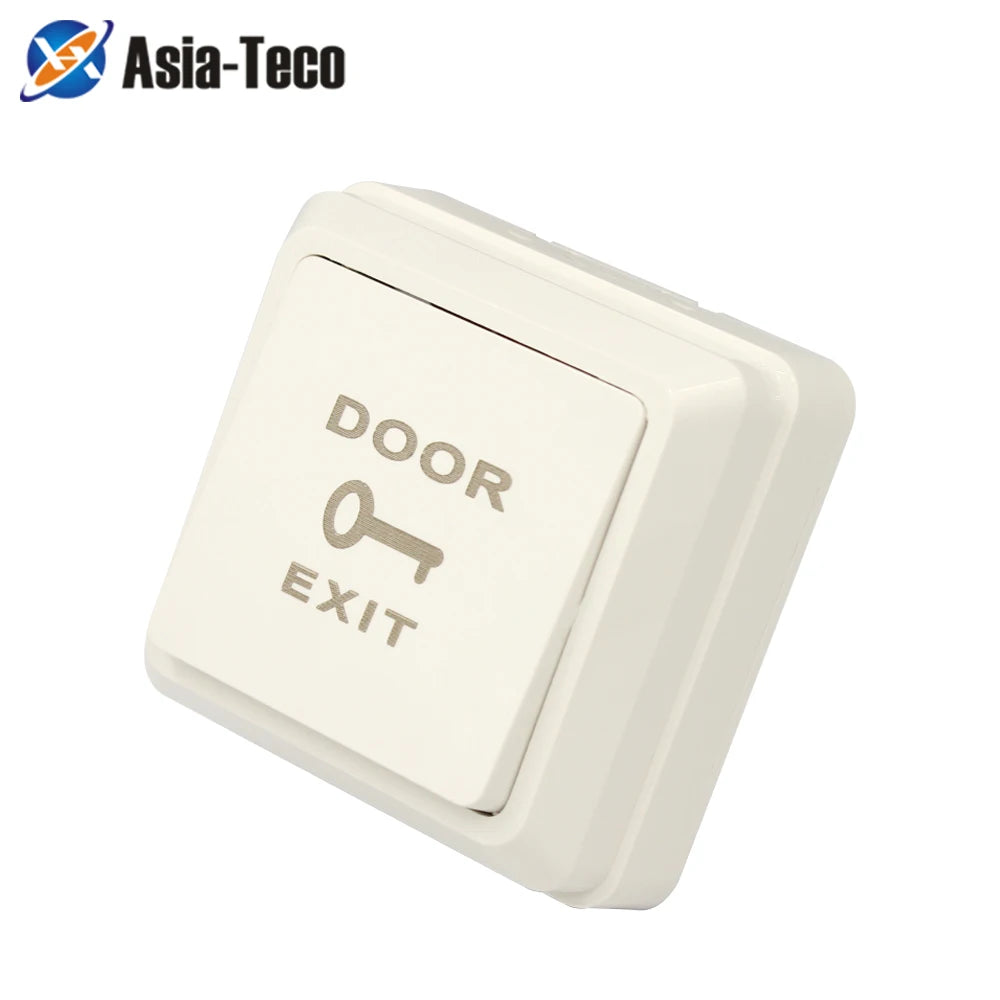

Asia-Teco PM5 Door Exit Push Button Switch – Wall-Mounted Access Control

Take control of your entry points with the Asia-Teco PM5 DC 12V Door Exit Push Button Switch. Designed for seamless integration with electronic door locks and access control systems, this wall-mounted push button delivers reliable, jog-type momentary contact every time. Whether you're upgrading a home office, securing a commercial entrance, or managing a multi-door facility, the PM5 is a compact, durable, and easy-to-install solution.

Made in Mainland China.

How It Works

When the button is pressed, the internal contacts close, completing the circuit and triggering the power controller to briefly short-circuit — driving the electric lock to unlock. Once the button is released, the power supply re-energizes during the pre-set duration to complete the full door open-and-close cycle. Simple, fast, and dependable.

Key Features

  • Universal Compatibility: Works with all common gate frames and electronic door lock systems (NO/NC/COM contact output)
  • Jog-Type Momentary Operation: Press to unlock — automatically resets when released
  • Durable ABS Plastic Construction: Lightweight yet sturdy panel material built to withstand daily use
  • Wall-Mount Box Included: Comes with mounting box for clean, professional installation on any wall surface
  • Wide Temperature Range: Operates reliably from -10°C to 55°C (-14°F to 131°F)
  • Dry Contact Signal Control: Low-interference signal output for stable, consistent performance

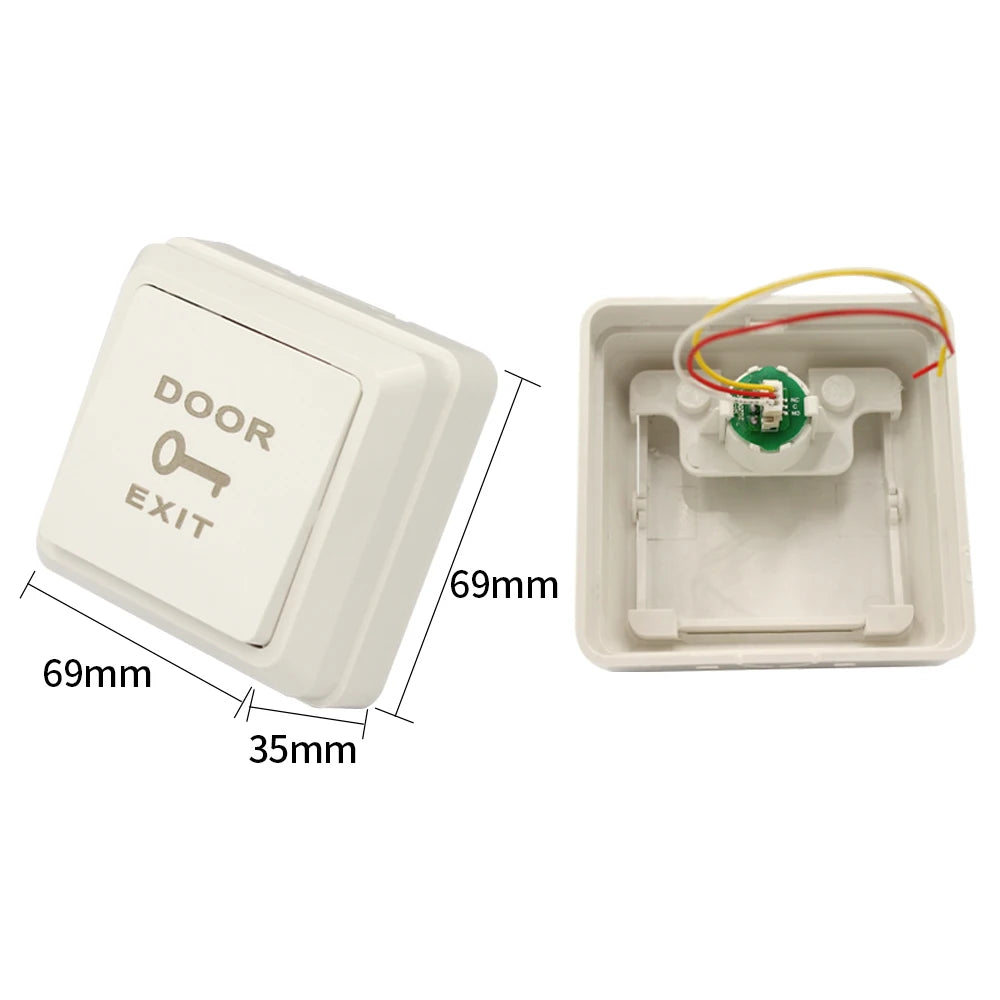

  • Compact Footprint: Measures just 69 × 69 × 35 mm — unobtrusive on any wall

Technical Specifications

Model PM5 / PM05
Input Voltage DC 12V / 3A
Contact Output NO / NC / COM
Power Supply Mode Dry Contact Signal Control
Working Method Jog Type (Momentary)
Panel Material ABS Plastic
Dimensions 69 × 69 × 35 mm (approx.)
Net Weight 0.04 kg
Operating Temperature -10°C to 55°C
Application All kinds of gate frames
Origin Mainland China

What's in the Box

  • 1 × Asia-Teco PM5 Exit Push Button Switch
  • 1 × Wall-Mount Box

Installation & Safety

This device is designed for low-voltage DC 12V systems. Always ensure your access control system is powered off before installation. For guidance on electrical safety during installation, refer to OSHA's Electrical Safety Standards.

Frequently Asked Questions

Q: Is the Asia-Teco PM5 push button compatible with my existing access control system?

A: Yes — the PM5 door exit push button features NO/NC/COM contact output, making it compatible with virtually all standard access control systems and electronic door locks that operate on a DC 12V / 3A dry contact signal. Check your controller's specifications to confirm voltage and contact type match.

Q: Does the PM5 push button switch come with a mounting box?

A: Yes. The Asia-Teco PM5 includes a wall-mount box, allowing for a clean, secure, and professional installation directly on any wall surface without the need for additional hardware.

Q: What does "jog type" or "momentary" operation mean for a door exit button?

A: Jog-type (momentary) means the circuit is only active while the button is physically pressed. Once you release the button, the contacts reset automatically, and the door lock completes its open-and-close cycle within the pre-set time on your controller. This is the standard and most secure operating mode for access control exit buttons.

Q: Can the PM5 be used outdoors or in temperature-extreme environments?

A: The PM5 is rated for operating temperatures between -10°C and 55°C (-14°F to 131°F), making it suitable for both indoor and sheltered outdoor installations. For fully exposed outdoor use, additional weatherproofing of the mounting enclosure is recommended.
