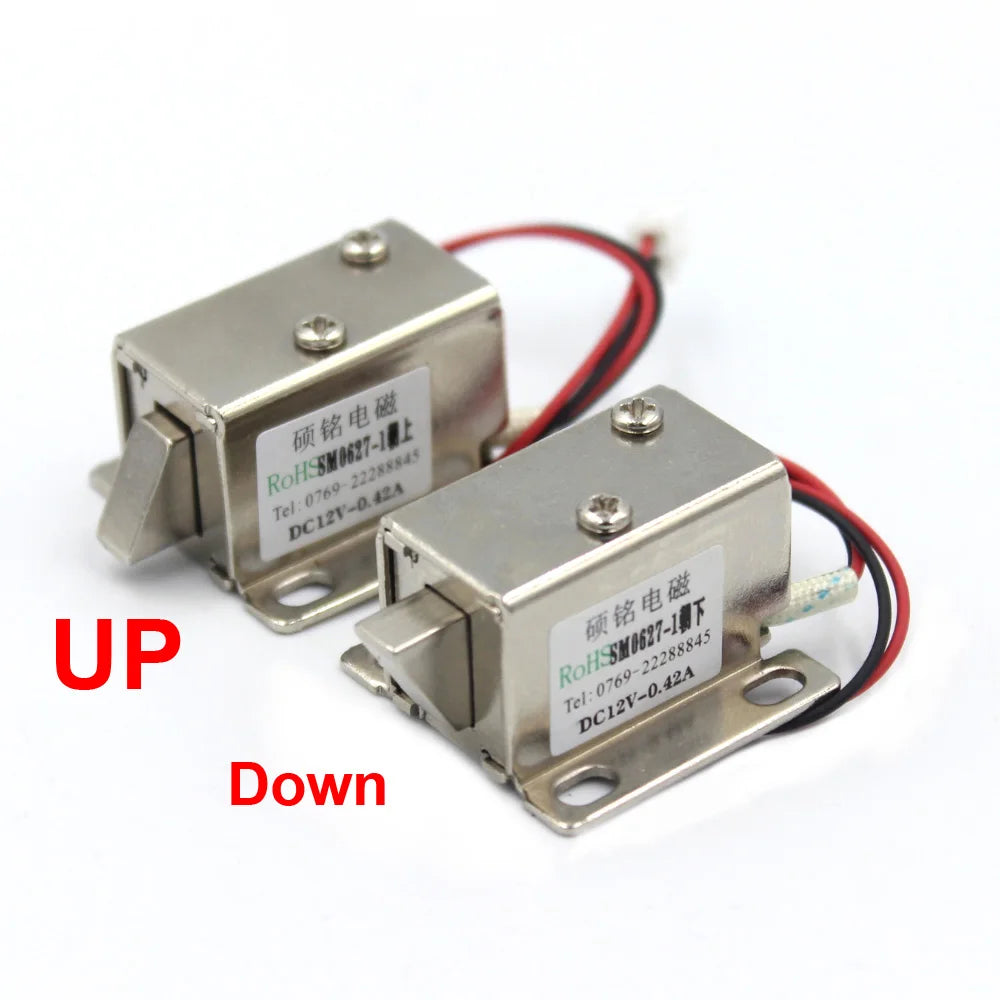

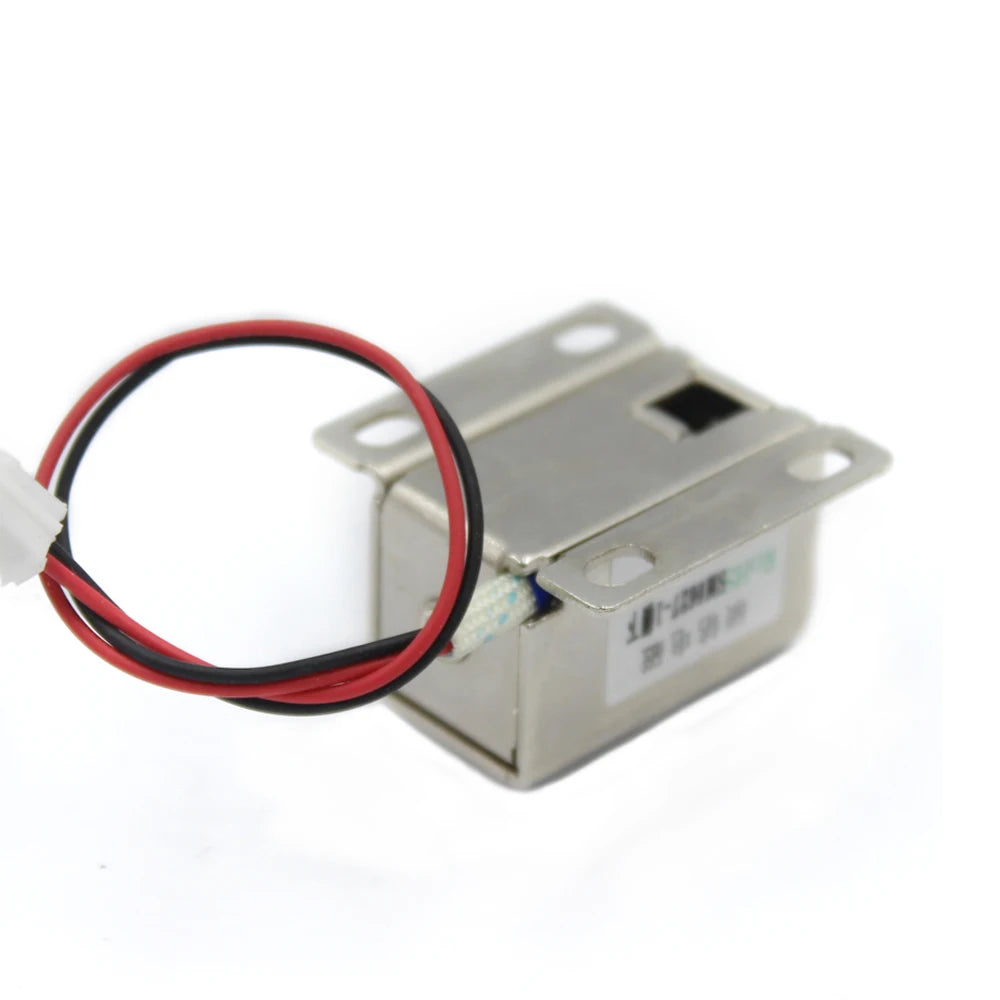

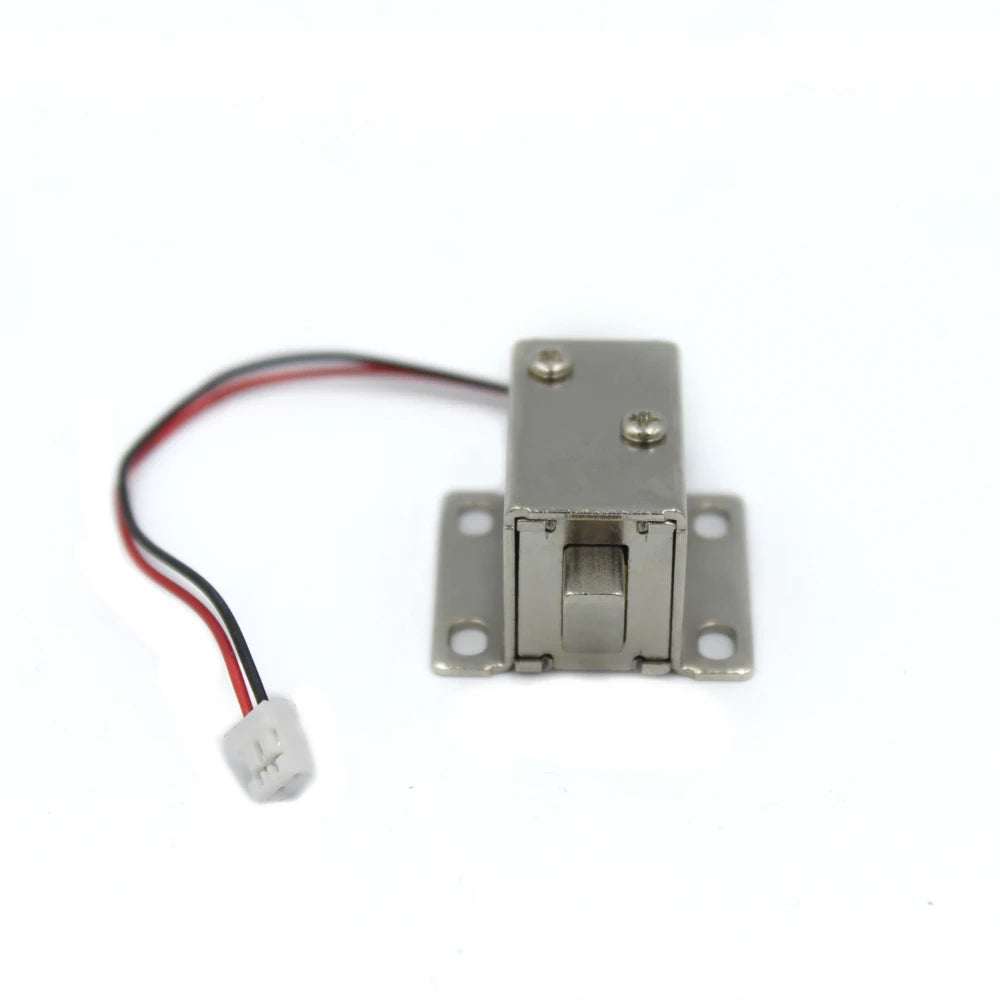

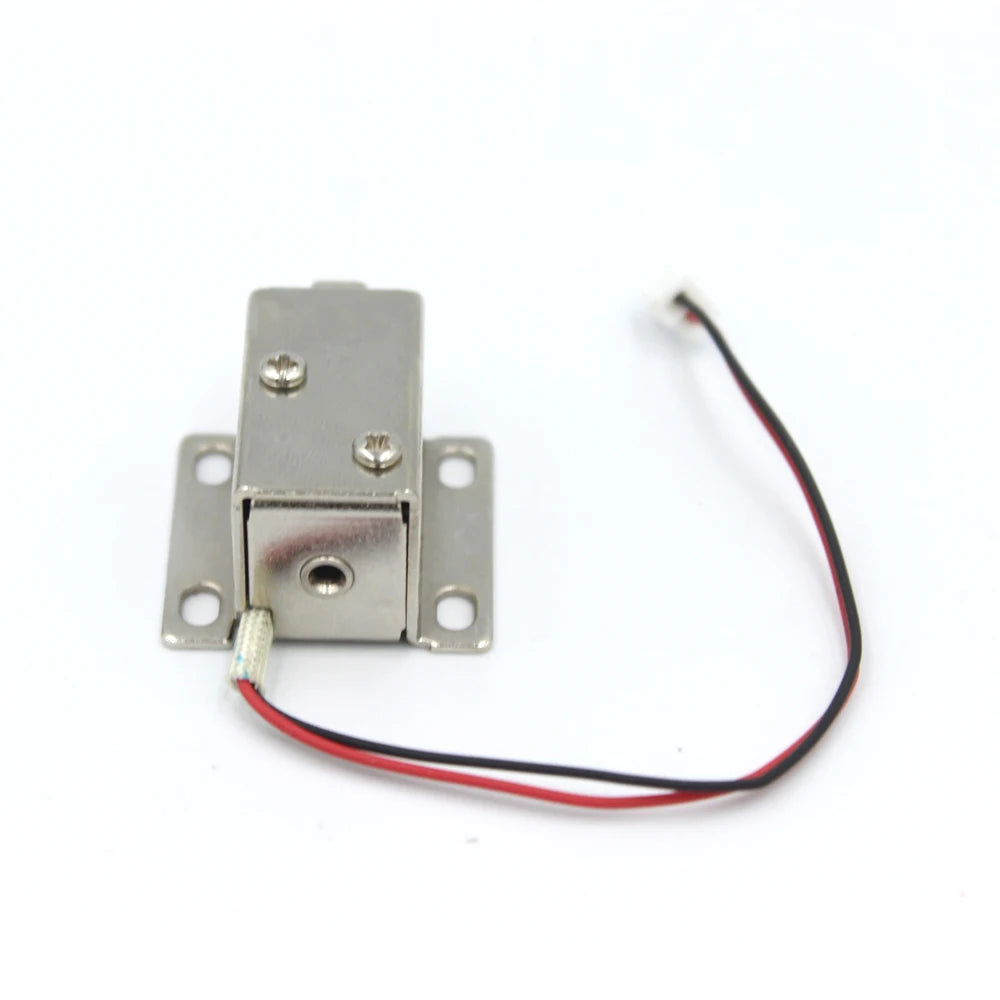

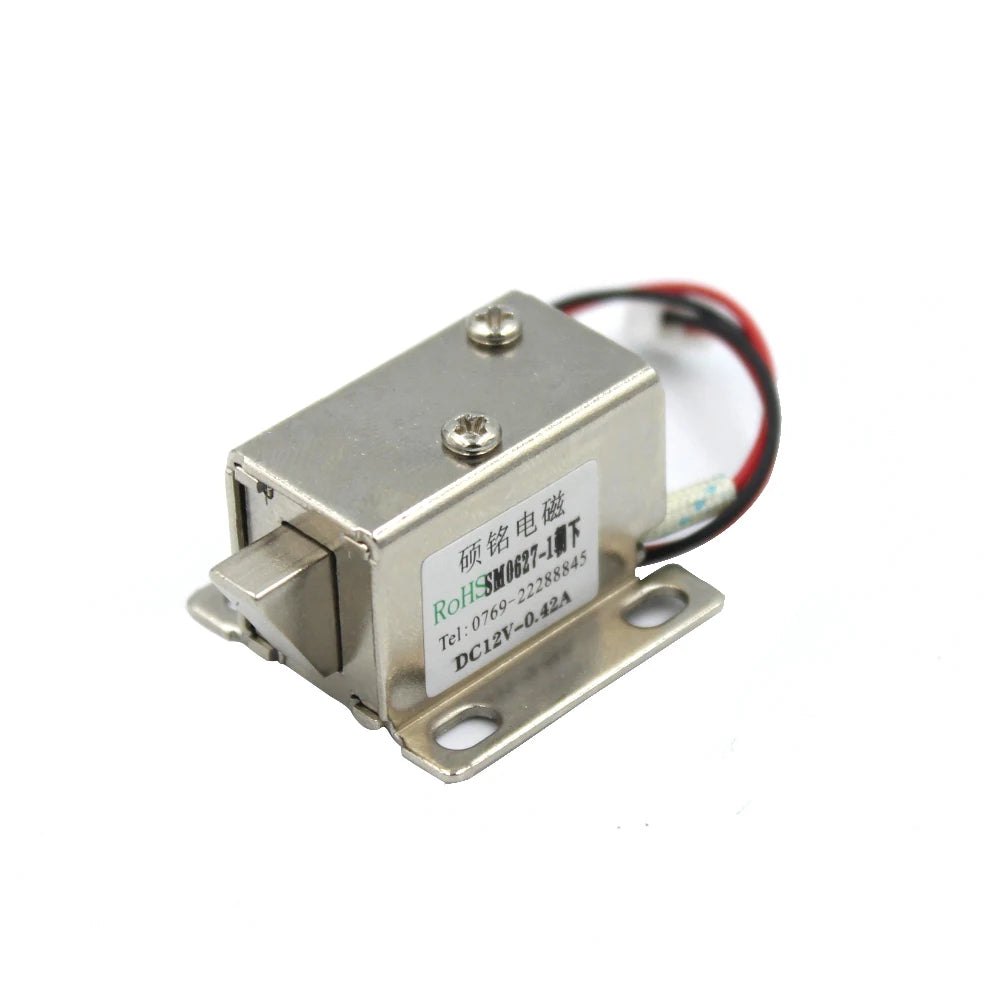

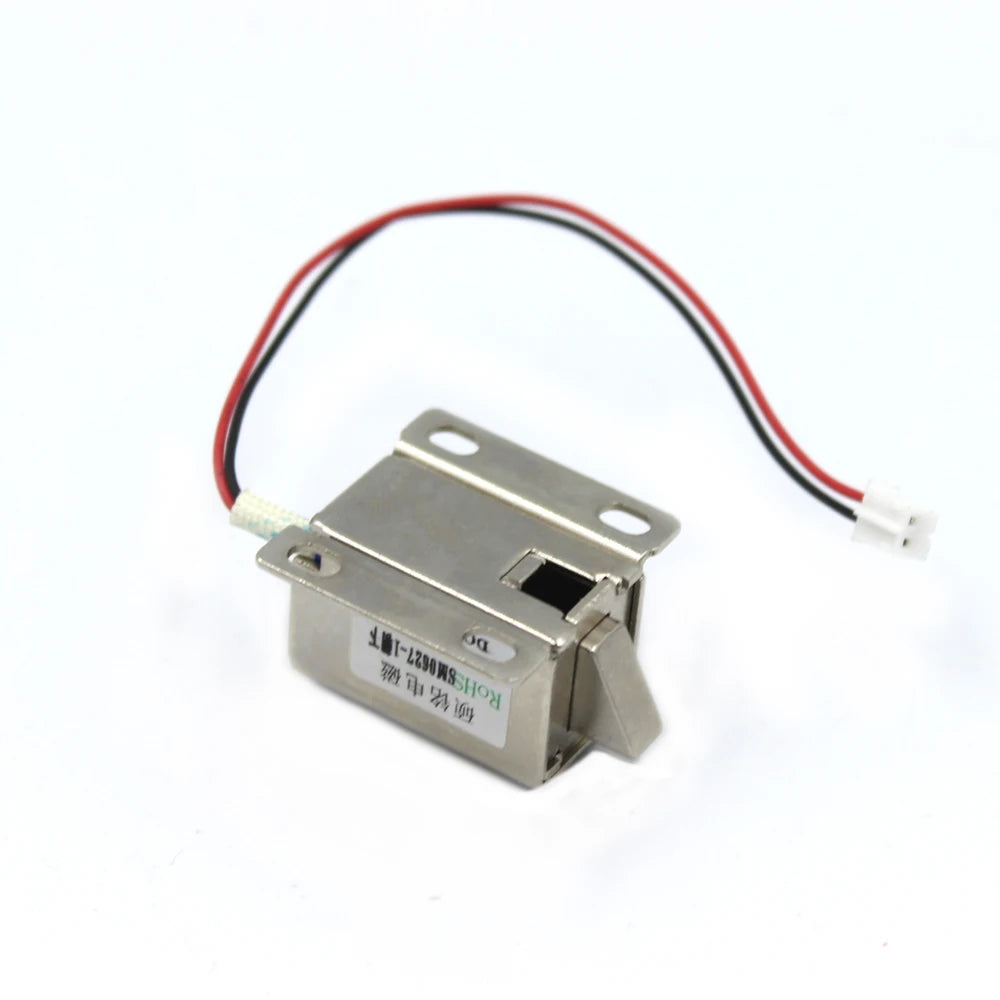

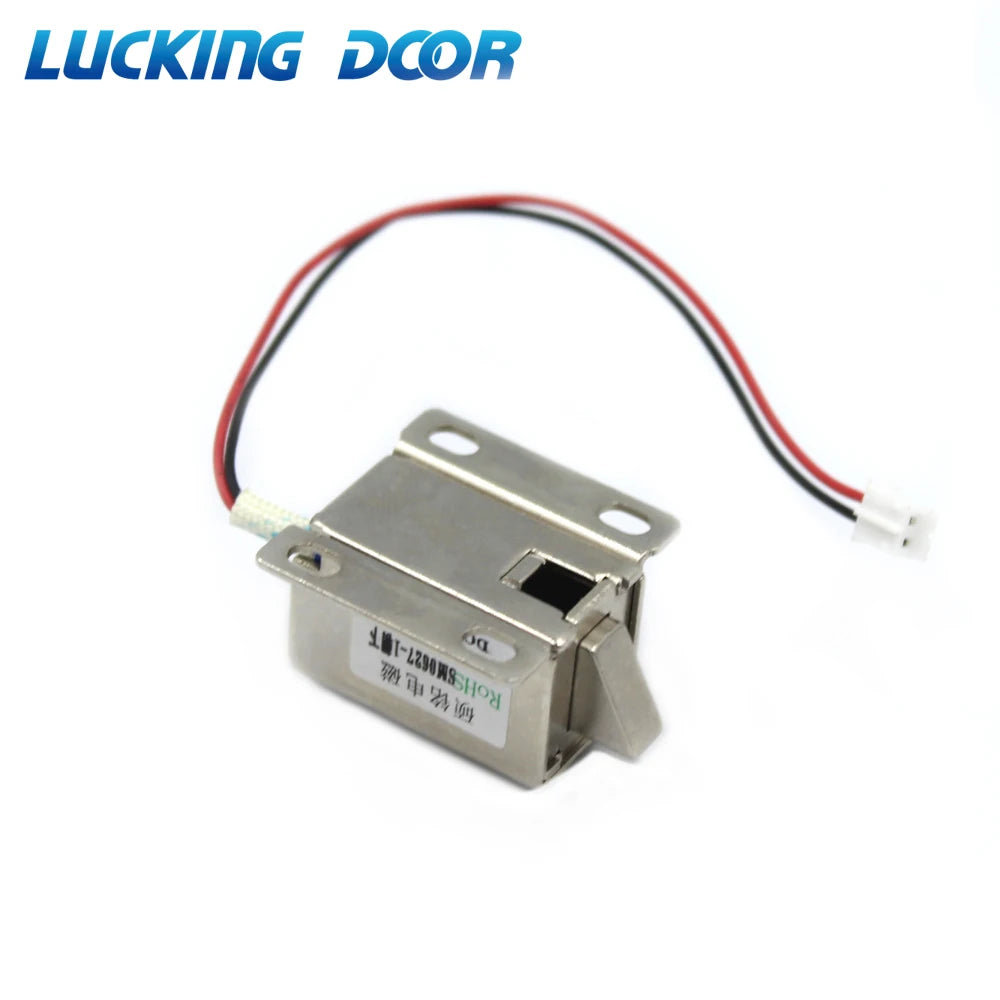

DC 6V/12V Subminiature Electromagnetic Lock – Electric Control Latch

DC Subminiature Electromagnetic Lock – DC 6V / 12V Electric Control Latch

Upgrade your access control setup with this compact, reliable DC subminiature electromagnetic lock from LUCKING DOOR. Designed for doors, gates, lockers, cabinets, and automated enclosures, this CE-certified solenoid latch lock delivers fast, dependable electronic locking in a space-saving form factor. Whether you're building a smart lock system, automating cabinet access, or adding electronic control to doors and gates, this unit offers a straightforward plug-and-play solution.

Made in China.

Key Features

• Dual Voltage Compatible: Operates on DC 6V or DC 12V for flexible integration into existing systems
• Fast Unlock Response: Lock tongue retracts in as little as 1 second when power is applied
• Spring-Return Mechanism: Internal spring automatically extends the lock tongue 4.4mm when power is off — secure by default
• Low Power Draw: Runs at just 0.4A @ DC 12V, ideal for battery-backed or solar access control systems
• Interrupted Power Form: Energize to unlock, de-energize to lock — fail-secure operation
• CE Certified: Meets European conformity standards for safety and performance
• Compact Subminiature Design: Fits in tight spaces where standard-size electromagnetic locks won't work
• No High-Concern Chemicals: Safe for use in residential and commercial environments

Specifications

Installation Instructions

1. Connect the red wire to the positive terminal and the green wire to the negative terminal of your DC power supply.
2. Apply power (DC 6V or DC 12V) to unlock the mechanism — the lock tongue retracts 4.4mm.
3. Cut power to lock — the internal spring extends the tongue 4.4mm, securing the door or gate automatically.
4. Mount securely to the door frame or enclosure using the provided fixing points. Ensure alignment with the door strike plate for reliable engagement.

Common Applications

• Cabinet and locker access control
• Door and gate automation systems
• Electronic security enclosures
• DIY smart home entry systems
• Vending machines and automated kiosks
• Automated drawer and compartment locking

For guidance on electrical safety standards related to access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the difference between a DC 6V and DC 12V connection for this electromagnetic lock?

A: This subminiature electromagnetic lock supports both DC 6V and DC 12V input voltages. The rated current specification of 0.4A refers to DC 12V operation. When using DC 6V, ensure your power supply can deliver adequate current for consistent locking performance. Always match the input voltage to your system's power supply for safe operation.

Q: Does this lock fail-secure or fail-safe?

A: This electric control lock operates in a fail-secure (interrupted) mode. This means the lock tongue is extended (locked position) when power is OFF, secured by the internal spring. Power must be applied to retract the tongue and unlock. This makes it ideal for applications where the door or gate must remain locked during a power outage.

Q: Can this electromagnetic lock be integrated with an access control system or keypad?

A: Yes. This solenoid latch lock is compatible with standard DC access control systems including keypads, card readers, remote controls, and smart home controllers. Simply route the switching output of your controller through the lock's power circuit — applying DC 12V unlocks it, and cutting power relocks it automatically.

Q: Is this lock suitable for outdoor use?

A: This subminiature electromagnetic lock is primarily designed for indoor applications such as cabinets, lockers, and interior doors. For outdoor gate or door use, ensure the installation location provides adequate protection from moisture and weather exposure, as no specific weatherproofing rating is stated for this model.
