DC 12V–60V PWM Brush Motor Speed Controller – Forward & Reverse
DC 12V–60V PWM Brush Motor Speed Controller – Forward & Reverse
DC 12V–60V PWM Brush Motor Speed Controller with Forward & Reverse
Take precise control of your DC brush motor projects with this high-power Pulse Width Modulation (PWM) Motor Speed Controller. Designed for a wide input voltage range of DC 12V to 60V, this compact control board lets you smoothly regulate motor speed from 0% to 100%, switch between forward rotation, stop, and reverse — all through a convenient built-in potentiometer with integrated switch. Whether you're building an electric vehicle, industrial automation system, DIY robotics project, or custom machinery, this motor driver board delivers reliable, efficient performance.
Key Features
- Wide Voltage Range: Operates on DC 12V to 60V input, compatible with a broad range of power supplies and battery systems.

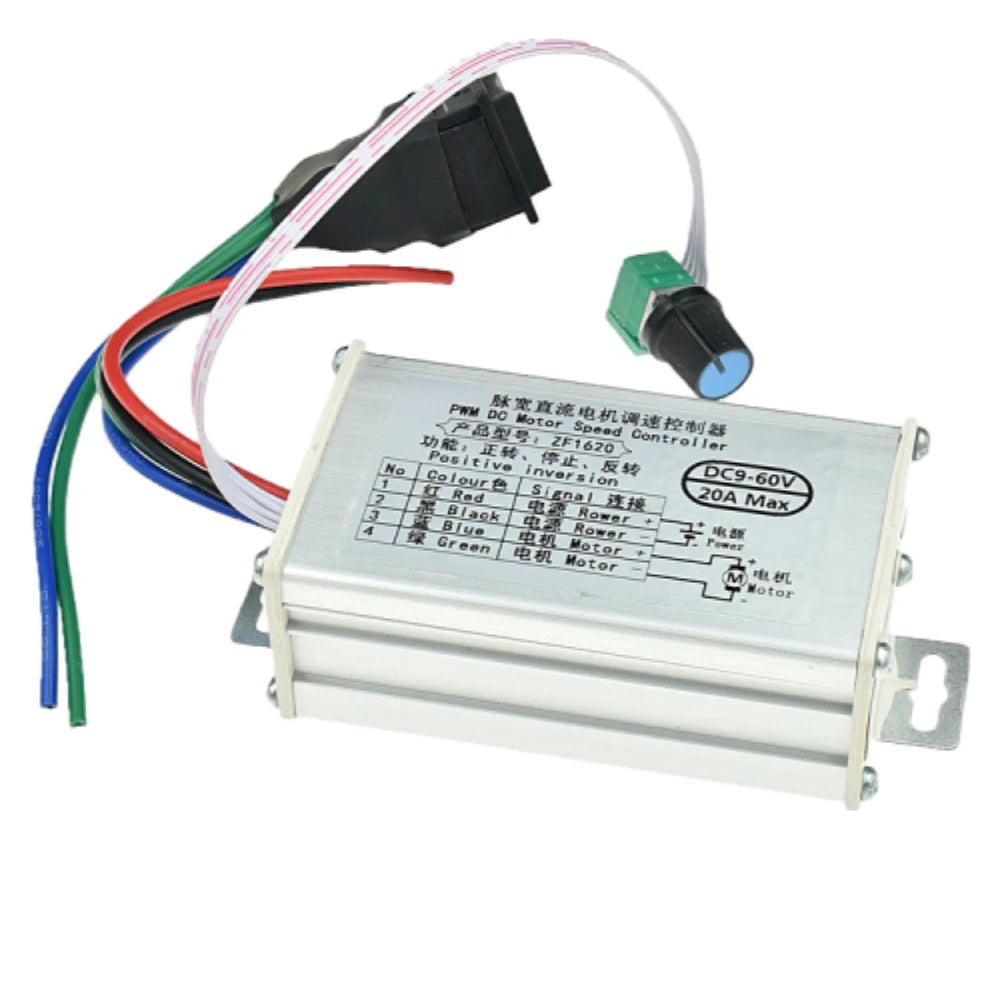

- Two Current Versions Available: Choose the 10A version (5A continuous) or the 20A version (10A continuous) to match your motor's demands.
- Full Speed Range: Smooth potentiometer control from 0% to 100% motor speed for precise throttle management.
- Forward / Stop / Reverse: Three-position directional switching built right into the control interface — no extra switches needed.
- 15 kHz PWM Frequency: High-frequency pulse width modulation ensures smooth, low-noise motor operation and minimal heat generation.
- Screw Terminal Block: Secure, tool-friendly wiring connections for fast installation and reliable electrical contact.

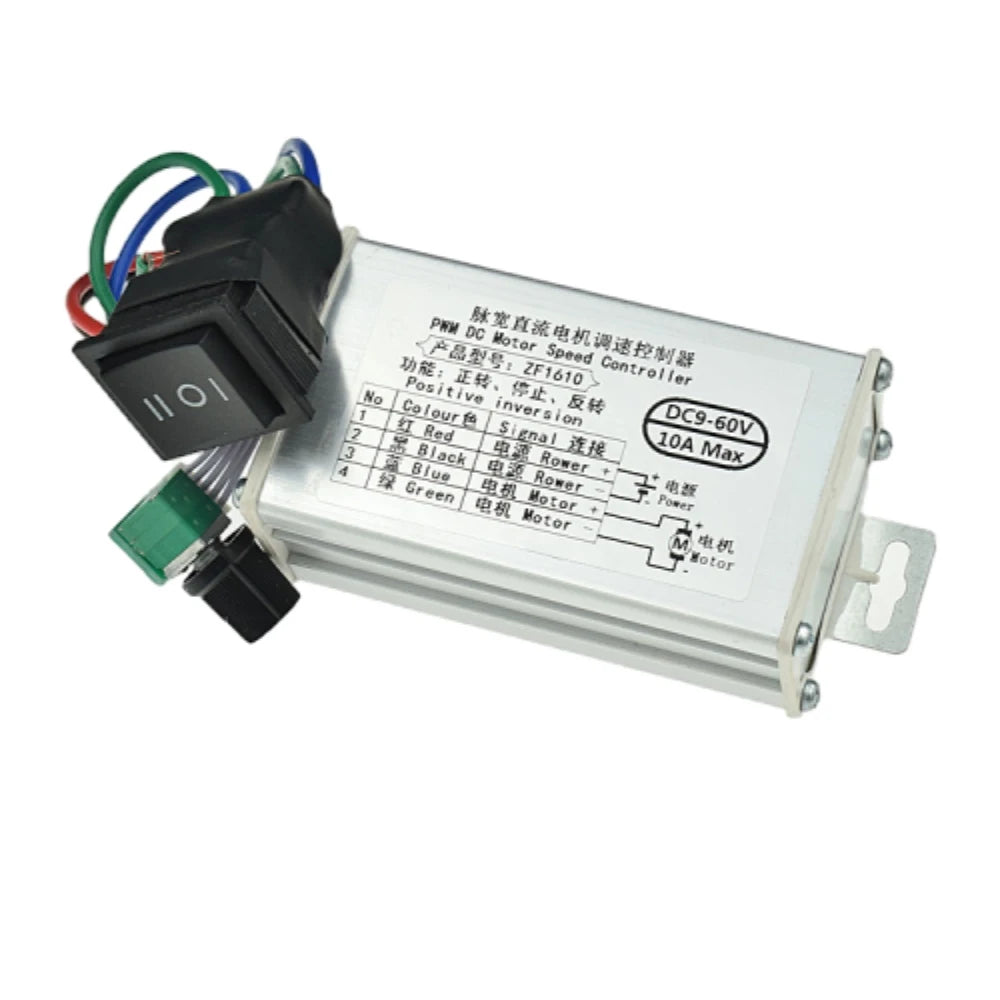

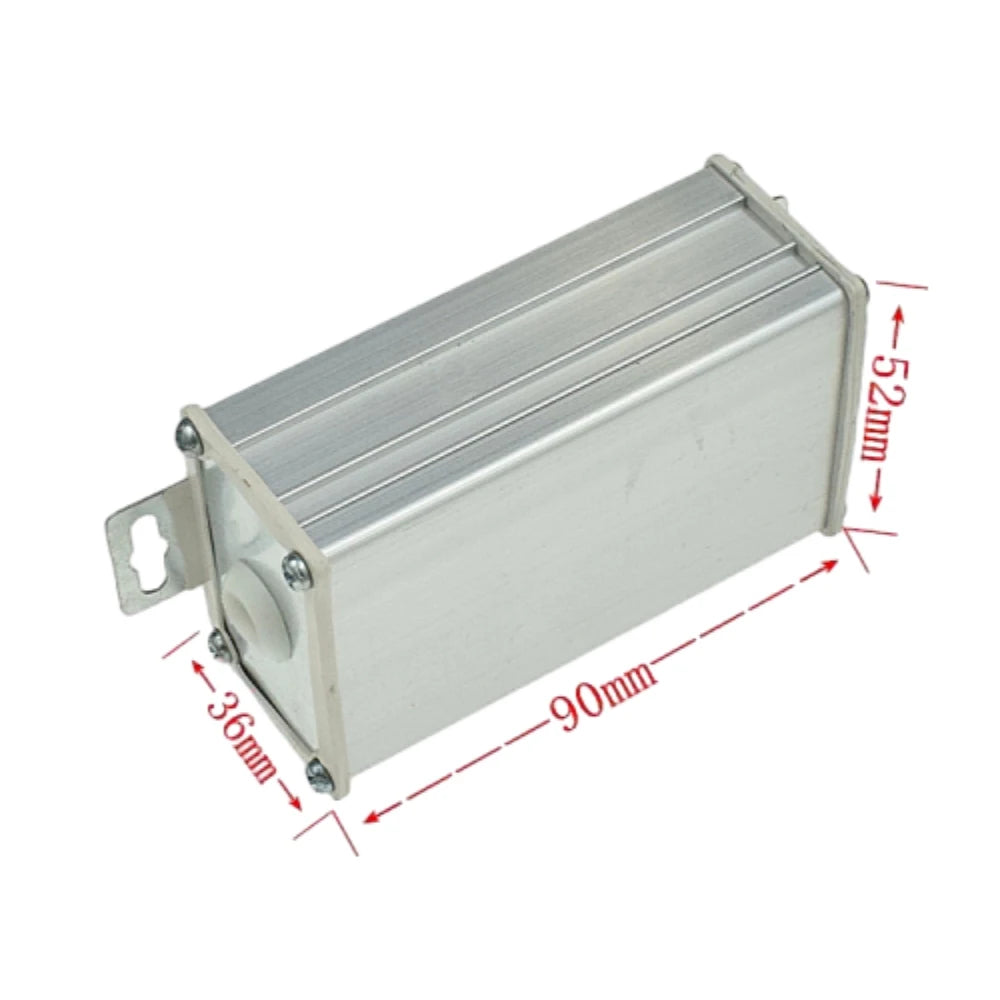

- Compact & Mountable: Small 90 × 52 × 36 mm footprint with 104 mm center-distance mounting holes for easy panel or chassis installation.
- Supports DC Brush Motors: Optimized specifically for DC brush motor applications across a wide range of industries and hobby projects.
Technical Specifications
| Input Voltage | DC 12V – 60V |
| Output Voltage | Linear under load |
| Max Output Current (10A version) | 10A peak / 5A continuous |
| Max Output Current (20A version) | 20A peak / 10A continuous |
| Speed Range | 0% – 100% |
| Control Frequency | 15 kHz |
| Speed Regulation Mode | Potentiometer with integrated switch |
| Speed Regulation Type | Flow regulation |
| Directional Control | Forward / Stop / Reverse |
| Supported Motor Type | DC Brush Motor |
| Terminal Type | Screw terminal block |
| Product Dimensions | 90 × 52 × 36 mm |
| Mounting Center Distance | 104 mm |
| Country of Origin | Made in China |
What's in the Box
- 1× DC PWM Motor Speed Controller Board
Important Notes
- Due to lighting conditions and monitor settings, actual product color may vary slightly from images.
- Please allow ±1–10 mm variance due to manual measurement.
Learn More About Motor Control & Electronics Safety
For guidance on electrical safety when working with DC motor circuits and control boards, visit the OSHA Electrical Safety Resource.
Frequently Asked Questions
Q: What types of motors are compatible with this DC motor speed controller?
A: This PWM motor speed controller is designed specifically for DC brush motors. It supports motors operating within a DC 12V to 60V voltage range. It is not suitable for brushless DC motors, stepper motors, or AC motors.
Q: Can I control both speed and direction with this board?
A: Yes. The built-in potentiometer allows smooth speed adjustment from 0% to 100%, while the integrated switch provides three directional modes: forward, stop, and reverse. This makes it ideal for applications requiring full bidirectional motor control.
Q: How do I choose between the 10A and 20A versions?
A: Select based on your motor's current draw. The 10A version supports up to 5A continuous current (10A peak), while the 20A version handles up to 10A continuous (20A peak). Always choose a version rated above your motor's typical operating current to ensure longevity and safe operation.
Q: Is this motor controller easy to install?
A: Yes. The board features screw terminal blocks for straightforward wiring without soldering. It also includes mounting holes with a 104 mm center distance for easy panel or enclosure installation.
