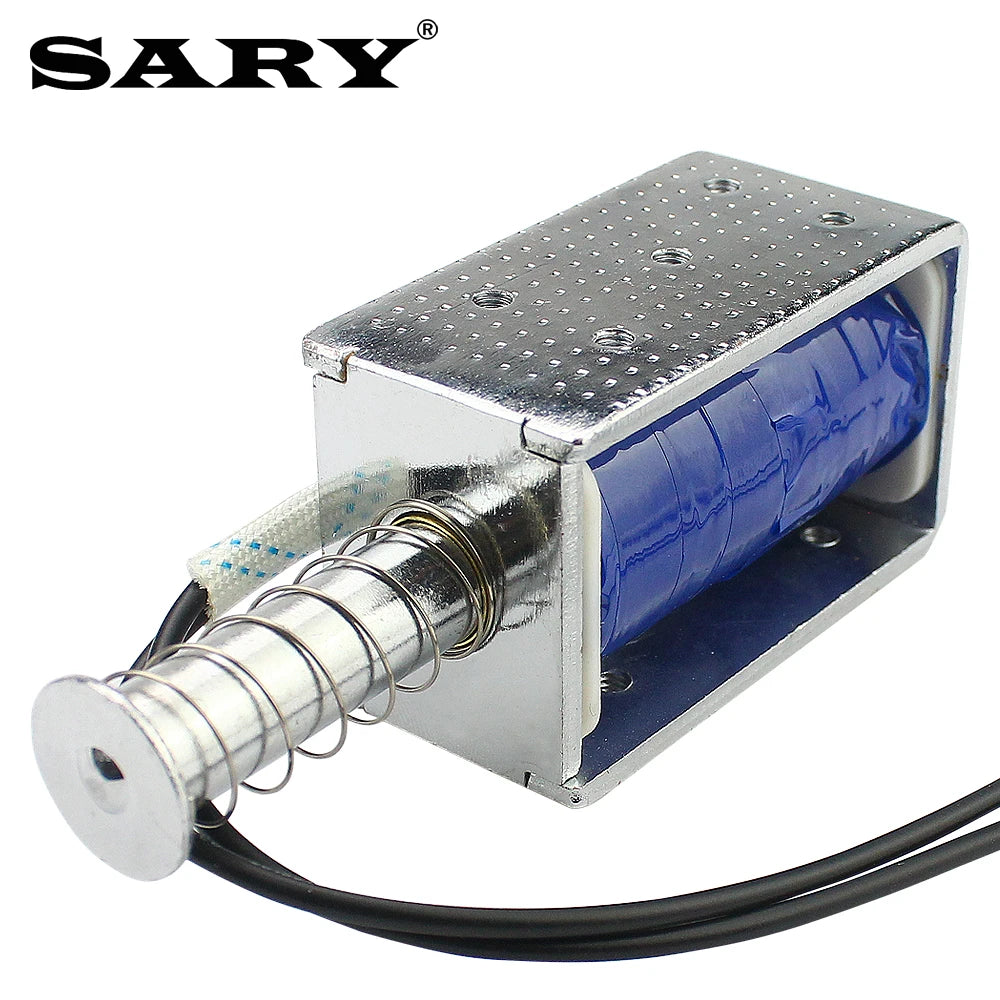

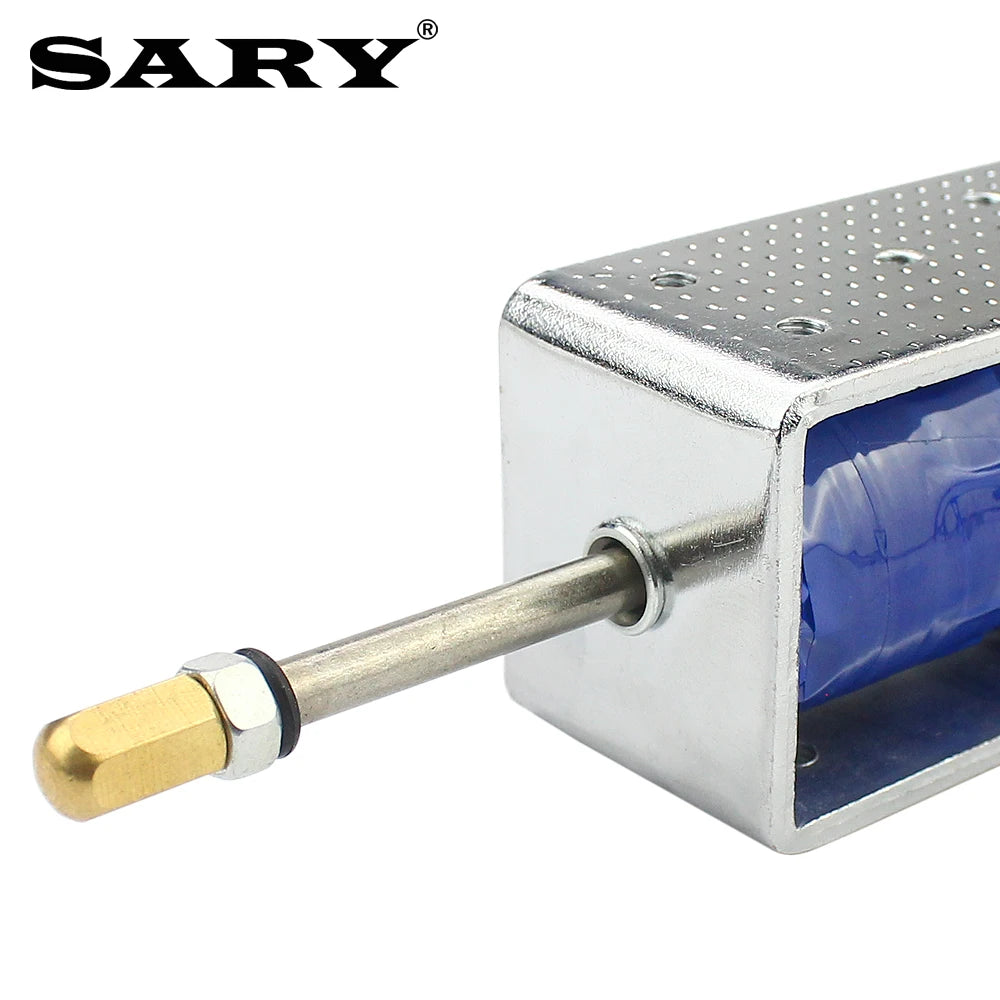

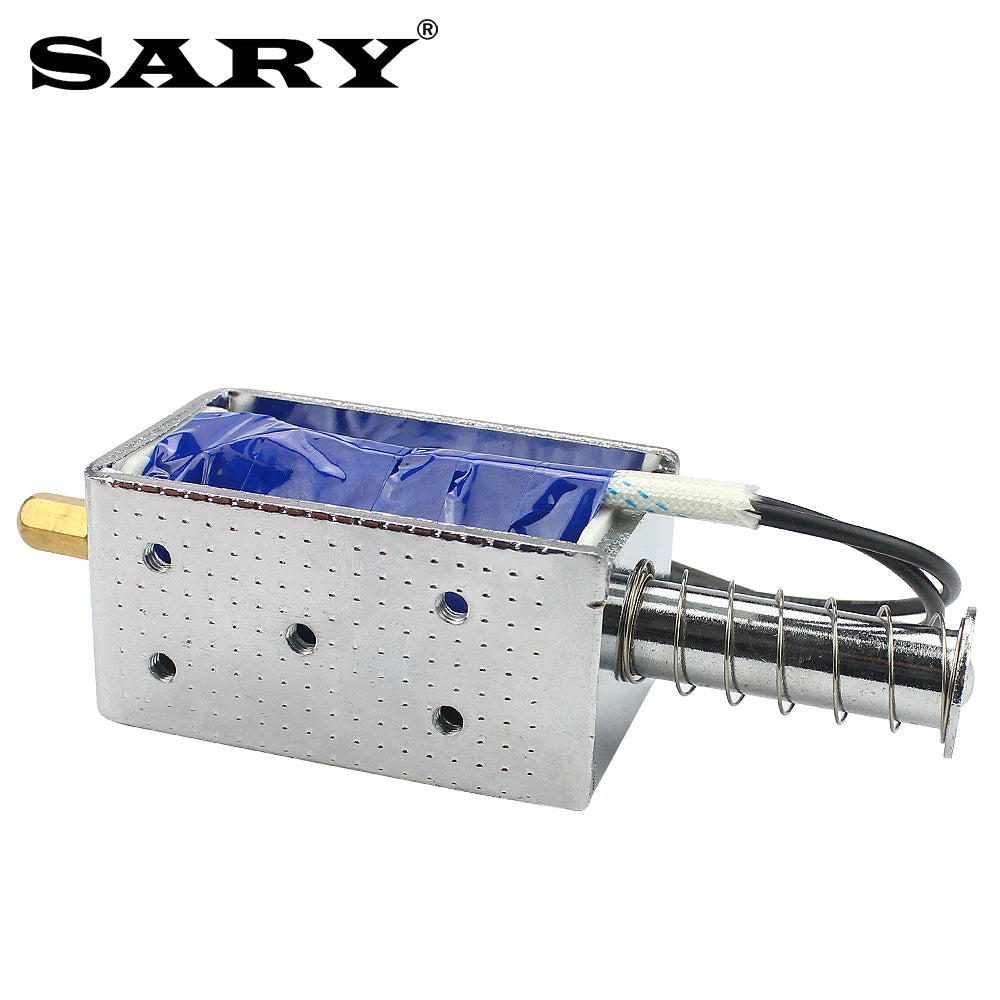

DC Push-Pull Open Frame Electromagnet Solenoid Coil – 30mm Stroke (Model LY-1264B)
Meet the LY-1264B DC Push-Pull Open Frame Electromagnet — a compact, reliable solenoid coil engineered for a wide range of automation and electromechanical applications. With a generous 30mm stroke, dual voltage compatibility (DC 12V or DC 24V), and a solid 45N holding force, this electromagnet delivers consistent, repeatable linear motion wherever you need it.
⚠️ Important Operating Note: This electromagnet is designed for intermittent duty cycles only (e.g., 1 second ON / 1 second OFF). Do not power continuously for more than 5 seconds at a time. Prolonged energizing causes heat buildup that can shorten the coil's service life. Operating in a well-ventilated, fast-cooling environment will maximize durability.
Key Specifications
- Model: LY-1264B

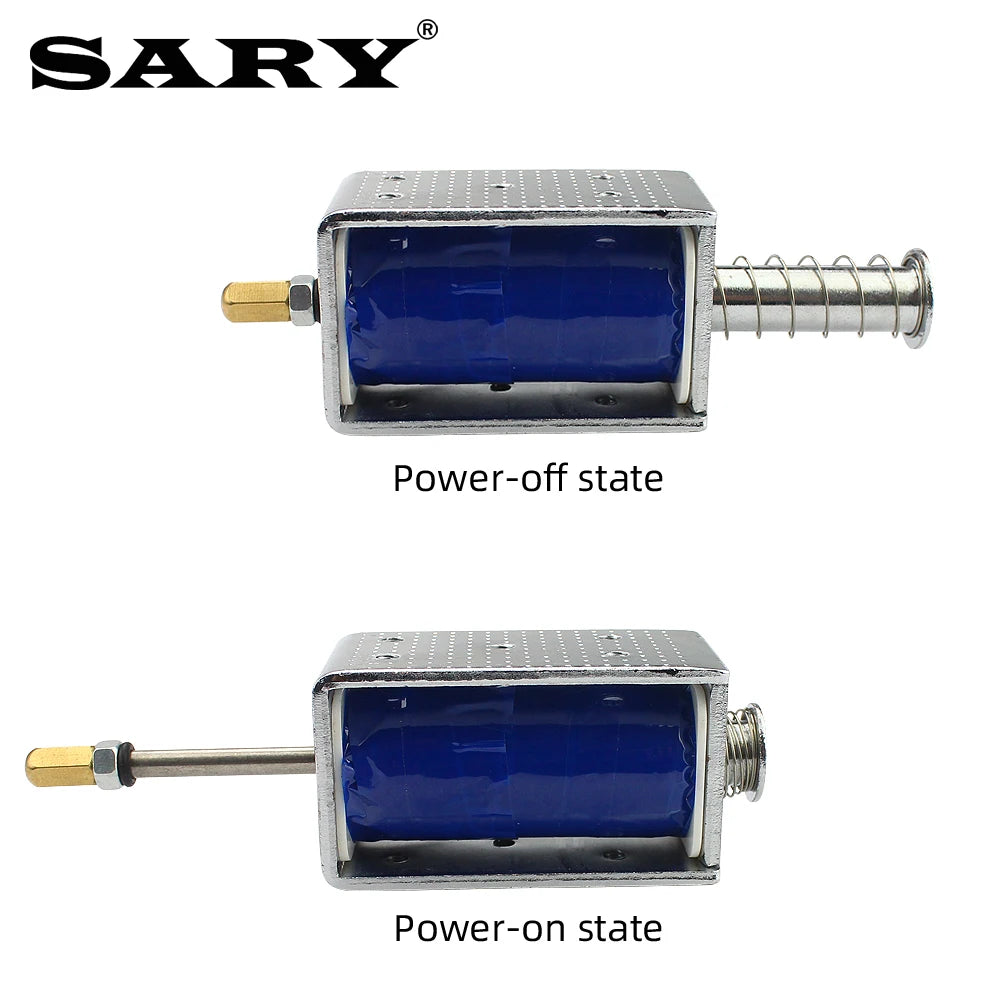

- Type: Push & Pull (Open Frame)
- Voltage: DC 12V / 3A | DC 24V / 2A
- Dimensions (L × W × H): 64mm × 32mm × 39mm
- Stroke: 30mm
- Initial Force: 10N (approx. 1 kg)
- Holding Force: 45N
- Max Recommended Continuous On-Time: 5 seconds
- Country of Origin: Made in China
Where Is It Used?
This versatile solenoid is widely used across automation and electromechanical systems, including:
- Arcade & game machines
- Vending and ticket machines
- Cash registers and POS equipment
- Automated office equipment
- Electric lock and access control mechanisms
- Robotics and DIY automation projects
- Industrial machinery and assembly line actuators
Why Choose the LY-1264B?
- ✅ Dual Voltage: Compatible with both DC 12V and DC 24V systems for flexible integration
- ✅ Long 30mm Stroke: More linear travel than standard compact solenoids
- ✅ High Holding Force: 45N ensures secure actuation in demanding applications
- ✅ Open Frame Design: Easy to mount and integrate into custom enclosures or machinery
- ✅ Compact Footprint: Small form factor fits tight spaces without sacrificing performance
What's in the Box?
1 × LY-1264B Open Frame Electromagnet Solenoid (30mm Stroke)
For further information on electromagnetic solenoid safety standards in industrial applications, refer to OSHA's Control of Hazardous Energy guidelines.
Frequently Asked Questions
Q: Can I run this DC electromagnet solenoid continuously?
A: No. The LY-1264B open frame electromagnet is designed for intermittent duty cycles. It is recommended to keep continuous on-time to no more than 5 seconds. Exceeding this can cause excessive heat buildup and damage the coil. The longer the off/cooling interval between activations, the longer the service life.
Q: What voltage does this push-pull solenoid support?
A: This electromagnet supports two DC voltages: DC 12V at 3A or DC 24V at 2A. Choose the voltage that matches your system's power supply for optimal performance.
Q: What is the stroke length and force of this solenoid coil?
A: The LY-1264B has a 30mm stroke, an initial actuation force of 10N (approximately 1 kg), and a holding force of 45N, making it suitable for a variety of push-pull actuation tasks in automation equipment.
Q: Is this solenoid suitable for electric lock or access control applications?
A: Yes. The push-pull open frame design and strong holding force make the LY-1264B a practical choice for electric lock mechanisms, door latches, and access control actuators, as well as game machines, vending machines, and automated office equipment.
