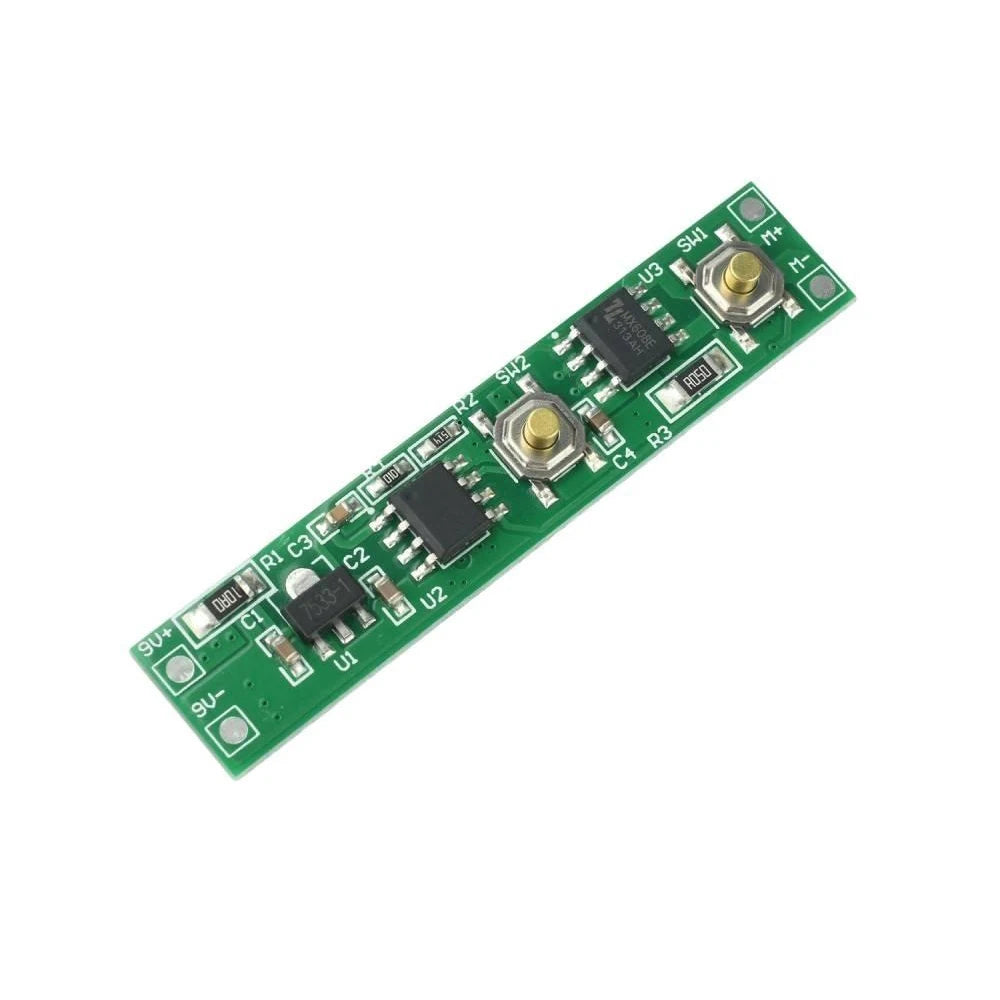

DC Motor Control Board with Forward/Reverse Switch & Stall Detection
Take your DIY electronics projects to the next level with this compact 9V DC Motor Control Board. Designed for makers, hobbyists, and engineers alike, this board offers simple, reliable bidirectional motor control with built-in stall detection — making it an essential component for DIY electric screwdrivers, robotics, and other small-scale motor-driven builds.
Key Features

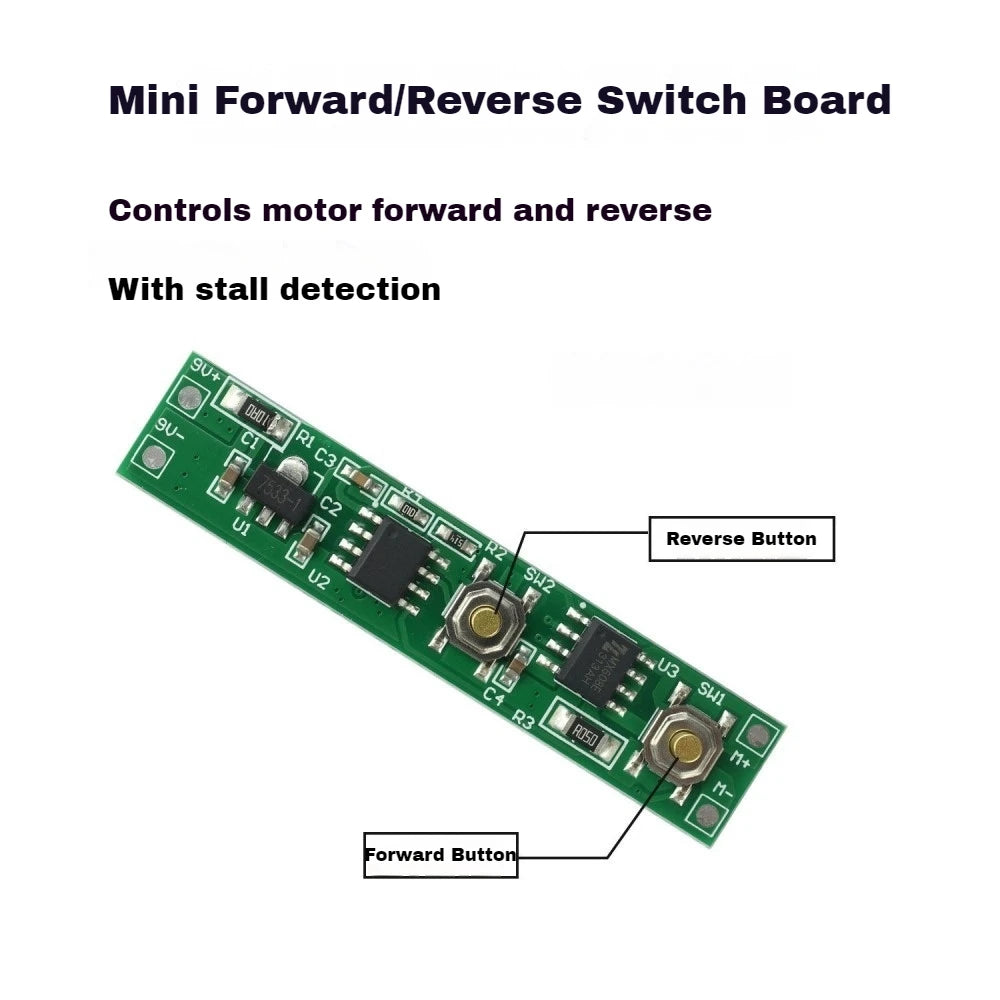

- Bidirectional Motor Control: Easily switch between forward and reverse rotation of micro DC motors with a straightforward wiring setup.
- Built-In Stall Detection: Automatically detects when the motor stalls, providing a safer and more reliable operating experience for your projects.
- Simple Wiring: Beginner-friendly connections make setup fast and intuitive — no complex configuration required.
- High-Quality Components: Constructed from durable, high-quality materials for long-lasting performance in your builds.
- Versatile Use: Ideal for DIY electric screwdrivers, small automation projects, robotics, and other compact motor-driven applications.
Specifications
| Maximum Voltage | 9V |
| Maximum Current | 1A |
| Compatible Motors | Micro DC Motors |
| Application | DIY Electric Screwdrivers, Small Production Parts, Robotics |
| Country of Origin | Made in China |
Package Includes
- 1x Motor Control Board
Notes
- Due to lighting and screen differences, the item's color may vary slightly from product images.
- Please allow 1mm–1cm differences due to manual measurement.
Learn More About Electronics Safety
For guidance on safe handling of electronic components and DIY electronics projects, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety tips and product standards.
Learn more: Motor controller
Frequently Asked Questions
Q: What type of motors is this DC motor control board compatible with?
A: This motor control board is designed for use with micro DC motors operating at up to 9V and 1A. It is especially well-suited for DIY electric screwdrivers, small robotics, and compact motor-driven projects.
Q: How does the stall detection feature work?
A: The built-in stall detection circuit monitors the motor's operating state and automatically responds when the motor stops spinning unexpectedly (stalls), helping to protect both the motor and the board from damage during operation.
Q: Is this board suitable for beginners?
A: Yes! The board features a simple and clearly laid-out wiring configuration that makes it easy for beginners and hobbyists to connect and use without advanced electronics knowledge.
Q: Can I use this board for applications other than electric screwdrivers?
A: Absolutely. While it is ideal for DIY electric screwdrivers, this board works great in any small project requiring bidirectional DC motor control — such as miniature robots, conveyor mechanisms, or other maker projects operating within the 9V/1A rating.
