DC-DC Buck Boost Converter 5.5–35V to 1.22–16V Power Module
DC-DC Buck Boost Converter 5.5–35V to 1.22–16V Power Module

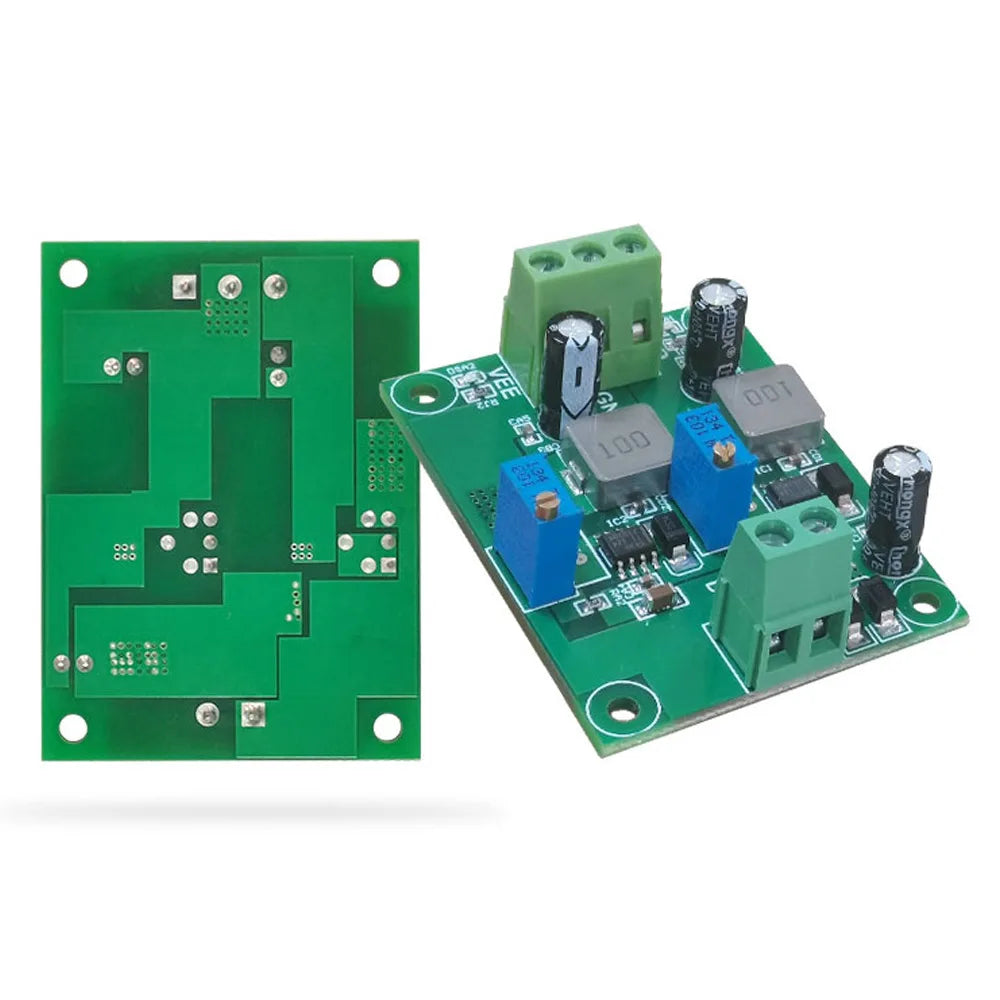

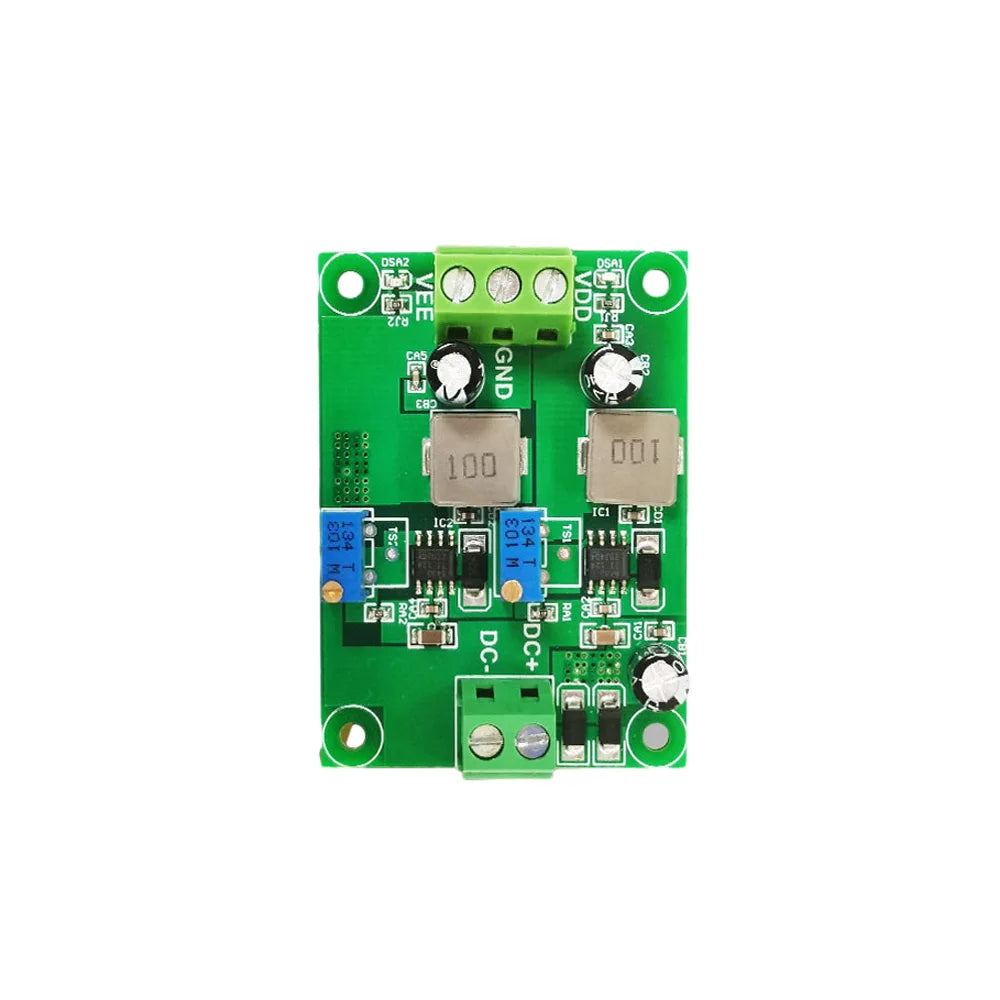

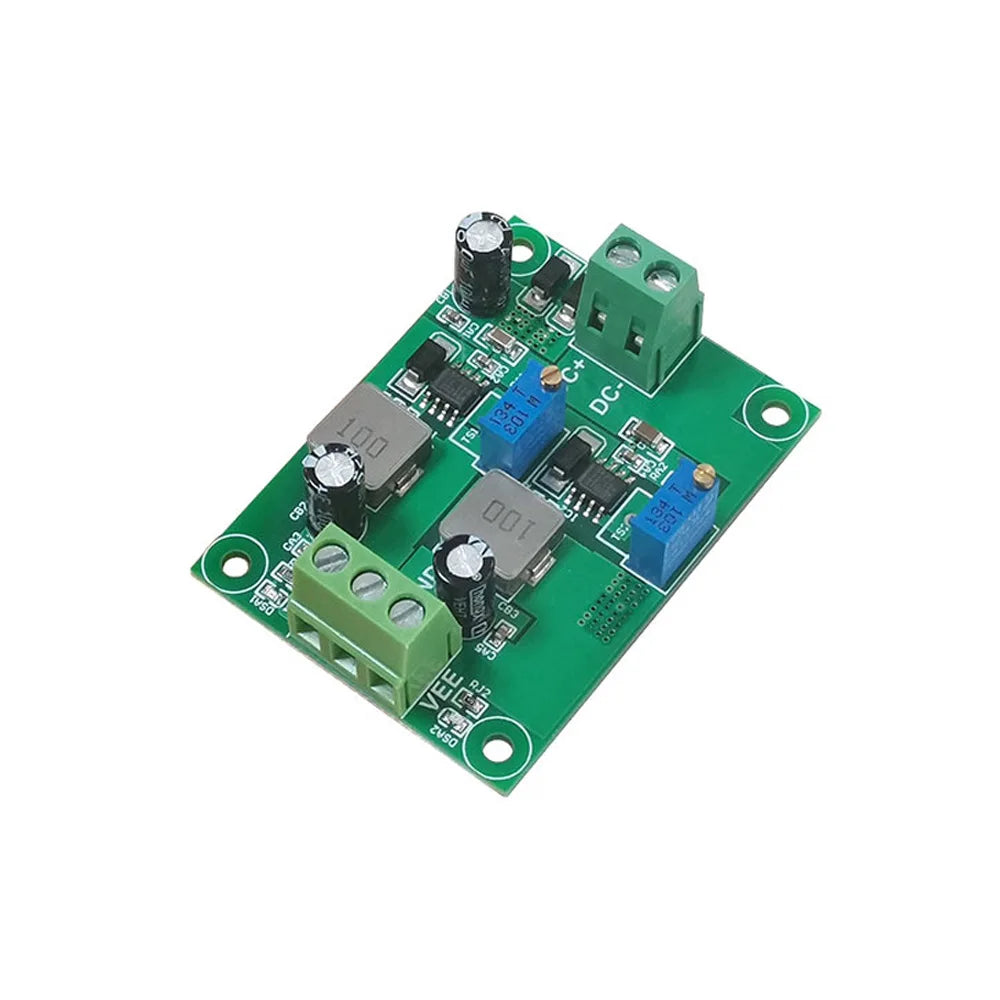

DC-DC Buck Boost Converter Power Supply Module
Need precise, adjustable voltage for your electronics projects? This compact DC-DC Buck Boost Converter Power Supply Module delivers stable, regulated output across a wide voltage range — making it an essential component for DIY electronics, prototyping, robotics, and hobbyist bench work. With both step-up and step-down capability in a single board, you get maximum flexibility from a minimal footprint.
Key Specifications
- Input Voltage Range: 5.5V – 35V DC
- Output Voltage Range: 1.22V – 16V DC (precision adjustable)
- Adjustment: Clockwise to increase voltage, counterclockwise to decrease
- Output Current (Positive End): Up to 3A (Max)
- Output Current (Negative End): Up to 2A (Max)
- Note: Output current decreases as output voltage increases. At 16V output, positive end is approximately 1A and negative end approximately 0.7A.
- Step-Down Mode: Input voltage must be approximately 2V higher than desired output voltage
- EU LVD Compliance: Low voltage — below 50V AC or 75V DC
- Made in China
Why Choose This Power Supply Module?
- Dual-Mode Conversion: Functions as both a step-up (boost) and step-down (buck) converter — one board covers both needs
- Wide Input Range: Compatible with a broad range of DC power sources from 5.5V to 35V
- Precise Voltage Control: Fine-tune output from 1.22V to 16V with a simple onboard adjustment dial
- High Current Capacity: Supports up to 3A on the positive terminal for demanding applications
- Compact & Lightweight: Small board form factor fits neatly into enclosures, breadboards, and custom builds
- Constant Voltage Output: Stable regulated voltage for sensitive electronic components
Ideal Applications
- DIY electronics and hobby projects
- Arduino, Raspberry Pi, and microcontroller power regulation
- Bench power supply builds
- Robotics and automation circuits
- LED driver circuits
- Battery charging and power management systems
What's in the Box?
- 1× DC-DC Buck Boost Power Supply Module
Important Notes
- Color may appear slightly different from photos due to screen and lighting variations.
- Please allow 1–3 cm measurement tolerance due to manual measurement.
- For step-down (buck) operation, ensure input voltage is at least 2V above the desired output.
For safe handling and best practices when working with low-voltage electronics, refer to the OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: Can this DC-DC converter module be used as both a boost and buck converter?
A: Yes! This module supports both step-up (boost) and step-down (buck) conversion. It accepts an input of 5.5V–35V DC and outputs a precisely adjustable 1.22V–16V DC, making it suitable for a wide range of voltage regulation tasks.
Q: What is the maximum output current this power supply module can handle?
A: The positive terminal supports a maximum output current of 3A, and the negative terminal supports up to 2A. Keep in mind that as output voltage increases, the available output current decreases — at 16V output, expect approximately 1A on the positive end and 0.7A on the negative end.
Q: How do I adjust the output voltage on this module?
A: The output voltage is adjusted using the onboard potentiometer dial. Turn it clockwise to increase the output voltage and counterclockwise to decrease it. The output can be precisely set anywhere within the 1.22V to 16V range.
Q: What input voltage do I need to power this DC-DC converter module?
A: The module accepts DC input between 5.5V and 35V. When using it in step-down (buck) mode, your input voltage must be at least 2V higher than your desired output voltage to ensure proper regulation.
