DC-DC Buck Boost Converter — Wide Voltage 9V–36V to 12V 8A Power Supply Module
Whether you're building a custom PC, powering electronics in a vehicle, or designing an embedded system, this DC-DC Buck Boost Power Supply Module delivers rock-solid, regulated 12V output from a wide 9V–36V input range. Its versatile step-up and step-down (buck-boost) design means it adapts to virtually any DC power source, making it an essential component for engineers, hobbyists, and makers alike.
Key Features
- Wide Input Range: Accepts DC 9V–36V via a secure 3-PIN Phoenix terminal with locking connector — compatible with a broad range of DC power sources.
- Stable 12V / 8A Output: Delivers a steady 12V output at up to 8A, providing up to 96W of regulated power for demanding loads.

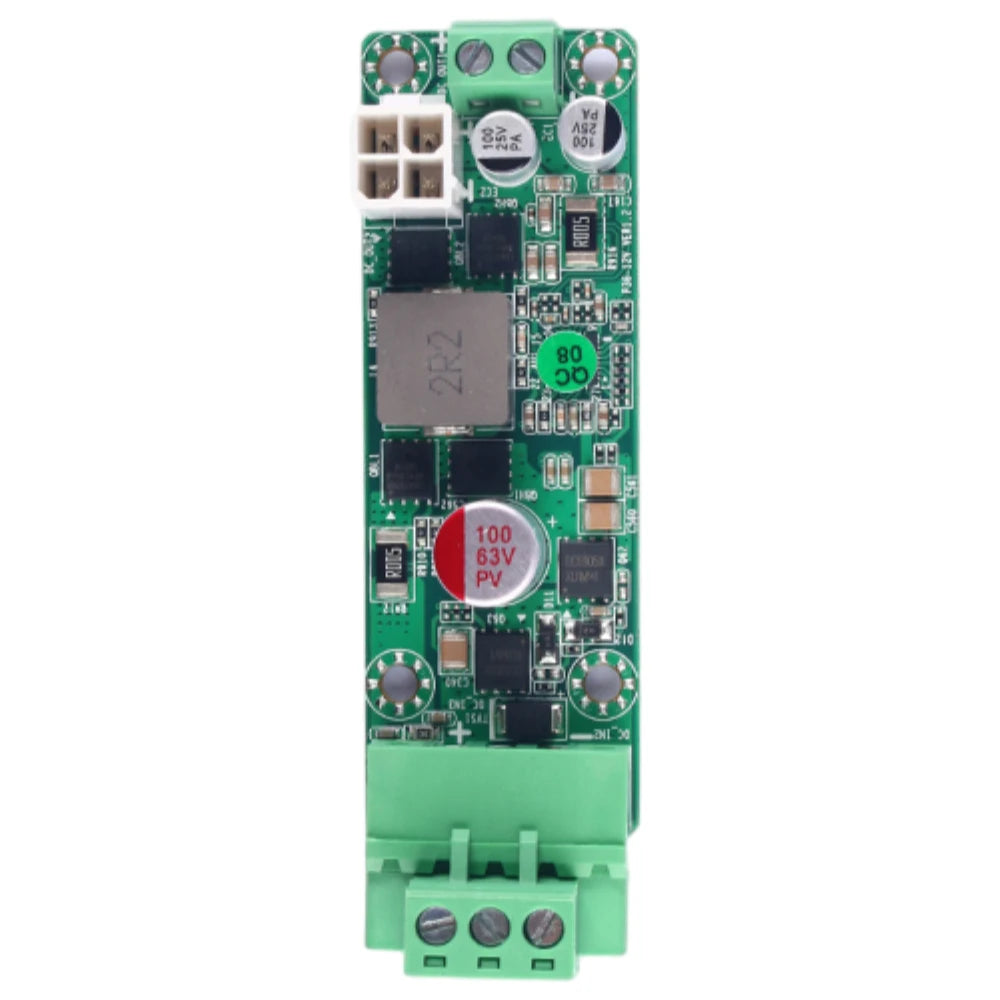

- Dual Output Interfaces: Features both a 2×2 ATX power connector and a 2-PIN Phoenix terminal, giving you flexible connection options to suit your project.
- Anti-Failback & Anti-Idle Protection: Built-in protection on the input port guards against reverse current and idle-state voltage fluctuations, protecting your connected equipment.
- Unbalanced Load Protection: Engineered to handle unbalanced load conditions, maintaining output stability even under variable demand.
- Versatile Mounting Options: Four screw holes allow direct chassis mounting, or attach it to a chassis wall using standard hardware — fits neatly into enclosures of all kinds.
- Compact & Efficient Design: Optimized PCB layout minimizes heat build-up and maximizes conversion efficiency for continuous-duty applications.
Specifications
| Input Voltage | DC 9V – 36V |
| Output Voltage | DC 12V (fixed) |
| Output Current | 8A (max) |
| Max Output Power | 96W |
| Input Connector | 3-PIN Phoenix Terminal (with lock) |
| Output Connectors | 2×2 ATX Power Interface + 2-PIN Phoenix Terminal |
| Protection | Anti-failback, Anti-idle, Unbalanced Load |
| Mounting | 4× screw holes / chassis wall mount |
| EU LVD Rating | Low Voltage (below 50Vac or 75Vdc) |
| Country of Origin | Made in China |
What's in the Box?
- 1× DC-DC Buck Boost Power Supply Module
Important Notes
- Due to lighting and screen variations, the item's color may appear slightly different from product images.
- Please allow 1mm–1cm differences due to manual measurement.
- Battery not included.
Learn More About Power Electronics Safety
For guidance on electrical safety standards and best practices when working with DC power conversion components, refer to the OSHA Electrical Safety Resources.
Frequently Asked Questions
Q: Can this DC-DC buck boost converter work with a 24V input to output 12V?
A: Yes. The module accepts any DC input between 9V and 36V, so a 24V input is well within range. It will step the voltage down (buck) to a stable 12V output at up to 8A.
Q: What output connectors does this power supply module include?
A: The module provides two output connection options: a 2×2 ATX power interface (commonly used in PC/computing applications) and a 2-PIN Phoenix terminal. This dual-interface design makes it compatible with a wide range of devices and custom wiring setups.
Q: Is this module suitable for continuous-duty or high-load applications?
A: The module is rated for up to 8A continuous output at 12V (96W). For high-load applications, ensure adequate ventilation around the module and that your input source can supply sufficient current. The built-in unbalanced load and anti-failback protections add an extra layer of reliability in demanding setups.
Q: How is this DC-DC converter module mounted?
A: The board features four screw holes for direct chassis mounting. It can also be affixed to a chassis wall using standard mounting hardware, making it easy to integrate into enclosures, DIY builds, or industrial equipment.
