DC-DC Boost Power Supply Module — 5V to 1200V Continuously Adjustable
Take your DIY electronics projects to the next level with this compact and highly versatile DC-DC boost power supply module. Designed for makers, engineers, and hobbyists, this module steps up low DC input voltages into a wide, continuously adjustable high-voltage output — making it ideal for capacitor charging, high-voltage testing rigs, security device applications, and custom electronics builds.

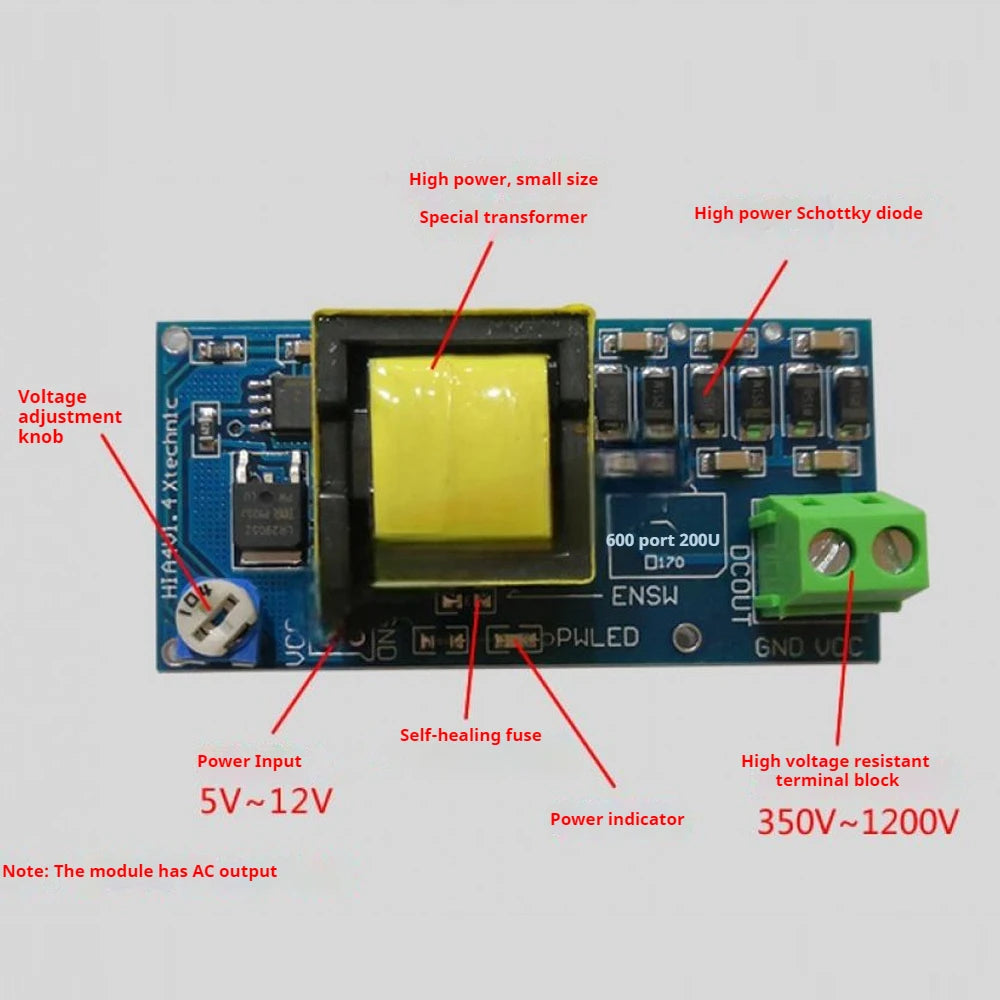

Key Features
- Wide Input Range: Accepts 5V to 12V DC input (maximum 12V)
- Continuously Adjustable Output: Linear voltage adjustment from as low as 280V up to 1200V
-
Multiple Output Ranges:
- At 5V input: output adjustable from 280V to 1200V
- At 6V–12V input: output adjustable from 400V to 1200V
- Multiple Voltage Divider Outputs: Flexible configuration for various circuit requirements
- Capacitor Charging Capable: Supports fast-charging speed for capacitors
- DIY-Friendly Design: Add your own enclosure for a portable, customized build
- Proven Stability: Originally deployed in a commercial security product — reliability you can count on
- Unbalanced Load Protection: Built-in protection for unbalanced load conditions
Specifications
| Input Voltage | 5V – 11V (max 12V DC) |
| Output Voltage (5V input) | 280V – 1200V (adjustable) |
| Output Voltage (6V–12V input) | 400V – 1200V (adjustable) |

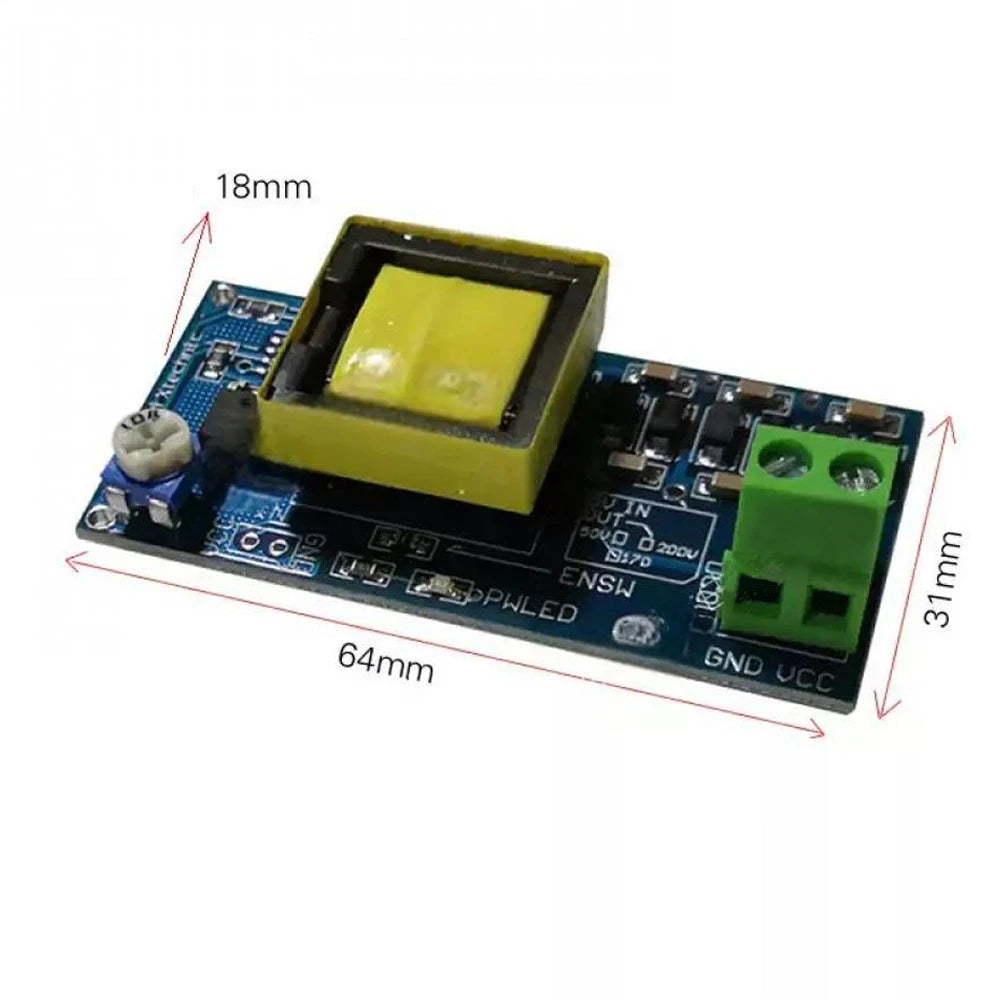

| Module Dimensions | 65 × 31 × 18 mm |
| Battery Included | No |
| Protection | Unbalanced Load Protection |
| Country of Origin | Made in China |
⚠️ Safety Notice
This module produces high-voltage DC output up to 1200V. Always follow proper electrical safety procedures when working with high-voltage circuits. Keep out of reach of children. Use appropriate insulation and protective equipment. For reference on electrical safety best practices, visit OSHA Electrical Safety Guidelines.
What's in the Box
- 1× DC-DC Boost Power Supply Module
Note: Due to lighting and screen variation, actual color may differ slightly from product images. Please allow ±1–10mm tolerance due to manual measurement.
Frequently Asked Questions
Q: What is the maximum output voltage of this DC-DC boost power supply module?
A: This module can output up to 1200V DC. The output is continuously and linearly adjustable — from 280V to 1200V when powered by a 5V input, or from 400V to 1200V when powered by a 6V to 12V input.
Q: Can this module be used to charge capacitors?
A: Yes. This DC-DC boost module is fully capable of charging capacitors and supports fast-charging speeds. It is a popular choice for capacitor bank projects and high-voltage DIY electronics builds.
Q: What input voltage does this boost module require?
A: The module accepts a DC input voltage between 5V and 11V, with an absolute maximum of 12V. Do not exceed 12V input to avoid damaging the module.
Q: Is an enclosure included with the module?
A: No enclosure is included. The module is designed for DIY integration, and users can add their own custom casing for a portable or permanent installation.
