DC-DC Boost Power Supply Module 5V–1200V Adjustable Converter
DC-DC Boost Power Supply Module 5V–1200V Adjustable Converter
DC-DC Boost Power Supply Module — Continuously Adjustable High-Voltage Converter
Take full control of your electronics projects with this compact, continuously adjustable DC-DC boost power supply module. Designed for makers, engineers, and DIY enthusiasts, this versatile module steps up a low-voltage DC input (5–12V) to a wide range of high-voltage outputs — linearly adjustable from as low as 280V up to 1200V — making it an excellent choice for capacitor charging, high-voltage experiments, and custom security or sensing applications.
Key Features
- Wide Output Range: Output voltage is continuously and linearly adjustable from 280V to 1200V depending on input voltage.
- Flexible Input: Accepts input voltages from 5V to 11V (12V maximum). At 5V input, output adjusts from 280V–1200V; at 6–12V input, output adjusts from 400V–1200V.
- Multiple Voltage Divider Outputs: Provides multiple tapping points for versatile circuit design.
- Capacitor Charging Ready: Optimized for fast and reliable capacitor charging in DIY builds.
- Compact & DIY-Friendly: Small 65 × 31 × 18 mm footprint fits easily into custom enclosures — add your own casing for a clean, portable build.
- Stable Performance: Developed for use in security product applications, ensuring dependable, consistent output.
- Unbalanced Load Protection: Built-in protection against unbalanced load conditions.
Specifications
| Input Voltage | 5V–11V (max 12V) |
| Output Voltage (5V input) | 280V – 1200V (adjustable) |
| Output Voltage (6–12V input) | 400V – 1200V (adjustable) |

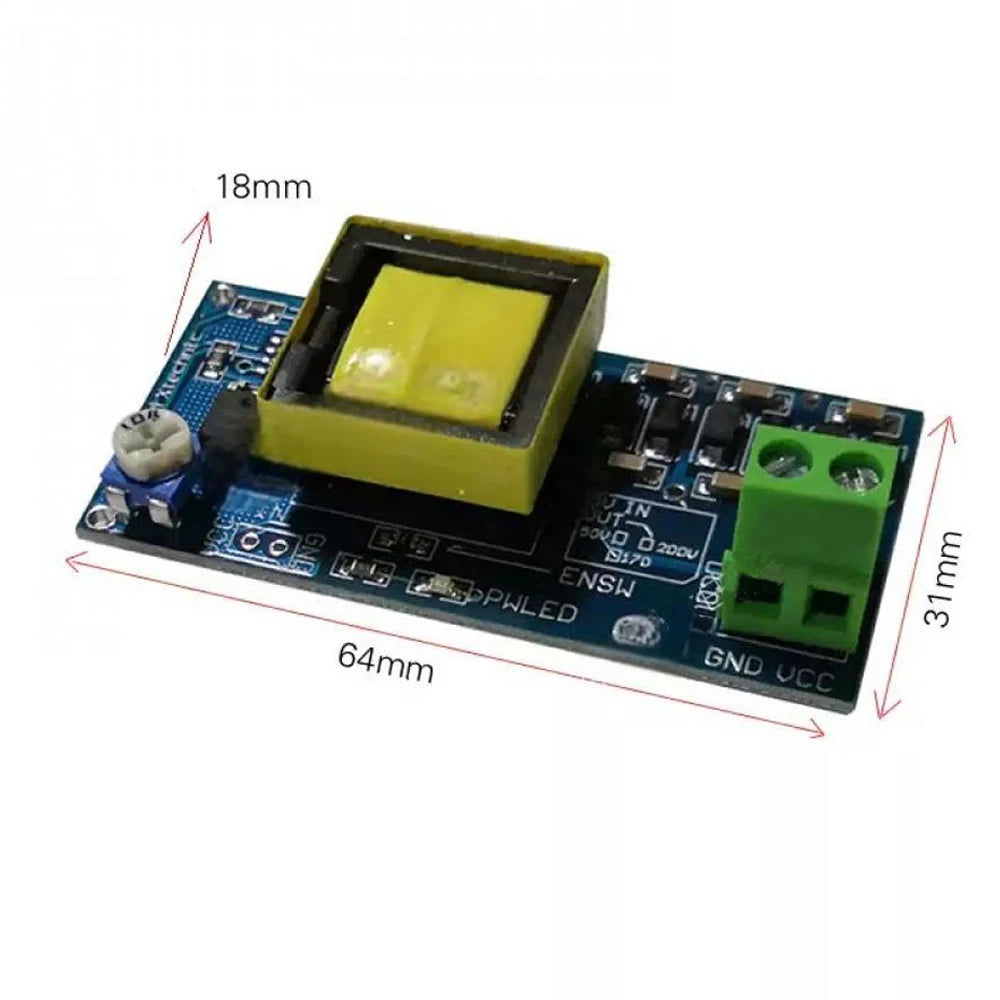

| Module Size | 65 × 31 × 18 mm |
| Battery Included | No |
| Country of Origin | Made in Mainland China |
Package Includes
- 1× DC-DC Boost Power Supply Module
⚠️ Safety Notice: This module produces high voltages that can be dangerous. Always handle with appropriate care, use insulated tools, and ensure your enclosure and circuit are properly rated for high-voltage operation. Refer to OSHA Electrical Safety Guidelines for best practices when working with high-voltage electronics.
Note: Due to lighting and screen differences, the item's color may appear slightly different from photos. Please allow ±1–10 mm variance due to manual measurement.
Frequently Asked Questions
Q: What input voltage does this DC-DC boost power supply module require?
A: This module accepts an input voltage range of 5V to 11V, with an absolute maximum of 12V. Most common USB power banks or regulated DC supplies in the 5V–12V range are compatible, making it convenient for bench-top and portable DIY builds.
Q: What is the maximum output voltage of this boost converter module?
A: The module can produce a maximum output voltage of up to 1200V DC. The output is continuously and linearly adjustable — from approximately 280V at 5V input, or from 400V at 6–12V input, all the way up to 1200V. This wide range makes it ideal for capacitor charging and high-voltage electronics experiments.
Q: Can this module be used for capacitor charging projects?
A: Yes. This DC-DC boost module is well-suited for charging capacitors in DIY electronics projects. It is designed with stability and consistent voltage output in mind, ensuring reliable performance during capacitor charging cycles. For faster charging speeds, users can add a custom enclosure.
Q: Does this boost module come with a casing or enclosure?
A: No enclosure is included. The module is supplied as a bare PCB (65 × 31 × 18 mm), making it easy to integrate into your own custom housing. This DIY-friendly design gives you full flexibility to mount it in whatever enclosure suits your project requirements.
