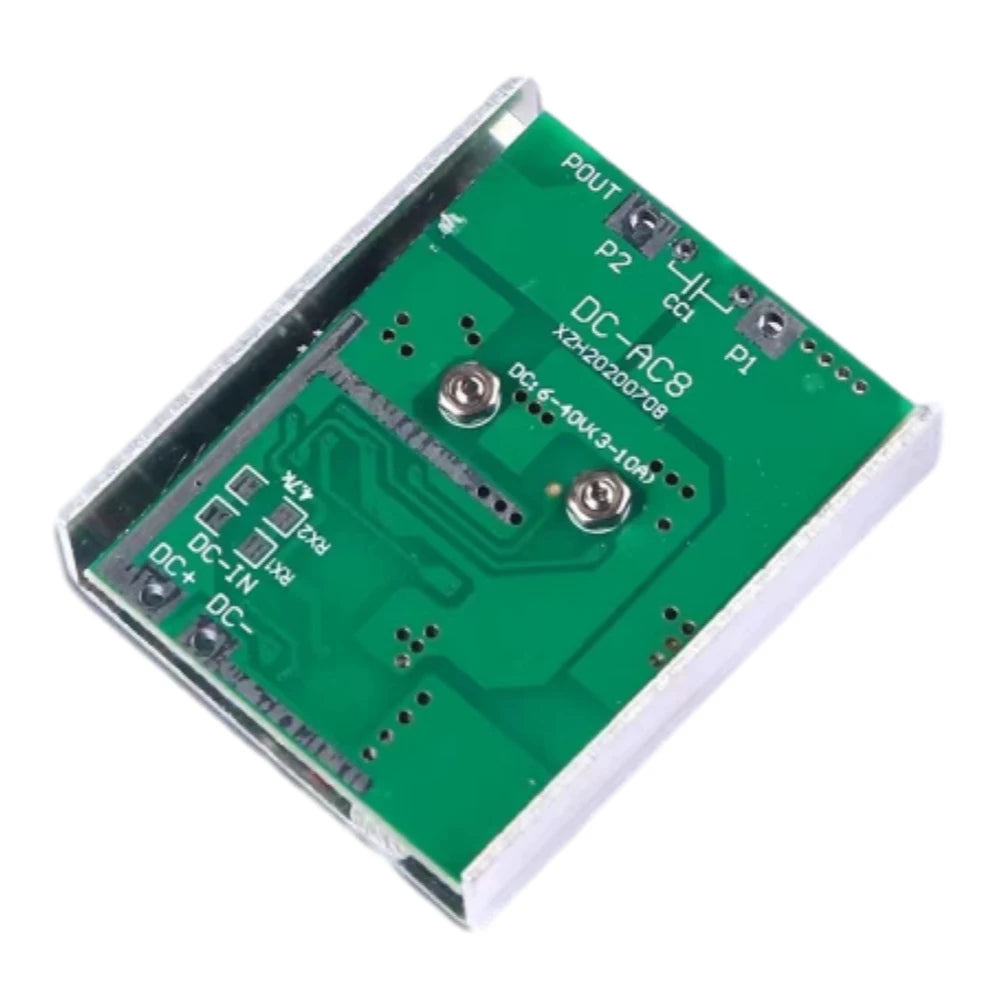

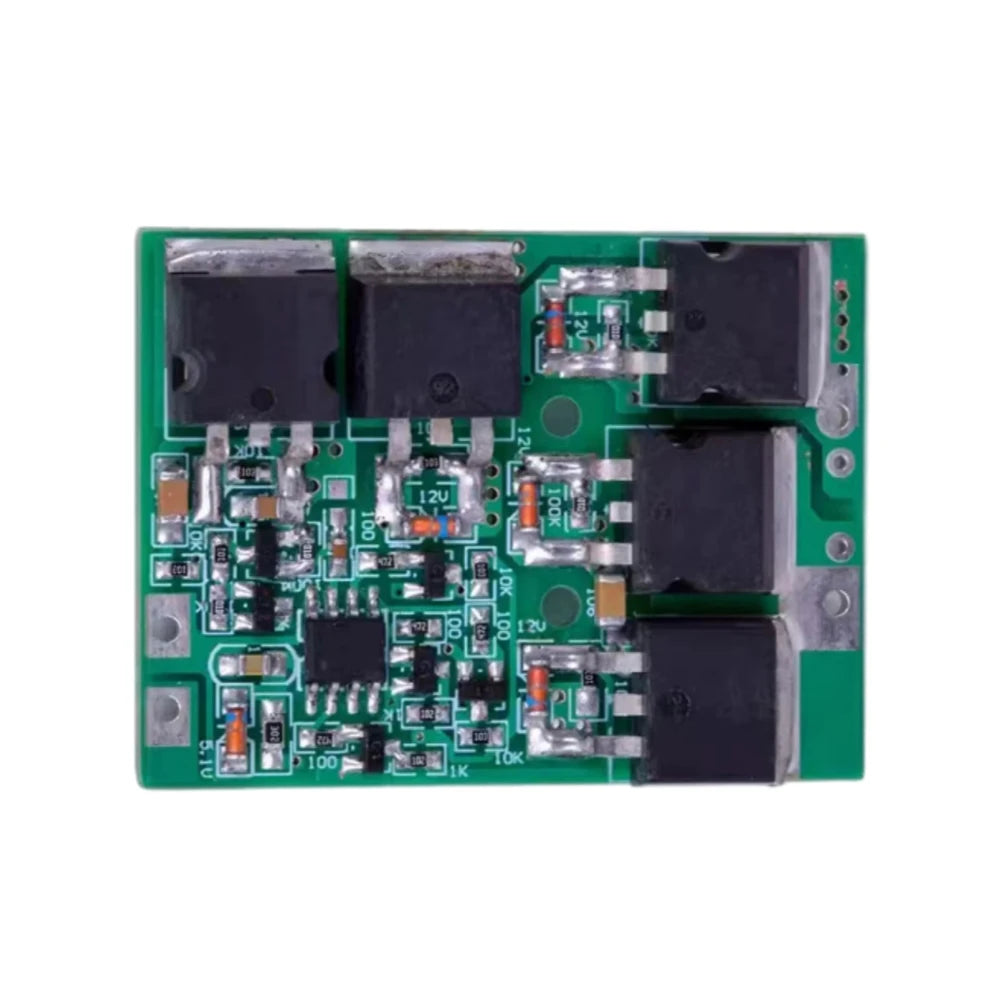

DC-AC Converter Inverter Circuit Board — 200W, 10A, 50Hz
This compact yet powerful DC-to-AC inverter circuit board converts a DC input (8–55V) into a clean AC output (8–55V) at up to 200W and 10A. Ideal for electronics hobbyists, engineers, and DIY makers who need a reliable, space-saving power conversion solution for custom projects, test benches, or embedded systems.
Built with input reverse polarity protection, this drive board safeguards your components against accidental wiring mistakes — a must-have safety feature for any workbench build.
Key Features
- Wide Input Range: DC 8–55V with built-in reverse polarity protection
- Matching AC Output: AC 8–55V for flexible voltage conversion
- High Power Capacity: 200W continuous output, 10A rated current
- Standard Frequency: 50Hz output — compatible with most AC-powered components

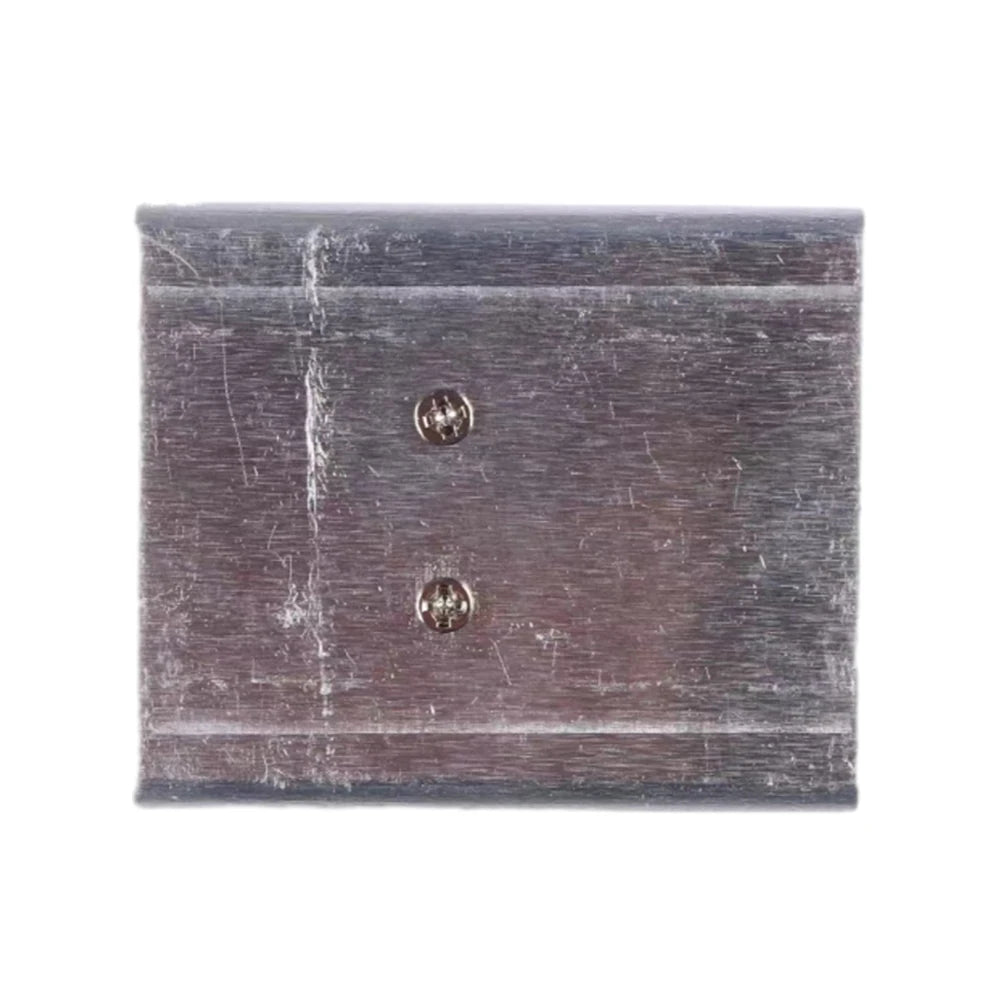

- Ultra-Compact Design: Board size 46mm × 36mm × 6mm; shell size 46mm × 40mm × 13mm — fits easily into custom enclosures
- Reverse Input Protection: Protects the circuit from damage caused by incorrect polarity connections
- DIY & Project Ready: Designed for easy integration into custom electronics builds
Specifications
| DC Input Voltage | 8–55V (with reverse polarity protection) |
| AC Output Voltage | 8–55V |
| Rated Current | 10A |
| Output Frequency | 50Hz |
| Power | 200W |
| Board Size | 46mm × 36mm × 6mm |
| Shell Size | 46mm × 40mm × 13mm |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× DC-AC Inverter Circuit Board
Important Notes
- Due to lighting and screen settings, actual product color may vary slightly from images.
- Please allow ±1mm–1cm tolerance due to manual measurement.
- Intended for use by individuals with appropriate electronics knowledge. Always follow safe wiring and handling practices when working with electrical components. For electrical safety guidance, refer to OSHA's Electrical Safety Resources.
Frequently Asked Questions
Q: What is the input voltage range for this DC-AC inverter circuit board?
A: The board accepts a DC input voltage of 8V to 55V. It also features built-in reverse polarity protection, which helps prevent damage if the input wires are accidentally connected in reverse.
Q: Can this inverter board be used for 12V or 24V DC systems?
A: Yes — because the input range is 8–55V DC, this board is compatible with common DC voltages such as 12V, 24V, and 48V systems, making it versatile for a wide variety of DIY electronics and power conversion projects.
Q: What is the output frequency of this inverter drive board?
A: The board outputs AC at 50Hz, which is the standard frequency used across Europe, Asia, Africa, and Australia. It is well-suited for applications and components designed for 50Hz AC power.
Q: Is this circuit board suitable for beginners?
A: This inverter circuit board is designed for electronics enthusiasts and engineers who are comfortable working with circuit boards and electrical connections. Basic knowledge of DC/AC power systems and safe wiring practices is recommended before use.
