DC & AC Current Detection Module with Overcurrent, Overload & Undercurrent Protection

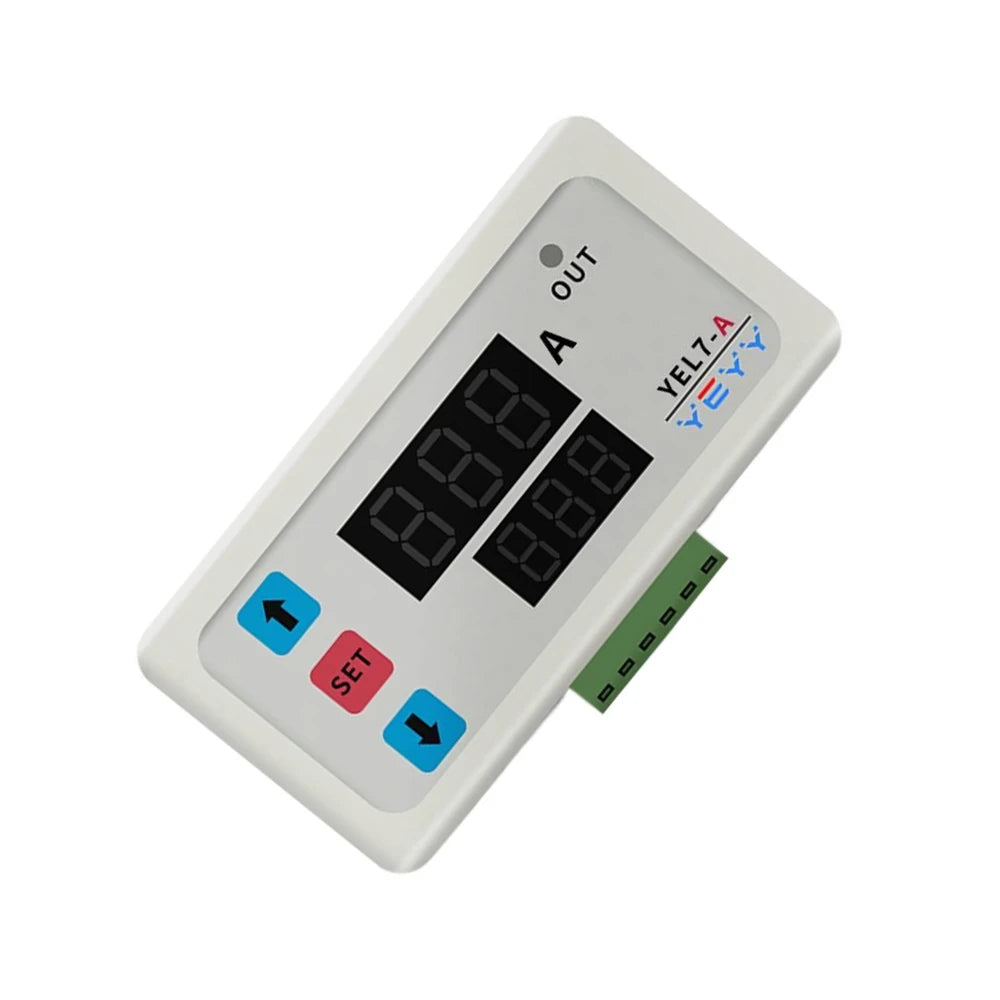

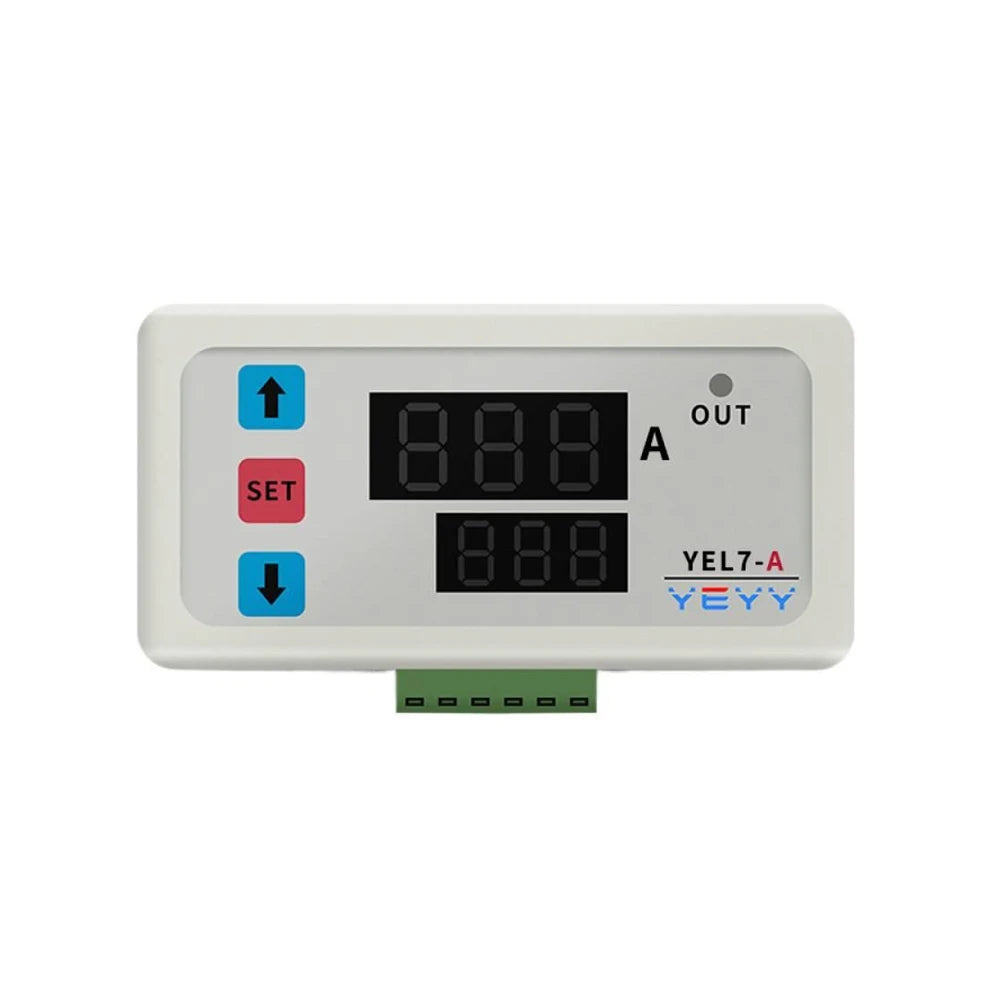

This compact embedded current detection module is designed for engineers, hobbyists, and automation professionals who need precise, reliable current monitoring in both DC and AC circuits. With built-in overload, overcurrent, and undercurrent protection plus delay relay control, this module helps safeguard equipment and automate circuit responses — all in a sleek panel-mount enclosure.

Made in Mainland China.

Key Features

  • Dual Detection (DC & AC): Monitors DC current from 0–10A and AC current from 0–30A, making it highly versatile for a wide range of applications.
  • High Detection Accuracy: Precise 0.01A resolution ensures dependable readings for sensitive circuits.
  • Relay Passive Contact Output: Clean relay output for seamless integration into control systems, alarms, or automatic shutoffs.
  • Flexible Power Supply: Operates on DC 5–30V or AC 220V (optional) to suit various system configurations.
  • Wide Operating Temperature: Functions reliably from -5°C to 60°C (non-condensing) for use in diverse environments.
  • Embedded Panel-Mount Design: Compact form factor (shell dimensions: 78.1 × 42.6 × 24.8 mm) fits neatly into control panels and enclosures.
  • Overcurrent, Overload & Undercurrent Protection: Detects abnormal current conditions and triggers the relay output to protect connected equipment.
  • Delay Relay Control: Adjustable delay function reduces nuisance tripping and adds flexibility to your protection logic.

Specifications

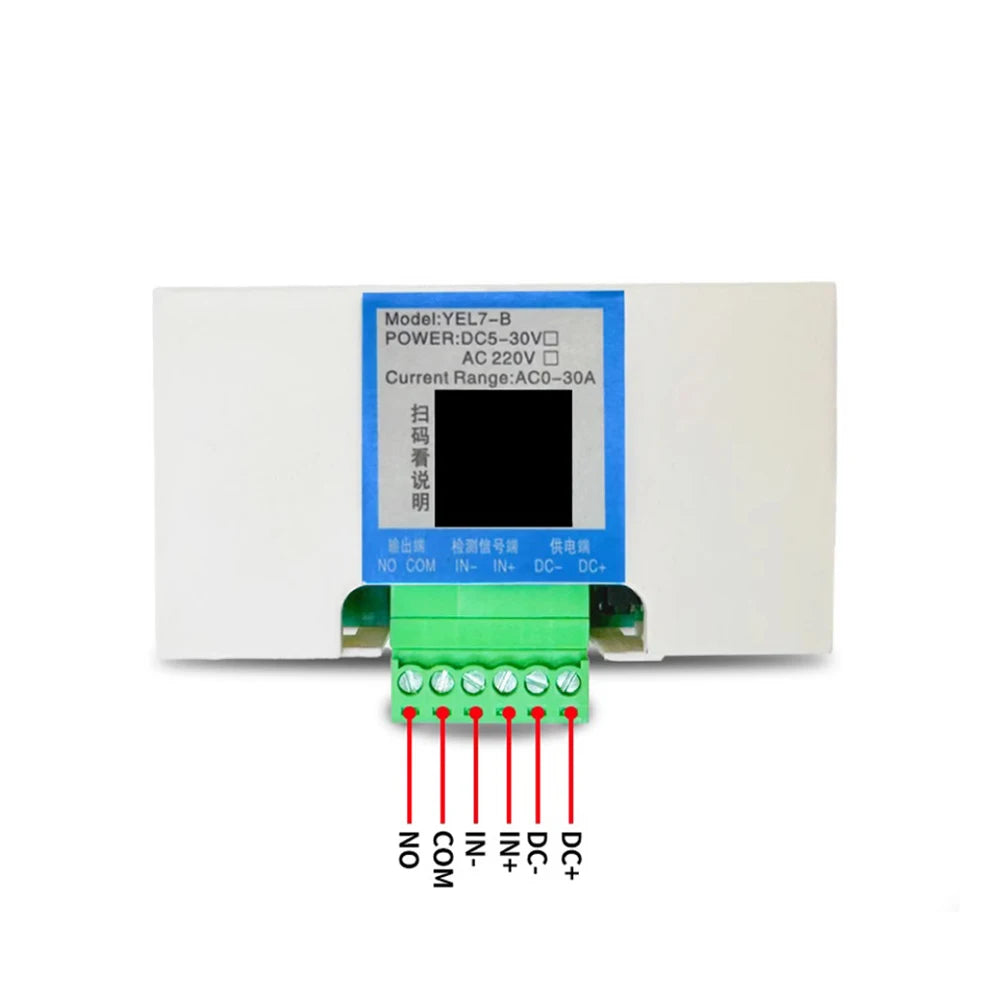

Output Type Relay Passive Contact

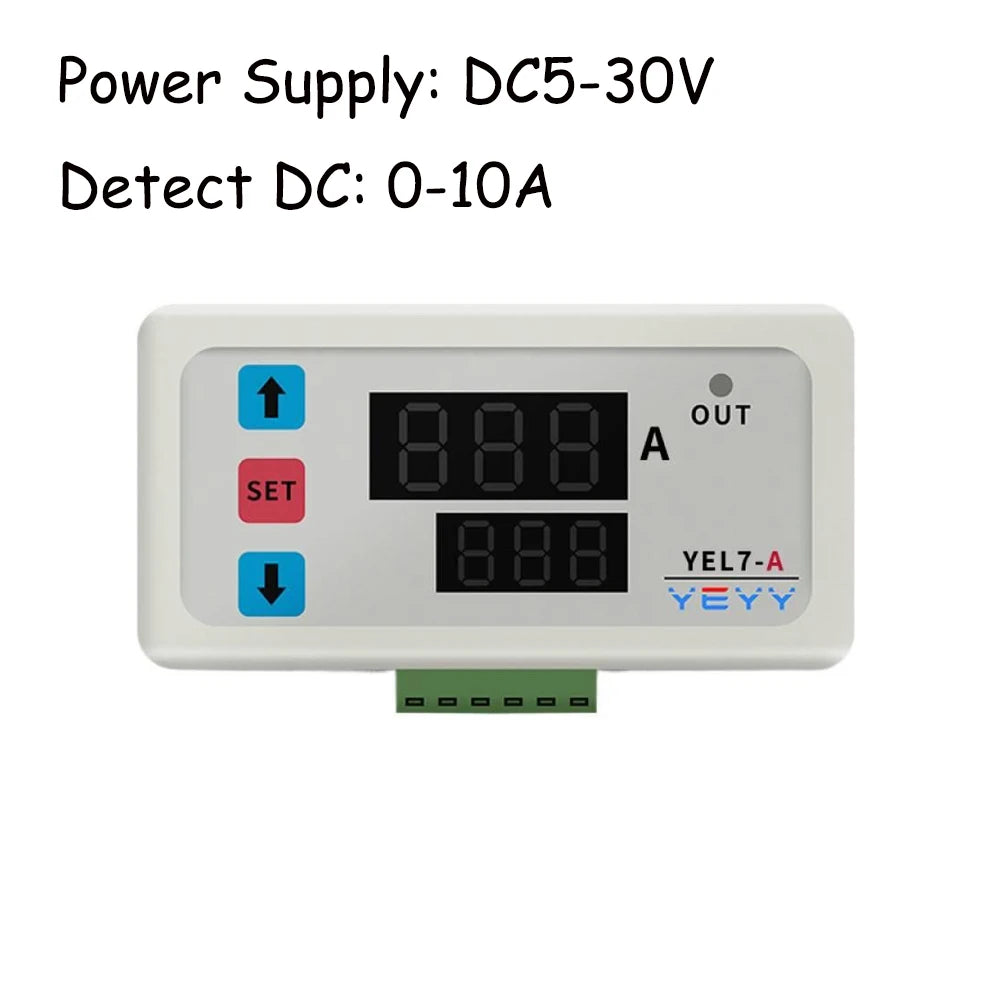

DC Detection Range 0–10A

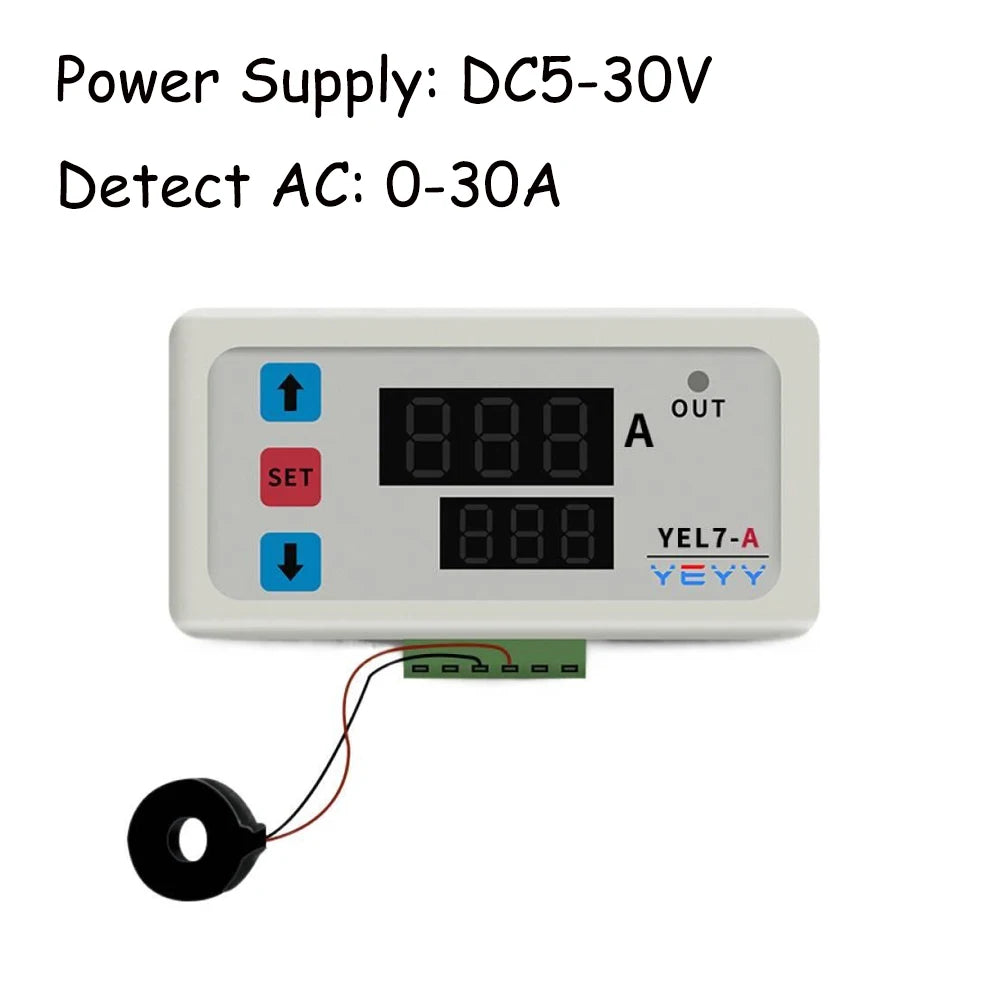

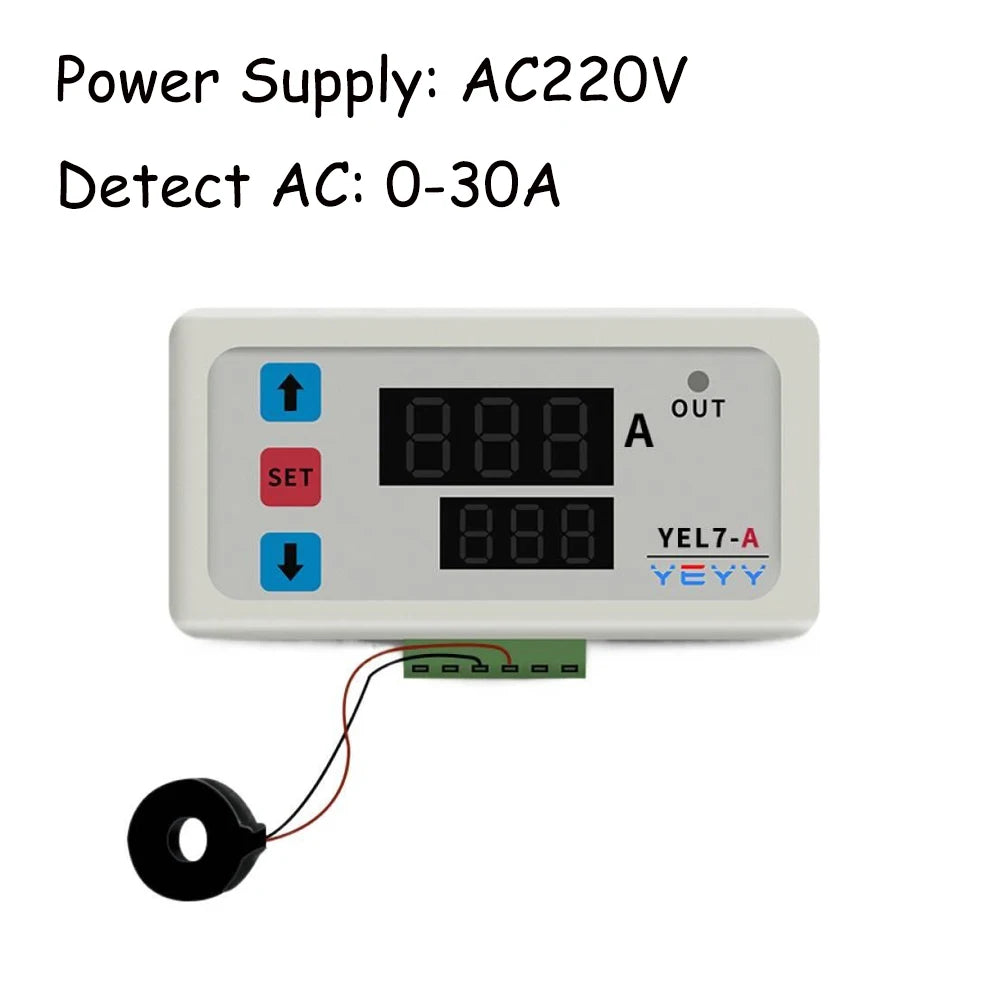

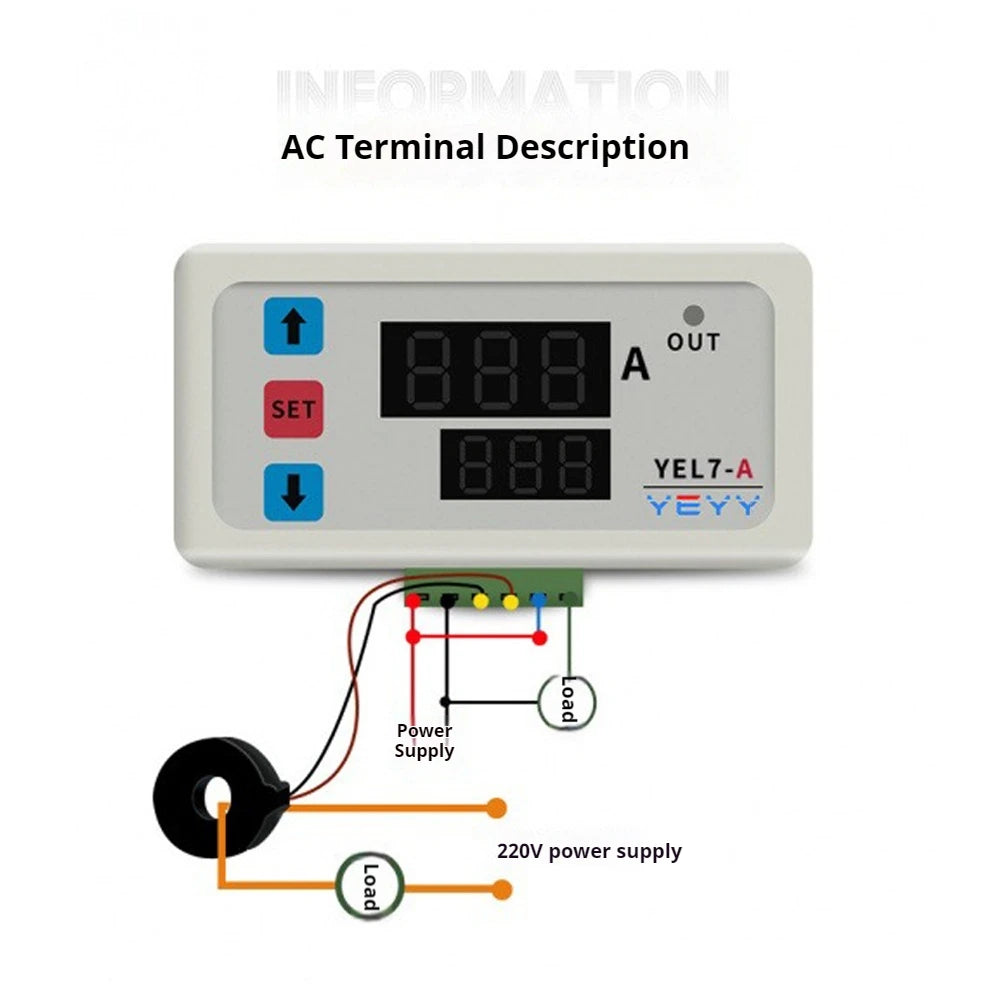

AC Detection Range 0–30A
Power Supply Voltage DC 5–30V / AC 220V (optional)
Detection Accuracy 0.01A
Installation Dimensions 76 × 39 × 23 mm
Shell Dimensions 78.1 × 42.6 × 24.8 mm
Mounting Method Embedded / Panel Mount
Operating Temperature -5°C to 60°C (no condensation)
Origin Mainland China

What's in the Box

  • 1× Current Detection Module

Important Notes

  • Color may vary slightly from images due to screen and lighting differences.
  • Please allow 1–10 mm dimensional tolerance due to manual measurement.

For guidance on electrical safety standards relevant to control modules and relay devices, visit the OSHA Electrical Safety Resource. Additional information on low-voltage electrical equipment standards can be found at NIST Electrical Topics.

Frequently Asked Questions

Q: What types of circuits can this current detection module be used with?

A: This module supports both DC circuits (0–10A range) and AC circuits (0–30A range), making it suitable for a wide variety of automation, industrial control, and DIY electronics applications. It works with power supplies ranging from DC 5–30V or AC 220V.

Q: How does the delay relay function work?

A: The delay relay feature allows a configurable time delay before the relay output triggers in response to a detected overcurrent, overload, or undercurrent condition. This helps prevent false tripping caused by brief, transient current spikes, improving the reliability of your protection system.

Q: Is this module easy to install in a control panel?

A: Yes. The module is designed for embedded panel-mount installation with installation cutout dimensions of 76 × 39 × 23 mm. Simply cut an appropriately sized opening in your enclosure, insert the module, and secure it in place — no complex mounting hardware required.

Q: What is the detection accuracy of this module?

A: The module offers a detection accuracy of 0.01A, providing fine-grained current monitoring suitable for applications where precise current thresholds are critical to equipment protection.
