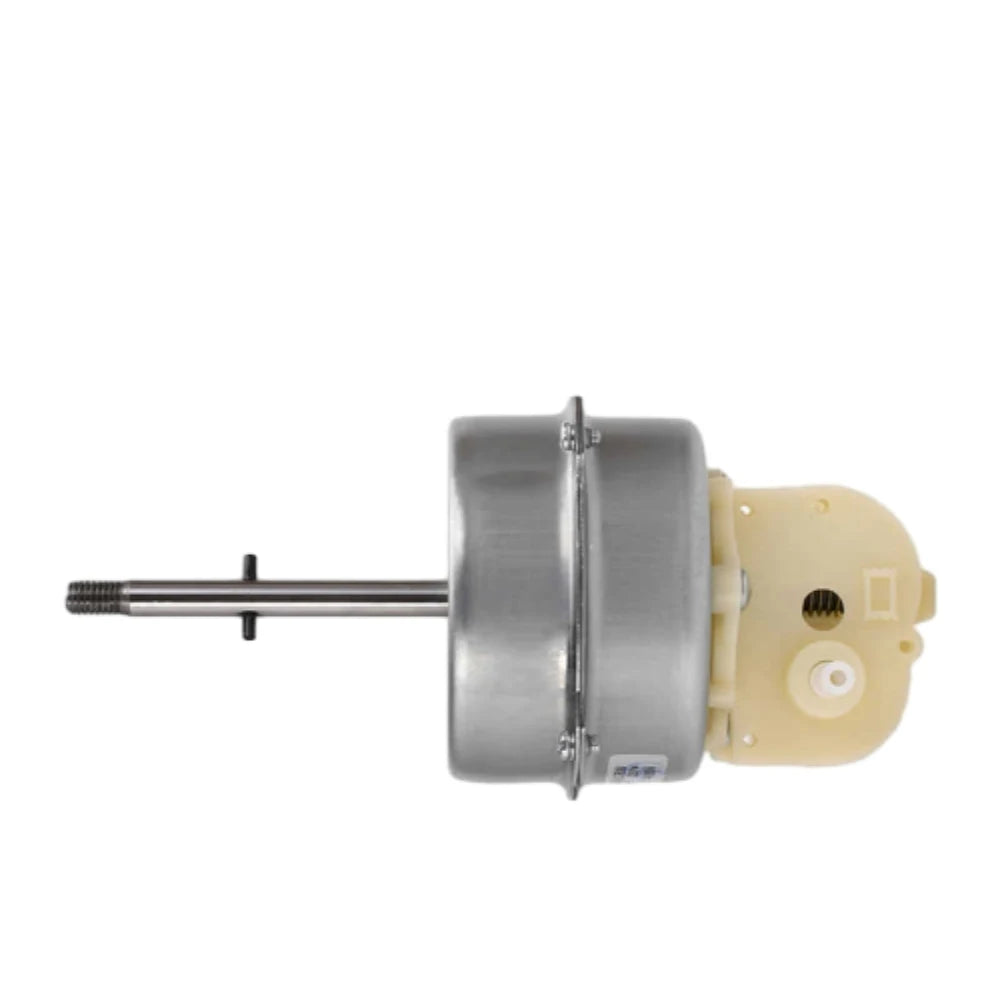

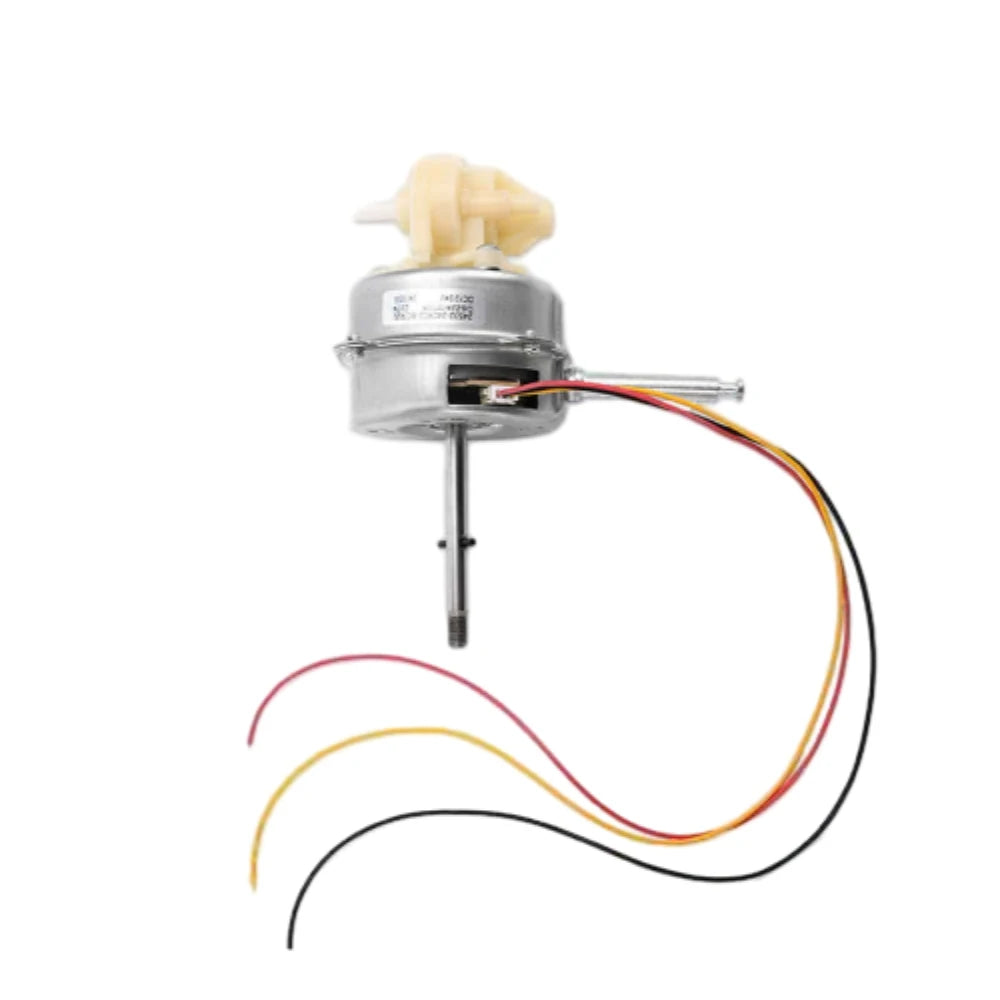

DC 9-28V Brushless Motor — 3/4 Gear & Stepless Speed Control
Upgrade or repair your table fan, floor fan, or wall-mounted fan with this reliable DC 9-28V Brushless Motor. Designed for wide voltage compatibility and quiet, efficient operation, this low-voltage brushless motor offers smooth speed regulation through either 3/4 gear button control or fully stepless adjustment — giving you precise airflow control exactly where you need it.
Built with safety-first engineering, the motor features built-in over-voltage protection (28–40V) and supports both shaking head (oscillation) functionality and direct positive/negative pole connection, making it a versatile drop-in solution for most residential and commercial fan applications.
Made in Mainland China.
Key Specifications
- Input Voltage: DC 9V – 28V
- Current Draw: 1–3A
- Power Output: 28W
- Speed: 1,450 RPM

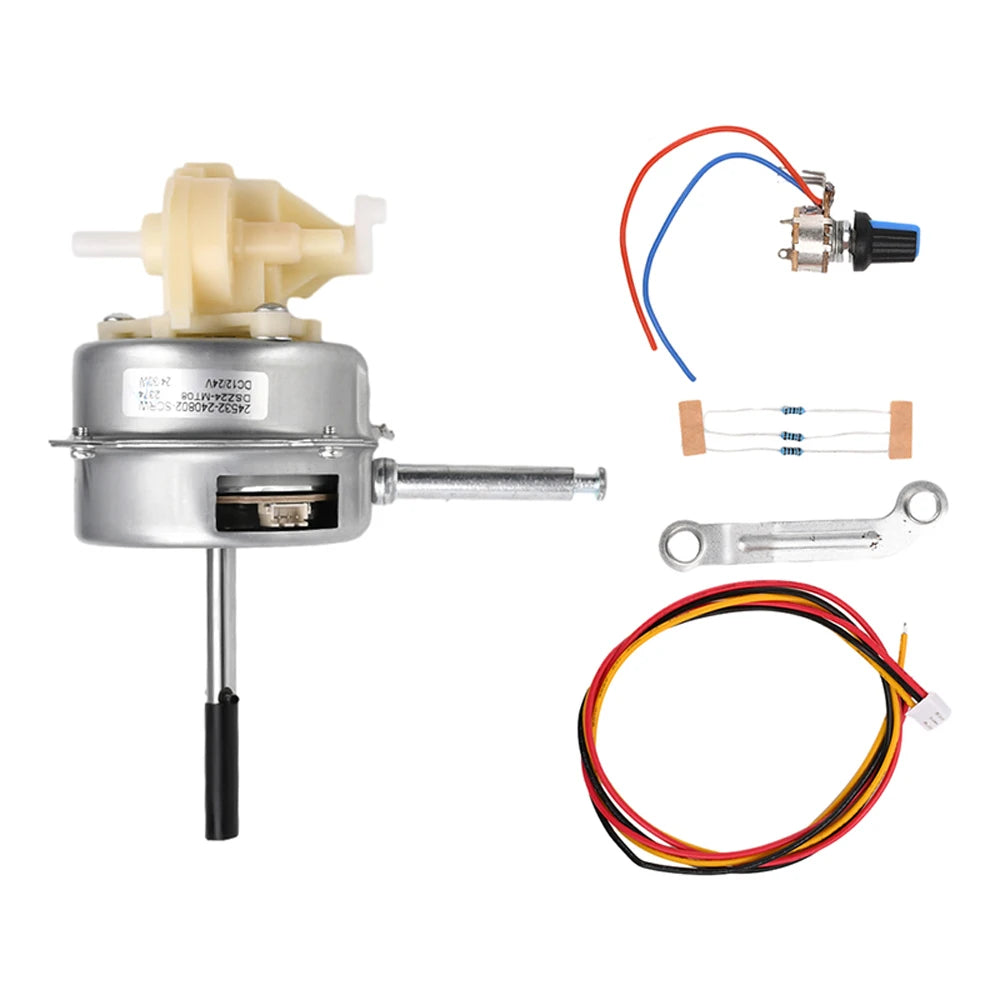

- Speed Adjustment: 3/4 Gear Buttons or Stepless Speed Control
- Shaking Head (Oscillation): Supported
- Reverse Connection Protection: Supported

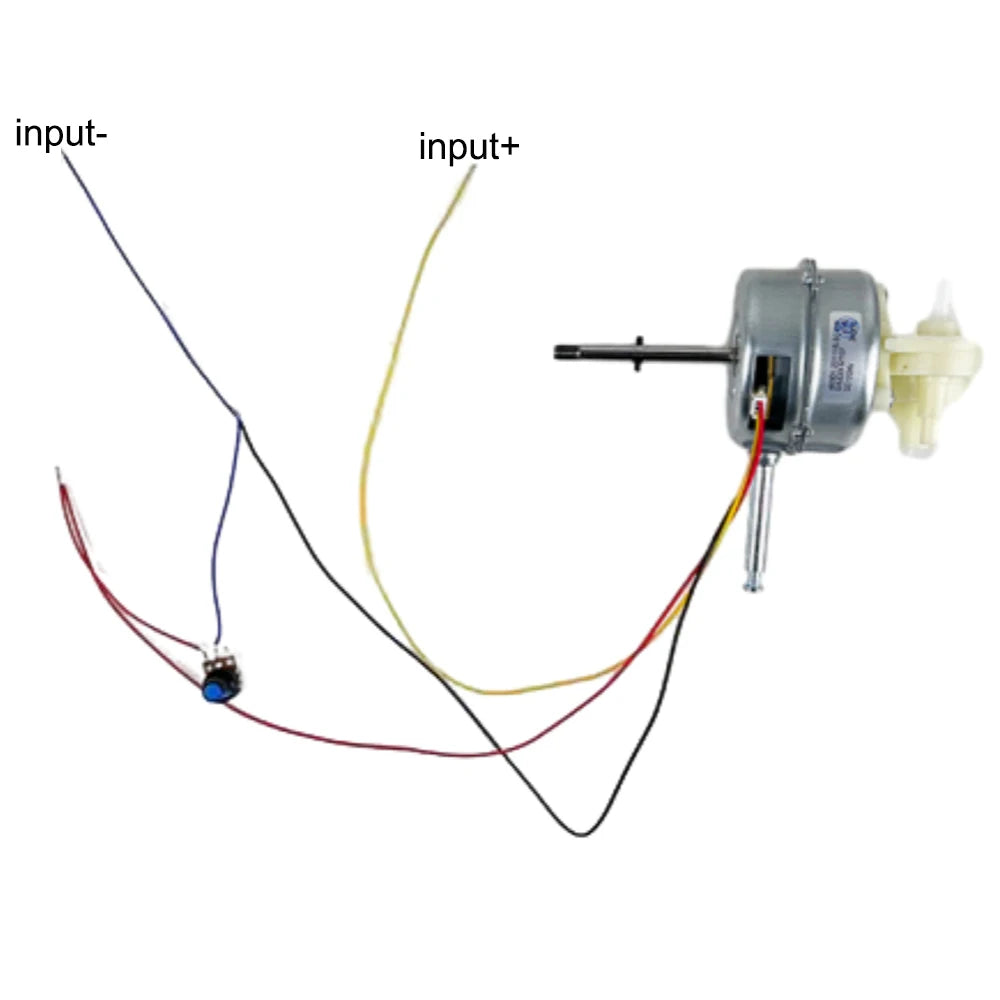

- Direct Positive/Negative Pole Connection: Supported
- Voltage Over-Protection: 28–40V
Why Choose a Brushless Motor?
- ✅ Longer Lifespan — No carbon brushes to wear out, reducing maintenance needs
- ✅ Quieter Operation — Smooth, near-silent running ideal for home and office fans
- ✅ Energy Efficient — Low-voltage DC design draws less power than comparable AC motors
- ✅ Flexible Speed Control — Choose between stepped gear control or infinitely variable stepless adjustment
- ✅ Built-in Protections — Over-voltage and reverse-connection protection for worry-free operation
Compatible Fan Types
- Table / Desktop Fans
- Floor-Standing Fans
- Wall-Mounted Fans
Package Includes
- 1× DC 9-28V Brushless Motor
Important Notes
- Due to lighting conditions and screen calibration, the actual product color may vary slightly from images.
- Please allow 1mm–1cm measurement tolerance due to manual measuring.
For general guidance on electrical component safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage range does this brushless DC fan motor support?
A: This brushless motor is compatible with a wide DC voltage range of 9V to 28V, making it suitable for a variety of power supplies and fan configurations. It also features built-in over-voltage protection up to 40V for added safety.
Q: What speed control options does this motor offer?
A: The motor supports two speed control modes: a 3 or 4 gear stepped button control for quick preset speeds, or fully stepless (variable) speed adjustment for fine-tuned airflow control — whichever best suits your fan setup.
Q: Is this motor compatible with oscillating (shaking head) fan mechanisms?
A: Yes, this motor fully supports shaking head (oscillation) functionality, making it a great replacement or upgrade motor for standard oscillating table fans, floor fans, and wall-mounted fans.
Q: Does this motor support reverse connection?
A: Yes, the motor supports reverse connection as well as direct positive and negative pole connection, offering flexible installation options for various fan wiring configurations.
