DC 7-100V Universal Battery Capacity Meter with Percentage Display
Take the guesswork out of battery monitoring with this versatile 2-wire DC 7-100V Battery Voltage Indicator. Compatible with Lead Acid, Li-ion (Ternary Lithium), and LiFePO4 batteries, this compact meter delivers real-time voltage readings, charge percentage, charge level, and temperature — all on one easy-to-read display. Perfect for electric vehicles, outdoor power stations, vacuum cleaners, solar setups, and DIY electrical projects.
Made in Mainland China.
Key Features

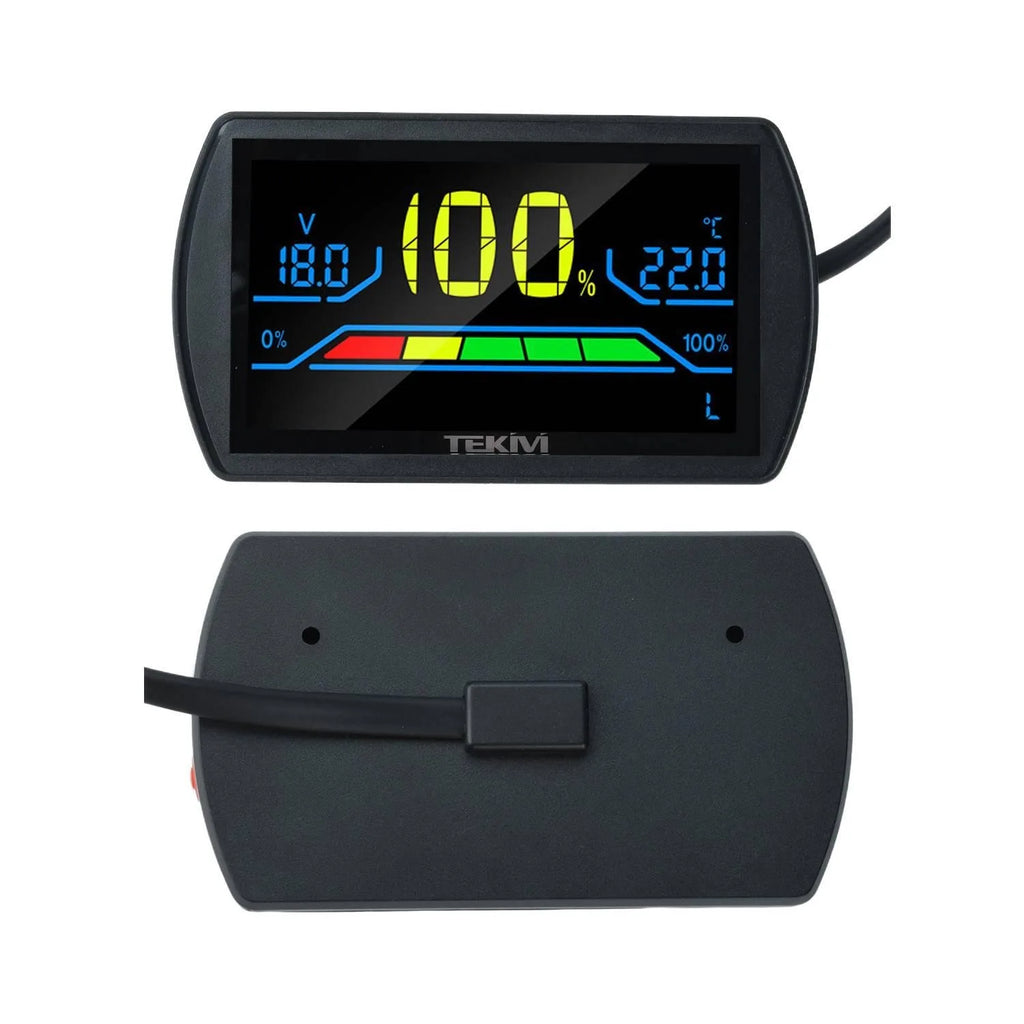

- Intuitive Multi-Data Display: Simultaneously shows voltage, charge percentage, charge level, and temperature at a glance.
- Wide Voltage Compatibility: Operates across DC 7–100V, supporting Lead Acid, Lithium Iron Phosphate (LiFePO4), and Ternary Lithium batteries.
- Fully Customizable: Set any battery voltage parameter within the DC 7–100V range with power-off memory — your settings are retained even after disconnection.
- High & Low Voltage Alerts: Built-in alarm settings notify you when voltage goes outside your preferred thresholds.

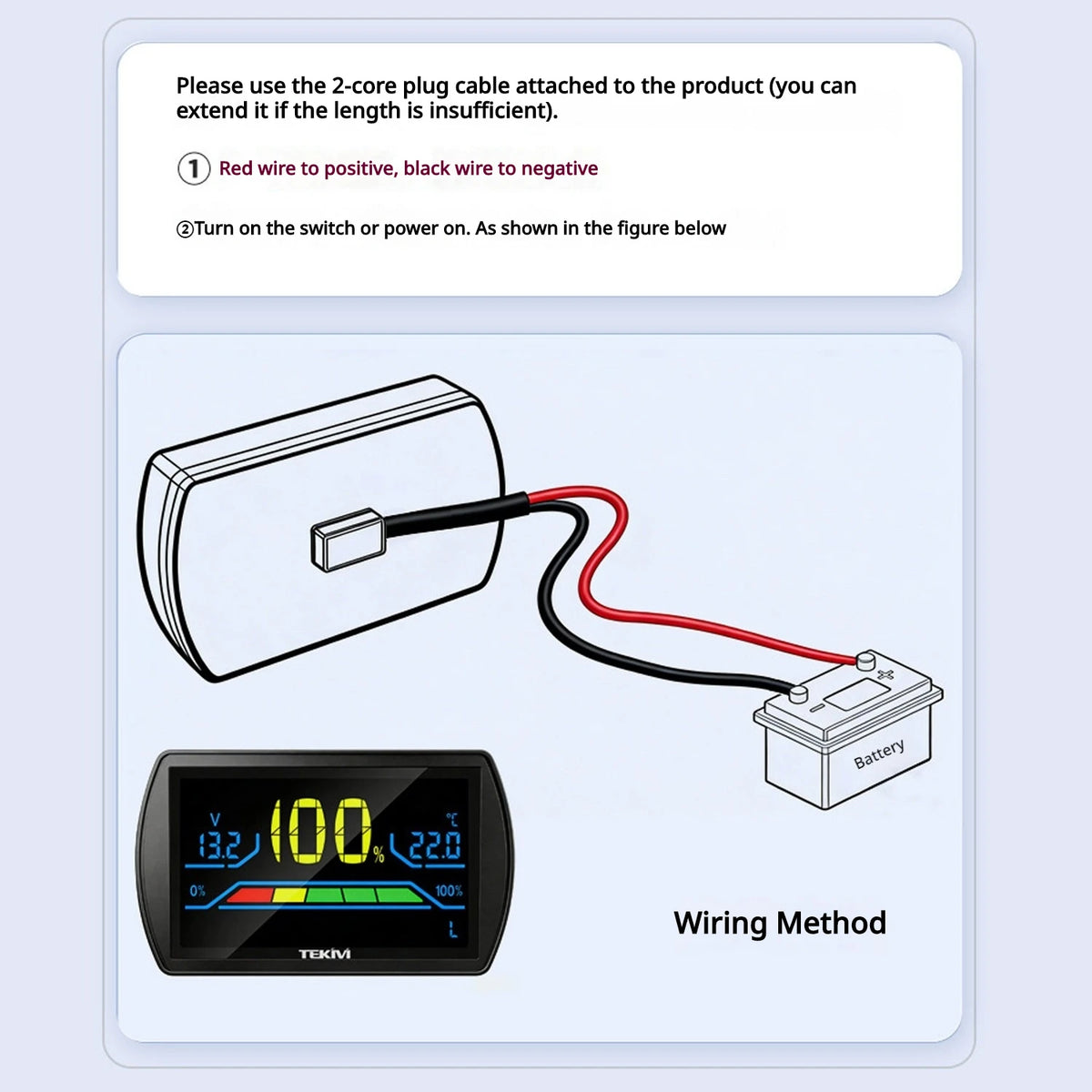

- Simple 2-Wire Connection: Easy to install with no additional wiring complexity.
- Versatile Applications: Ideal for electric vehicles, outdoor power supplies, vacuum cleaners, and general battery monitoring & maintenance.
Technical Specifications
| Working Voltage | DC 7–100V |
| Working Current | ≤ 15mA |
| Voltage Accuracy | ±1.0% |
| Operating Temperature | -10°C to 60°C |
| Product Size | 93 × 53.4 × 19.8 mm |
| Wire Length | ~45 cm |
| Ternary Lithium [L] | Adjustable L03S – L22S |
| Lead Acid / Alkaline [P] | 12V, 24V, 36V, 48V, 60V, 72V, 84V |
| Lithium Iron [F] | Adjustable F03S – F26S |
| Custom Mode [C] | Any voltage within DC 7–100V (power-off memory) |
What's in the Box
- 1× Battery Capacity Meter (battery not included)
Notes
- Colors may vary slightly due to screen settings and lighting conditions.
- Please allow 1mm–1cm tolerance due to manual measurement.
Helpful Resources
For general electrical safety guidelines when working with DC battery systems, visit OSHA Electrical Safety. For standards and measurement accuracy references, see NIST Electrical Measurements.
Frequently Asked Questions
Q: What types of batteries is this voltage indicator compatible with?
A: This battery capacity meter works with a wide range of battery chemistries, including Lead Acid, Ternary Lithium (Li-ion), and Lithium Iron Phosphate (LiFePO4) batteries across a DC 7–100V range. Use the [P], [L], [F], or custom [C] mode to match your specific battery type.
Q: Will my custom voltage settings be saved if the meter loses power?
A: Yes! The meter features power-off memory, meaning your custom voltage parameters are retained even after disconnecting from the battery. You won't need to reconfigure your settings each time.
Q: What applications is this battery meter best suited for?
A: This meter is ideal for monitoring batteries in electric vehicles (e-bikes, scooters), outdoor power stations, solar energy storage systems, vacuum cleaners, and DIY electrical projects requiring accurate DC voltage and charge level readings between 7V and 100V.
Q: How accurate is the voltage reading?
A: The voltage acquisition accuracy is ±1.0%, providing reliable and precise readings for effective battery monitoring and management.
