LUCKING DOOR DC 5-24V Compact Solenoid Electromagnetic Lock
Take control of access to cabinets, drawers, lockers, vending machines, and more with the LUCKING DOOR XG07A Compact Solenoid Electromagnetic Lock. Built from a durable steel shell with carbon steel precision-cast components, this fail-secure electric lock energizes to unlock — keeping contents safely secured whenever power is off. Designed for industrial and commercial environments, it delivers over 300,000 operational cycles for long-lasting, reliable performance.
Made in Mainland China.
Key Features

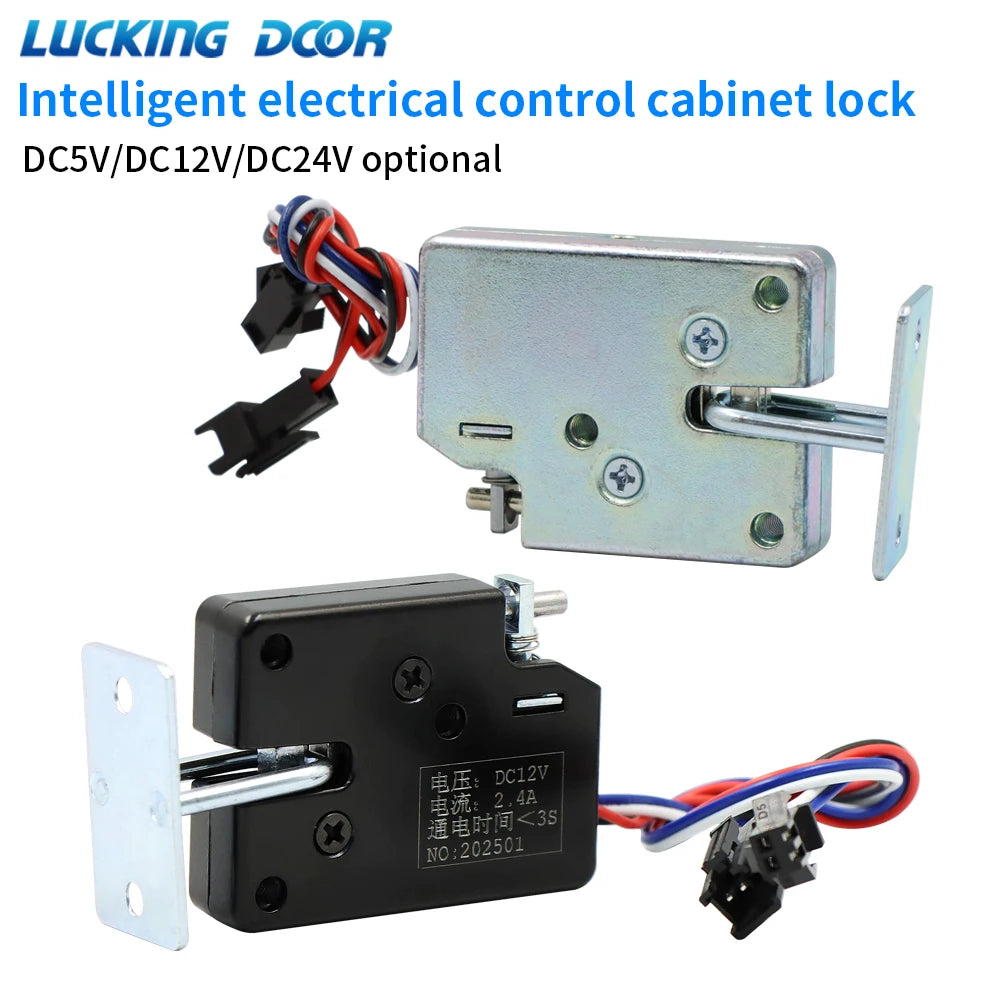

- Wide Voltage Compatibility: Operates at DC 5V, 12V, or 24V — flexible enough for diverse system integrations.
- Fail-Secure Design: Power-on-to-open mechanism ensures contents remain locked during power outages.

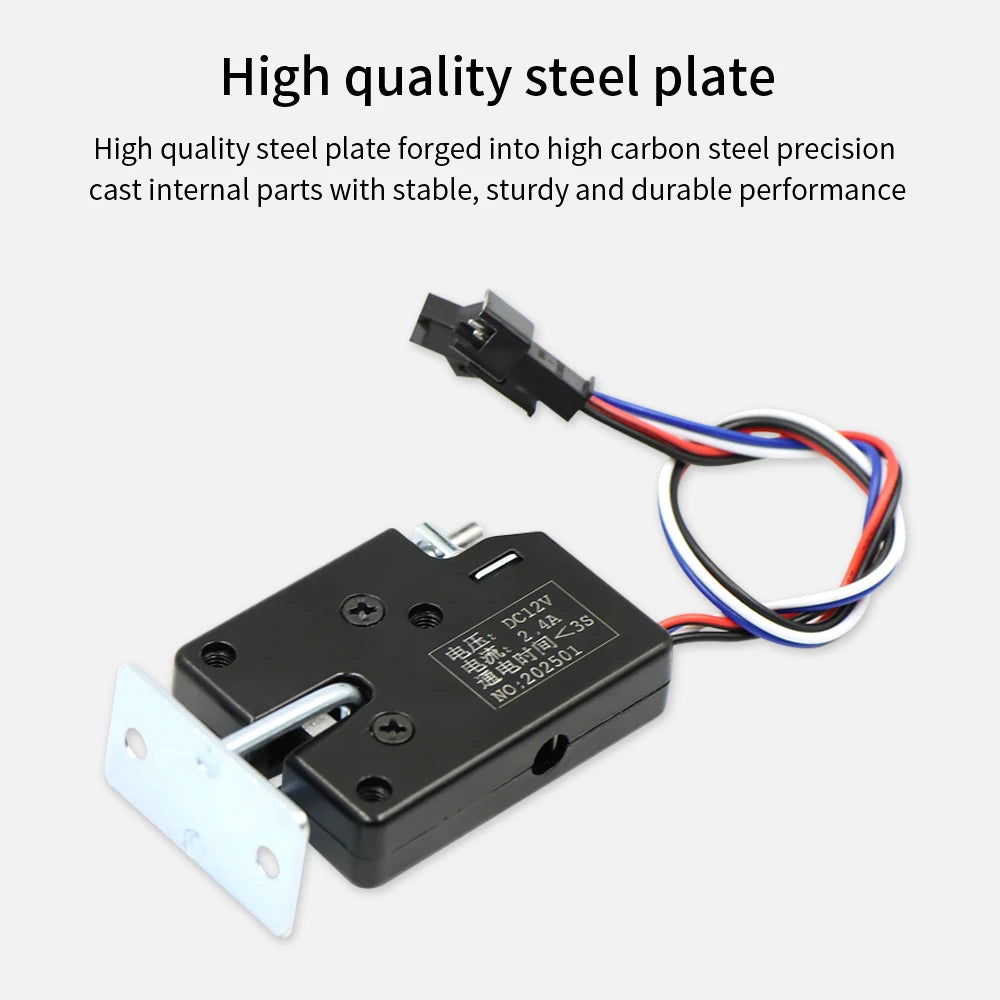

- Rugged Construction: Steel shell and carbon steel precision casting parts withstand demanding commercial use.
- Long Service Life: Rated for 300,000+ actuations, minimizing maintenance and downtime.
- Compact Form Factor: Easy to integrate into cabinets, drawers, express lockers, supermarket cabinets, and vending machines.
- Model XG07A: Versatile and widely compatible with standard access control systems.

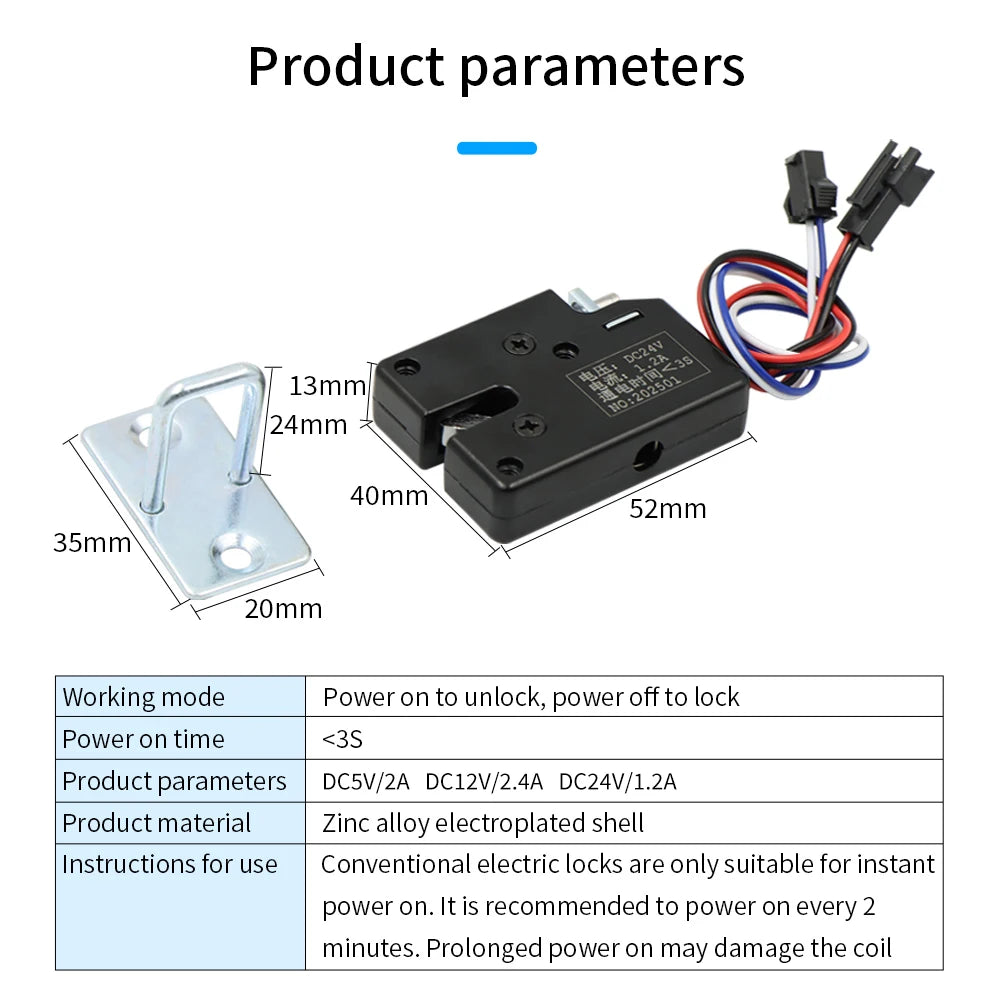

Specifications
| Brand | LUCKING DOOR |
| Model | XG07A |
| Voltage | DC 5V / 12V / 24V |
| Current | DC 5V: 2A | DC 12V: 2.4A | DC 24V: 1.2A |
| Fail-Secure Type | Power-on to Open |
| Material | Steel shell / Carbon steel precision casting |
| Service Life | 300,000+ cycles |
| Applications | Express cabinets, supermarket cabinets, lockers, vending machines, drawer systems |
| Origin | Mainland China |
⚠️ Important Usage Note
Continuous energization is recommended for 0–5 seconds only. Keeping the lock energized for more than 3 minutes continuously may damage the electromagnet coil. Always design your control circuit to pulse or limit power to the lock accordingly.
Applications
The XG07A solenoid lock is ideal for a wide range of commercial and industrial use cases:
- Express parcel lockers & delivery cabinets
- Supermarket display & storage cabinets
- Gym & facility lockers
- Vending machines
- Smart drawer systems
- Access control panels & industrial enclosures
For general guidance on electrical safety with solenoid devices and industrial controls, refer to OSHA's Control of Hazardous Energy (Lockout/Tagout) guidelines.
Frequently Asked Questions
Q: What voltages does the LUCKING DOOR XG07A solenoid electromagnetic lock support?
A: The XG07A supports DC 5V (2A), DC 12V (2.4A), and DC 24V (1.2A), making it compatible with a wide variety of access control systems and power supplies used in commercial and industrial settings.
Q: Is this solenoid lock fail-secure or fail-safe?
A: This lock is fail-secure — it uses a power-on-to-open design, meaning the lock remains engaged (locked) when there is no power. It only unlocks when power is applied, which is ideal for security-sensitive applications such as lockers and cabinets.
Q: How long can I keep the solenoid lock energized continuously?
A: It is strongly recommended to limit continuous energization to 0–5 seconds. Keeping power applied for more than 3 minutes continuously risks overheating and damaging the electromagnet coil. Design your control circuit to pulse the lock rather than hold it open indefinitely.
Q: What types of cabinets and enclosures is this electromagnetic lock suitable for?
A: The XG07A is designed for express delivery cabinets, supermarket cabinets, gym and facility lockers, vending machines, smart drawer systems, and industrial control enclosures — anywhere compact and reliable electromagnetic locking is needed.
Q: What is the expected service life of the XG07A solenoid lock?
A: The lock is rated for more than 300,000 actuation cycles, providing years of reliable operation in high-use commercial and industrial environments with minimal maintenance.
