DC 3.3V / 5V Adjustable Voltage Regulator Power Supply Module

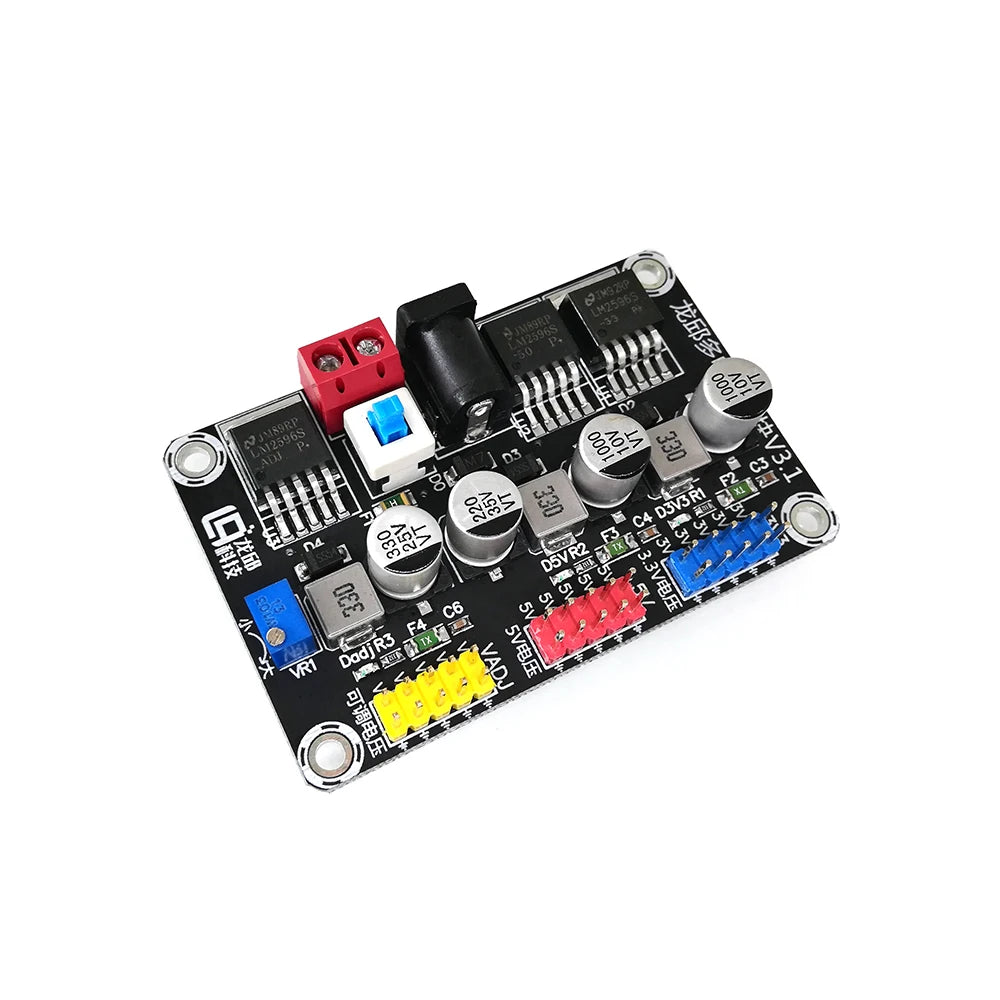

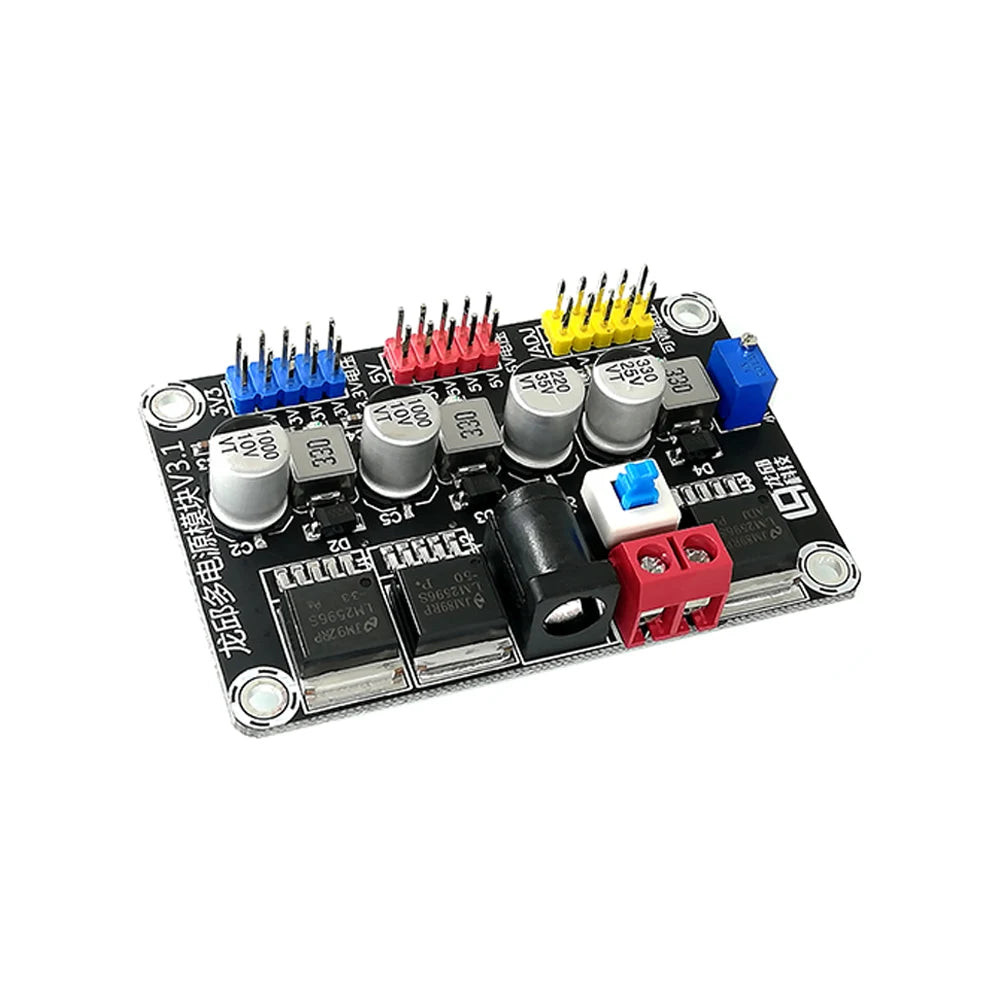

Take control of your electronics projects with this compact and versatile DC Adjustable Voltage Regulator Power Supply Module. Engineered for smart car competitions, robotics, electronic contests, and laboratory experiments, this board delivers stable, selectable voltage outputs in a slim, durable form factor. Made in Mainland China.
Key Features
- New Regulator Chip: Built with a modern, high-efficiency voltage regulator chip for reliable and consistent power output.
- Premium Components: Equipped with new aluminum capacitors and new power inductors for improved performance and longevity.
- Multiple Output Options: Selectable outputs of DC 3.3V, DC 5V, and adjustable DC 1.25V–Vin, covering a wide range of project needs.
- Built-In Protection: Features four self-restoring fuses and three power indicator LEDs — if an indicator goes off, it signals a load short circuit so you can immediately disconnect and protect your components.
- Gold-Plated Needles: Anti-oxidation gold-plated pin headers ensure excellent conductivity and long-term reliability.
- Compact Design: Small footprint (68 × 44 × 12 mm) fits easily into any project enclosure or breadboard setup.
Specifications
| Input Voltage | DC 6V – 25V (>1A) |
| Output Voltage | DC 3.3V, DC 5V, DC 1.25V–Vin (adjustable) |
| Pin Material | Gold-plated, anti-oxidation |
| Dimensions (L×W×H) | 68 × 44 × 12 mm |
| Fuse Protection | 4× Self-restoring fuses |
| Power Indicators | 3× LED indicators |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Intelligent / smart car competitions
- Electronic engineering competitions
- Robotics builds and competitions
- Laboratory experiments and prototyping
- DIY electronics and maker projects
Package Includes
- 1× DC Adjustable Voltage Regulator Power Supply Module
Note: Colors may appear slightly different due to screen settings. Please allow ±1–3 cm tolerance due to manual measurement.
For more information on electrical safety standards for electronics components, visit CPSC.gov – Electronic Devices Safety Guidance.
Frequently Asked Questions
Q: What input voltage range does this power supply module support?
A: This adjustable voltage regulator module accepts an input of DC 6V to 25V (greater than 1A), making it compatible with a wide range of standard power sources commonly used in electronics labs and competition setups.
Q: What output voltages can I get from this module?
A: The module provides three output options: a fixed DC 3.3V, a fixed DC 5V, and a fully adjustable output ranging from DC 1.25V up to the input voltage (Vin), giving you maximum flexibility for powering different components.
Q: Is this module safe to use with my smart car or robotics project?
A: Yes. The module is specifically designed for smart car competitions, robotics, and electronic contests. It includes four self-restoring fuses and three LED power indicators that alert you immediately if a short-circuit condition occurs, helping to protect your components and your board.
Q: What does it mean if one of the power indicator LEDs turns off?
A: If any of the three power indicator LEDs goes off during operation, it indicates a short-circuit condition on the load. You should immediately disconnect the power supply to prevent any damage to the module or connected devices. The self-restoring fuses will reset automatically once the fault is cleared.
