DC 24V Automatic Swing Gate Opener with Dual Linear Actuators – 400 kg Per Leaf
Upgrade your property's entrance with this heavy-duty DC 24V electric automatic swing gate opener. Engineered to handle gates up to 400 kg per leaf and up to 2.5 meters in single-leaf length, this dual-actuator system delivers smooth, quiet, and reliable automated operation for residential driveways, commercial properties, and industrial entrances. Two wireless remote controls are included for immediate use right out of the box. Made in Mainland China.
Key Features
- Heavy-Duty Capacity: Supports single-leaf gates weighing 300–400 kg and up to 2.5 m in length.
- Wide Opening Angle: Opens up to 110° for maximum clearance.
- Soft Start & Speed Control: Gentle start function and adjustable opening/closing speed for smooth, noiseless operation.
- Auto-Close Function: Configurable auto-close with adjustable time delay — ideal for secure, hands-free access management.
- Obstruction Detection: Gate automatically stops when an obstacle is detected, enhancing safety.

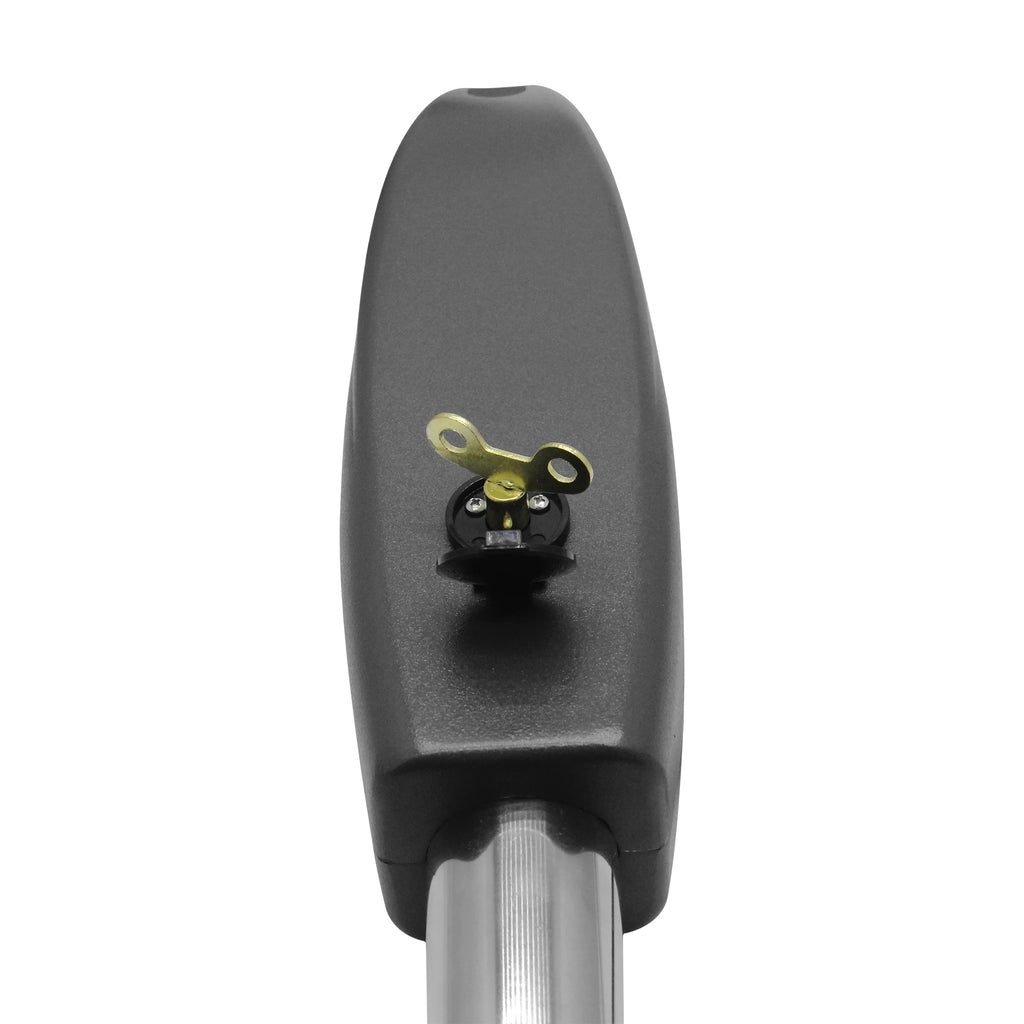

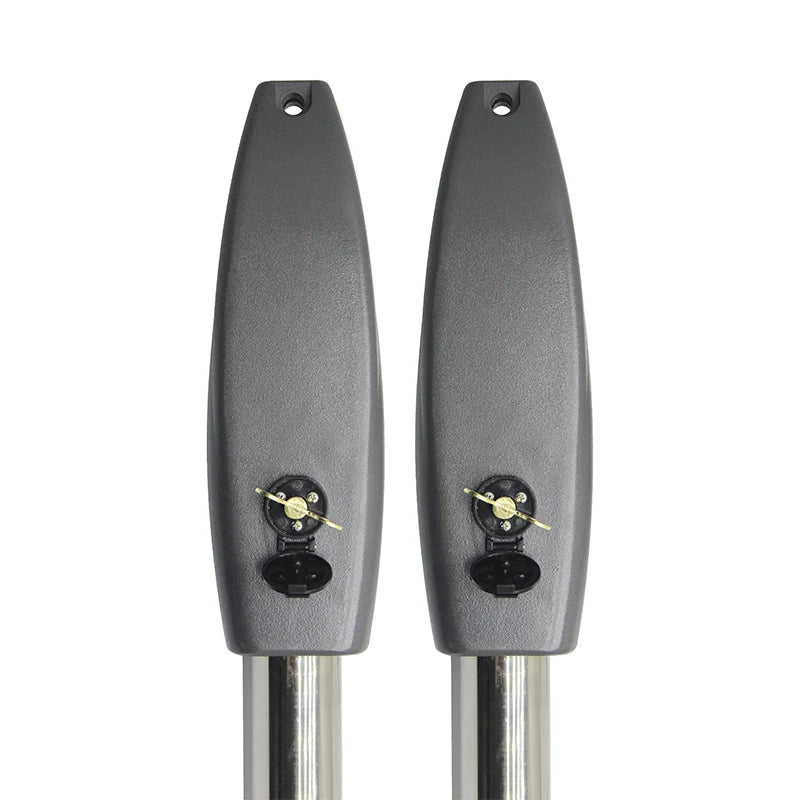

- Manual Override: In the event of a power outage, use the included override spanner key to release the clutch and operate the gate manually.
- DC 24V Battery Backup Compatible: Easily integrate a 24V backup battery so the gate continues working during power interruptions.
- Expandable Control: The controller supports multiple remote transmitters and is compatible with optional accessories including a photocell, keypad, gate lock, push button, and solar power systems.
- IP55 Weather Protection: Rated IP55 for dust and water resistance — built to perform in demanding outdoor environments.
- Wide Temperature Range: Operates reliably from -40 °C to +50 °C, suitable for extreme climates.
- CE Certified: Meets European CE safety and quality standards.
Technical Specifications
| Motor Voltage | 24VDC, 60W |
| Input Power | AC/DC 24V ±10% |
| Rotational Speed | 300 RPM |
| Arm Extension Speed | 2.4 cm/s |
| Max Arm Travel | 300 mm |
| Continuous Run Time | 5 minutes |
| Max Single-Leaf Length | 2.5 m |
| Max Single-Leaf Weight | 300–400 kg |
| Max Gate Open Angle | 110° |
| Operating Temperature | -40 °C to +50 °C |
| Protection Rating | IP55 |
| Security Mode | Fail Secure with Signal |
| Dual Gate System Gross Weight | 18 kg |
| Certification | CE |
| Country of Origin | Made in Mainland China |

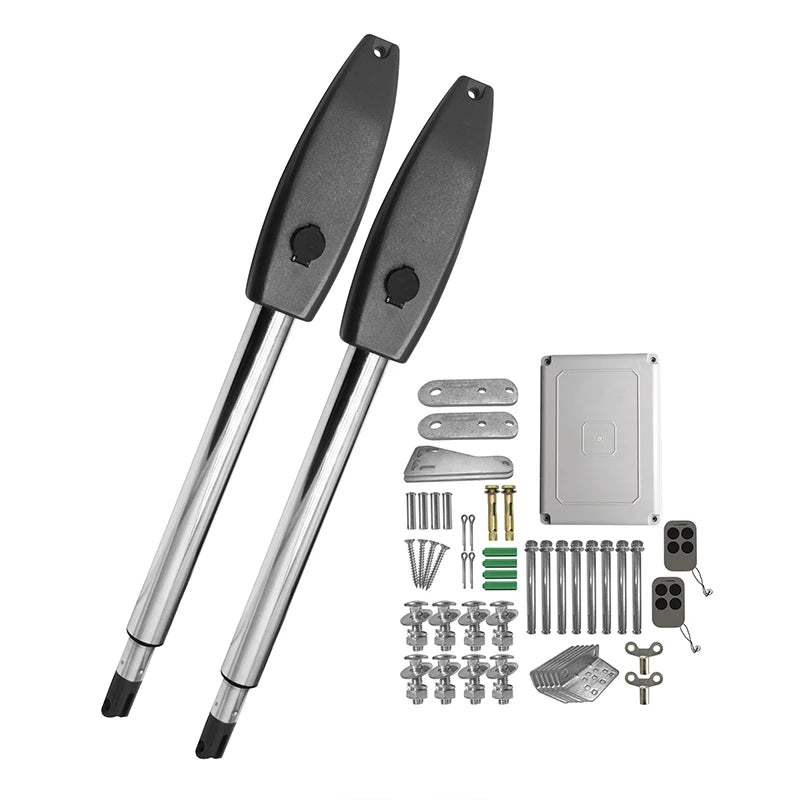

What's in the Box

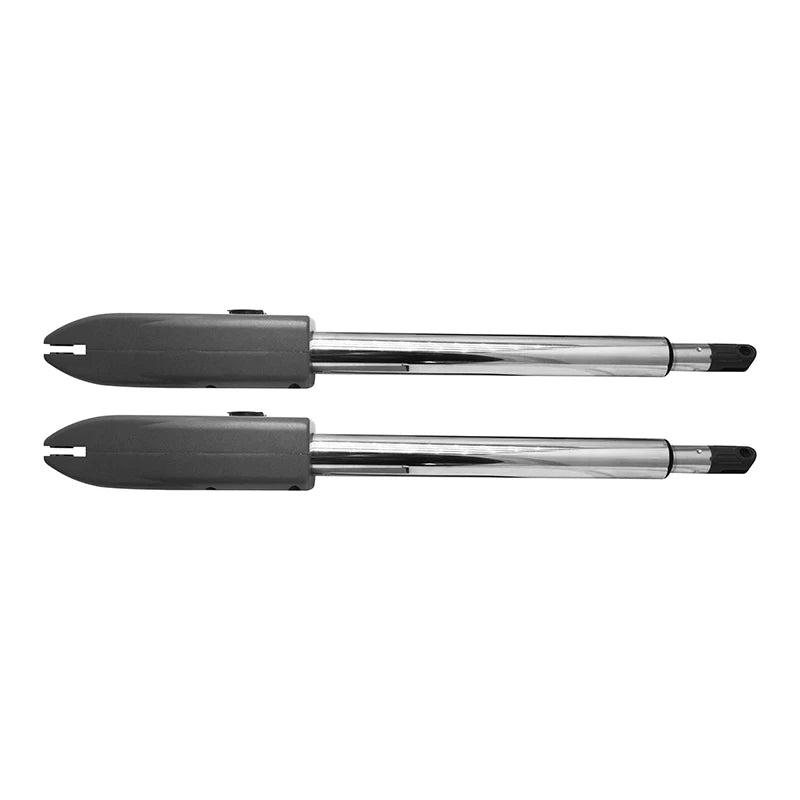

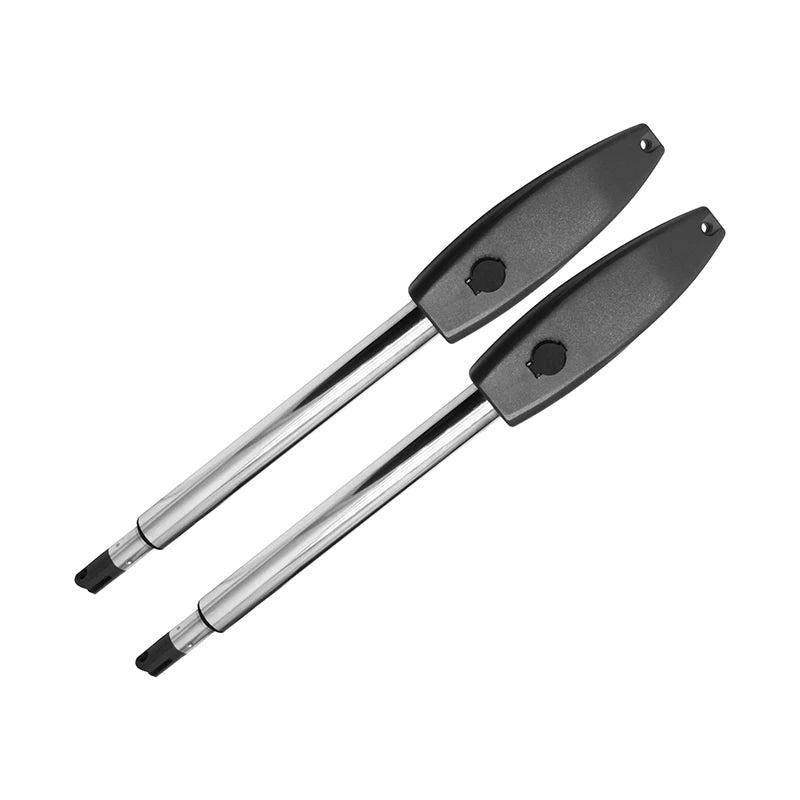

- 2 × DC gate motors (pre-wired with motor cables)
- 2 × Override spanners
- 2 × Remote controls (additional remotes may be included depending on selected option)
- 1 × Control panel
- 2 × Post mounting brackets
- 2 × Gate mounting brackets
- 1 × Rubber gate stop
- 1 × Photocell
- 1 × Instruction manual
Safety & Installation Resources
For guidance on safe installation of automated gate systems and electrical enclosures, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's electrical safety guidelines to ensure compliant and safe setup.
Frequently Asked Questions
Q: Is this DC 24V swing gate opener compatible with solar power systems?
A: Yes. The DC 24V operating voltage makes this automatic swing gate opener fully compatible with solar power setups. You can connect a solar panel and a 24V backup battery to the control panel so your gate continues to operate even during grid power outages or in off-grid locations.
Q: Can this gate opener handle a single gate or does it require a double swing gate?

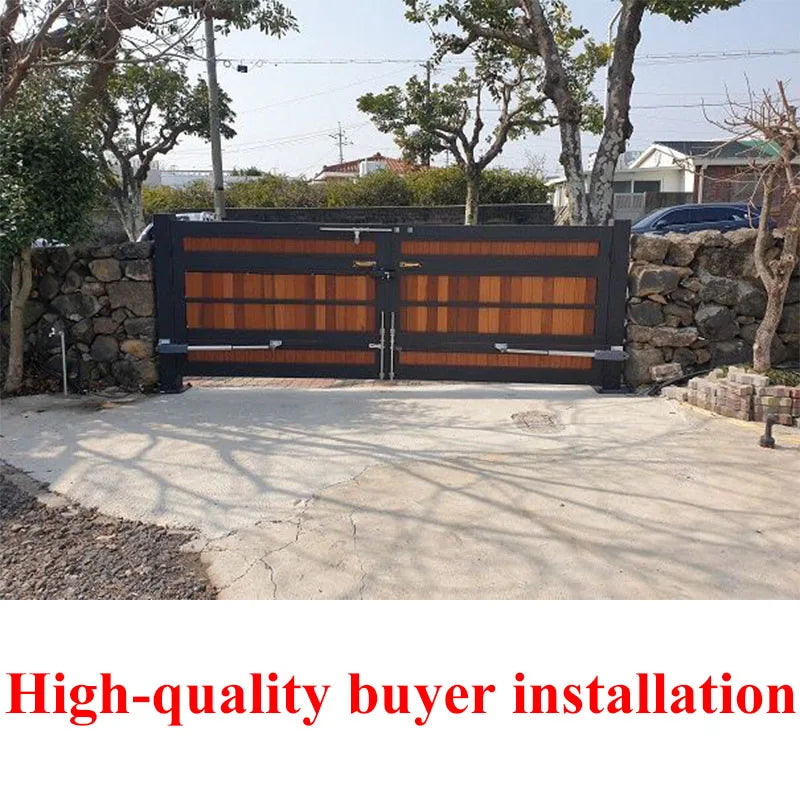

A: This system is designed to work with both single and dual swing gates. For a single gate application, only one actuator arm and motor assembly is used. For a dual swing gate, both motors and arms operate simultaneously from the same control panel for synchronized opening and closing.
Q: What optional accessories can be added to this swing gate opener system?
A: The control panel supports a wide range of optional add-ons including a DC 24V electronic gate lock, additional remote transmitters, a keypad for PIN access, a photocell safety sensor (included), a flashing warning light, a push button, and a battery backup unit — giving you a fully integrated access control solution tailored to your needs.
Q: What happens if the gate hits an obstacle while closing or opening?
A: The gate opener is equipped with an automatic obstruction detection feature. If the actuator arm encounters resistance while the gate is in motion, the system stops immediately to prevent damage to the gate and ensure the safety of people and vehicles nearby.
