DC 12V Mini Electronic Bolt Lock – Normally Open / Normally Closed Access Control
Upgrade your access control setup with this compact and reliable DC 12V Mini Electronic Bolt Lock (Model: XM-120). Built from durable aluminium alloy, this CE-certified electric bolt lock supports both Normally Open (NO) and Normally Closed (NC) operating modes, giving you complete flexibility for virtually any security application — from storage cabinets and lockers to glass, wooden, and metal doors.
Key Features
- Dual Security Modes: Choose Normally Open (unlocks when powered) or Normally Closed (locks when powered) to match your exact access control requirements.
- Magnetic Induction Lock Mechanism: Smooth, reliable bolt action via magnetic induction for consistent, secure operation every cycle.

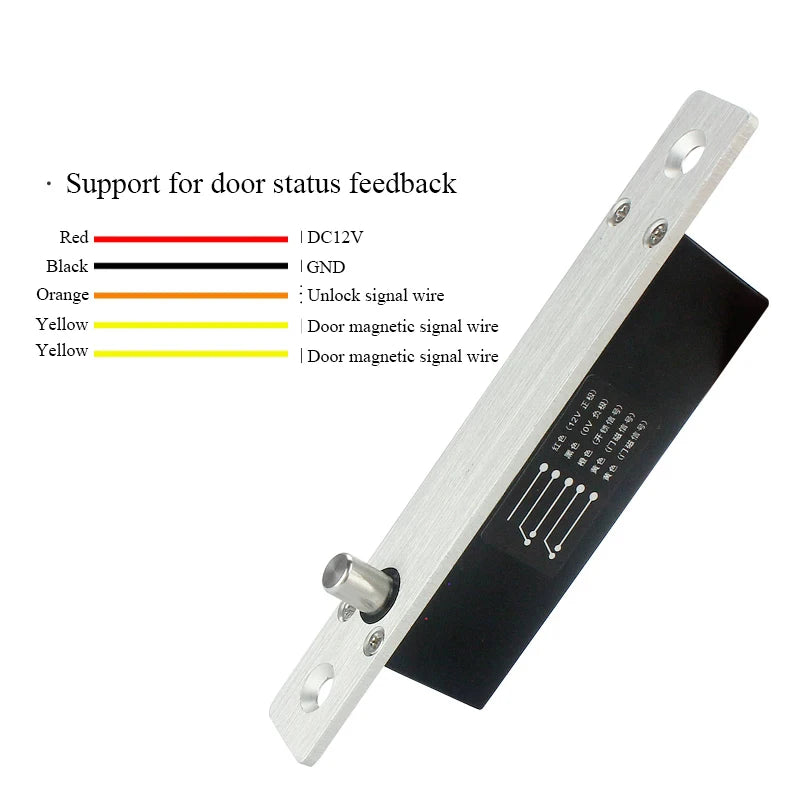

- Feedback Signal Output: Built-in feedback signal lets you monitor door/lock status in real time — ideal for integration with alarm systems or access control panels.

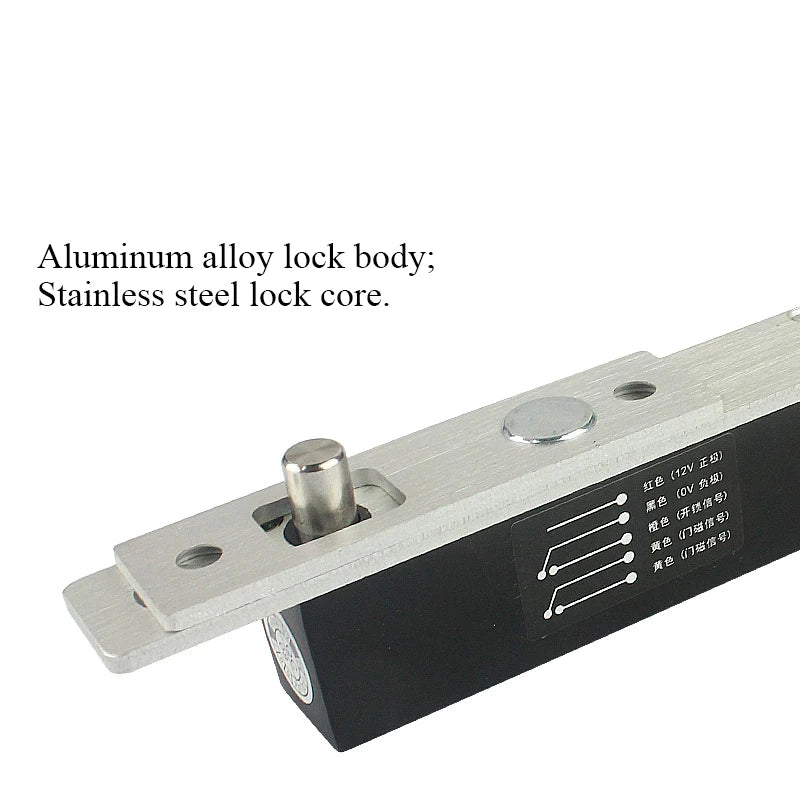

- Aluminium Alloy Construction: Lightweight yet robust housing provides long-lasting durability in demanding environments.
- Minimal External Interference: Engineered to operate stably with reduced electromagnetic interference, ensuring dependable performance.
- Versatile Compatibility: Fits glass, wooden, metal, and security doors; suitable for cabinets, lockers, drawers, and more.
- Easy Drilling Installation: Straightforward mounting process with standard drilling installation method.
- CE Certified: Meets CE compliance standards for quality and safety.
Specifications
| Model | XM-120 |
| Material | Aluminium Alloy |
| Working Voltage | DC 12V |
| Working Current | Start State: 1.2A | Working State: 0.1A |
| Lock Mode | Magnetic Induction |
| Secure Mode | NC / NO (Optional) |
| Feedback Signal | Yes |

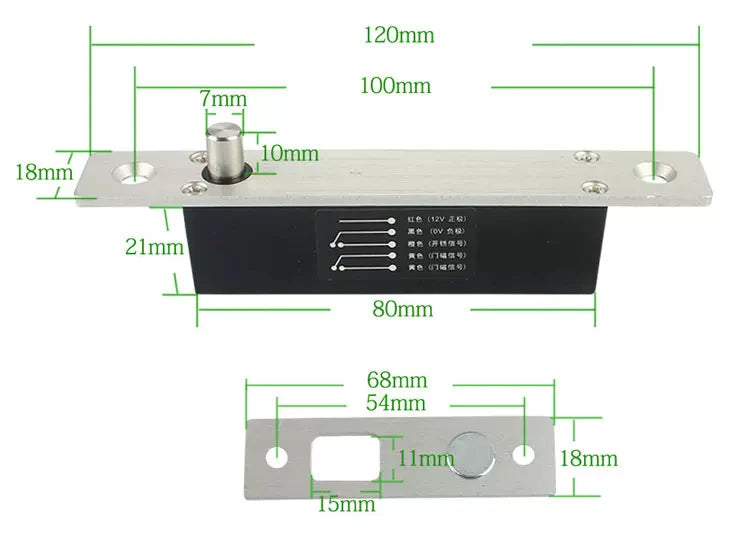

| Lock Dimensions | L120 × W18 × H23.5 mm |
| Installation | Drilling Installation |
| Certification | CE |
| Origin | Made in Mainland China |
Ideal Applications
This mini electric bolt lock is perfectly suited for:
- Storage cabinets and lockers
- Office and home security doors
- Glass, wooden, and metal doors
- Access control systems in commercial and residential settings
- Automated locking systems integrated with keypads, RFID readers, or intercoms
For guidance on physical security standards and best practices for access control systems, refer to the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Frequently Asked Questions

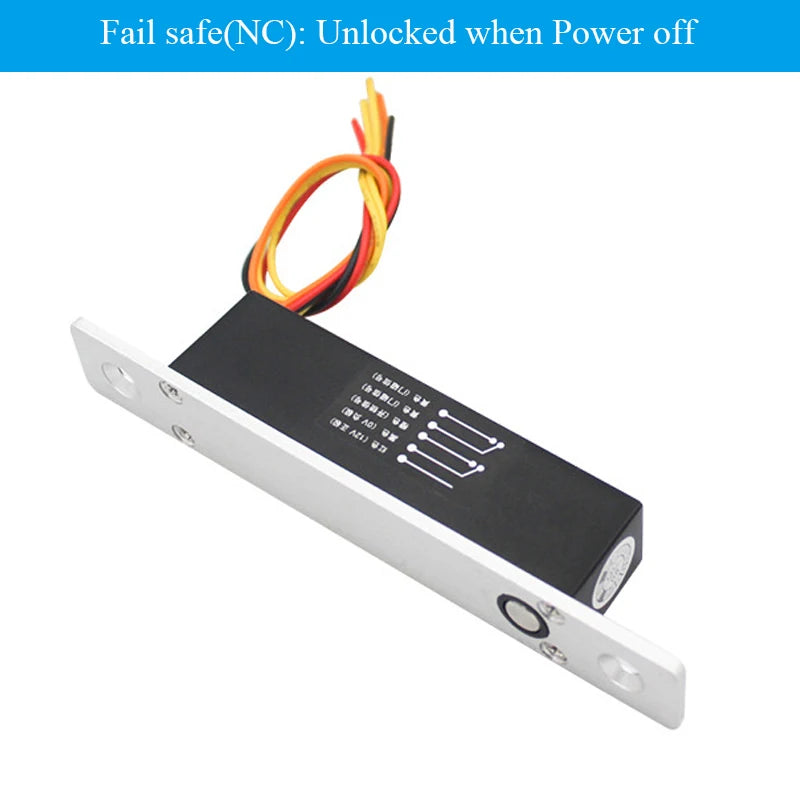

Q: What is the difference between Normally Open (NO) and Normally Closed (NC) mode on this electric bolt lock?
A: In Normally Open (NO) mode, the bolt remains retracted (unlocked) when no power is supplied and locks when power is applied. In Normally Closed (NC) mode, the bolt remains extended (locked) when no power is supplied and retracts when power is applied. This makes the NC mode ideal for fail-secure applications where you want doors to remain locked during a power outage.
Q: What types of doors is the XM-120 electronic bolt lock compatible with?
A: The XM-120 mini bolt lock is compatible with a wide variety of door types, including glass doors, wooden doors, metal doors, and security doors. Its compact 120 × 18 × 23.5 mm aluminium alloy body fits easily into tight spaces, making it ideal for cabinets, lockers, and standard interior/exterior doors.
Q: Does this electric bolt lock include a feedback signal, and how is it used?
A: Yes, the lock includes a built-in feedback signal output. This feature allows you to monitor the real-time status of the lock (open or closed) and integrate it with access control panels, alarm systems, or building management systems for enhanced security oversight.
Q: What power supply does this lock require?
A: This electronic bolt lock operates on DC 12V. The starting current is 1.2A and the steady-state working current is 0.1A. A standard DC 12V power supply or access control power box is required for operation.
