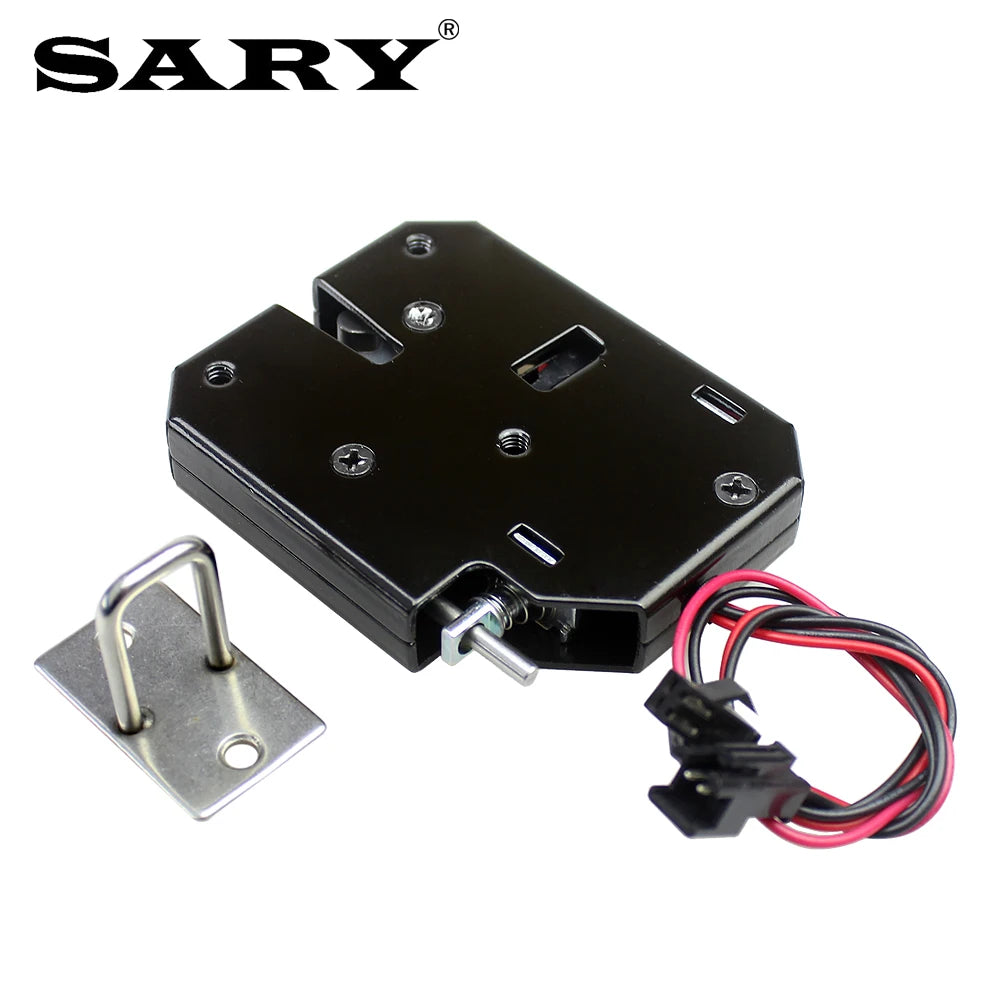

DC 12V Mini Electric Cabinet Lock — Compact, Reliable & Easy to Install
This compact mini electric cabinet lock is engineered for a wide range of access control applications, including delivery lockers, refrigerated cabinets, mailboxes, newspaper boxes, self-service lockers, book counters, changing-room cabinets, and vending machines. Built with a carbon steel interior and a steel plate shell finished with electrophoretic plating, this lock delivers lasting durability in demanding environments.
Key Features
- Heavy-Duty Carbon Steel Construction: Inner components are made from high-grade carbon steel for exceptional strength and long-term reliability.
- 150 kg Latch Hook Strength: The latch hook withstands up to 150 kg of traction force without permanent deformation — shockproof and anti-pry designed.

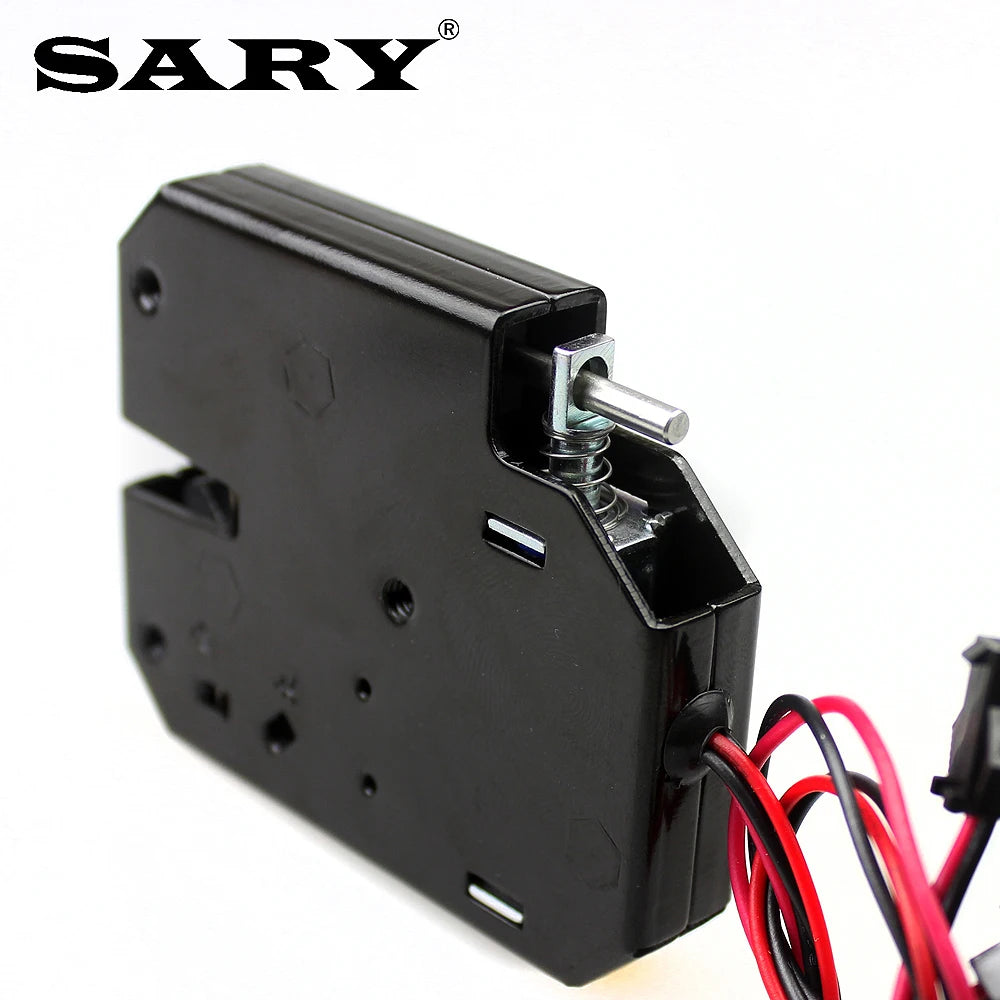

- Compact & Versatile Mounting: No left/right/front/reverse orientation limitations. Easy to install in virtually any position, with a built-in mechanical emergency unlock option.
- Adjustable Self-Elastic Design: Spring elasticity is adjustable, making it suitable for cabinet doors weighing 0.5–4 kg.

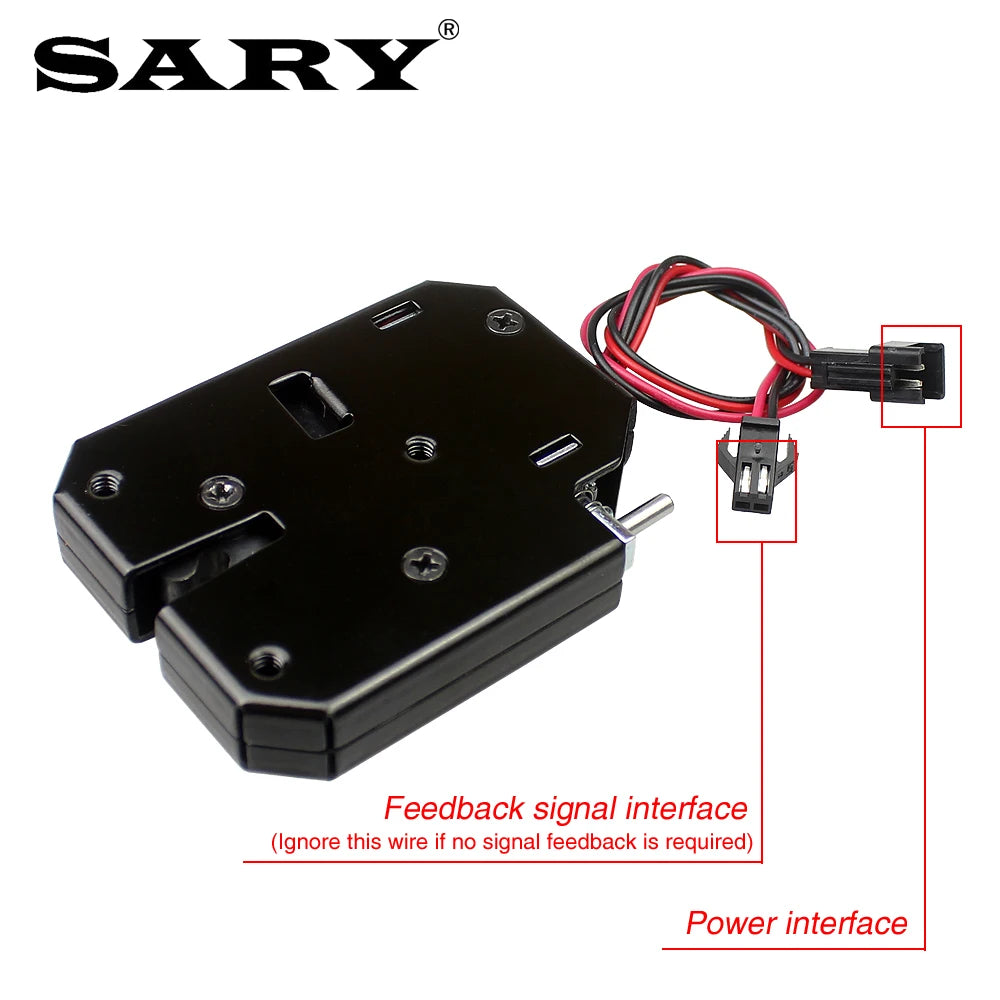

- Feedback Signal Line: Features a short-circuit signal switch — disconnected when unlocked, connected when locked — for easy integration with control systems.
- Corrosion-Resistant Finish: Plated electrophoretic paint treatment passes neutral salt spray testing for over 500 hours.
- Exceptional Lifespan: Rated for approximately 500,000 mechanical cycles and over 1,000,000 electromagnet cycles under rated working conditions.
- Wide Temperature Range: Operates reliably from -60°C to 70°C.
Work Mode
Independent Type: Power off + close door = Locked. Power on = Unlocked. Simple, fail-secure operation ideal for automated locker and vending systems.
Specifications
| Voltage / Current | DC 12V / 2A |
| Main Material | Carbon Steel |
| Surface Treatment | Plated Electrophoretic Paint (500+ hr salt spray rating) |
| Lock Hook Strength | 150 kg (no permanent deformation) |
| Mechanical Life | ~500,000 cycles |
| Electromagnet Life | 1,000,000+ cycles |
| Ambient Temperature | -60°C to 70°C |
| Dimensions | 5.7 × 7.2 × 1.4 cm (2.24 × 2.83 × 0.55 in) |
| Package Weight | 164 g |
| Country of Origin | Made in China |
Applications
- Delivery lockers & package drop boxes
- Refrigerated display cabinets
- Mailboxes & newspaper boxes
- Self-service lockers & gym changing cabinets
- Library book counters
- Vending machines & automated retail kiosks
- Access control panels & smart cabinet systems
What's in the Box
- 1 × Mini Electric Cabinet Lock (DC 12V)
For guidance on electrical safety standards for access control devices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage does this mini electric cabinet lock require?
A: This electric cabinet lock operates on DC 12V at 2A. Make sure your power supply matches these parameters for safe and reliable operation. It is not directly compatible with 5V-only systems without a step-up converter.
Q: How does the lock's work mode function?
A: This lock uses an independent (fail-secure) work mode. When power is off and the door is closed, the lock engages automatically. When power is applied, the lock releases (unlocks). This makes it ideal for automated locker systems and vending machines where security during power loss is essential.
Q: Can this electric lock be installed in any orientation?
A: Yes. The compact design has no left, right, front, or reverse side limitation, so it can be mounted in virtually any orientation to suit your cabinet or locker configuration. A mechanical emergency unlock feature is also included for manual override.
Q: What types of cabinets or enclosures is this lock compatible with?
A: This mini electric lock is designed for lightweight cabinet doors weighing between 0.5 and 4 kg. It is ideal for delivery lockers, refrigerated cabinets, mailboxes, self-service lockers, book counters, changing-room cabinets, and vending machines.
Q: What does the feedback signal line do?
A: The feedback signal line is a short-circuit signal switch built into the lock. It is open (disconnected) when the lock is in the unlocked state, and closed (connected) when the lock is engaged. This allows external control systems or microcontrollers to monitor the lock status in real time.
