Asia-Teco Smart Electric Cabinet Lock — DC 12V Fail-Secure Latch (Model P2)
Keep your cabinets, lockers, express parcel boxes, phone storage units, and cupboard doors secured with intelligent, automated control. The Asia-Teco P2 Smart Electric Lock is a compact, heavy-duty electromechanical latch designed for a wide range of indoor cabinet applications. With a fail-secure design, it locks automatically when power is off and unlocks instantly when power is applied — giving you complete, controllable access management.
Made in Mainland China.
Key Features
- Fail-Secure Operation: Locks automatically on power loss; unlocks when DC 12V power is applied — ideal for controlled-access environments.
- Heavy-Duty Construction: Steel-plate shell with precision carbon-steel internal components for long-lasting durability.
- Exceptional Strength: Lock hook withstands up to 150 KG of pulling force without permanent deformation, plus anti-vibration and anti-pry performance.
- Extreme Temperature Tolerance: Operates reliably from -40°C to +60°C, making it suitable for saunas, outdoor parcel lockers, and other demanding environments.
- Ultra-Long Service Life: Mechanical life of 500,000+ cycles under design load; electromagnet rated for over 1,000,000 operations under rated conditions.
- Self-Elastic Door Compatibility: Adjustable elasticity accommodates self-closing doors weighing 0.5–4 KG.

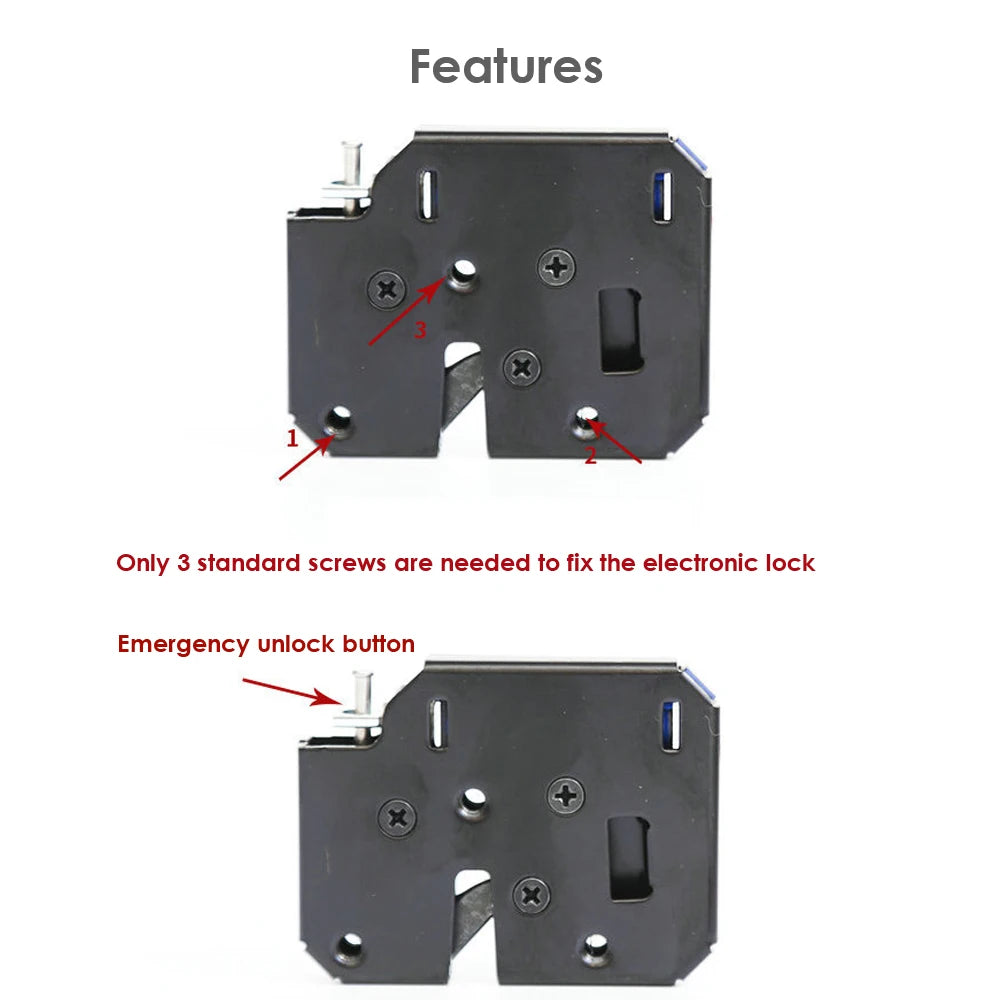

- Compact & Easy to Install: Measures just 63 × 49 × 13 mm with no left/right or positive/negative orientation — fits in virtually any cabinet setup. Includes a mechanical emergency unlock position.
- Durable Surface Treatment: Electrophoretic paint finish with 500+ hours of neutral salt-spray resistance for lasting corrosion protection.
Specifications
| Brand | Asia-Teco |
| Model | P2 |
| Electrical Parameters | DC 12V, 2A |

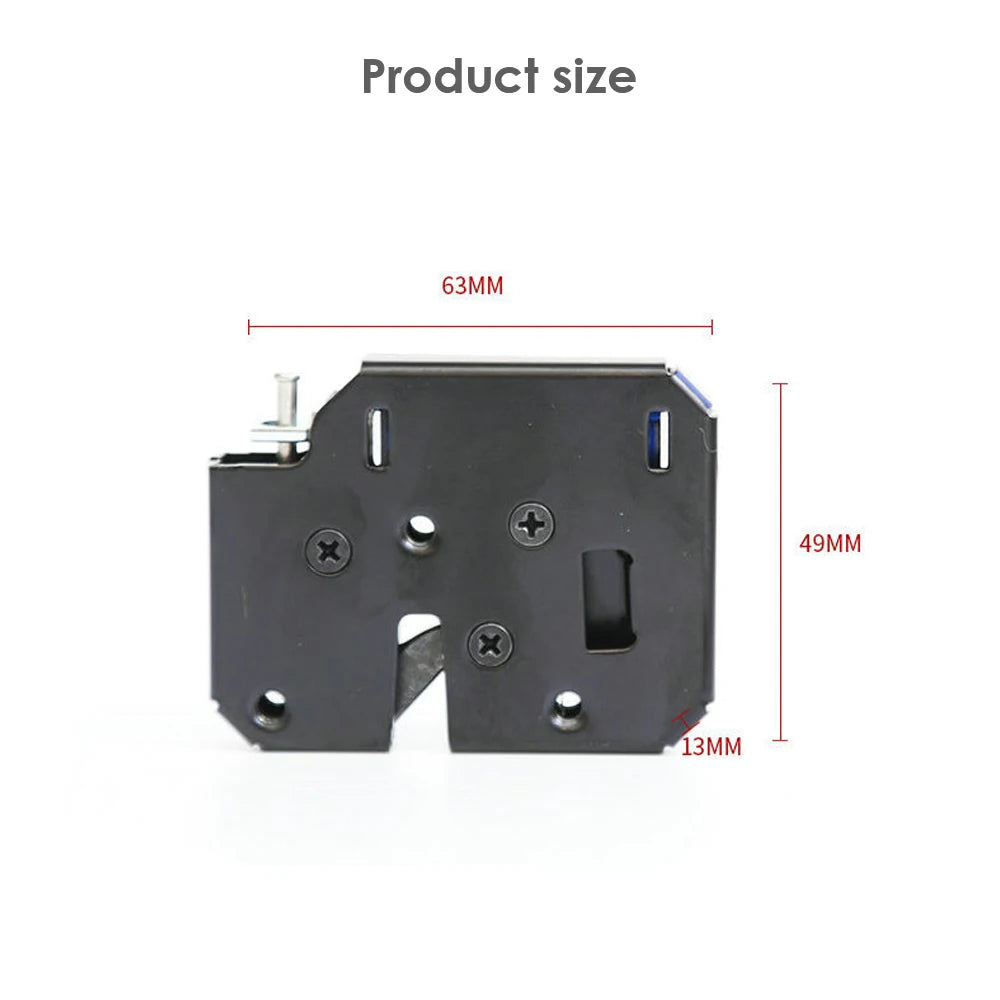

| Dimensions | 63 × 49 × 13 mm |
| Lock Strength | 150 KG pull force |
| Mechanical Life | 500,000+ cycles |
| Electromagnet Life | 1,000,000+ cycles |
| Operating Temperature | -40°C to +60°C |
| Working Mode | Fail-Secure (locks on power off, unlocks on power on) |
| Compatible Door Weight | 0.5–4 KG (self-closing doors) |
| Surface Treatment | Electrophoretic paint, 500+ hrs salt-spray tested |
| Origin | Mainland China |
Ideal Applications
- File cabinets & office storage
- Express parcel & delivery lockers
- Mobile phone & device storage cabinets
- Sauna lockers & high-temperature enclosures
- Cupboards, cases, and display cases
Learn More About Electrical Safety Standards
For guidance on electrical safety and product compliance requirements, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What does "fail-secure" mean for this electric cabinet lock?
A: Fail-secure means the lock defaults to its locked state when power is removed. The Asia-Teco P2 will automatically latch shut if power is cut, ensuring your cabinet contents remain secured even during a power outage. Power must be applied (DC 12V, 2A) to unlock the latch.
Q: What types of cabinets is the P2 electric lock compatible with?
A: The P2 is designed for a wide range of applications including file cabinets, express parcel lockers, mobile phone storage cabinets, sauna lockers, cupboards, and general-purpose cases and door enclosures. It supports self-closing doors weighing between 0.5 and 4 KG.
Q: Is the installation direction-specific (left-hand or right-hand)?
A: No — the P2 has no left/right or positive/negative orientation requirement, making it straightforward to install in virtually any cabinet configuration. It also includes a mechanical emergency unlock position for added convenience.
Q: How durable is this electric cabinet lock?
A: The P2 is built to last. Its mechanical components are rated for over 500,000 cycles under design load conditions, and the electromagnet is rated for more than 1,000,000 operations. The steel construction and electrophoretic paint finish provide 500+ hours of salt-spray corrosion resistance.
