DC 12V Electric Strike Lock – Access Control Door Rim Lock
DC 12V Electric Strike Lock – Access Control Door Rim Lock

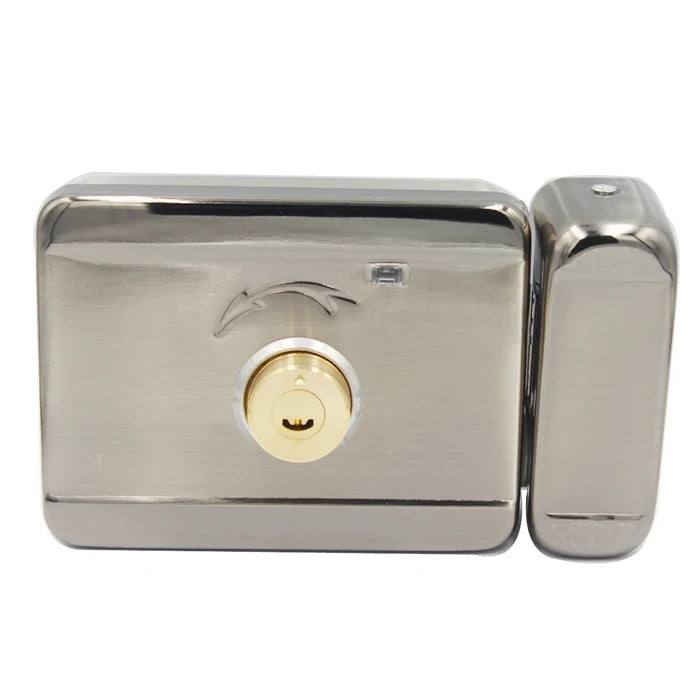

DC 12V Stainless Steel Electric Strike Lock – Smart Access Control Door Rim Lock
Upgrade your home, office, or facility's entry system with this heavy-duty DC 12V Electric Strike Rim Lock. Built from corrosion-resistant stainless steel with a brushed wire-drawing finish, this electronic door lock delivers fast, silent, and reliable access control for a wide range of door types and environments. Made in Mainland China.
Why Choose This Electric Strike Lock?
- Automatic Locking: The door locks automatically the moment it closes — no manual latching required.
- Universal Compatibility: Works with wooden, steel, and stainless steel doors; fits left-hand, right-hand, in-swing, and out-swing configurations.
- Flexible Access Methods: Supports electrical control (access control systems), key operation, and manual hand release. Three keys included.
- Fail-Safe Design: Can be opened from both inside and outside using the included keys even during a power outage — no one gets locked in.
- Low Power Consumption: Static current of just 25mA keeps energy use minimal, extending the service life of your access control hardware.
- Fast Unlock Response: Unlock time of ≤1 second ensures smooth, responsive entry every time.
- Long Service Life: Rated for up to 500,000 operating cycles.
- Wide Temperature Range: Operates reliably from -40°C to +50°C, suitable for both indoor and outdoor-adjacent installations.
- Quiet Operation: Engineered to lock silently — no disruptive clanging or rattling.
Ideal Applications
This electric strike lock is a versatile solution for residential buildings, apartment complexes, office entrances, school gates, hotel corridors, government facilities, factory warehouses, and more. It integrates seamlessly with most standard access control systems including keypads, card readers, and intercoms.
Technical Specifications
| Working Voltage | DC 12V – 18V |
| Unlock Current | <350mA |
| Static Current | 25mA |
| Unlock Time | ≤1 second |
| Service Life | 500,000 cycles |
| Material | Stainless Steel |
| Lock Bolt Length | >20mm |
| Compatible Door Thickness | 4 – 11cm |
| Operating Temperature | -40°C to +50°C |
| Operating Humidity | 10% – 90% RH |
| Model | LK005 |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × DC 12V Electric Strike Rim Lock (Model LK005)
- 3 × Keys
- Mounting hardware
For guidance on home and building security best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for safety standards and installation tips.
Frequently Asked Questions
Q: What doors is this DC 12V electric strike lock compatible with?
A: This electric rim lock is compatible with wooden doors, steel doors, and stainless steel doors. It fits doors ranging from 4cm to 11cm in thickness and supports left-hand, right-hand, in-swing, and out-swing configurations, making it highly versatile for most residential and commercial door types.
Q: Does the electric strike lock work during a power outage?
A: Yes. This lock features a fail-safe manual override. Even without power, you can unlock the door from both the inside and outside using the three included keys, ensuring you are never locked in or out during an outage.
Q: What access control systems is this lock compatible with?
A: The LK005 electric strike lock is designed to integrate with most standard DC 12V–18V access control systems, including keypad entry systems, RFID card readers, biometric scanners, and video intercom systems. It supports electrical control, key operation, and manual hand release.
Q: How difficult is the installation process?
A: The lock is designed for straightforward installation with standard mounting hardware included. It is recommended that installation be carried out by a qualified technician or electrician, especially when integrating with an existing access control system, to ensure correct wiring and secure fitting.
