DC 12V Electric Rim Lock – Stainless Steel Video Intercom Door Lock
DC 12V Electric Rim Lock – Stainless Steel Video Intercom Door Lock
DC 12V Stainless Steel Electric Rim Lock for Gates & Doors
Upgrade your home or building security with this robust DC 12V Electric Rim Lock (Model: XM-1500). Crafted from durable stainless steel and iron, this electronic control lock integrates seamlessly with virtually any access control system, apartment video intercom, or video doorphone system — making it an ideal choice for residential and commercial entry points alike.
Made in Mainland China. CE and FCC certified.
Key Features
- Universal Compatibility: Fits doors 35mm (1-3/8") to 55mm (2") thick and can be mounted on left- or right-swinging doors.
- 2-Wire Connection: Simple 2-wire hookup connects directly to apartment video intercom and access control systems.
- Multiple Operation Modes: Can be operated electronically, by key, or by hand — providing flexible access options.
- Fail-Safe Manual Override: Can be opened from inside and outside with keys even during a power outage, ensuring you're never locked out.
- Auto-Locking: Bolt automatically extends and locks the door upon closing — no manual re-locking required.
- Low Power Consumption: Operates at 12VDC / 2A for energy-efficient, reliable performance.

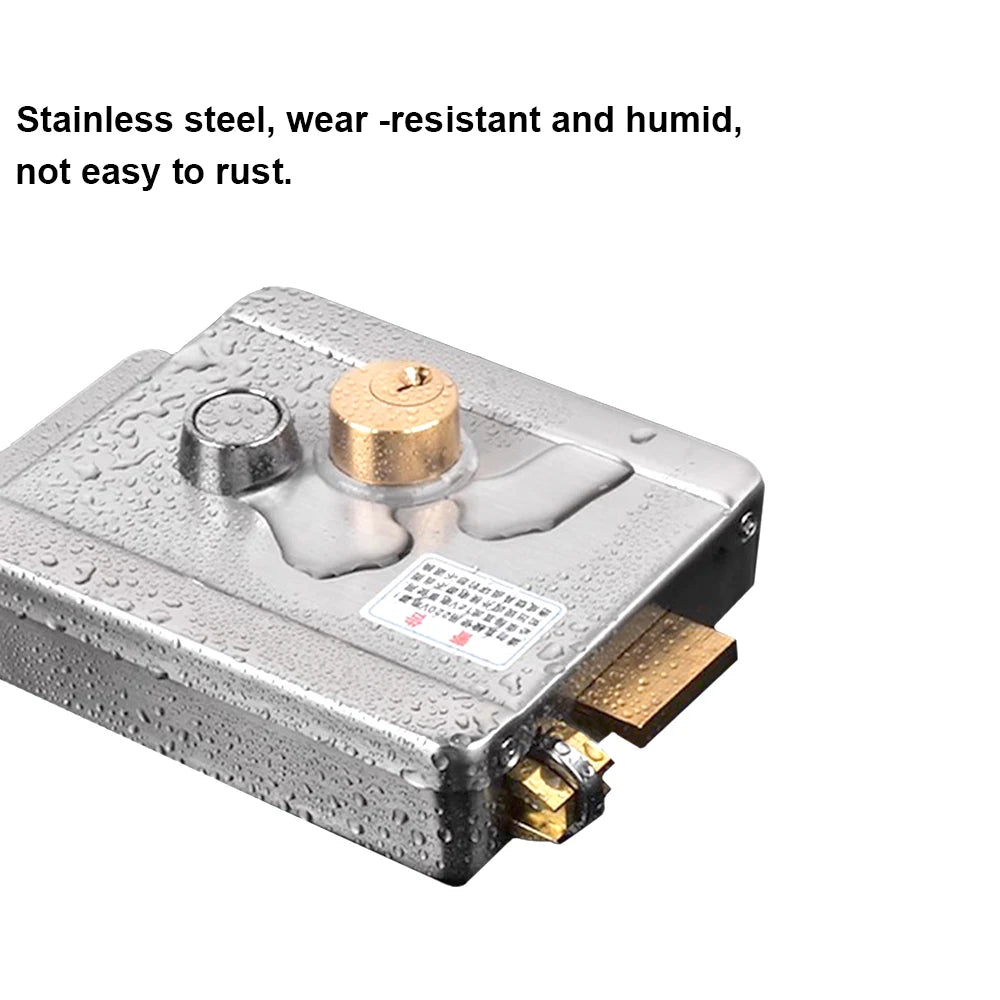

- Durable Construction: Stainless steel and iron build withstands daily use in demanding environments.
- Easy Installation: Straightforward mounting process suitable for a wide range of door types and access systems.
Technical Specifications
- Model: XM-1500
- Voltage: 12VDC
- Working Current: 2A
- Material: Stainless Steel / Iron

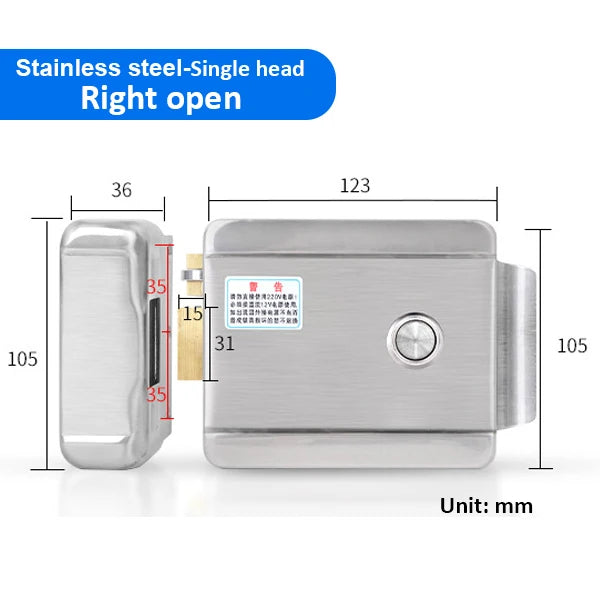

- Door Thickness Compatibility: 35mm – 55mm (1-3/8" – 2")
- Door Swing: Left or Right
- Wiring: 2-Wire connection
- Certifications: CE, FCC
- Origin: Made in Mainland China
What's in the Box?

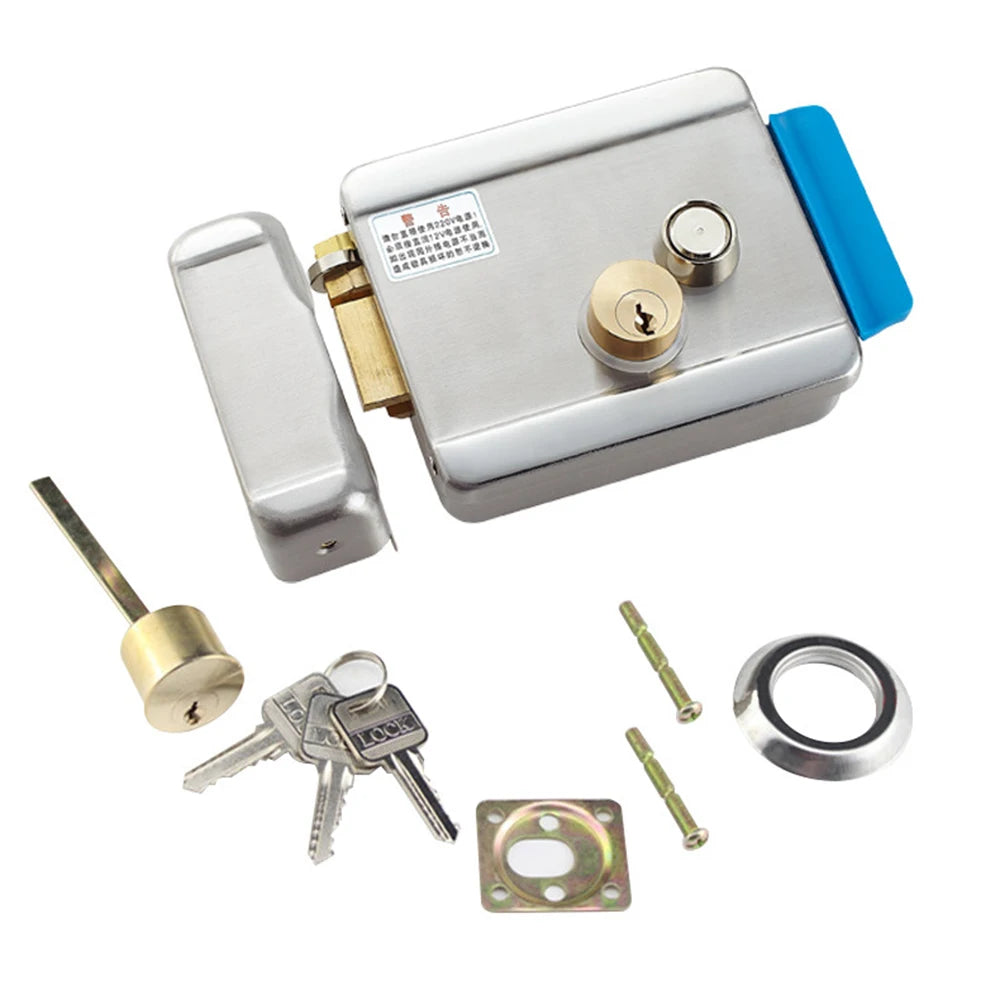

1 × DC 12V Electric Rim Lock (XM-1500) with mounting hardware
Safety & Installation Resources
For guidance on home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC) Home Safety Resource.
Frequently Asked Questions
Q: Is this electric rim lock compatible with my video intercom system?
A: Yes! The XM-1500 electric rim lock is designed to work with most apartment video intercom and video doorphone systems. It uses a simple 2-wire connection, making integration straightforward with the majority of access control setups on the market.
Q: What happens if the power goes out — will I be locked in or out?
A: No need to worry. This electric rim lock features a manual key override, allowing it to be opened from both inside and outside using keys even when there is no power supply. You will never be trapped by a power outage.
Q: Can I install this lock on any door?
A: This lock is compatible with doors ranging from 35mm (1-3/8") to 55mm (2") in thickness and supports both left- and right-swinging doors. It suits a wide variety of residential and commercial door types including wooden and metal doors.
Q: What voltage does this electric lock require?
A: The lock operates on 12VDC at 2A. It is important to use a compatible 12V DC power supply (not included) to ensure proper and safe operation.
