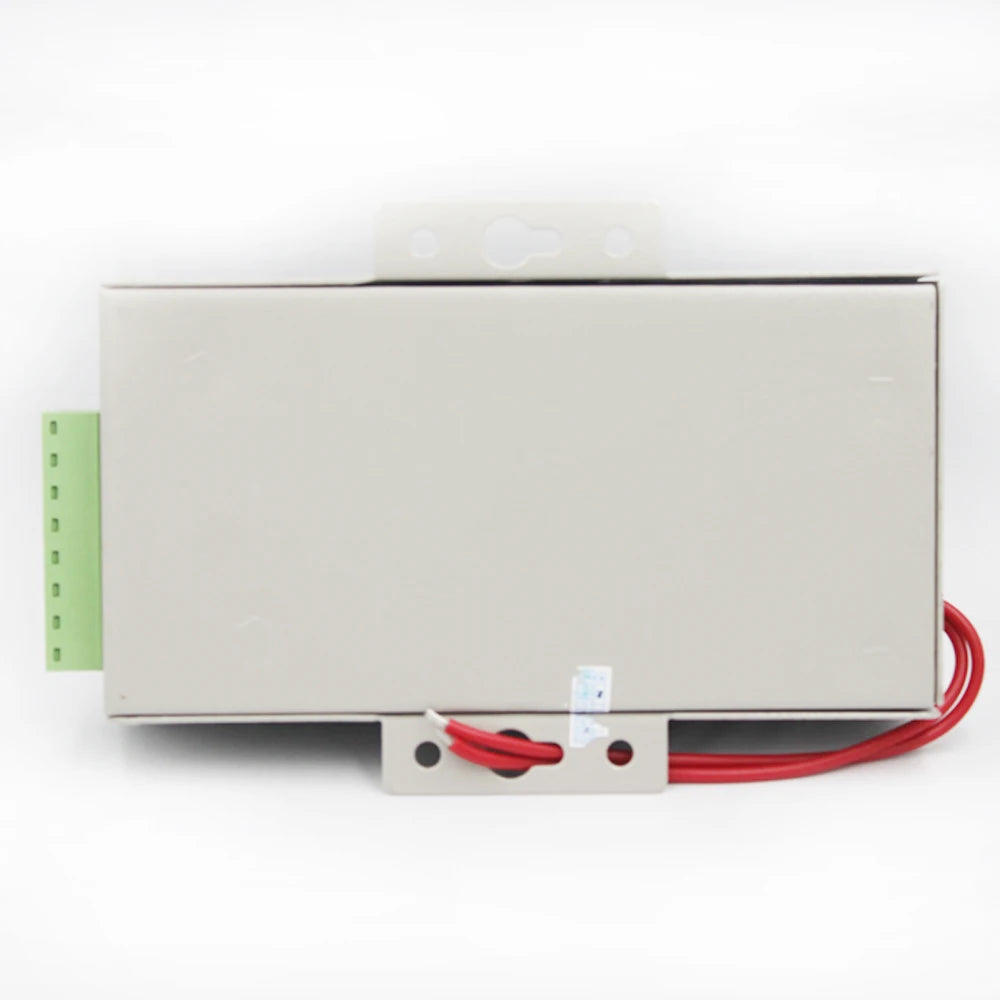

DC 12V Door Access Control Switch Power Supply — 3A & 5A Models
Keep your door access control system running smoothly with this reliable DC 12V Switch Power Supply from Asia-Teco. Available in 3A and 5A output variants, this unit is engineered with high-quality electronic components and advanced switching technology to deliver stable, consistent power to RFID card readers, fingerprint controllers, electromagnetic locks, exit push buttons, and access controllers.
Which Output Should I Choose?
- 12V 3A: Ideal for powering a single electric lock and its associated controller.
- 12V 5A: Recommended when powering two electric locks simultaneously for maximum stability and reliability.
Key Features
- Wide AC Input Range: 110V–260V (3A model) / 90V–260V (5A model) — compatible with global power standards
- Stable DC Output: Regulated DC 12V / 3A or DC 12V / 5A

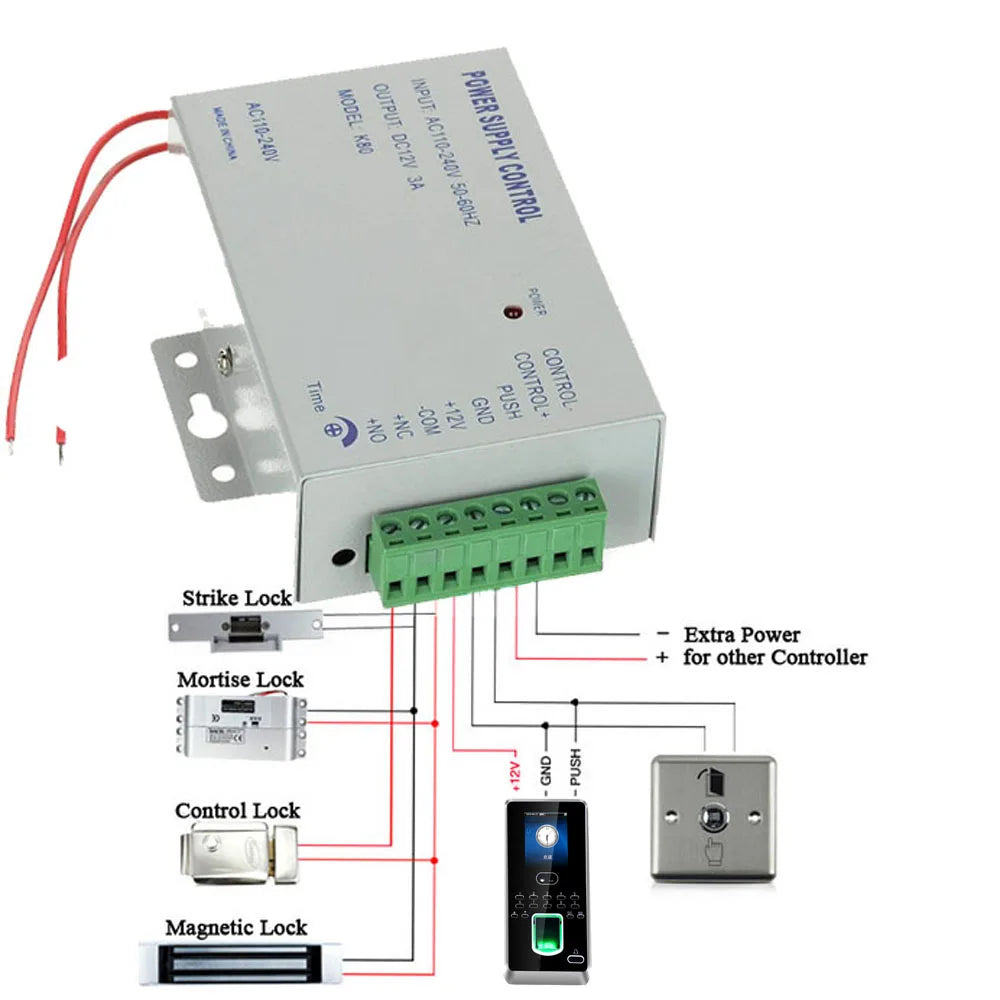

- Direct Lock Control: Controls electric locks directly, reducing load on the access controller and simplifying wiring
- NC / NO Output Selection: Compatible with various electric lock types (normally closed or normally open)
- Adjustable Delay Circuit: Configurable lock activation time from 0–15 seconds
- Automatic Protection: Built-in short-circuit protection with auto-fuse function to safeguard connected devices during unexpected power events
- Strong Anti-Interference Design: Maintains reliable output even in electrically noisy environments
- Compact Form Factor: 132 × 70 × 39 mm — easy to mount in access control panels or enclosures
Compatible Devices
- Electromagnetic (E/M) Locks
- RFID / IC Card Readers
- Fingerprint Access Controllers
- Exit Push Buttons
- Access Control Machines & Controllers
Technical Specifications
| Brand | Asia-Teco |
| Model | 5APWS |
| AC Input (3A) | 110V – 260V |
| AC Input (5A) | 90V – 260V |
| DC Output | 12V / 3A or 12V / 5A (stabilized) |
| Dimensions | 132 × 70 × 39 mm |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Safety & Installation Resources
For guidance on safe installation of electrical components and access control wiring, refer to the U.S. Occupational Safety and Health Administration: OSHA Electrical Safety.
Frequently Asked Questions
Q: What is the difference between the 12V 3A and 12V 5A access control power supply?
A: The 12V 3A model is sufficient for powering a single electric lock along with its access controller. The 12V 5A model provides greater current capacity and is recommended when two locks are connected to the same power supply, ensuring more stable and reliable operation.
Q: Is this DC 12V switch power supply compatible with both RFID and fingerprint access control systems?
A: Yes. This power supply is designed to work with a wide range of access control devices including RFID/IC card readers, fingerprint controllers, electromagnetic locks, electric strike locks, and exit push buttons — making it a versatile solution for most door access control installations.
Q: Does this power supply work with AC voltages outside the US (110V)?
A: Absolutely. The 3A model accepts AC input from 110V to 260V, and the 5A model accepts 90V to 260V, making both units compatible with global electrical standards including 110V (North America) and 220–240V (Europe, Asia, Australia).
Q: What happens if there is a short circuit in the connected lock or controller?
A: This power supply includes an automatic protection circuit. In the event of a short circuit or overload, the unit will temporarily disconnect output or the auto-fuse will trip, protecting both the power supply and any connected devices from damage.
