DC 12V 5A Access Control Power Supply with Battery Backup

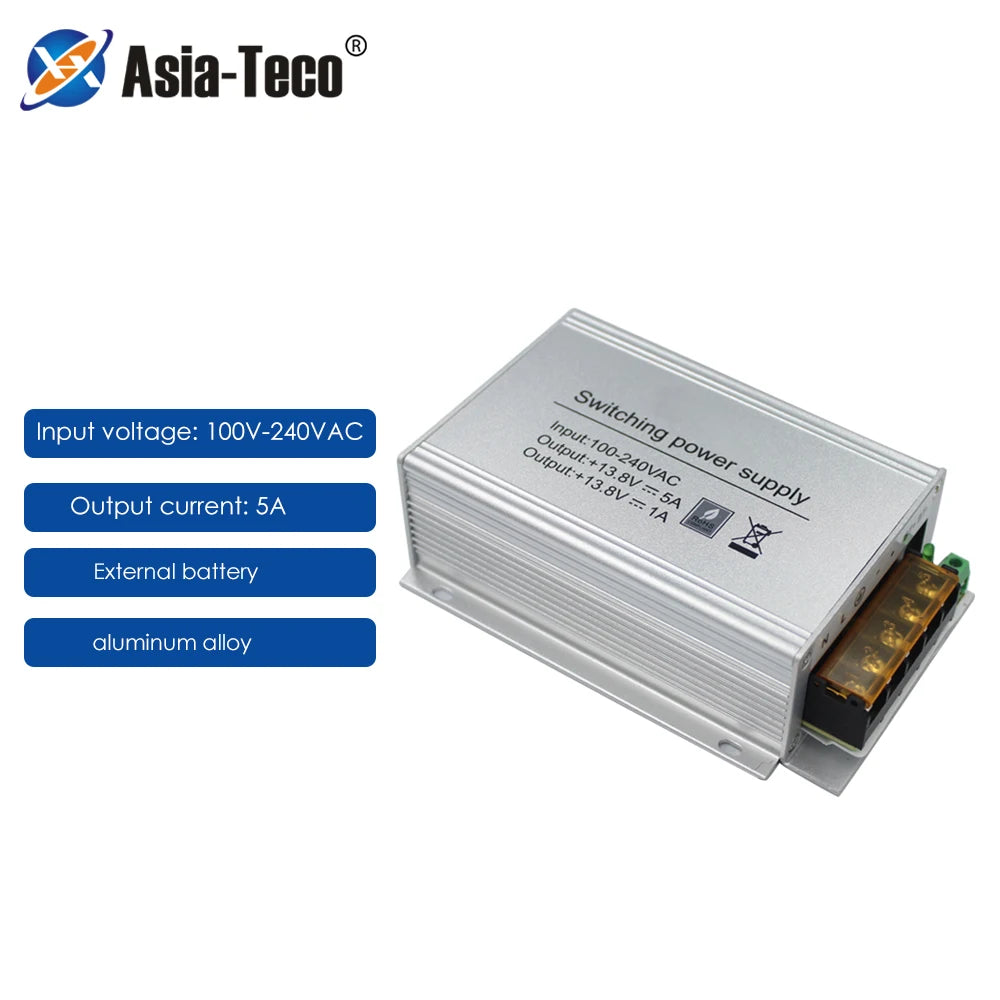

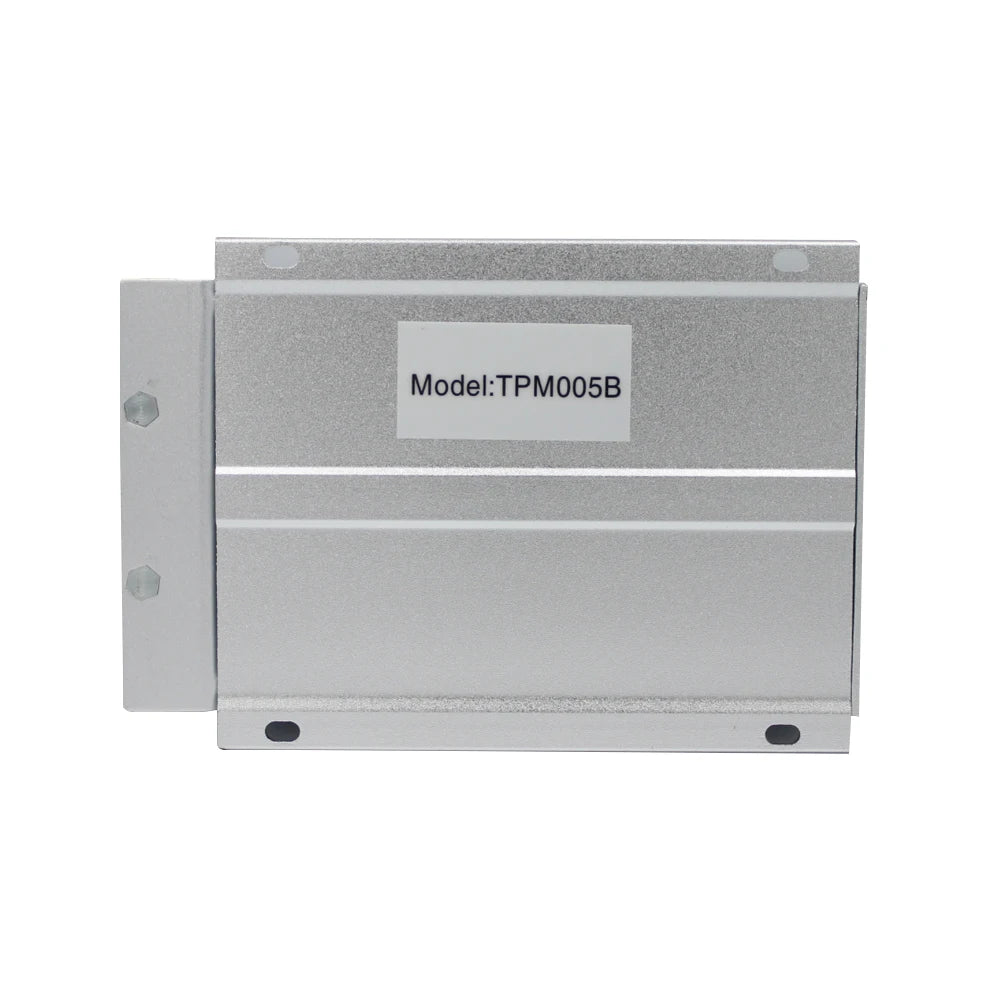

Asia-Teco DC 12V 5A Mini Access Control Power Supply — Model TPM005B

Power your access control system with confidence using the Asia-Teco TPM005B DC 12V 5A Access Control Power Supply. Built from premium aluminum alloy and engineered with high-quality electronic components, this compact unit delivers stable, reliable 12V DC output for a wide range of access control applications — from electromagnetic locks and electric strike locks to RFID/IC card readers, access controllers, and exit push buttons.

With its built-in backup battery port, your access control system stays operational even during unexpected power outages, giving you uninterrupted security coverage around the clock.

Key Features

• Universal AC Input: Accepts AC 100V–240V input, making it compatible worldwide
• Regulated DC Output: Provides a clean, stable 12V / 5A DC output
• Backup Battery Port: Supports connection of an external backup battery for continuous operation during power loss
• Direct Lock Control: Controls electric locks directly, reducing load on the access controller and simplifying wiring
• NC / NO Output Selection: Configurable Normally Closed / Normally Open outputs to support a wide variety of electric lock types
• Automatic Protection Circuit: Built-in auto-protection against short circuits — temporarily disconnects power or triggers the auto-fuse to safeguard connected devices
• Anti-Interference Design: Engineered for stable, interference-resistant output in demanding environments

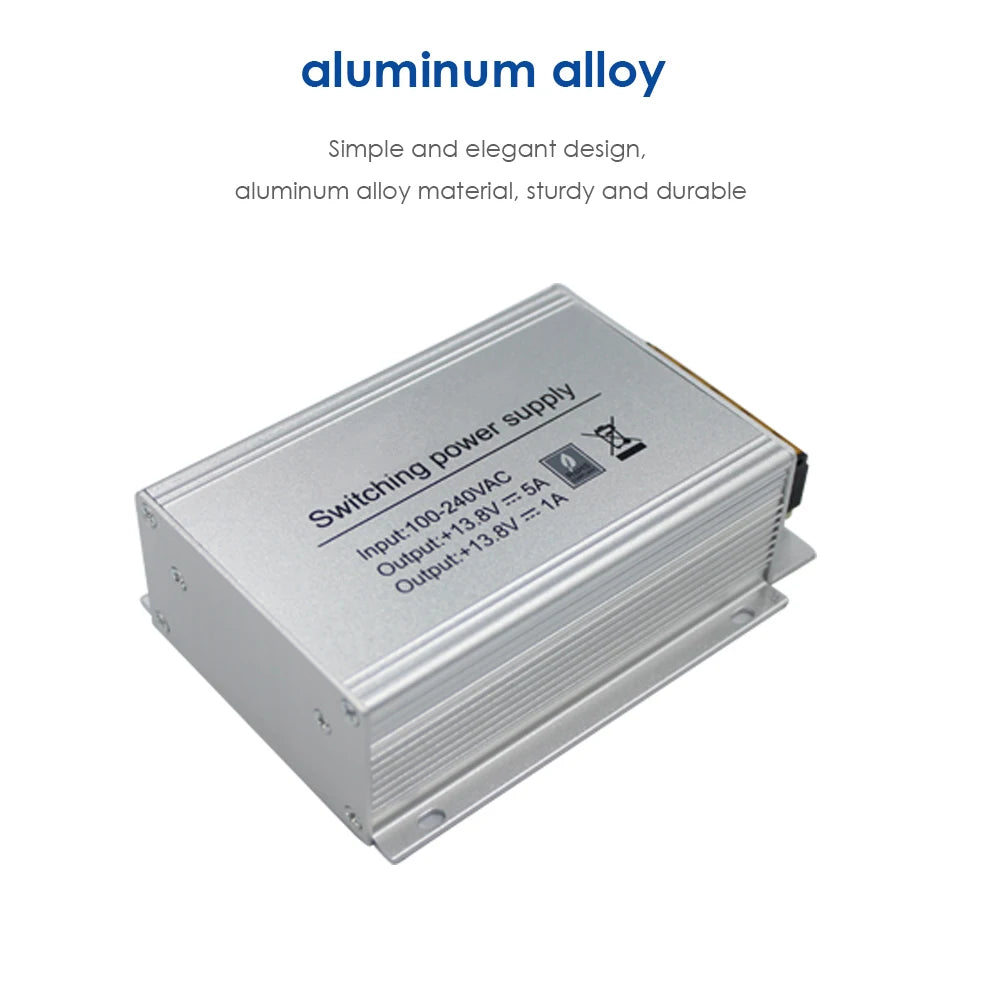

• Durable Aluminum Alloy Housing: Robust, heat-dissipating enclosure for long-term reliability

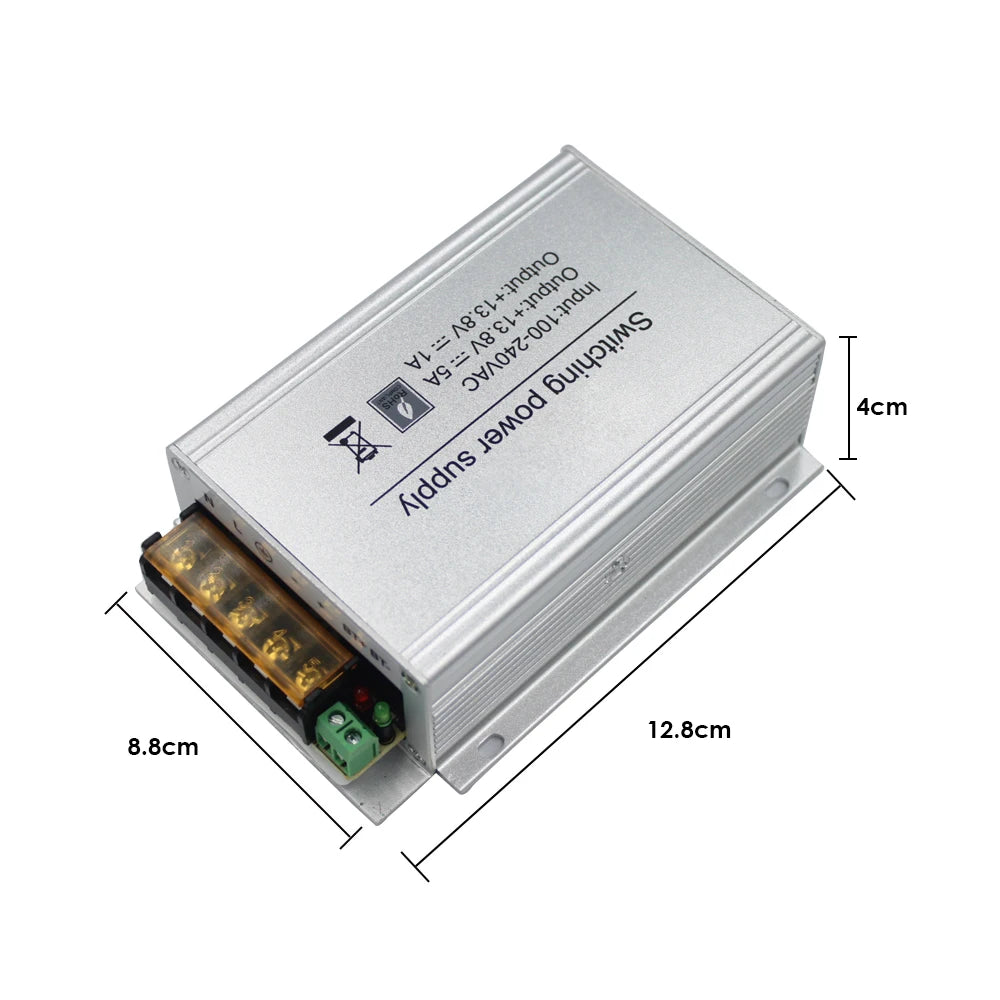

• Compact Size: Dimensions of 128 × 88 × 40 mm for easy installation in tight spaces

Specifications

Compatible Devices

• Electromagnetic (EM) Locks & Electric Strike Locks
• Access Controllers
• Exit Push Buttons
• RFID / IC Card Readers

Warranty & Support

• 1-Year Warranty from the date of original purchase
• Warranty does not cover defects resulting from misuse, fire, or buyer-caused damage

For guidance on electrical safety standards and best practices for access control power supplies, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does this access control power supply work with both 110V and 220V mains power?

A: Yes. The Asia-Teco TPM005B accepts a universal AC input range of 100V–240V, so it is compatible with standard mains voltage in the United States (110–120V), Europe (220–240V), and most countries worldwide — no separate voltage converter needed.

Q: What type of backup battery does this power supply support?

A: The unit includes a dedicated backup battery connection port that supports a standard 12V sealed lead-acid (SLA) battery (battery not included). When mains power is interrupted, the connected battery automatically takes over to keep your access control devices running without interruption.

Q: Can I use this power supply to directly control an electromagnetic lock without a separate access controller?

A: Yes. The TPM005B is designed to control electric locks directly. Its NC/NO output terminals allow you to wire various lock types (EM locks, electric strikes, etc.) straight to the unit, reducing the load on your access controller and simplifying your overall wiring layout.

Q: What happens if there is a short circuit in the connected load?

A: The built-in automatic protection circuit detects overload or short-circuit conditions and either temporarily disconnects the output or triggers the auto-fuse to prevent damage to both the power supply and connected devices. Once the fault is cleared, normal operation resumes.
