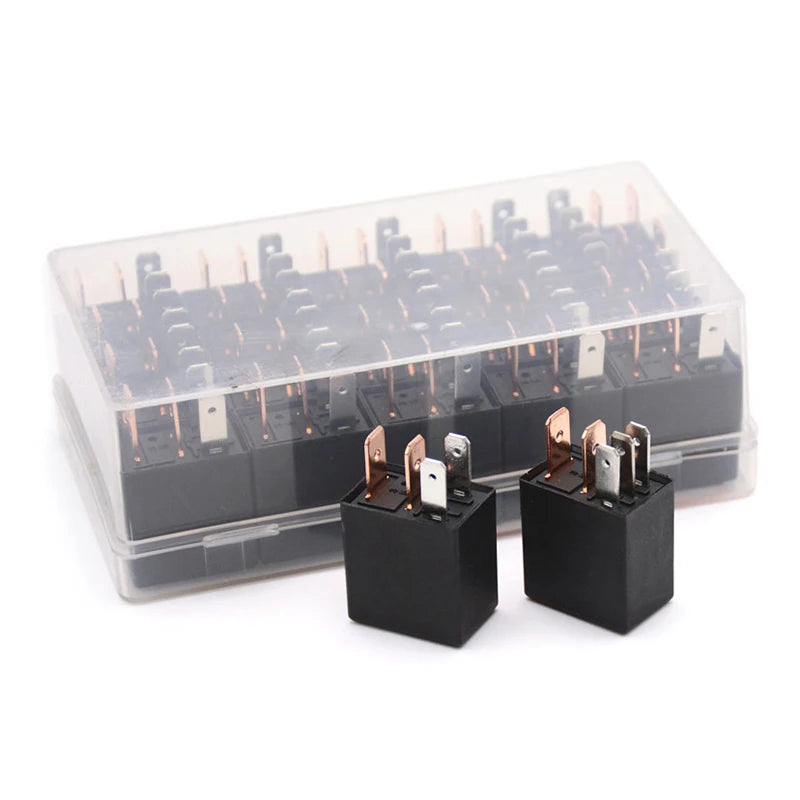

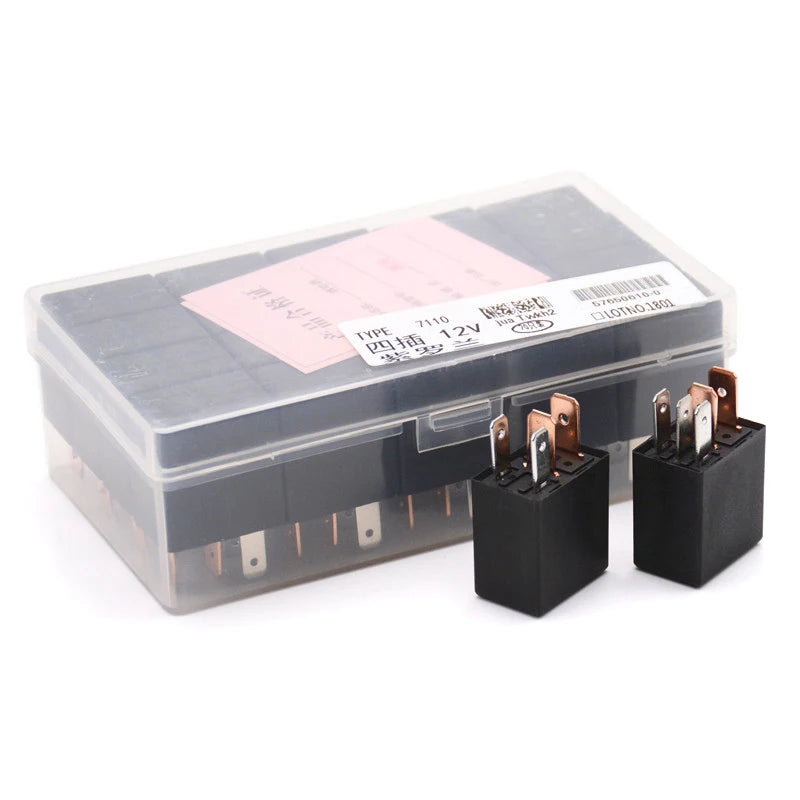

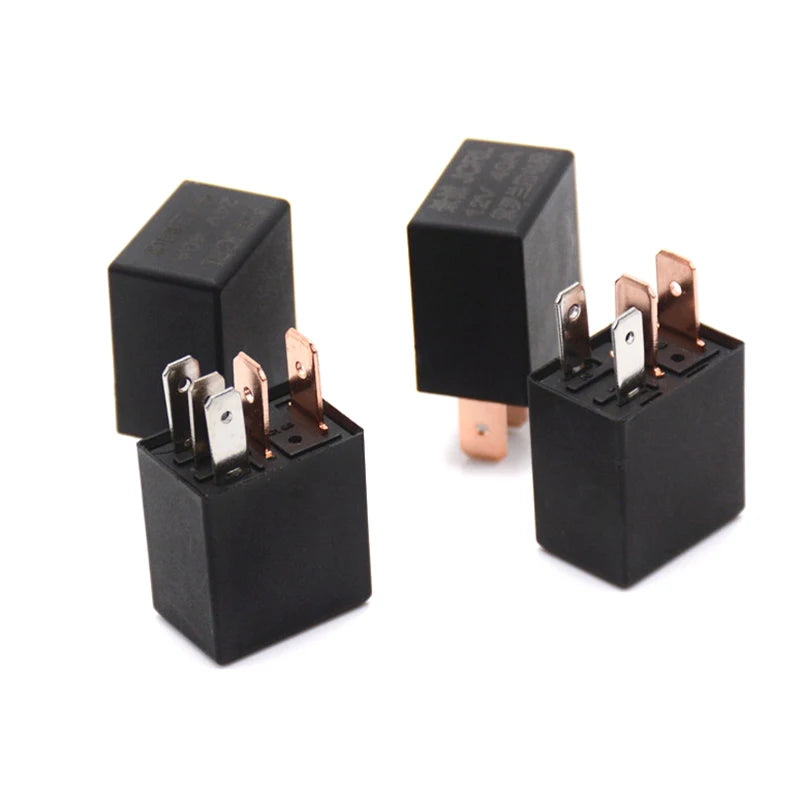

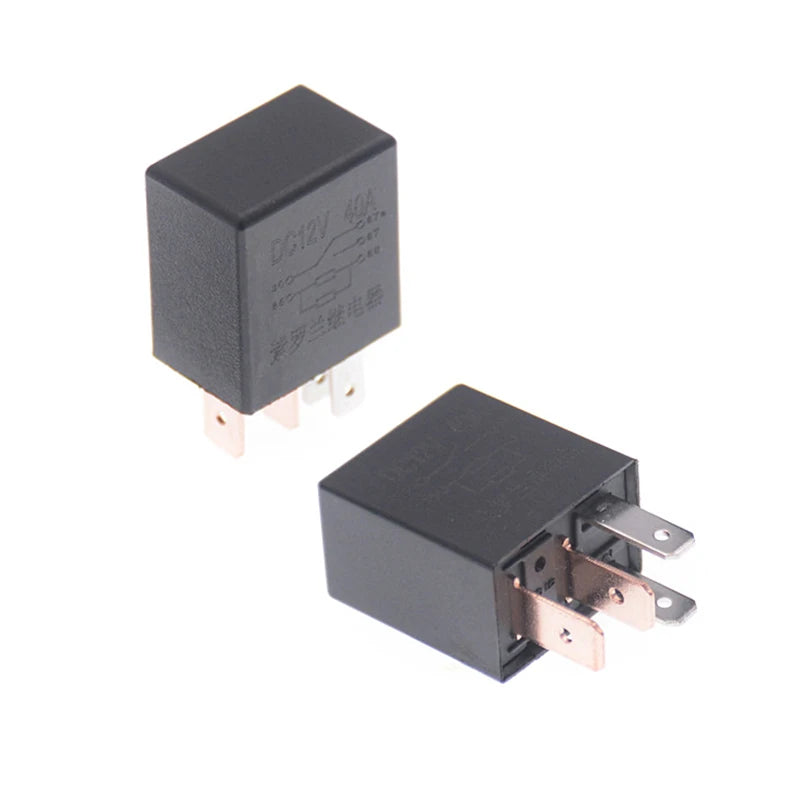

DC 12V 40A SPDT Automotive Relay — Reliable Switching for Cars, Alarms & More
Keep your vehicle's electrical systems running smoothly with this heavy-duty DC 12V 40A SPDT Car Relay. Designed for automotive alarm systems, lighting circuits, and a wide range of 12V vehicle applications, this relay features a robust single-pole double-throw (SPDT) configuration with both a normally open (1NO) and normally closed (1NC) contact. Available in 4-pin and 5-pin versions, it's a versatile, plug-and-play solution for DIY enthusiasts and professional installers alike.
Key Features
- Rated Voltage: DC 12V
- Rated Current: 40 Amps
- Contact Configuration: SPDT — 1 Normally Open (1NO) + 1 Normally Closed (1NC)
- Pin Options: 4-pin or 5-pin configuration
- Material: Durable plastic housing with metal contacts
- Color: Black
- Compatible with: Car alarms, horn circuits, lighting, fans, fuel pumps, and more
- Made in China
Why Choose This Relay?
With a 40-amp rating, this relay can handle high-current loads that would overwhelm a standard automotive switch. The SPDT design gives you the flexibility to control both normally open and normally closed circuits from a single unit — perfect for security systems, power accessories, and switching applications across a variety of 12V vehicles.
Specifications at a Glance
| Product Name | Car Relay |
| Rated Voltage | DC 12V |
| Rated Current | 40A |
| Contact Type | SPDT (1NO + 1NC) |
| Pin Count | 4 or 5 Pins |
| Material | Plastic & Metal |
| Color | Black |
| Country of Origin | Made in China |
Package Contents
- 1 × DC 12V 40A SPDT Car Relay (4/5 Pin)
Safety & Standards
For guidance on proper automotive electrical safety practices and wiring standards, refer to the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources. Always follow your vehicle's wiring diagram and consult a qualified electrician or automotive technician when modifying vehicle circuits.
Frequently Asked Questions
Q: What is the difference between the 4-pin and 5-pin versions of this car relay?
A: The 4-pin version provides a normally open (NO) circuit only, while the 5-pin SPDT version includes both a normally open (NO) and a normally closed (NC) terminal, giving you greater flexibility to control two separate circuits with one relay. If your application requires switching between two outputs (e.g., an alarm with dual states), the 5-pin version is the better choice.
Q: Is this 12V 40A relay compatible with standard automotive relay sockets?
A: Yes. This relay uses the industry-standard SPDT pin layout that is compatible with the vast majority of automotive relay sockets and harnesses available for 4-pin and 5-pin configurations. It fits common relay bases used for car alarms, lighting, and accessory circuits.
Q: What kinds of automotive applications can this relay handle?
A: This 40A relay is well-suited for a wide range of 12V vehicle applications including car alarm systems, electric fans, headlight or fog light circuits, horn systems, fuel pumps, central locking systems, and other high-current accessory switches. Its 40-amp capacity makes it ideal for loads that exceed what a standard switch can safely carry.
