DC 12V 3A Door Access Control Power Supply with Remote Control

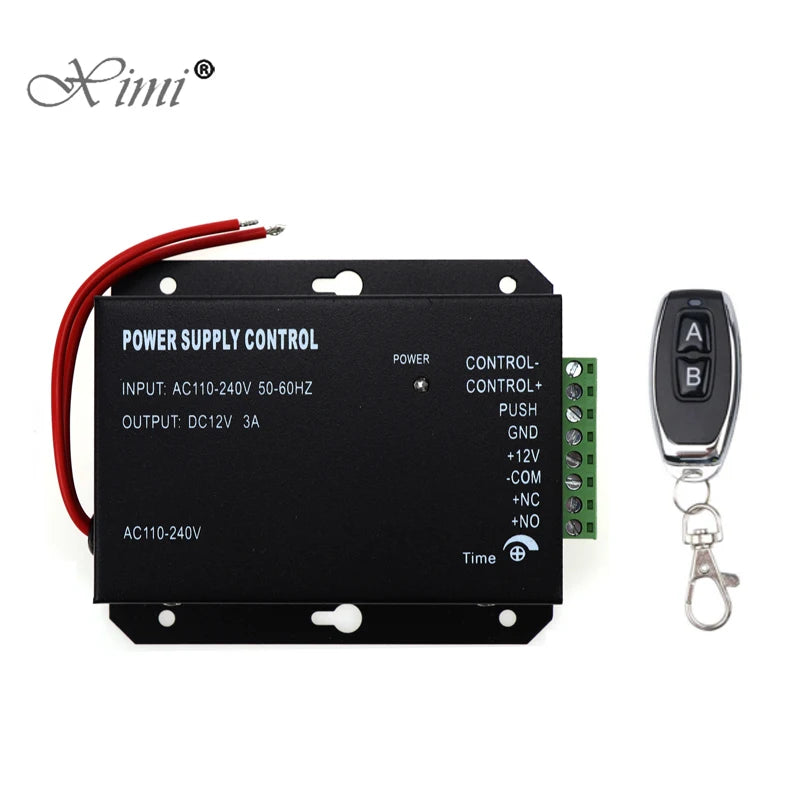

Power your complete door access control system with confidence. This versatile DC 12V / 3A access control power supply (Model: XM-P03B) is built from premium electronic components and engineered with advanced international technology to deliver stable, reliable output for a wide range of security and access applications — including electric locks, RFID card readers, fingerprint controllers, and exit push buttons.
Whether you're securing a home, office, or commercial property, this unit simplifies wiring, reduces controller load, and gives you the flexibility of wireless remote operation up to 20 meters away.
Made in Mainland China.
Key Features
- Wide AC Input Range: Accepts AC 110V–240V for global compatibility, outputs a stable DC 12V / 3A

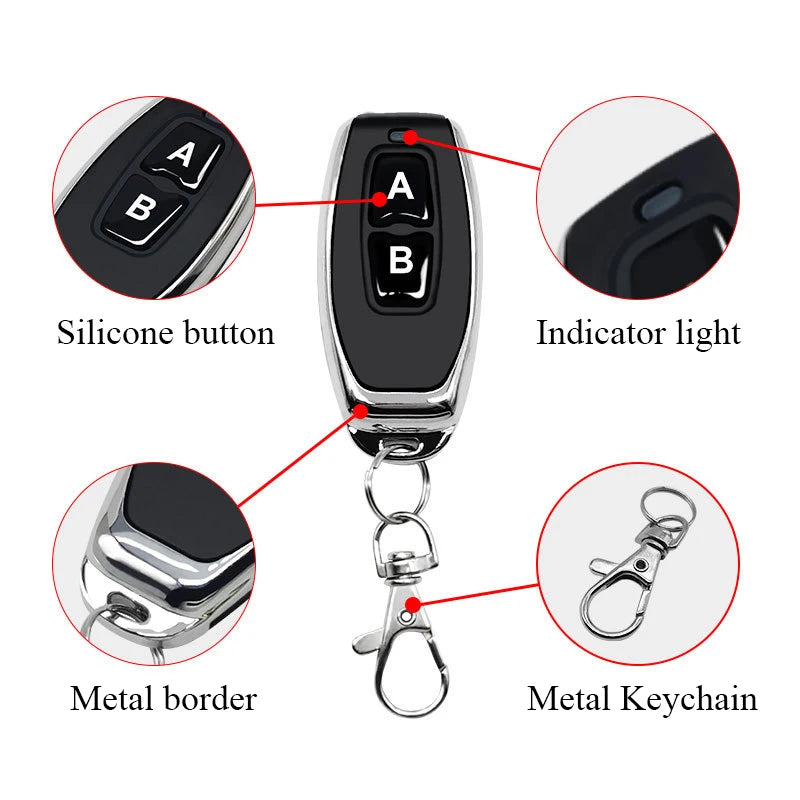

- Remote Control Unlock: Included 433.92 MHz remote operates at distances up to 20 meters for convenient wireless access

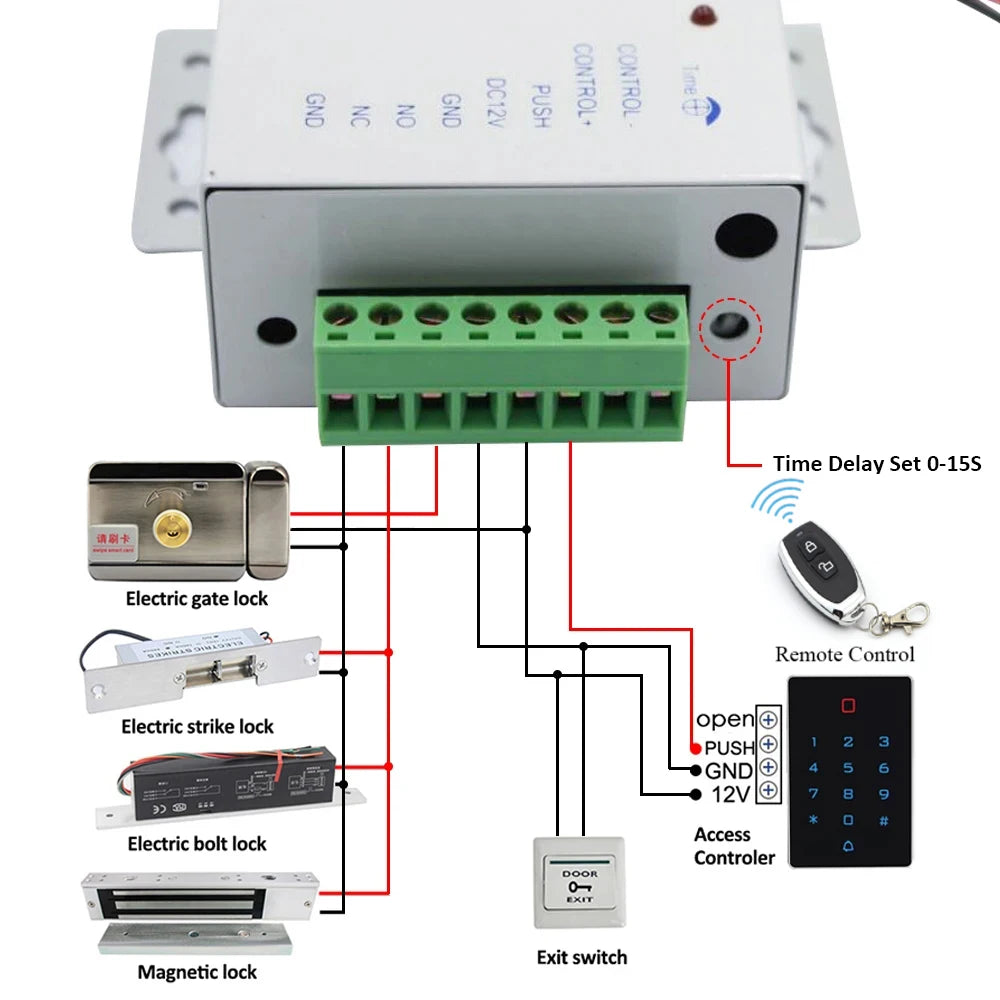

- Direct Electric Lock Control: Drives electric locks directly, reducing the load on your access controller and simplifying your wiring setup
- NC / NO Output Selection: Configurable Normally Closed (NC) or Normally Open (NO) outputs to support a wide variety of electric lock types
- Adjustable Lock Time Delay: Built-in delay control circuit allows lock engagement timing from 0–15 seconds
- Fail Secure Mode: Keeps your door locked in the event of a power interruption for added security
- Automatic Short-Circuit Protection: Intelligent auto-protection circuitry temporarily disconnects or triggers the auto-fuse in the event of a short circuit, protecting your connected devices
- Anti-Interference Design: High-quality internal components deliver clean, stable power even in electrically noisy environments
Technical Specifications

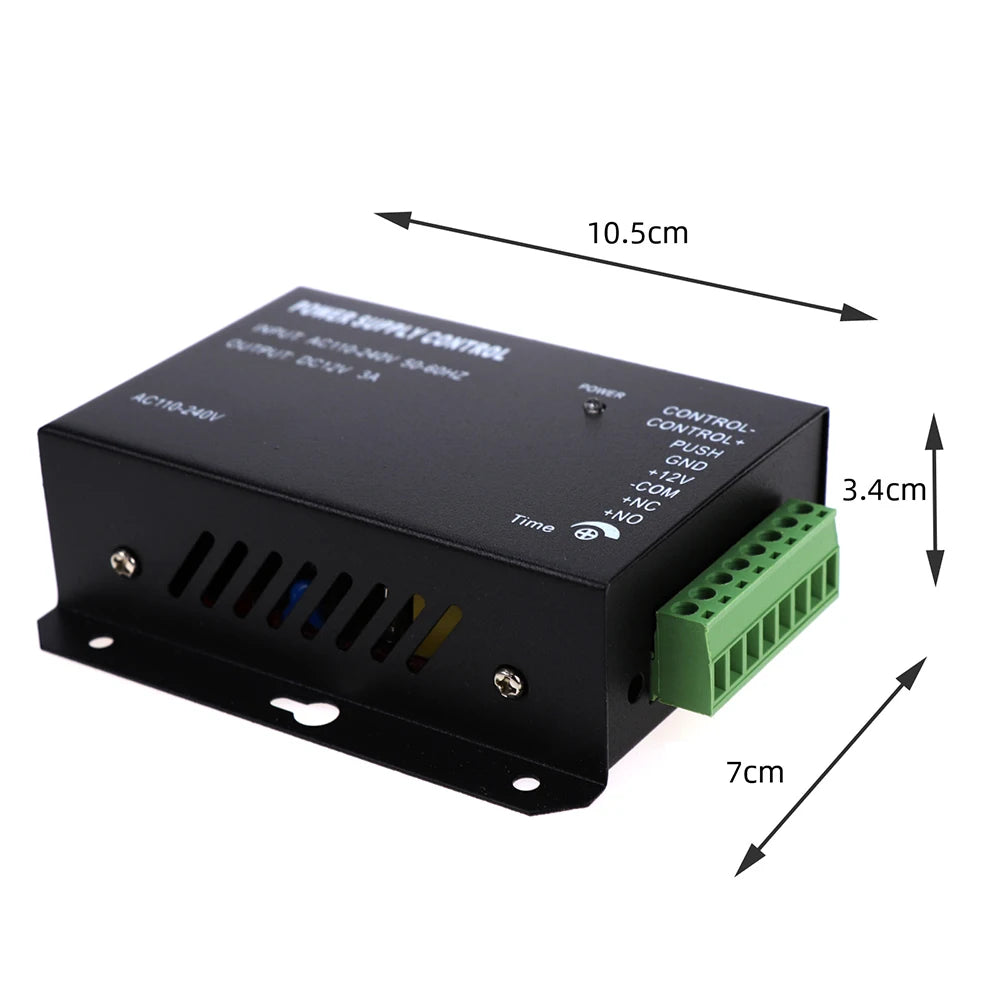

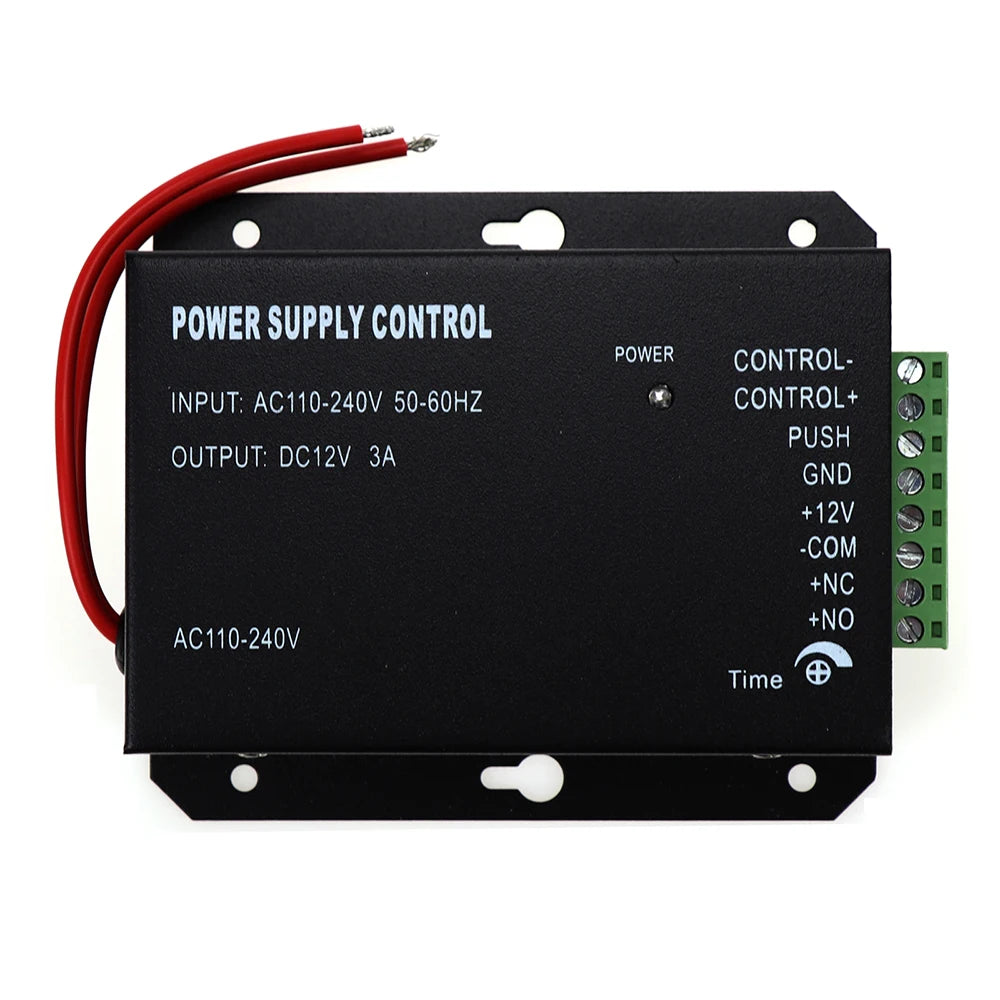

| Model | XM-P03B |
| AC Input | 110V – 240V, 50/60 Hz |
| DC Output | 12V / 3A (stabilized) |
| Security Mode | Fail Secure |
| Remote Frequency | 433.92 MHz |
| Remote Working Current | 34 mA |
| Remote Output Power | 16 dBm (40 mW) |
| Transmission Rate | < 10 Kbps |
| Encoding Method | Fixed Code |
| Remote Control Distance | Up to 20 meters |
| Working Temperature | -10°C to +70°C (14°F to 158°F) |
| Compatible Devices | Electromagnetic locks, Access controllers, Exit push buttons, RFID-IC readers, Fingerprint readers |
| Origin | Mainland China |
Compatible With
- Electromagnetic (EM) Locks & Electric Strike Locks
- RFID / IC Card Access Controllers
- Fingerprint Access Control Panels
- Exit Push Buttons / Request-to-Exit Devices
Safety & Installation Notes
This power supply is designed for use by qualified installers or experienced DIY enthusiasts. Ensure that all wiring complies with local electrical codes. For more information on best practices for electrical safety in security installations, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of electric locks is this DC 12V access control power supply compatible with?
A: This power supply is compatible with a wide range of 12V electric locks and access control hardware, including electromagnetic (EM) locks, electric strike locks, RFID card readers, fingerprint access controllers, and exit push buttons. Its configurable NC/NO output makes it adaptable to most common lock types on the market.
Q: How does the remote control unlock feature work?
A: The included 433.92 MHz fixed-code remote communicates wirelessly with the power supply unit. When triggered, it sends an unlock signal that directly controls the connected electric lock — no need to reach a keypad or reader. The effective range is up to 20 meters in open conditions, making it ideal for garages, gates, and office entry doors.
Q: What happens if there is a power outage or short circuit?
A: This unit features Fail Secure mode, which means the connected electric lock remains locked if power is lost — ensuring your access point stays secure during an outage. In the event of a short circuit, the automatic protection circuit will temporarily disconnect the output or trigger the auto-fuse to protect your connected equipment.
Q: Can this power supply be used internationally with different voltage standards?
A: Yes. The unit accepts a wide AC input range of 110V to 240V at 50/60 Hz, making it suitable for use in North America, Europe, Asia, and most other regions without requiring a voltage converter.
