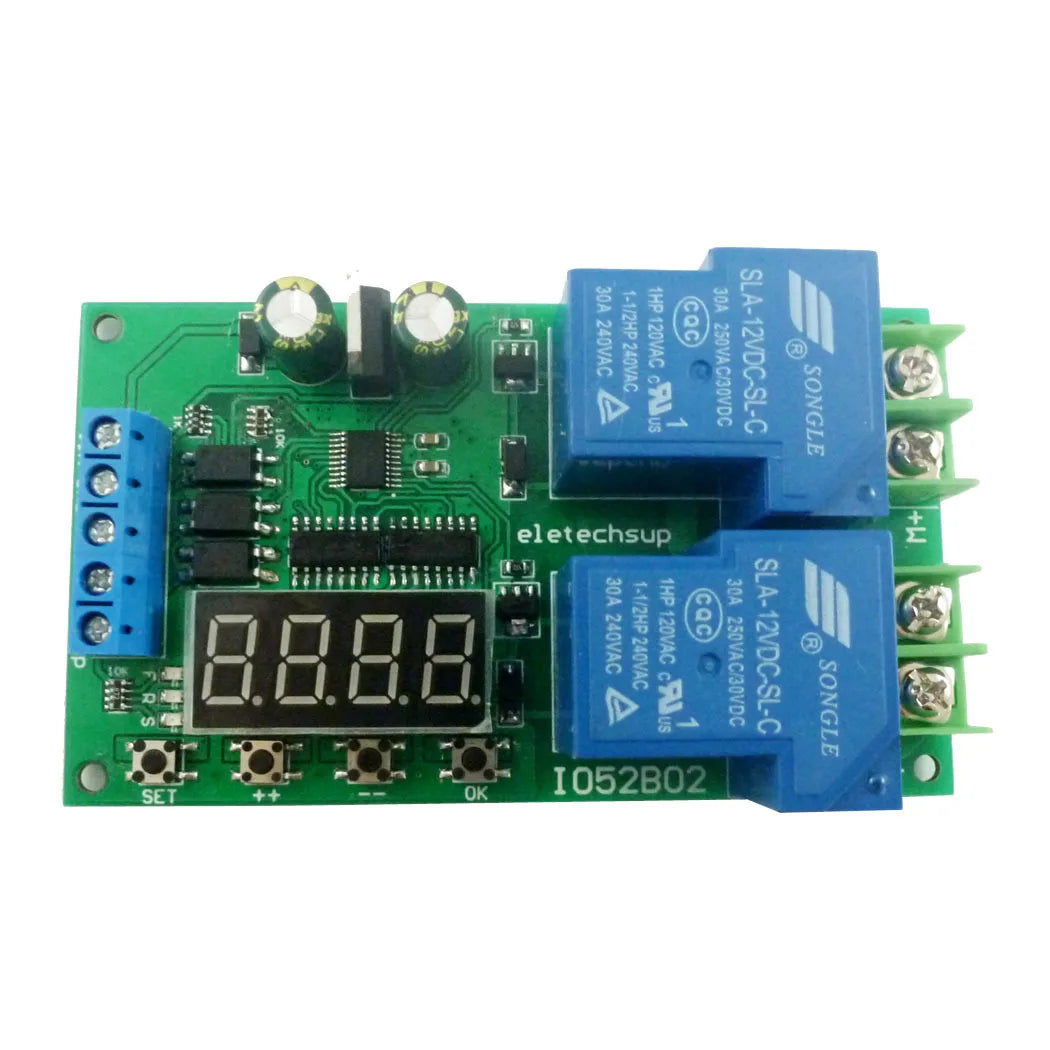

DC 12V 30A Multi-Function Motor Forward & Reverse Controller
Take full control of your DC motor applications with this versatile 12V 30A Motor Forward and Reverse Controller. Featuring built-in time delay, limit switch, and relay functions, this compact module gives you precise start, stop, forward, and reverse control — all in one robust unit. Ideal for hobbyists, engineers, and automation enthusiasts working with DC motors in robotics, conveyor systems, gate openers, linear actuators, and more.

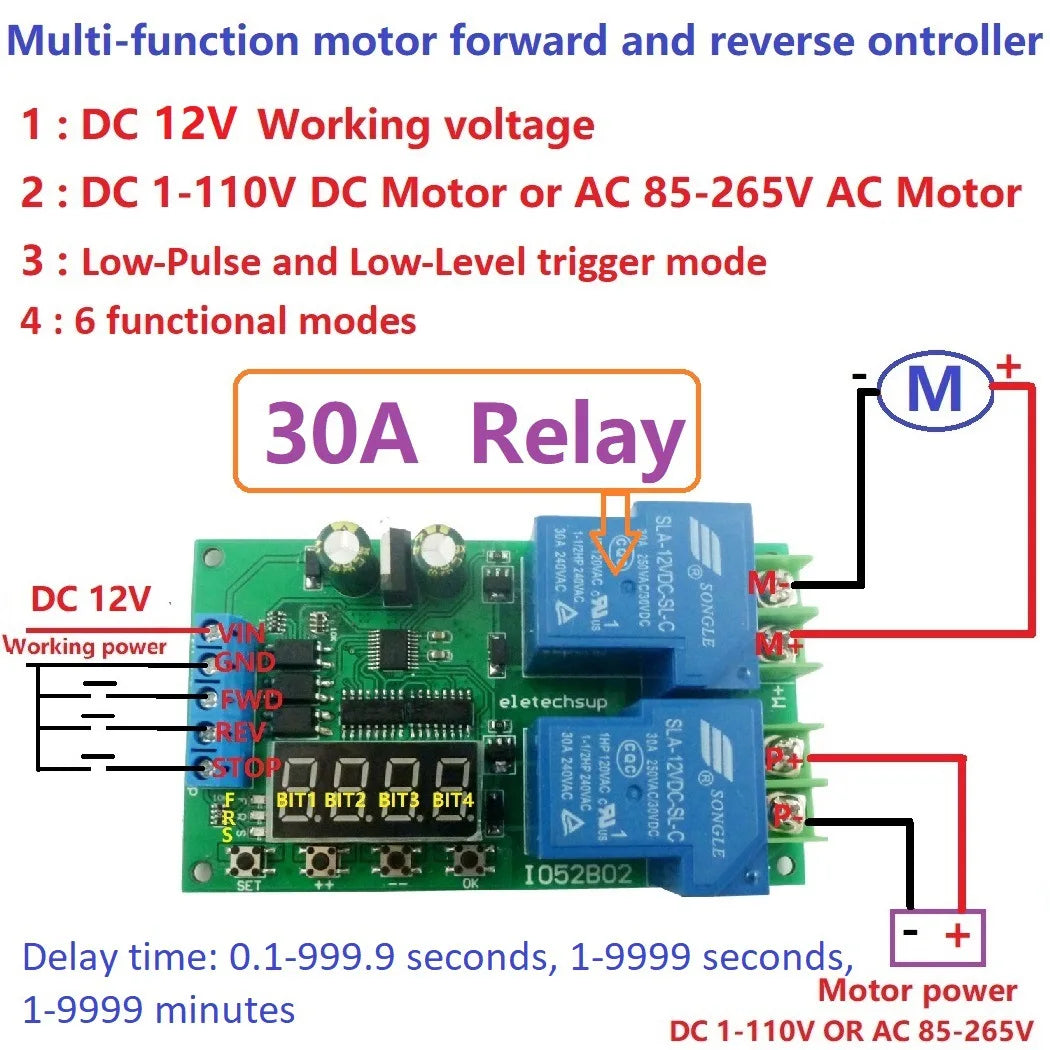

Key Features
- Dual Operating Modes: Standard mode and energy-saving mode for flexible power management
- 6 Functional Modes: Covers a wide range of motor control scenarios right out of the box
- Adjustable Time Delay: Set delays from 0.1 seconds up to 9999 minutes — highly configurable for your project
- Cycle Control: Choose no cycle, 2–99 cycles, or continuous looping
- Dual Trigger Modes: Low pulse trigger or low level trigger input
- Three Control Ports: Dedicated FWD (forward), REV (reverse), and STOP inputs for intuitive wiring
- Three Status Indicators: LED indicators for forward, reverse, and stop states
- High Relay Load Capacity: Rated at 30A / 250VAC / 30VDC for heavy-duty motor loads
- Compact & Lightweight: 97.5 × 56 × 24 mm, just 87 grams
Specifications
| Working Voltage | DC 12V |
| Standby Current (Normal Mode) | 22 mA |
| Working Current (Normal Mode) | 109 mA |
| Standby Current (Energy Saving Mode) | 7 mA |
| Working Current (Energy Saving Mode) | 76 mA |
| Relay Load Rating | 30A / 250VAC / 30VDC |
| Delay Range | 0.1–999.9 sec | 1–9999 sec | 1–9999 min |
| Cycle Options | None, 2–99 cycles, or continuous |
| Functional Modes | 6 |
| Dimensions | 97.5 × 56 × 24 mm |
| Weight | 87 g |
| Country of Origin | Made in China |

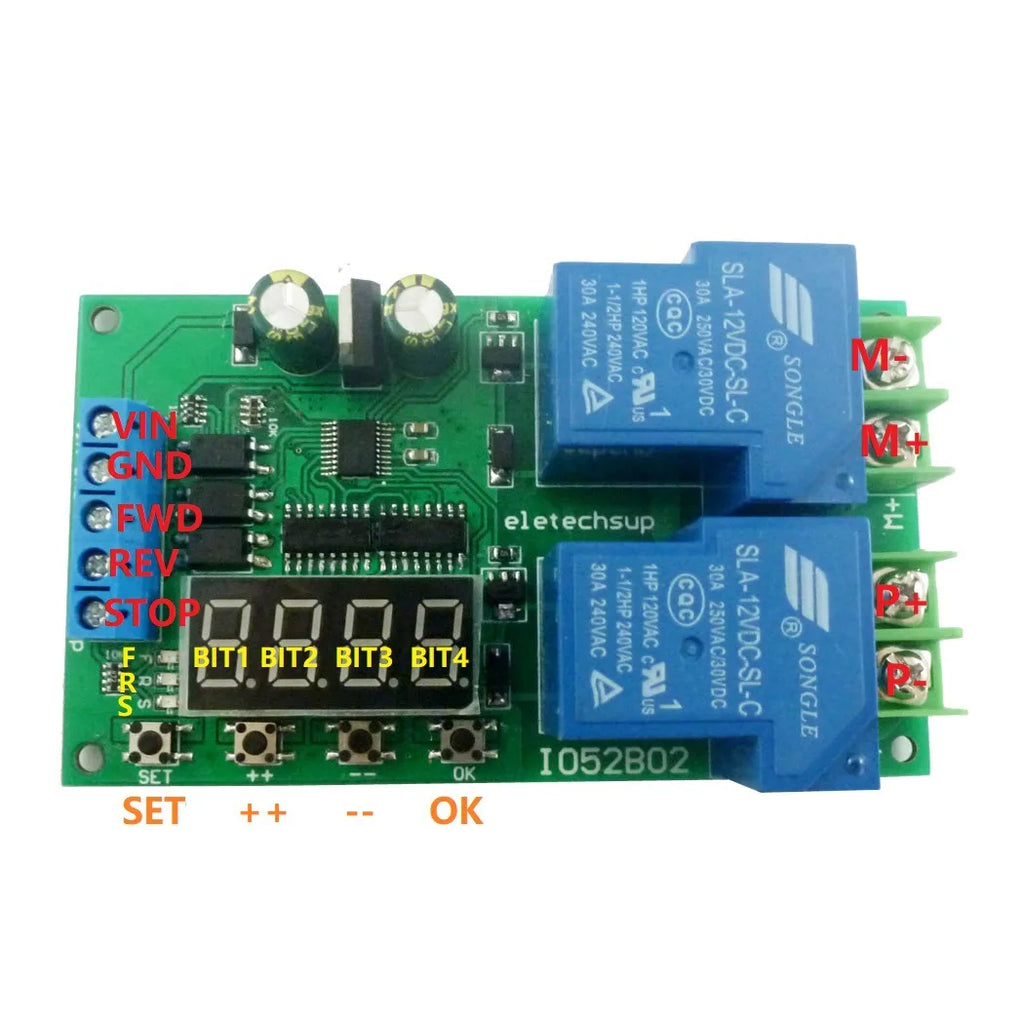

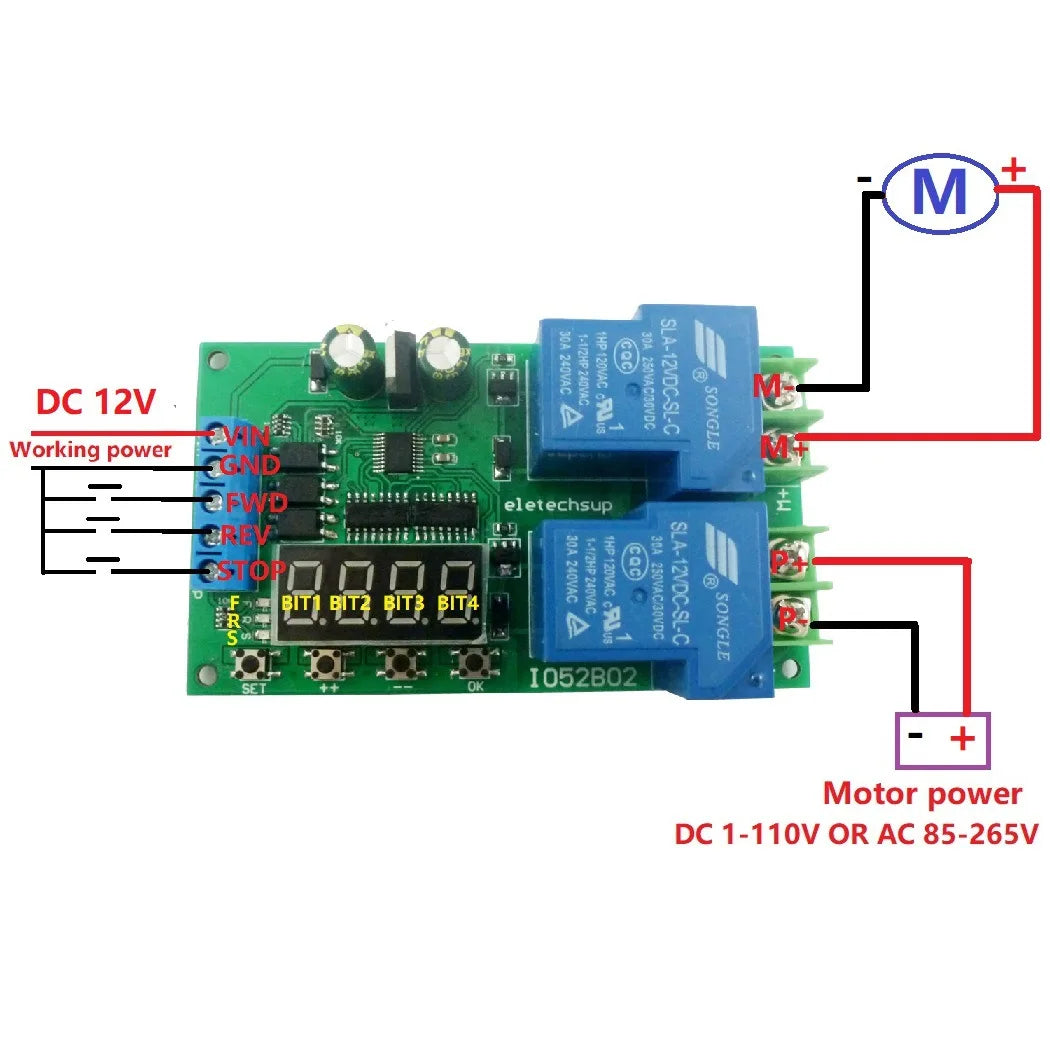

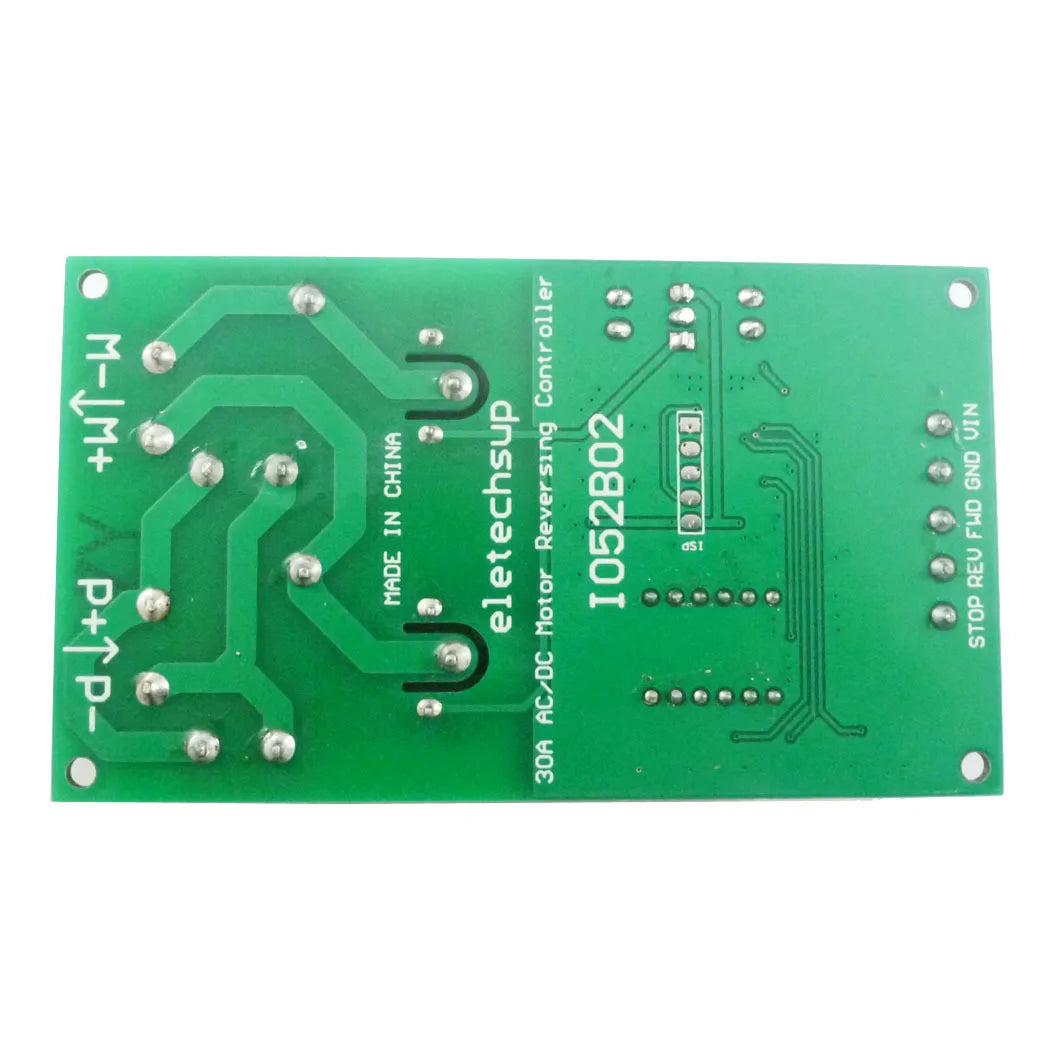

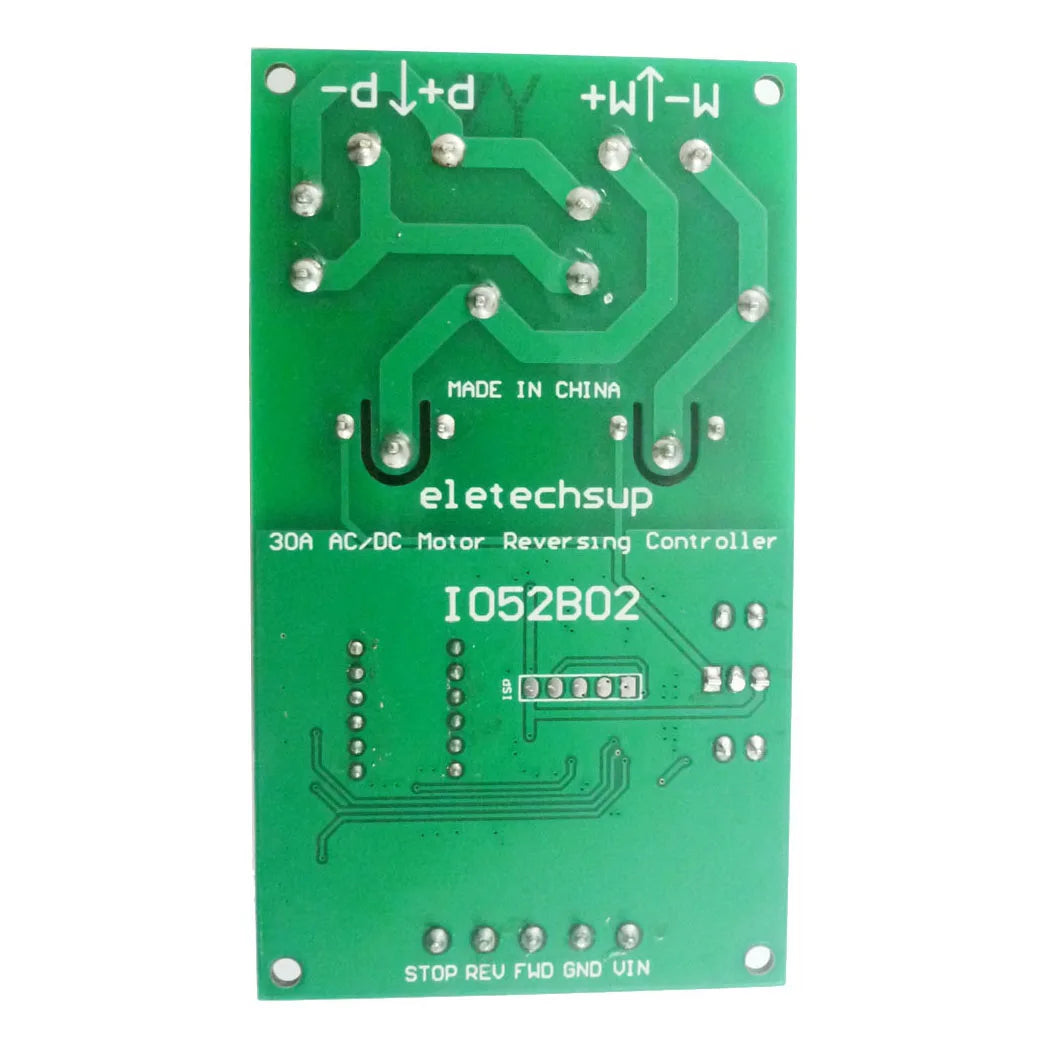

Port Reference Guide
- VIN: Positive power supply (DC 12V)
- GND: Negative power terminal
- FWD: Forward input control
- REV: Reverse input control
- STOP: Stop input control
- M+: Motor positive terminal
- M−: Motor negative terminal
- P+: Motor power supply positive terminal
- P−: Motor power supply negative terminal
Package Includes
- 1× DC 12V 30A Motor Forward/Reverse Controller Module
Note: Slight color variation may occur due to monitor settings. Please allow ±1–3 cm tolerance due to manual measurement.
For additional guidance on electrical safety standards and low-voltage device requirements, refer to the OSHA Electrical Safety Resources.
Frequently Asked Questions
Q: What types of DC motors are compatible with this motor forward/reverse controller?
A: This controller is designed for DC motors operating at 12V. The relay is rated at 30A, making it suitable for a wide range of DC motors used in robotics, gate openers, linear actuators, conveyor belts, and similar automation applications, as long as the motor's current draw does not exceed 30A.
Q: Can I set a specific time delay before the motor starts or reverses direction?
A: Yes. The time delay is fully adjustable across three ranges: 0.1 to 999.9 seconds, 1 to 9999 seconds, or 1 to 9999 minutes. This allows you to customize exactly how long the controller waits before switching motor direction or stopping, making it highly versatile for automation sequences.
Q: What is the difference between the normal mode and energy-saving mode?
A: In normal mode, the standby current is 22 mA and working current is 109 mA. In energy-saving mode, standby drops to just 7 mA and working current to 76 mA. Energy-saving mode is ideal for battery-powered or low-consumption setups where minimizing idle power draw is important.
Q: How many control modes does this relay controller support?
A: The controller supports 6 functional modes, along with two input trigger types — low pulse trigger and low level trigger — giving you flexible options for integrating it into different automation and motor control circuits.
