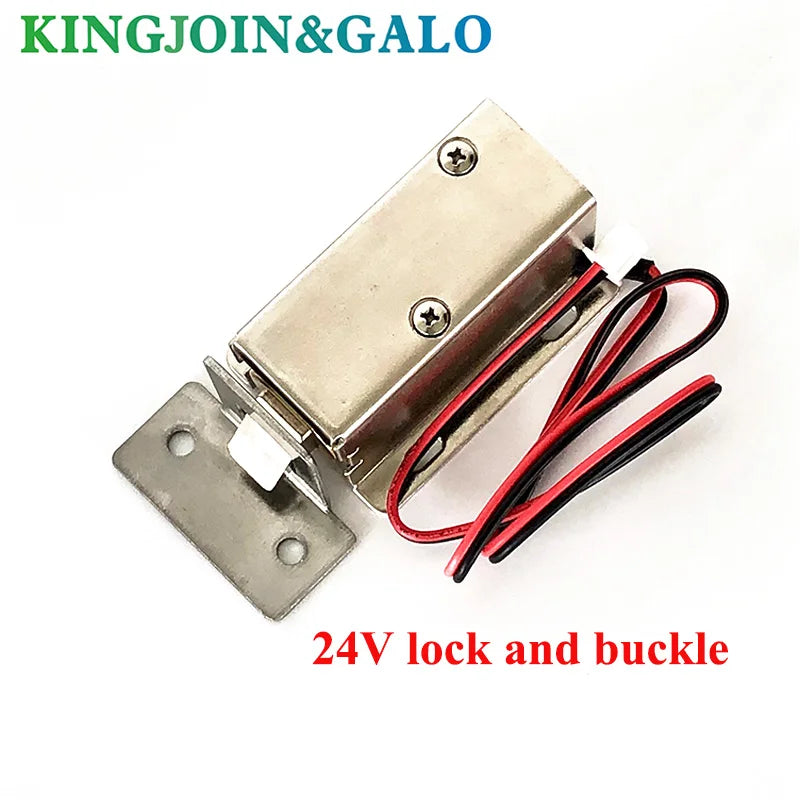

DC 12V/24V Small Electric Bolt Lock – Electromagnetic Drawer & Cabinet Lock
Keep your drawers, cabinets, and enclosures securely locked with this compact and versatile electric bolt lock. Designed for both residential and commercial applications, this electromagnetic bolt lock operates on DC 9–12V or 24V, making it easy to integrate with existing access control systems or wireless remote setups. Whether you're securing a filing cabinet, display case, furniture drawer, or custom enclosure, this electronic bolt lock delivers reliable, fast-response locking in a space-saving form factor.
Made in Mainland China.
Key Features

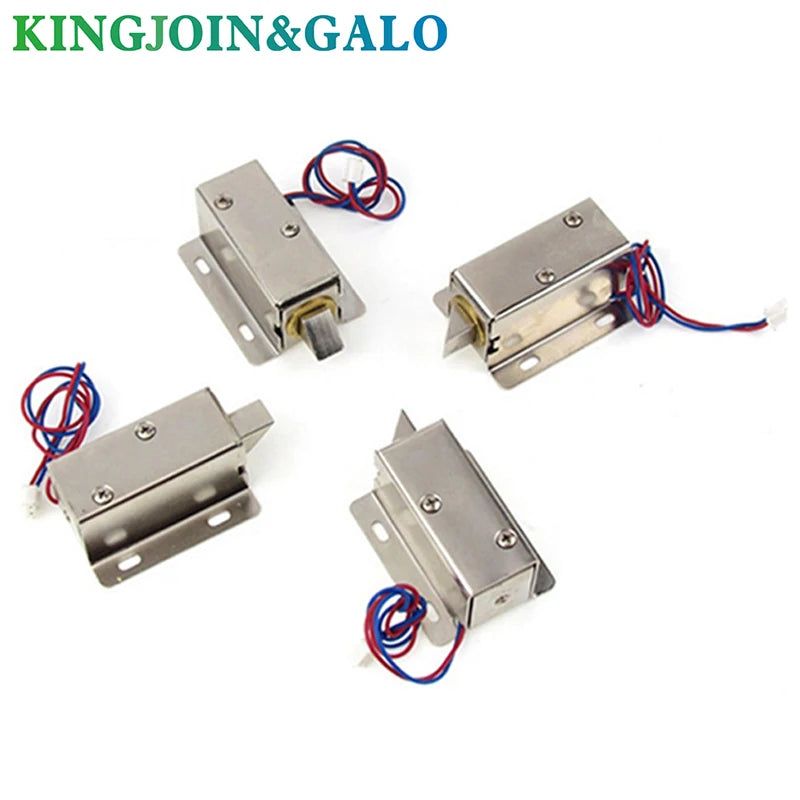

- Adjustable bolt orientation – Easily rotate the lock bolt to any orientation using a crosshead screwdriver and pliers, no special tools required
- Wide voltage compatibility – Operates on DC 9V, 12V, or 24V for flexible installation options
- Fast unlock response – Unlocks in as little as 1 second; powered unlock in under 10 seconds
- Power-off unlock mode – Uses fail-safe power-off-to-unlock (power off shortly) electrify mode
- Compact dimensions – Small 54 × 41 × 27 mm body fits discreetly in tight spaces
- Wide operating temperature – Rated from –40°C to +50°C for demanding environments
- Wireless remote compatible – Can be connected to a wireless remote controller for convenient keyless operation
- Access control compatible – Integrates seamlessly with standard access control systems
- CE Certified – Meets European conformity safety standards
Technical Specifications
| Voltage | DC 9V / 12V / 24V |
| Working Current | 700–1000 mA |
| Power Consumption | 7.5 W |
| Unlock Time | 1 second; powered unlock <10 seconds |
| Electrify Mode | Power off to unlock (fail-safe) |
| Dimensions | 54 × 41 × 27 mm |
| Lock Tongue Size | 10 mm |
| Operating Temperature | –40°C to +50°C |
| Certification | CE |
| Country of Origin | Mainland China |
Common Applications
- Desk and filing cabinet drawer locks
- Display case and showcase security
- Custom enclosures and control panels
- Vending machines and lockers
- Smart home and automated furniture
Installation Tips
To adjust the bolt orientation: (1) Use a crosshead screwdriver to remove the cover screws and take off the cover. (2) Fully retract the lock bolt. (3) Use pliers to grip and rotate the bolt to your desired orientation, then reassemble. The lock is compatible with both wireless remote controllers and wired access control panels for versatile deployment.
For additional guidance on electrical safety when installing low-voltage security hardware, visit the U.S. Consumer Product Safety Commission (CPSC) for helpful consumer safety resources.
Frequently Asked Questions
Q: What voltages does this electric bolt lock support?
A: This electromagnetic bolt lock is compatible with DC 9V, 12V, and 24V power supplies, giving you flexible options for integration into a wide range of access control or automation systems.
Q: Can I connect this lock to a wireless remote control?
A: Yes. This electric bolt lock can be connected to a compatible wireless remote controller, allowing keyless, remote operation of the lock bolt — ideal for smart home setups or hard-to-reach installations.
Q: How do I change the direction of the lock bolt?
A: Simply use a crosshead screwdriver to remove the cover screws and take off the cover. Retract the bolt fully, then use pliers to turn the bolt to your desired orientation. Reattach the cover and you're ready to go. No special tools or expertise are needed.
Q: Is this lock compatible with access control systems?
A: Yes. This electronic bolt lock is designed to integrate seamlessly with standard access control systems, including keypad, card reader, and fingerprint-based controllers.
