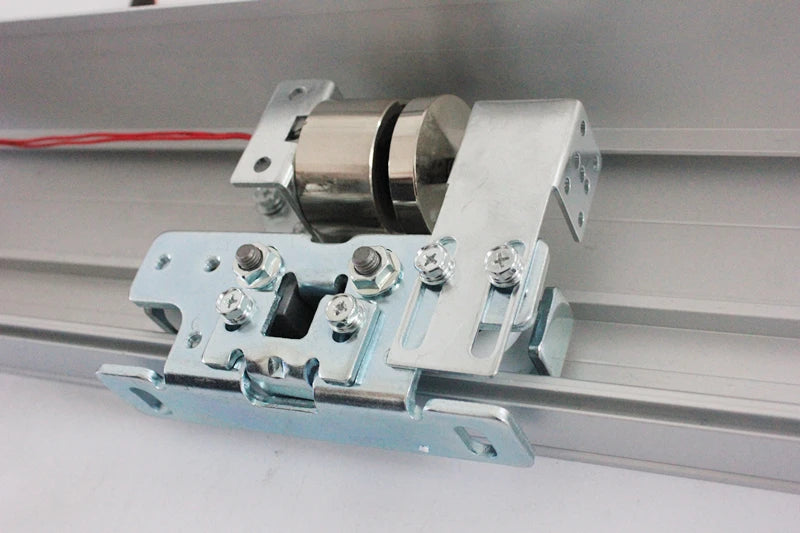

DC 12V 150lb Magnetic Lock for Automatic Sliding Doors
DC 12V 150lb Magnetic Lock for Automatic Sliding Doors
DC 12V 150lb Magnetic Lock for Automatic Sliding Doors
Secure your automatic sliding door or autogate with this professional-grade DC 12V Electromagnetic Magnetic Lock. Featuring a robust 150lb (60–70kg) holding force and a fail-safe security mode, this lock is engineered for reliable, long-term performance in residential and commercial applications. Its compact, professionally designed body installs easily and is compatible with virtually any brand of automatic sliding door or autogate system.
Key Features
- High Holding Force: 60–70kg (150lbs) for strong, dependable door security
- Fail-Safe Operation: Door unlocks automatically when power is cut — ideal for emergency egress compliance
- Anti-Residual Magnetism Design: Ensures the door releases cleanly and promptly when power is removed
- Wide Compatibility: Suitable for any brand of autogate or automatic sliding door
- Durable Finish: High-temperature paint with environmental-protection zinc coating for lasting durability
- Easy Installation: Professional design with straightforward mounting — no advanced tools required
- Wide Operating Range: Works in temperatures from -10°C to 55°C and humidity up to 90%
Technical Specifications
| Model | A60 |
| Working Voltage | DC 12V (DC 24V available for custom orders) |
| Working Current | DC 12V / 180mA | DC 24V / 120mA |
| Holding Force | 60–70kg (approx. 150lbs) |
| Magnet Dimensions | 70 × 70 × 58 mm |
| Armature Plate Dimensions | 100 × 53 × 50 mm |
| Weight | 0.8 kg |
| Operating Temperature | -10°C to 55°C |
| Humidity Range | 0–90% |
| Security Mode | Fail Safe |
| Surface Finish | High-temperature paint & environmental-protection zinc |
| Application | Automatic Sliding Door / Autogate |
Why Choose This Magnetic Lock?
Whether you're upgrading a residential gate or securing a commercial entrance, this electromagnetic lock delivers peace of mind with minimal maintenance. The anti-residual magnetism feature prevents the door from sticking after power is cut, while the zinc-coated finish resists corrosion even in humid environments. At only 0.8kg, it's lightweight enough for easy handling yet built to last.
For general guidance on door hardware safety standards and access control systems, refer to the U.S. Consumer Product Safety Commission (CPSC), which provides resources on safe installation practices for home and commercial security hardware.
Frequently Asked Questions
Q: What type of doors is this DC 12V magnetic lock compatible with?
A: This electromagnetic magnetic lock is designed specifically for automatic sliding doors and autogates. It is compatible with virtually any brand of autogate or sliding door system that operates on DC 12V power (or DC 24V with a custom order).
Q: What does "fail-safe" mode mean for this magnetic lock?
A: Fail-safe mode means the lock releases (unlocks) when electrical power is cut. This is a critical safety feature for emergency exits, ensuring that doors can always be opened during a power outage or emergency situation.
Q: Can this magnetic lock be used outdoors?
A: Yes. The high-temperature paint and environmental-protection zinc finish make this lock resistant to corrosion and suitable for outdoor use within its rated operating range of -10°C to 55°C and up to 90% humidity.
Q: Is DC 24V available for this magnetic lock?
A: The standard model operates at DC 12V (180mA). A DC 24V version (120mA) is available as a customized option — please contact us before ordering if you require DC 24V.
