DC 12-60V 15A PWM Motor Speed Controller with Digital Display
Take precise control of your DC motor applications with this high-performance PWM Motor Speed Controller. Powered by an advanced single-chip microcontroller core and pulse width modulation (PWM) technology, this electronic regulator delivers smooth, responsive, and accurate speed regulation at a stable 20kHz operating frequency — ideal for industrial automation, electric equipment, experimental setups, and more.
Made in Mainland China.
Key Features
- Wide Input Voltage Range (12–60V): Compatible with 12V to 60V batteries and switching power supplies, making it versatile across a broad range of industrial and hobbyist applications.
- High Continuous Current Capacity (≤15A): Reliably drives high-power DC motors with a continuous 15A output current rating.
- Real-Time Digital Display: A high-definition digital tube displays motor speed percentage (0–100%) in real time, so you always know exactly where your motor is running.
- Forward & Reverse Control: One-click direction switching between forward, reverse, and stop — both from the panel and via external port control.
- Smooth PWM Speed Control: Professional-grade pulse width modulation ensures fast response, continuous smooth operation, and minimal heat generation.
- Speed Memory Save Function: Press and hold the digital potentiometer knob to save the current speed setting for quick recall.
- Panel & Port Control Modes: Easily switch between onboard panel control and external switch (port) control via the built-in menu system.
Specifications
| Input Voltage | DC 12–60V (batteries or switching power supplies) |
| Output Current | ≤15A continuous |
| Operating Frequency | 20kHz |
| Output Voltage | 0V to input voltage |
| Speed Control Method | Digital potentiometer |
| Speed Display | Digital tube, real-time 0–100% |
| Control Functions | Forward / Reverse / Stop (panel & port) |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 80°C |
Panel vs. Port Control — How to Switch
Panel Control Mode (Default): Press and hold the top of the knob cap for 3 seconds to enter menu mode. Rotate to select P00 and wait 3 seconds — the setting saves automatically. No external switches (K1/K2) required.

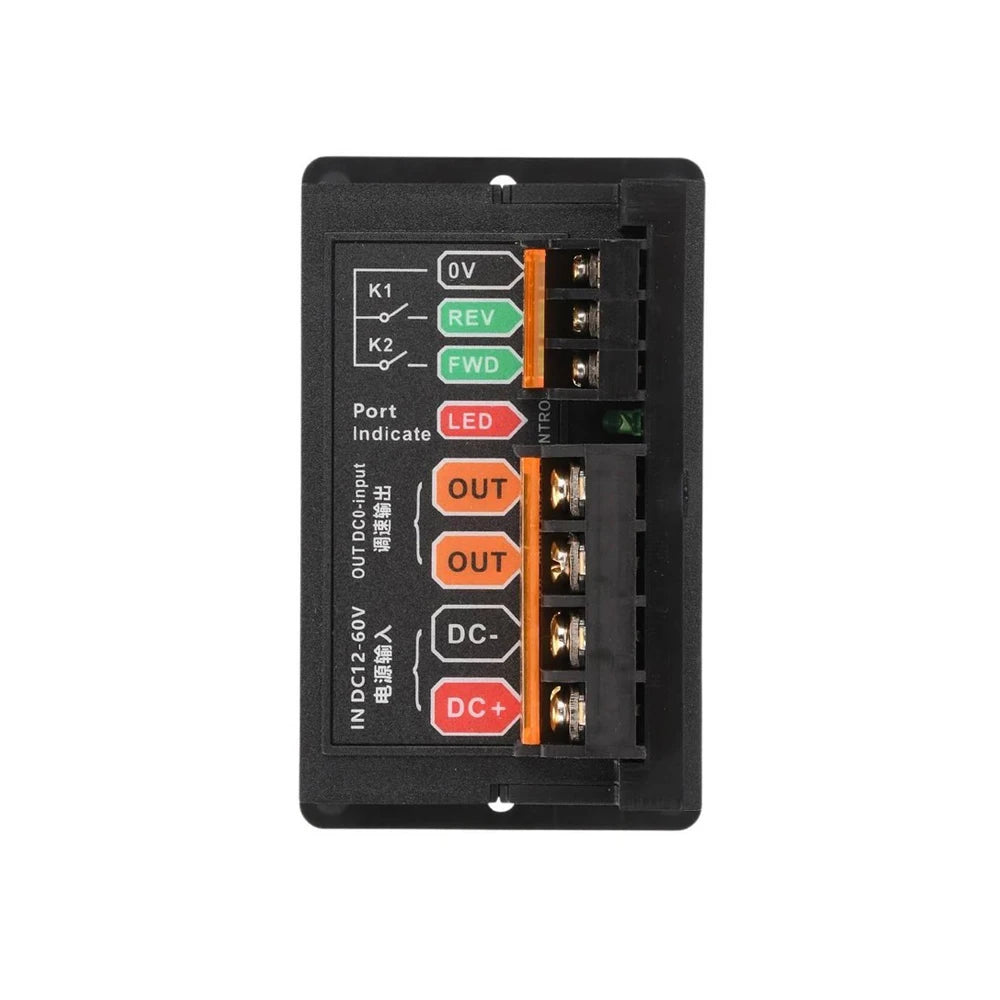

External Port Control Mode: Install K1 and K2 external switches. Press and hold the knob cap for 3 seconds to enter menu mode. Rotate to select P01 and wait 3 seconds to save. External switches will then control forward, reverse, and stop functions.
What's in the Box
- 1× DC PWM Motor Speed Controller / Governor
Note: Slight color variations may occur due to screen and lighting differences. Please allow 1–10mm tolerance due to manual measurement.
For more on electrical safety standards for low-voltage equipment, visit CPSC Electrical Safety.
Frequently Asked Questions
Q: What types of DC motors is this PWM speed controller compatible with?
A: This DC 12-60V PWM motor speed controller is compatible with a wide range of brushed DC motors that operate within the 12–60V input voltage range and draw up to 15A of continuous current. It is widely used in industrial automation, electric vehicles, experimental devices, conveyor systems, and more.
Q: Can I control motor direction with this speed controller?
A: Yes. The controller supports both forward and reverse direction control with a one-click switch, as well as a stop function. This can be operated directly from the onboard panel or via external K1/K2 switches in port control mode.
Q: How do I switch between panel control and external port control?
A: Press and hold the top of the digital potentiometer knob for 3 seconds to enter the menu. Rotate to select P00 for panel control (default) or P01 for external port control, then wait 3 seconds for the setting to auto-save. External switches (K1 and K2) must be installed for port control mode to function.
Q: Does the controller save my speed setting when powered off?
A: Yes. You can save the current speed setting by pressing down on the digital potentiometer knob. The saved speed will be recalled the next time the unit is powered on.
