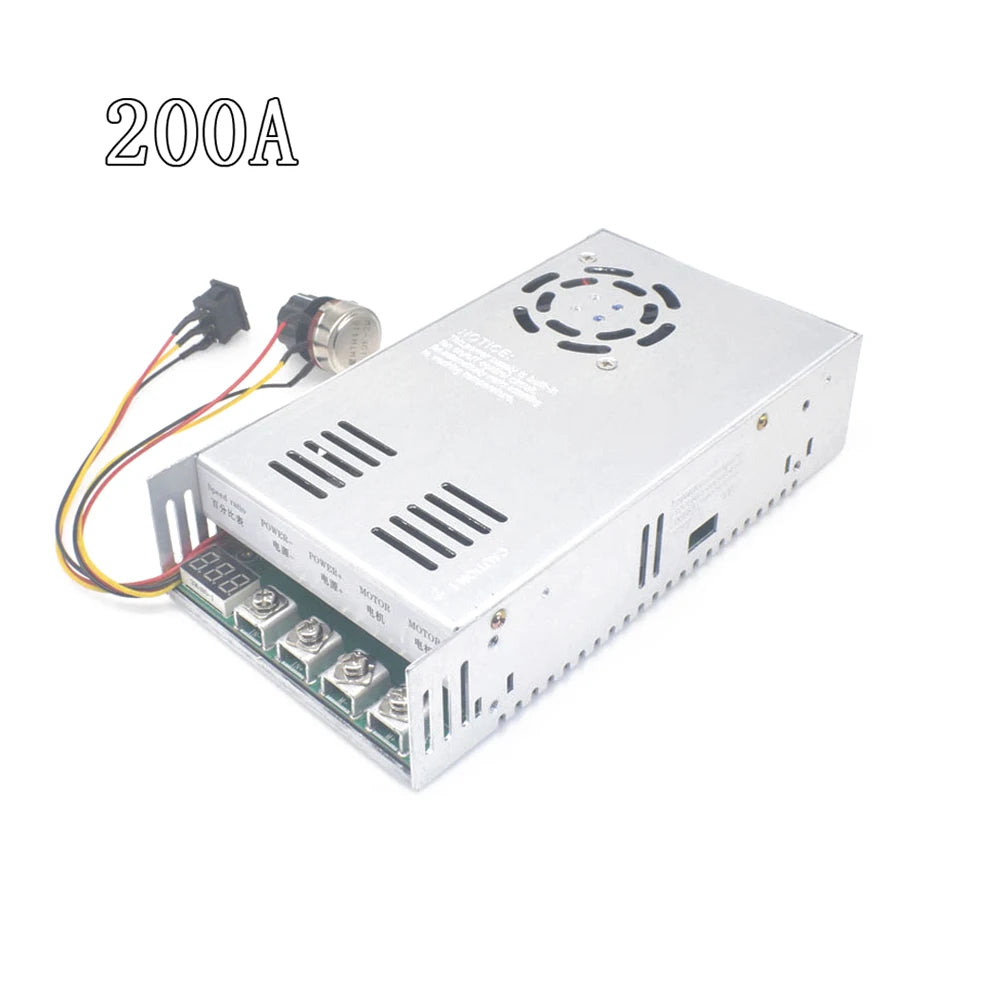

DC 12–48V 200A Brushed Motor Speed Controller — Full Forward & Reverse, 0–100% Adjustable
Take complete command of your DC brushed motor projects with this heavy-duty, wide-voltage motor speed controller. Designed for demanding DIY electrical builds, industrial automation, electric vehicles, conveyor systems, and more, this governor delivers smooth, precise 0–100% speed regulation with easy forward and reverse directional switching — all in one compact module.
Key Features
- Wide Input Voltage: Compatible with DC 12V, 24V, 36V, and 48V systems for maximum versatility.
- High Current Capacity: Handles up to 70A continuous output current, making it suitable for high-torque brushed DC motors.
- Full Speed Range: Potentiometer-based (0–5V) speed regulation covers the complete 0–100% range for precise, stepless control.
- Forward & Reverse Function: Built-in directional switching allows seamless motor reversal without additional wiring changes.
- Linear Output Under Load: Maintains consistent output voltage relative to duty cycle even under variable load conditions.

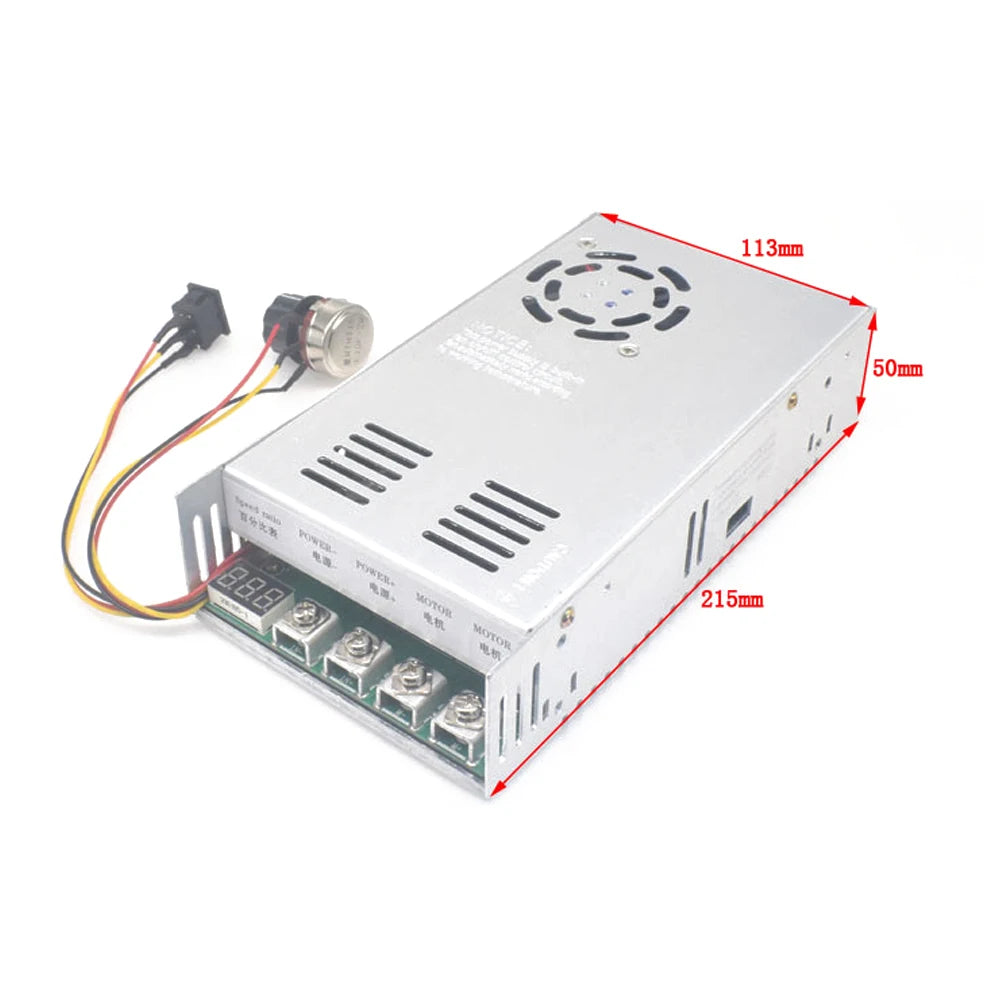

- Compact & Sturdy Module: Solid construction at 215mm × 113mm × 50mm with a 10mm potentiometer mounting hole for easy panel installation.
- Made in Mainland China.
Specifications
| Input Voltage | DC 12V – 48V |
| Output Voltage | Linear under load |
| Output Current | 70A |
| Speed Regulation | Potentiometer (0–5V) |
| Speed Range | 0–100% |
| Potentiometer Mounting Hole | 10mm |
| Module Dimensions | 215mm × 113mm × 50mm |
Common Applications
- Electric go-karts, scooters, and e-bikes
- Industrial conveyor and pump motors
- DIY robotics and automation projects
- Winches, hoists, and actuator control
- CNC and milling machine spindle speed control
Package Contents
- 1× DC Motor Speed Controller Module
Important Notes
- Color may vary slightly from photos due to lighting and screen differences.
- Please allow ±1mm–1cm measurement tolerance due to manual measurement.
- For safe installation and wiring of electrical control components, refer to guidance from the OSHA Electrical Safety guidelines to ensure your setup meets recognized safety standards.
Frequently Asked Questions
Q: What type of motors is this DC motor speed controller compatible with?
A: This controller is designed specifically for DC brushed motors operating between 12V and 48V. It is not compatible with brushless DC motors, AC motors, or stepper motors. Always verify your motor's voltage and current ratings match the controller's specifications before installation.
Q: Can I use this controller for both forward and reverse motor operation?
A: Yes. This speed governor features built-in forward and reverse switching, allowing you to change the direction of your DC brushed motor with ease — no rewiring required. Simply use the directional switch on the module to toggle between forward and reverse.
Q: What is the maximum current this motor speed controller can handle?
A: The controller supports up to 70A continuous output current. While the product title references 200A, please refer to the verified specification sheet: the rated continuous output current is 70A. Ensure your motor and wiring are appropriately sized to handle the current load safely.
Q: How do I adjust the motor speed?

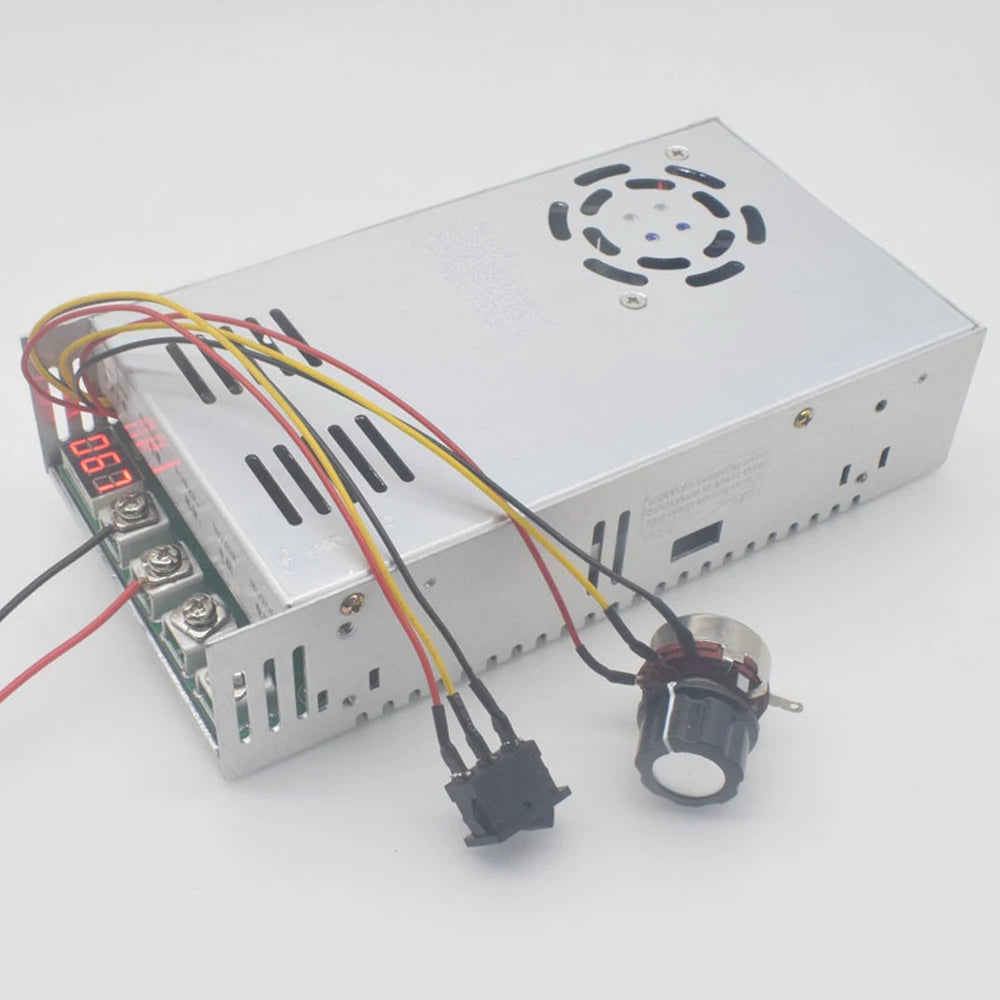

A: Speed is regulated via a potentiometer input (0–5V signal range), covering the full 0–100% speed range. The module includes a 10mm potentiometer mounting hole so you can integrate the control knob directly into your panel or enclosure for convenient, on-the-fly speed adjustment.
