DC 12–48V 200A Brushed Motor Speed Controller with Forward & Reverse

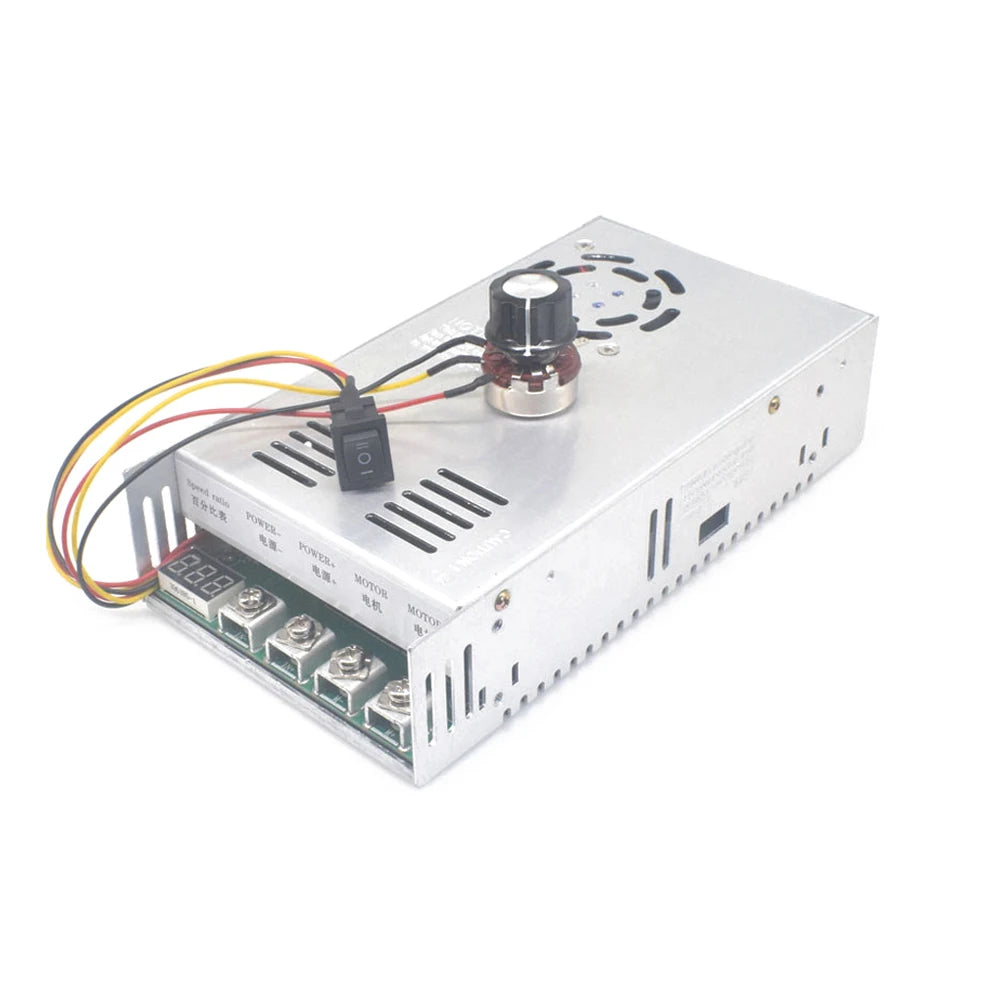

Take full command of your DC brushed motor with this heavy-duty Motor Speed Controller. Designed for a wide input range of DC 12V to 48V and a continuous output of 70A, this governor module gives you seamless, stepless speed regulation from 0% to 100% — all through a simple potentiometer dial. Whether you're building an industrial automation setup, a DIY electric vehicle, a conveyor system, or a workshop machine, this controller delivers precise, reliable motor management.
Key Features
- Wide Voltage Range: Compatible with DC 12V, 24V, 36V, and 48V power systems for versatile application.
- 0–100% Stepless Speed Control: Smooth, continuous speed adjustment via a 0–5V potentiometer interface — no abrupt jumps or gaps.
- Forward & Reverse Operation: Built-in directional control lets you switch motor rotation direction with ease.
- 70A Continuous Output Current: Handles demanding motor loads for robust, long-duration operation.

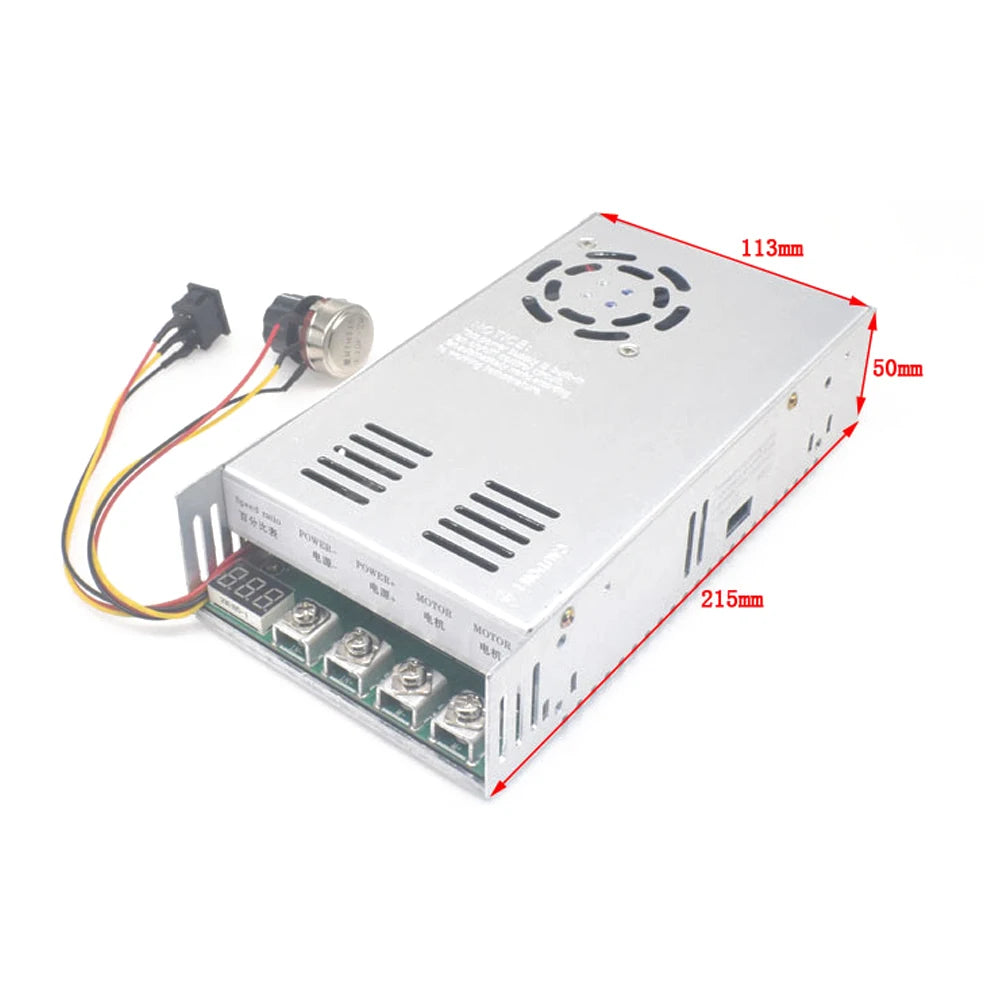

- Compact & Sturdy Module: Compact 215mm × 113mm × 50mm form factor fits neatly into panels, enclosures, and DIY builds.
- Potentiometer Mounting: 10mm installation hole for easy panel-mount potentiometer integration.
- Linear Output Voltage: Output voltage scales linearly under load for predictable, consistent motor behavior.
Technical Specifications
| Input Voltage | DC 12V – 48V |
| Output Voltage | Linear under load |
| Output Current | 70A (continuous) |
| Speed Regulation | Potentiometer (0–5V) |
| Speed Range | 0–100% |
| Potentiometer Mounting Hole | 10mm |
| Module Dimensions | 215mm × 113mm × 50mm |
What's in the Box
- 1× DC Motor Speed Controller Module
Notes
- Colors may appear slightly different from product images due to lighting and screen variations.
- Please allow a 1mm–1cm dimensional tolerance due to manual measurement.
Made in Mainland China.
For best practices on electrical safety when working with DC motor control systems, visit the OSHA Electrical Safety resource page.
Frequently Asked Questions
Q: What types of motors are compatible with this DC motor speed controller?
A: This controller is specifically designed for DC brushed motors. It supports motors operating within a DC 12V–48V range and up to 70A continuous output current. It is not intended for brushless DC motors or AC motors.
Q: Can I use this motor speed controller for both forward and reverse motor operation?
A: Yes. This controller features built-in forward and reverse directional control, allowing you to switch the rotation direction of your DC brush motor as needed — making it ideal for robotics, conveyor belts, and bidirectional drive applications.
Q: How do I adjust the motor speed with this controller?
A: Speed is adjusted using a potentiometer (0–5V signal). The module includes a 10mm panel-mount hole for easy installation of an external potentiometer knob, giving you smooth, stepless speed control from 0% to 100%.
Q: Is this controller suitable for a 48V electric vehicle or e-bike build?
A: This controller supports input voltages up to 48V, making it compatible with many 48V battery systems used in DIY electric vehicles, scooters, and e-bikes with brushed DC motors. Always verify your motor's current requirements do not exceed the 70A continuous output rating.
