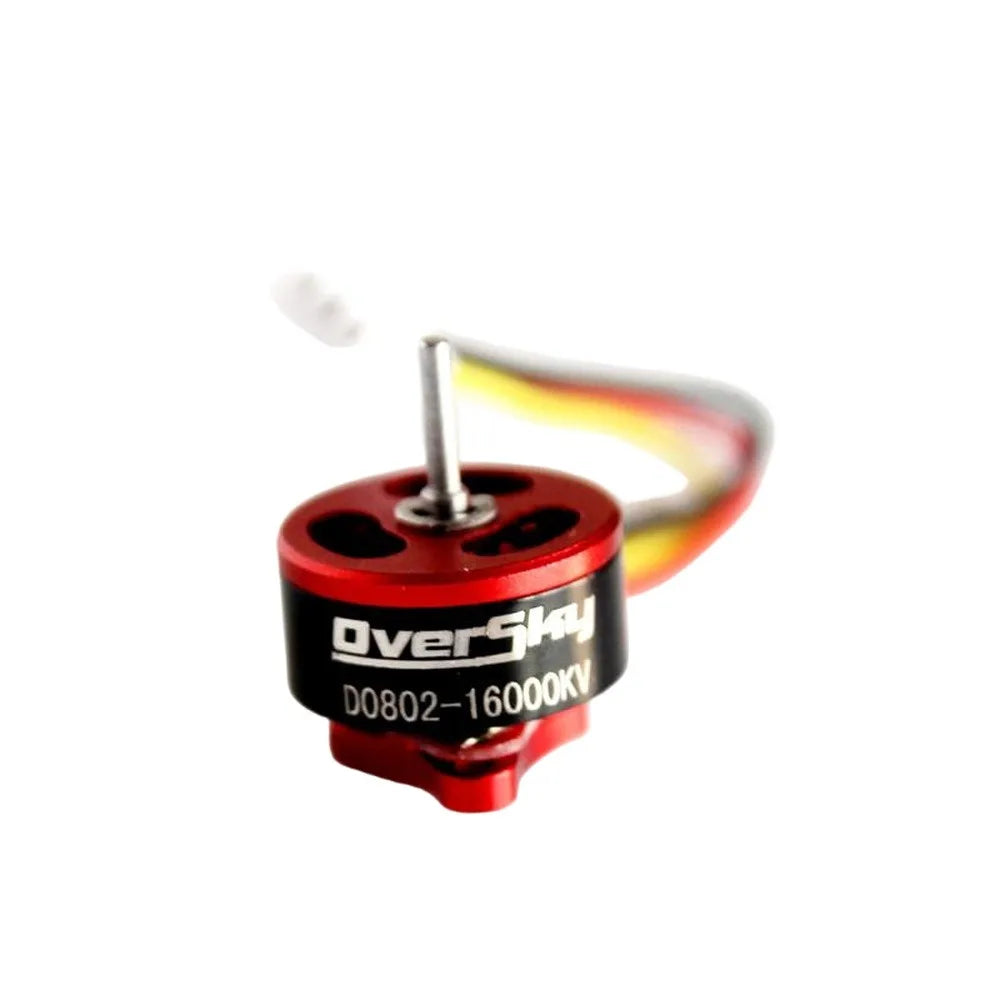

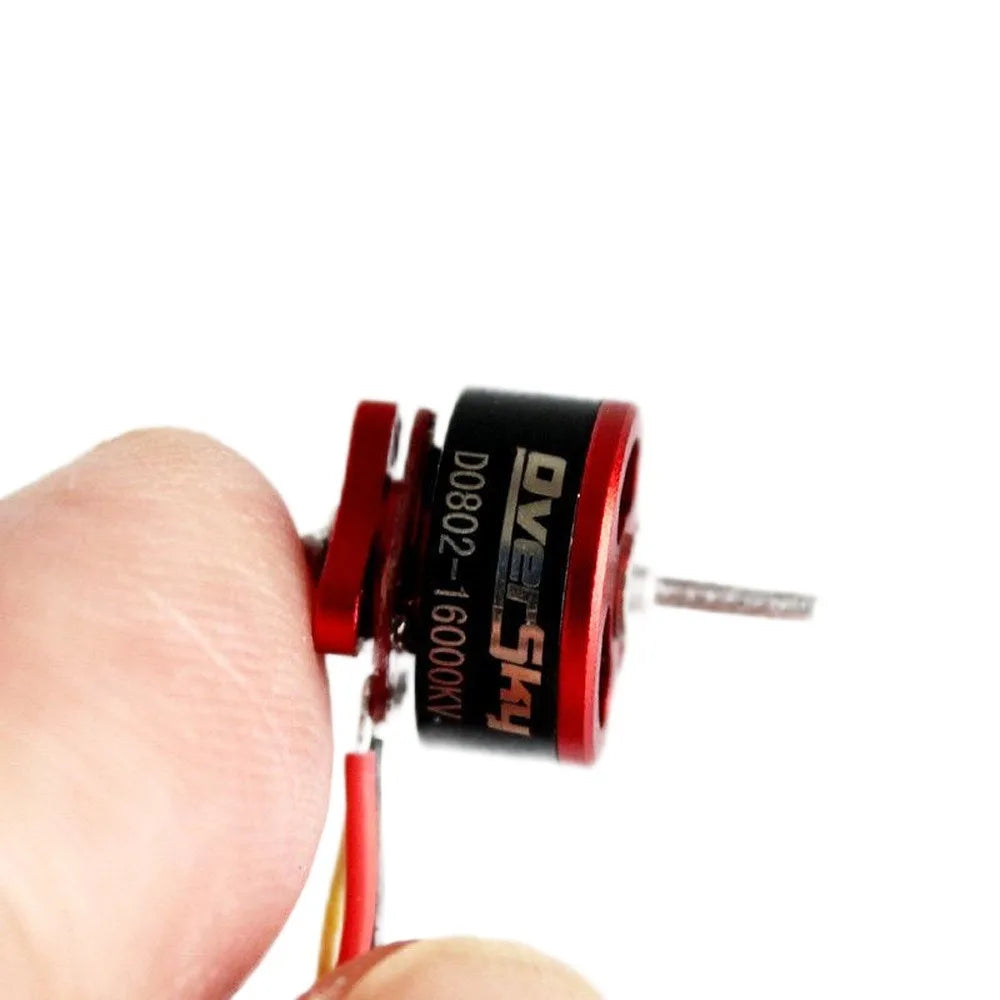

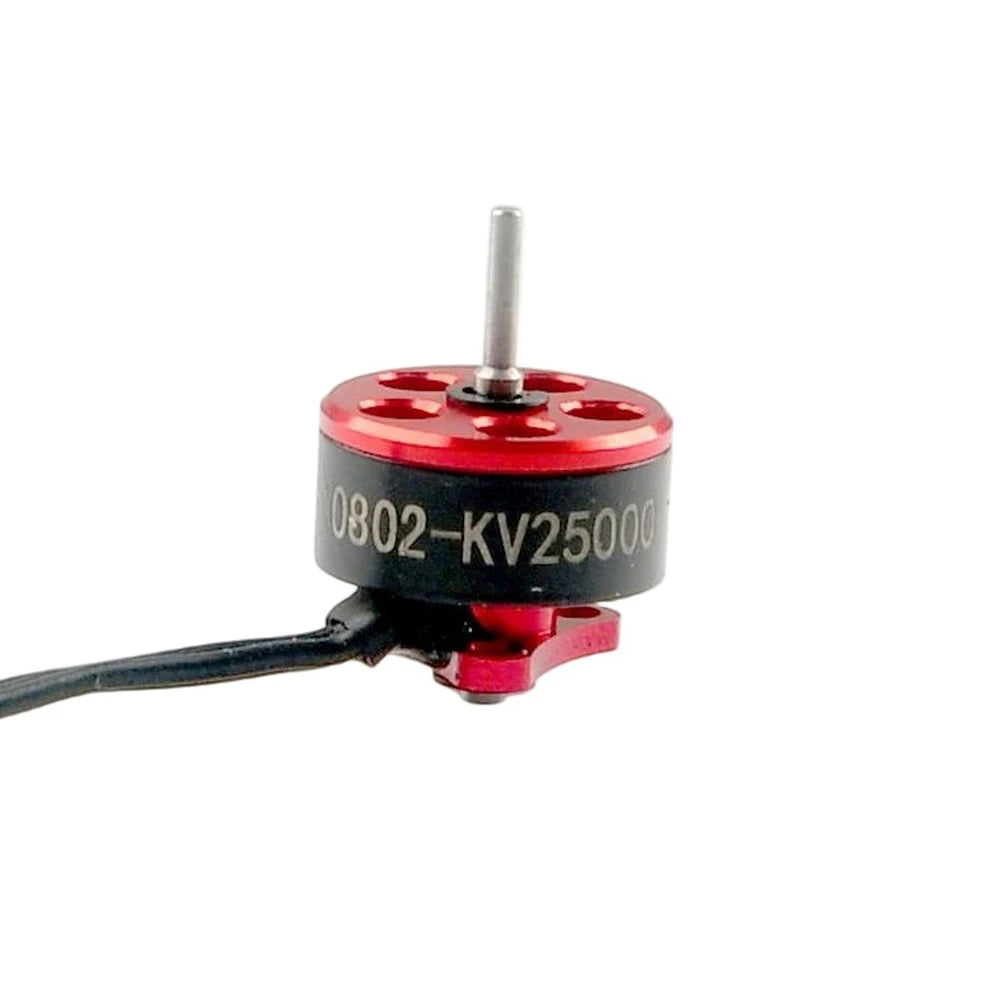

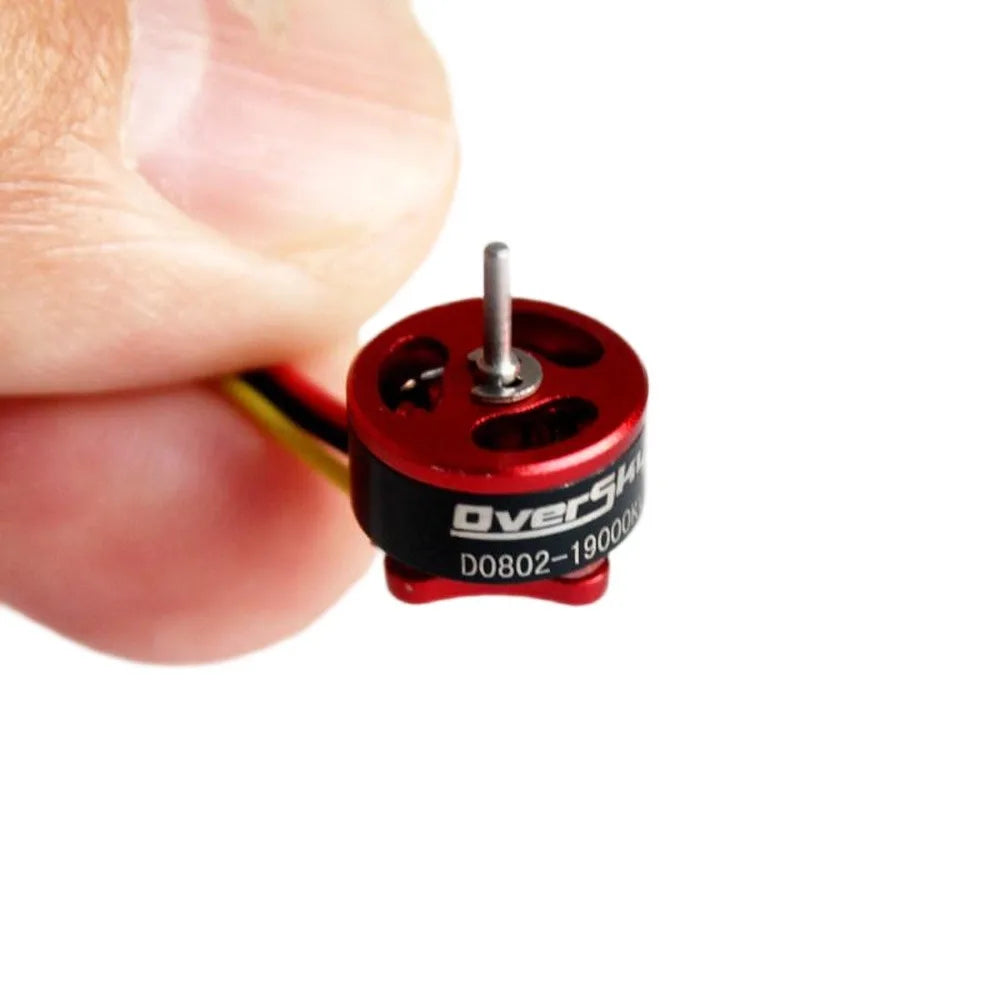

D0802 Brushless Motor — 16000KV / 19000KV / 25000KV for FPV Micro Quadcopters
Upgrade or replace the motors on your 65–85mm FPV micro quadcopter frame with the high-performance D0802 Brushless Motor. Available in three KV ratings — 16000KV, 19000KV, and 25000KV — this compact 9N12P motor delivers smooth, responsive thrust on 1–2S LiPo power, making it a go-to choice for whoop-style and tiny-trainer builds alike.
Its ultra-compact 8mm stator diameter and 2mm stator length keep weight to a minimum without sacrificing spin efficiency, while the 1.0mm shaft and JST 1.25mm connector ensure compatibility with the most popular micro-drone flight controllers and frames on the market. Whether you are refreshing a tired build or speccing a new one from scratch, the D0802 slots right in.
Made in Mainland China.
Key Features
- Three KV options: 16000KV (smooth cruiser), 19000KV (balanced), 25000KV (high-speed freestyle)
- Configuration: 9N12P for efficient torque at micro scale
- Stator size: 8mm diameter × 2mm length — ultra-lightweight design
- Overall motor dimensions: Ø10.5mm × 14.9mm
- Shaft diameter: 1.0mm
- Compatible LiPo cells: 1S–2S
- Connector: JST 1.25mm
- Wire length (including connector): 40mm
- Compatible frame sizes: 65mm–85mm FPV micro quadcopter frames
Full Specifications
| Model | D0802 |
| KV Rating | 16000KV / 19000KV / 25000KV |
| Motor Configuration | 9N12P |
| Stator Diameter | 8mm |
| Stator Length | 2mm |
| Motor Dimensions | Ø10.5mm × 14.9mm |
| Shaft Diameter | 1.0mm |
| Connector | JST 1.25mm |
| LiPo Compatibility | 1S–2S |
| Wire Length | 40mm (including connector) |
| Recommended Frame Size | 65mm–85mm FPV micro quad |
| Output Power | <18.65W |
| Battery Included | No |
| Origin | Mainland China |
What's in the Box
- 1× D0802 Brushless Motor (KV rating of your choice)
Notes
- Colors may vary slightly from product images due to monitor calibration differences.
- Please allow a tolerance of 1mm–1cm due to manual measurement.
- Battery and quadcopter frame are not included.
For general guidance on safe operation of hobby RC aircraft, visit the FAA or review consumer product safety resources at CPSC.gov.
Frequently Asked Questions
Q: What frame sizes is the D0802 brushless motor compatible with?
A: The D0802 is designed for 65mm–85mm FPV micro quadcopter frames, including popular whoop-style builds in that size range.
Q: Which KV rating should I choose — 16000KV, 19000KV, or 25000KV?
A: The 16000KV is best suited for smooth, efficient flying on 2S power; 19000KV offers a balanced all-around performance on 1S–2S; and the 25000KV is ideal for high-speed freestyle flying, particularly on 1S builds where maximum RPM is the priority.
Q: Does this motor come with a propeller or mounting hardware?
A: The package includes one brushless motor only. Propellers, mounting screws, and a battery are not included and must be sourced separately to match your specific frame.
Q: Is the JST 1.25mm connector compatible with standard micro-drone flight controllers?
A: Yes — the JST 1.25mm connector is the industry-standard connector used on most micro and whoop-class flight controllers and ESCs designed for 65–85mm frames, making installation straightforward.
Q: Can this motor be used on a 1S LiPo setup?
A: Absolutely. The D0802 supports 1S–2S LiPo cells. For 1S builds, the 25000KV variant is generally recommended to achieve competitive thrust levels.
