Copper Soldering Lug Patch Sheet – 208 Dot Repair Spots
Copper Soldering Lug Patch Sheet – 208 Dot Repair Spots
Copper Soldering Lug Patch Sheet – 208 Dot Repair Spots
Restore faded or damaged solder pads with precision using this pure copper dot-repair soldering lug patch sheet. Designed for microsoldering professionals and electronics hobbyists alike, this compact 28×28mm sheet packs 208 individual solder spot positions, giving you a versatile, ready-to-use solution for jumper wire spot fixing, IC chip pad restoration, and phone circuit board repair — all in one efficient product. Made in Mainland China.
Key Features

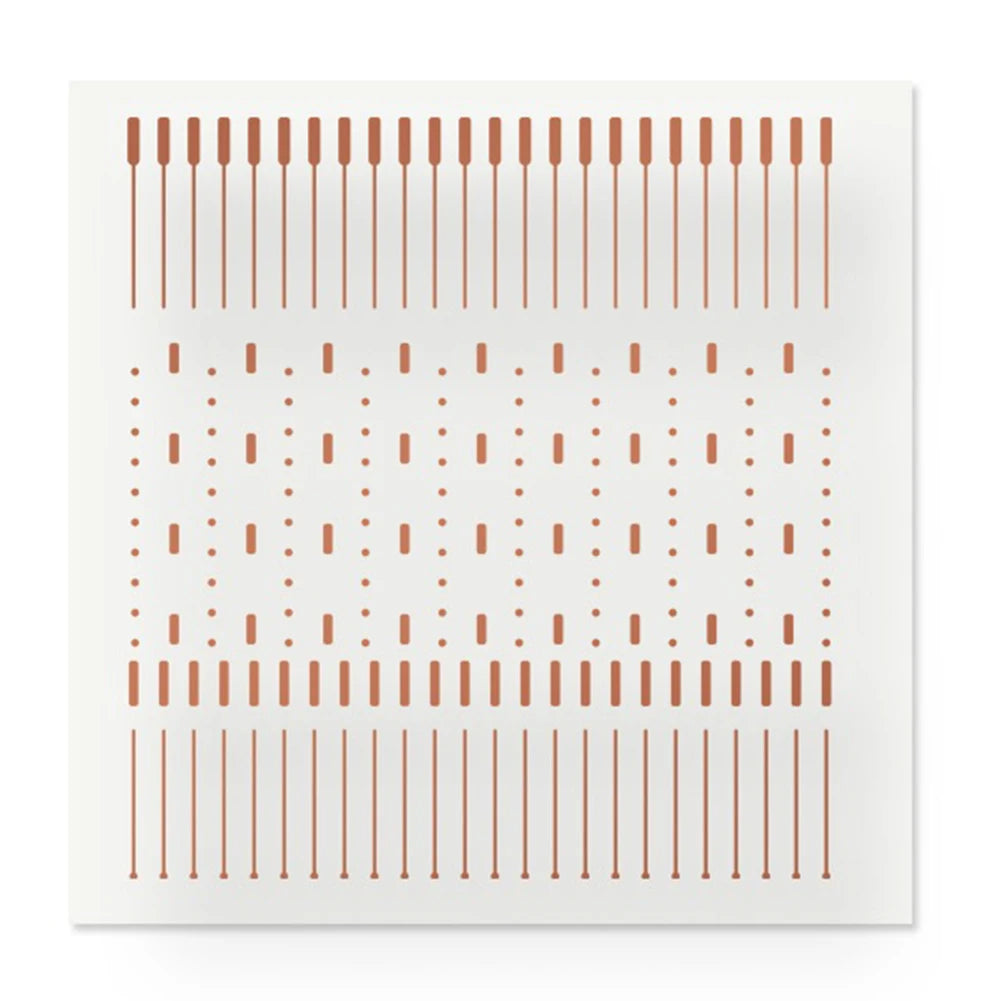

- 208 Repair Positions Per Sheet: A wide array of solder pad spots accommodates components across a broad range of devices — from smartphones to other compact electronics — making this a truly universal microsoldering tool.

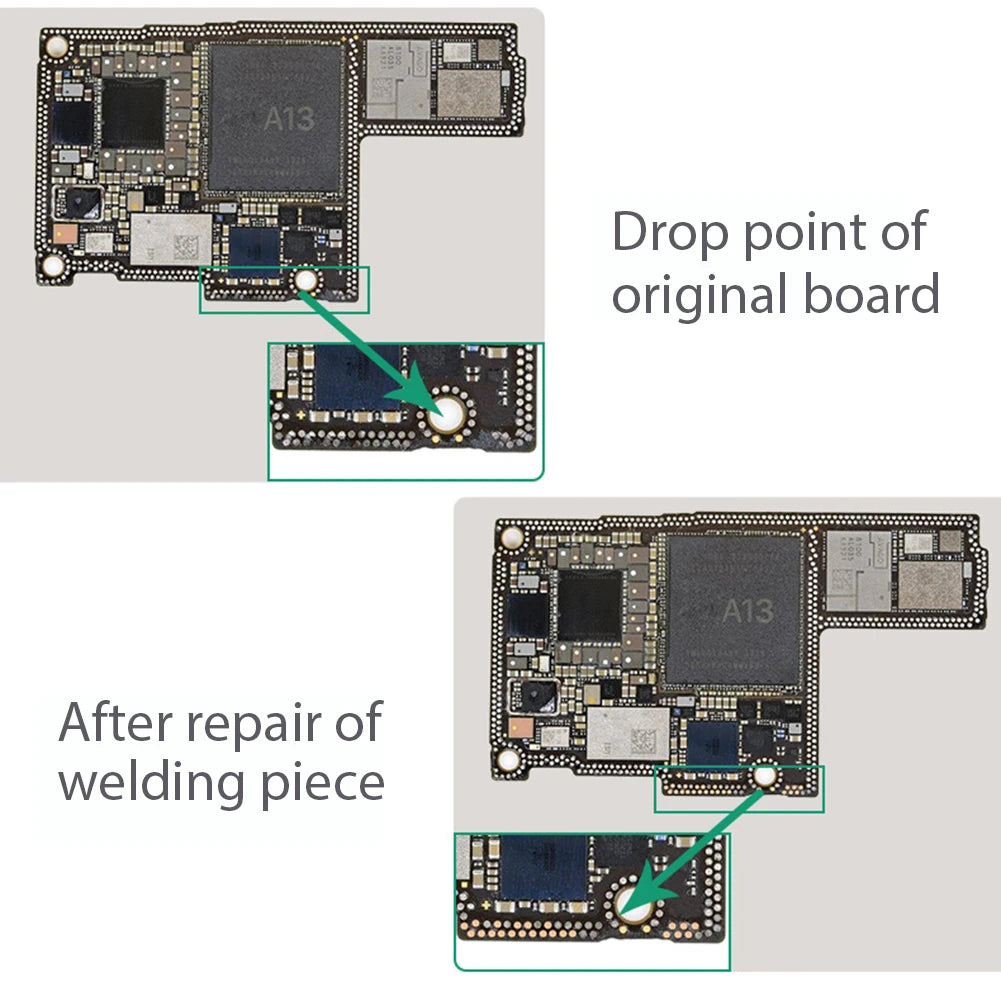

- Eliminates Flying Wire Clutter: The dot-repairing lug patch replicates the original pad layout, replacing messy jumper wires with a clean, professional finish that restores both function and appearance.

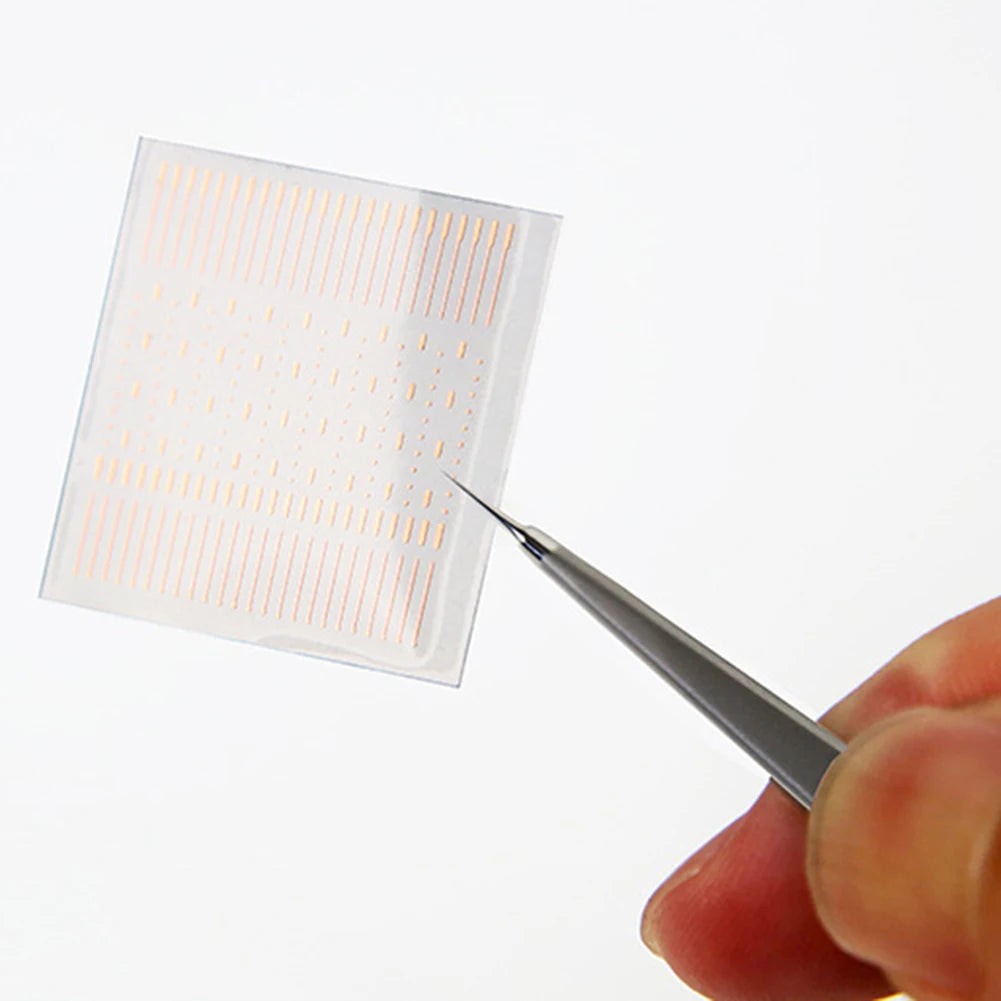

- Peel-and-Use Ready: Each sheet comes with a removable protective layer — simply peel off and apply for an immediate, streamlined repair workflow with no prep delays.
- High-Grade Pure Copper Construction: Manufactured from premium-quality copper for outstanding thermal conductivity and long-lasting durability, ensuring a strong, reliable bond on every solder joint.
- Precision-Calibrated & Lightweight: Net weight of approximately 0.2g per sheet ensures accuracy without adding unnecessary bulk, maintaining the delicate balance required for impeccable soldering results.
Specifications
- Material: Pure Copper
- Solder Positions: 208 pcs/sheet
- Net Weight: ~0.2g
- Product Dimensions: 28×28mm / 1.1×1.1 in
- Model Number: 208 Dot Repair Spots
What's Included

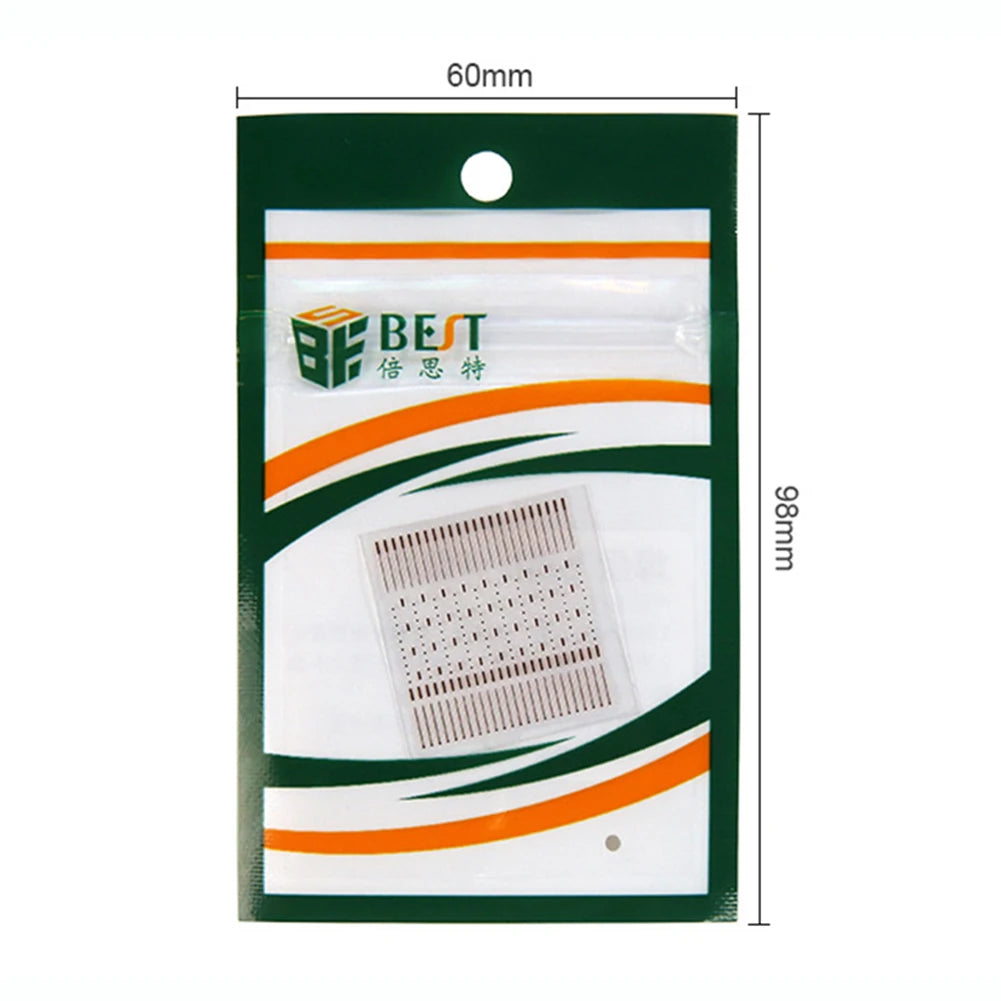

- 1 × Copper Soldering Lug Patch Sheet (208 Dot Repair Spots)
Important Notes
Due to variations in monitor settings and lighting conditions, the actual color of the item may differ slightly from images shown. Please allow a 1–2cm measurement tolerance due to manual measurement.
For guidance on safe soldering practices in electronics work, visit the OSHA Soldering Safety Resource.
Frequently Asked Questions
Q: What devices is the copper dot-repair soldering lug patch sheet compatible with?
A: This copper soldering lug patch sheet is designed as a universal solution compatible with a wide range of electronics including smartphones, tablets, and other compact circuit board devices. The 208 dot repair spot positions accommodate various solder pad sizes and layouts, making it versatile for most microsoldering and jumper wire spot-fixing tasks.
Q: How do I use the soldering lug patch sheet for solder pad repair?
A: Simply peel off the protective backing layer to expose the copper solder pads, align the patch with your target repair area on the circuit board, and solder each required spot into place using a fine-tip soldering iron. The pre-arranged dot layout replicates the original pad grid, allowing for a clean, professional result without the need for flying jumper wires.
Q: Why is pure copper used for these soldering lug patches?
A: Pure copper offers excellent thermal conductivity, which is essential for efficient heat transfer during soldering. It also provides strong electrical conductivity and good mechanical durability, ensuring that repaired solder joints maintain a reliable, long-lasting connection in your electronic devices.
Q: How many repair spots does each sheet contain?
A: Each sheet contains 208 individual solder dot repair positions, all within a compact 28×28mm (approximately 1.1×1.1 in) area, giving you plenty of repair opportunities from a single sheet.
