Touchless Infrared Door Exit Switch for Smart Homes & Access Control
Upgrade your entryway with the Asia-Teco SI86 Aluminum Infrared Sensor Exit Switch — a sleek, no-touch door release button designed for modern smart homes, offices, and access control systems. Simply wave your hand within range and the sensor activates, triggering your door lock release without any physical contact. The aluminum alloy panel gives it a premium, professional appearance while the ABS frame keeps it durable and lightweight.
Key Features
- Contactless Operation: Wave-to-activate infrared sensing — no need to touch the button, ideal for hygienic, hands-free environments.
- Adjustable Sensing Distance: Detection range of 5–25 cm, easily adjustable to suit your installation needs.

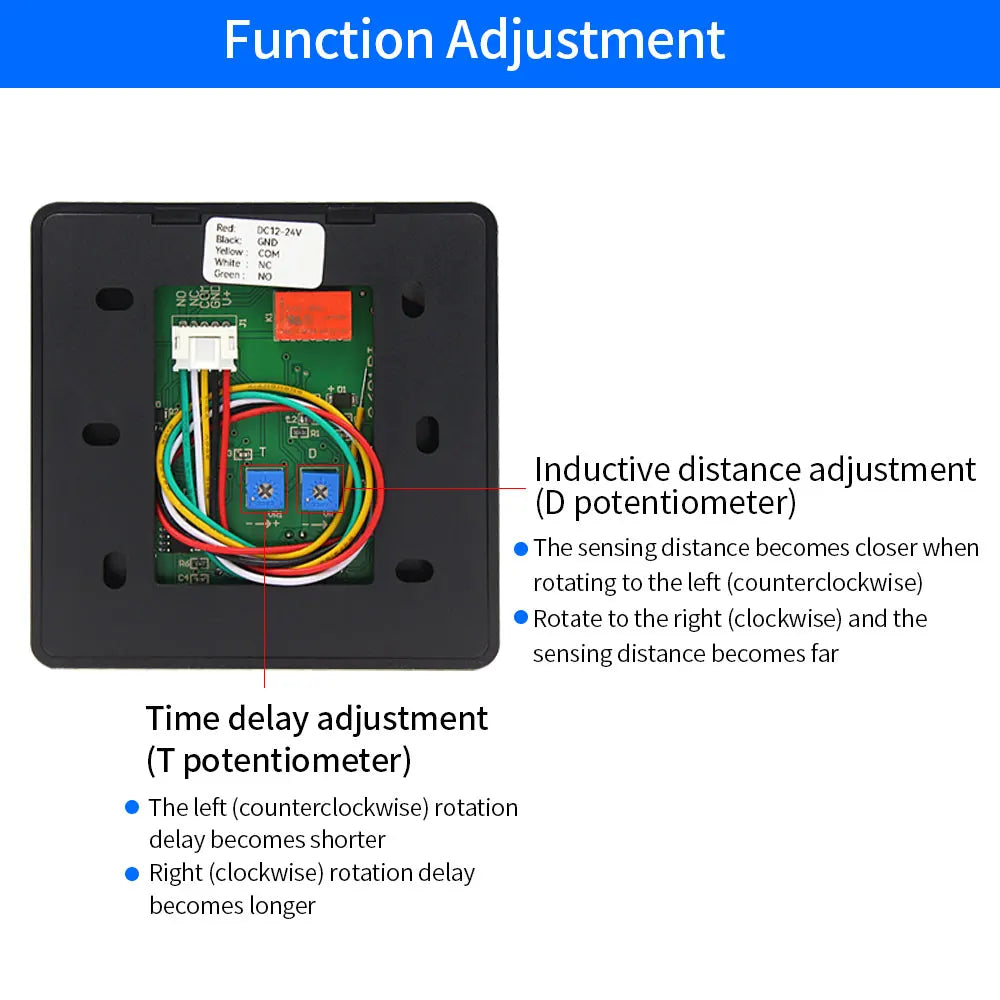

- Flexible Time Delay: Built-in time delay adjustable from 0 to 30 seconds, giving you full control over how long the door remains released.
- Dual Voltage Support: Compatible with DC 12V or DC 24V power supplies for versatile installation.
- NO/NC/COM Output: Supports Normally Open, Normally Closed, and Common output contacts — compatible with a wide range of access control and electric lock systems.
- LED Status Indicators: Blue LED for standby, Green LED when triggered — easy visual confirmation at a glance.

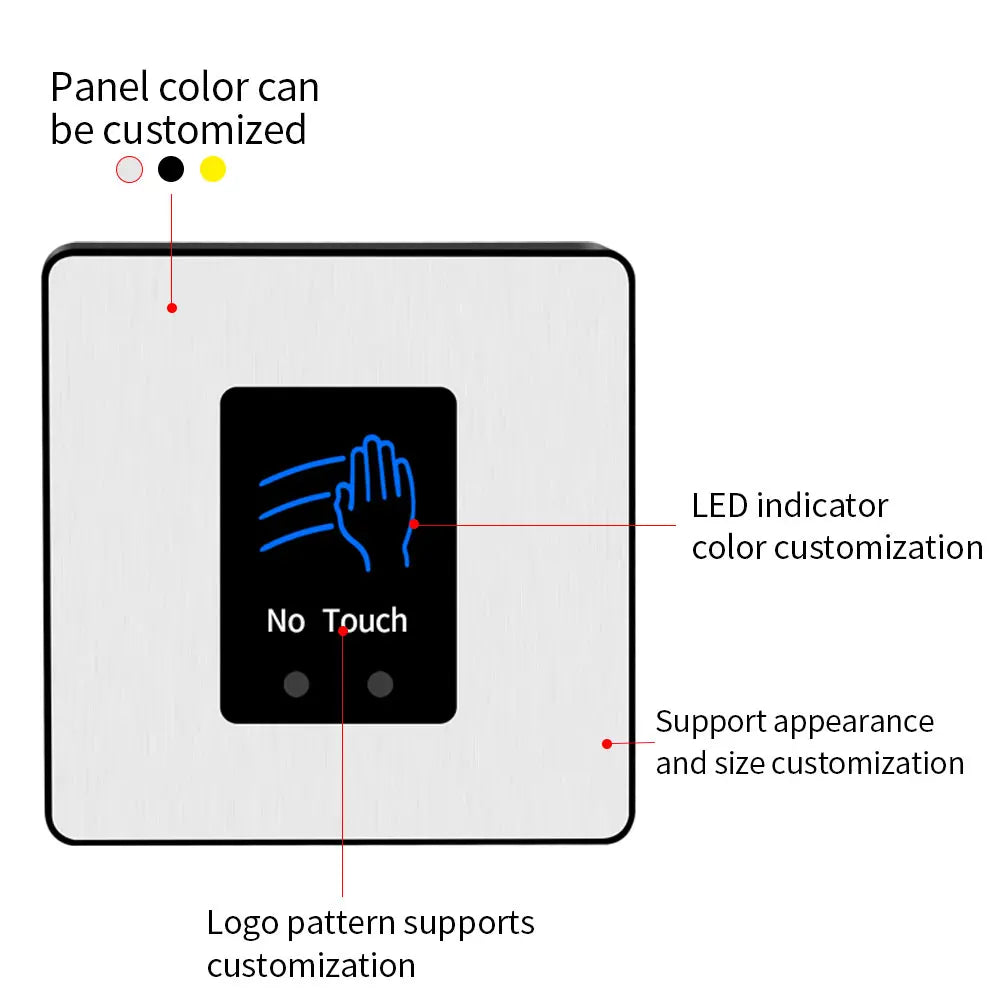

- Premium Build: Aluminum alloy panel combined with an ABS frame offers a modern look with lasting durability.
- Optional Waterproofing: Available in an IP67 waterproof version — contact us if you need the weatherproof variant for outdoor or wet-area installations.
Specifications
| Model | SI86 |
| Material | Aluminum Alloy Panel + ABS Frame |
| Power Supply | DC 12V or DC 24V |
| Output Contact | NO / NC / COM |
| Control Distance | 5–25 cm (adjustable) |
| Time Delay | 0–30 seconds (adjustable) |
| LED Indicator | Standby: Blue | Active: Green |
| Waterproof Option | IP67 (available on request) |
| High-Concern Chemicals | None |
| Country of Origin | Made in China (Mainland) |
Perfect For
- Smart home door access systems
- Office and commercial entryway control
- Electric door locks and magnetic locks
- Hygienic, hands-free environments (kitchens, clinics, labs)
- Security gates and automated doors
Learn More About Smart Home Access Control
For guidance on home security and access control best practices, visit the U.S. Department of Energy – Smart Home Systems resource page.
Frequently Asked Questions
Q: What voltage does the infrared sensor exit switch support?
A: The Asia-Teco SI86 contactless door exit switch supports both DC 12V and DC 24V power supplies, making it compatible with most standard access control systems and electric locks.
Q: How far does the infrared sensor detect motion?
A: The detection range is 5 to 25 centimeters and is fully adjustable, so you can fine-tune sensitivity based on your specific installation location and usage requirements.
Q: Can this switch be used outdoors?
A: The standard version is designed for indoor use. However, an optional IP67 waterproof version is available for outdoor or damp-area installations — simply contact us to request the waterproof variant.
Q: Is the time delay adjustable on this infrared door release switch?
A: Yes! The built-in time delay is fully adjustable from 0 to 30 seconds, allowing you to control exactly how long the door lock remains released after the sensor is triggered.
Q: What output contact types does the SI86 support?
A: The switch supports Normally Open (NO), Normally Closed (NC), and Common (COM) output contacts, ensuring compatibility with virtually all standard electric lock and access control systems.
