12V/24V Contactless Infrared Exit Button with LED Indicator
12V/24V Contactless Infrared Exit Button with LED Indicator
No-Touch Infrared Exit Button — Hygienic, Reliable Access Control
Upgrade your door access system with this 12V/24V Contactless Infrared Sensor Exit Button from Ximiir. Simply wave your hand within range and the sensor triggers instantly — no physical contact required. Featuring a sleek stainless steel panel, dual-color LED feedback, and fully adjustable sensing distance and delay time, this switch is ideal for offices, hospitals, care facilities, laboratories, clean rooms, and any environment where hands-free operation matters.
Made in Mainland China.
Key Features
- No-Touch Operation: Infrared sensing triggers door release without any physical contact — cleaner and more hygienic than traditional push buttons
- Adjustable Sensing Distance: 5–25 cm range, easily tunable to suit your installation environment
- Adjustable Delay Time: 0–30 seconds, giving you full control over door latch timing
- Dual Voltage Compatible: Works with both DC 12V and DC 24V systems for maximum flexibility
- LED Status Indication: Blue LED on standby, Green LED on activation — clear visual confirmation at a glance
- Universal Output: NO / NC / COM contact output supports a wide range of access control hardware
- Heavy-Duty Contact Rating: 3A @ 36VDC Max for dependable, long-lasting performance
- Durable Stainless Steel Panel: Corrosion-resistant and built to last — tested to 500,000 operation cycles
- Wide Operating Range: Functions in temperatures from -20°C to +55°C (-4°F to 131°F) and humidity from 0–95% RH
- Custom Panel Patterns Available: Button labeling can be customized to your requirements
Specifications
| Working Voltage | DC 12V / 24V |
| Contact Rating | 3A @ 36VDC Max |
| Output Contact | NO / NC / COM |
| Sensing Distance | 5–25 cm (adjustable) |
| Delay Time | 0–30 seconds (adjustable) |
| LED Indicator | Blue (standby) / Green (activated) |
| Panel Material | Stainless Steel |

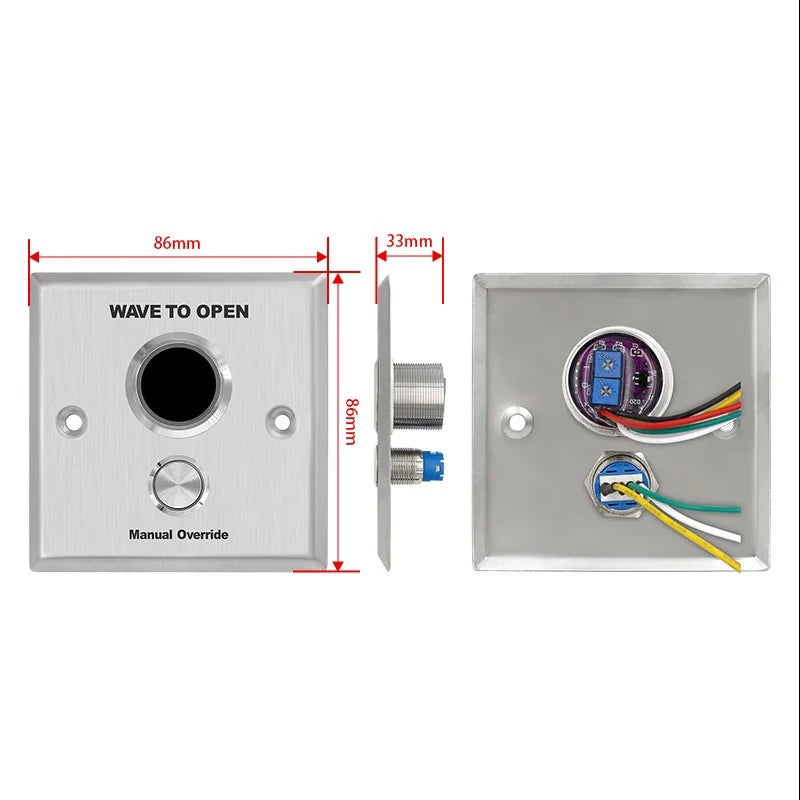

| Panel Sizes | 115×40 mm (V40) / 115×70 mm (V70) / 86×86 mm (V86) |
| Operating Temperature | -20°C to +55°C (-4°F to 131°F) |
| Operating Humidity | 0–95% Relative Humidity |
| Durability | 500,000 cycle test qualified |
| Model Numbers | V40 / V70 / V86 |
| Country of Origin | Mainland China |
Where to Use It
- Office buildings and corporate lobbies
- Hospitals, clinics, and medical facilities
- Clean rooms and laboratories
- Retail stores and restaurants
- Schools and educational institutions
- Warehouses and industrial facilities
For general guidance on electrical safety and installation standards, visit OSHA's Electrical Safety resource page.
Frequently Asked Questions
Q: What voltage does this contactless infrared exit button support?
A: This exit button is dual-voltage compatible, supporting both DC 12V and DC 24V systems, making it easy to integrate with most standard access control power supplies.
Q: How far away does my hand need to be to trigger the sensor?
A: The sensing distance is adjustable from 5 cm to 25 cm, so you can fine-tune it based on your mounting location and how you want users to interact with the switch.
Q: Can I customize the delay time before the door releases?
A: Yes — the delay time is fully adjustable from 0 to 30 seconds, giving you precise control over the timing of the door release signal to match your access control setup.
Q: What output contact types does this switch provide?
A: The switch offers NO (Normally Open), NC (Normally Closed), and COM (Common) outputs, providing broad compatibility with virtually all access control systems and electric locks.
Q: Is the panel customizable with different button markings or labels?
A: Yes — the button pattern and labeling can be customized according to your requirements. Please contact us with your specifications before ordering if you need a custom design.
