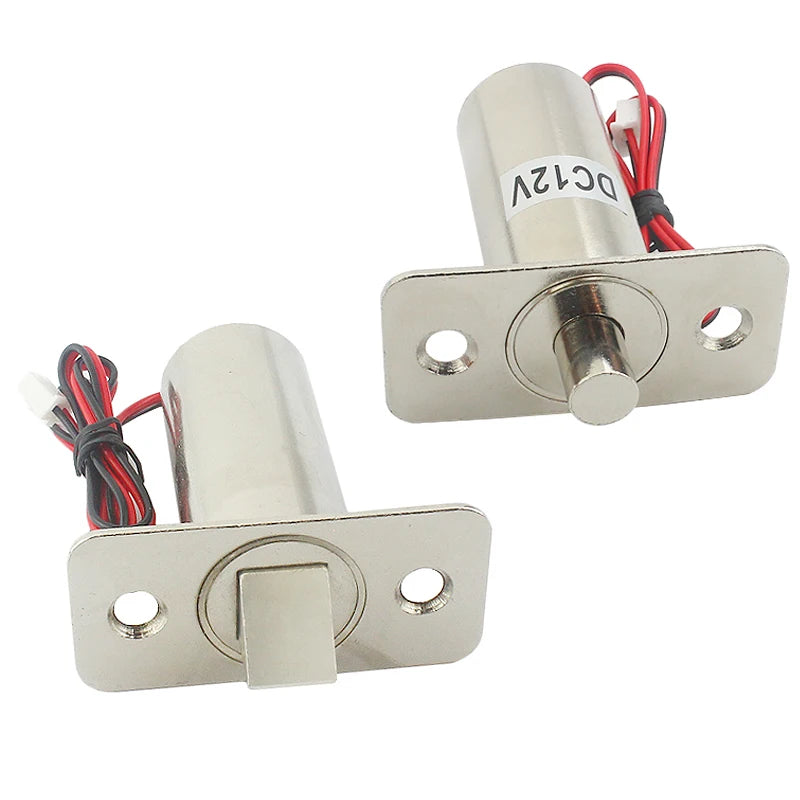

Compact Concealed Electric Bolt Lock — Model LY-03T
Upgrade your access control setup with this small, embedded electric bolt lock. Designed for discreet installation, this concealed electromagnetic lock integrates seamlessly into doors, cabinets, and security enclosures. Compatible with DC 12V and DC 24V systems, it's a versatile choice for residential, commercial, and light industrial access control applications.
Key Features
- Dual Voltage Support: Operates on DC 12V or DC 24V for flexible system integration.

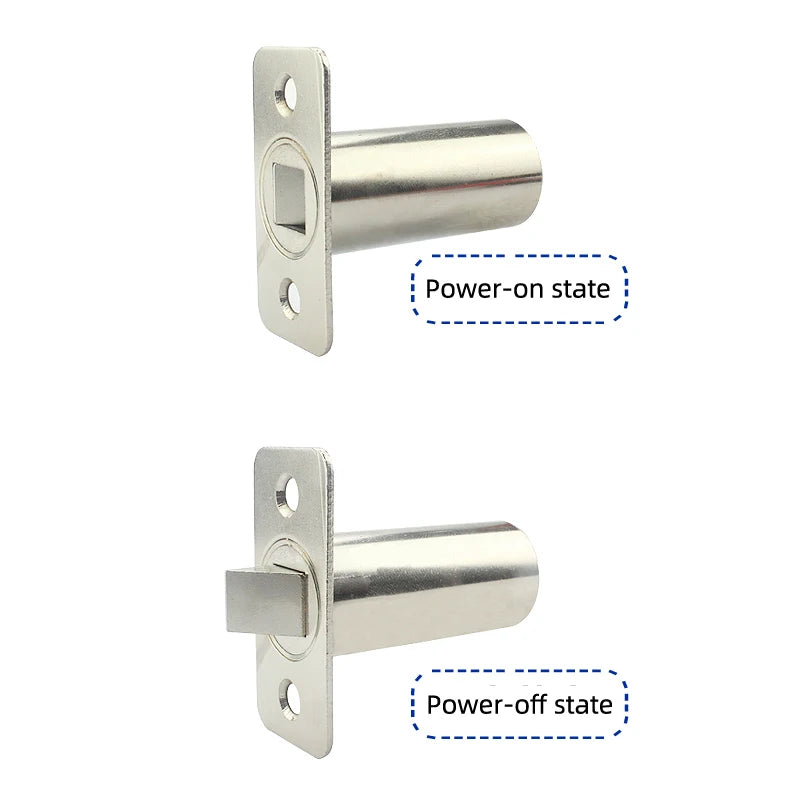

- Fail-Secure Design: Power-on unlocks, power-off locks — ensuring the door remains secured in the event of a power interruption.
- Compact & Concealed: Small 54×58×28 mm form factor allows for clean, hidden installation.

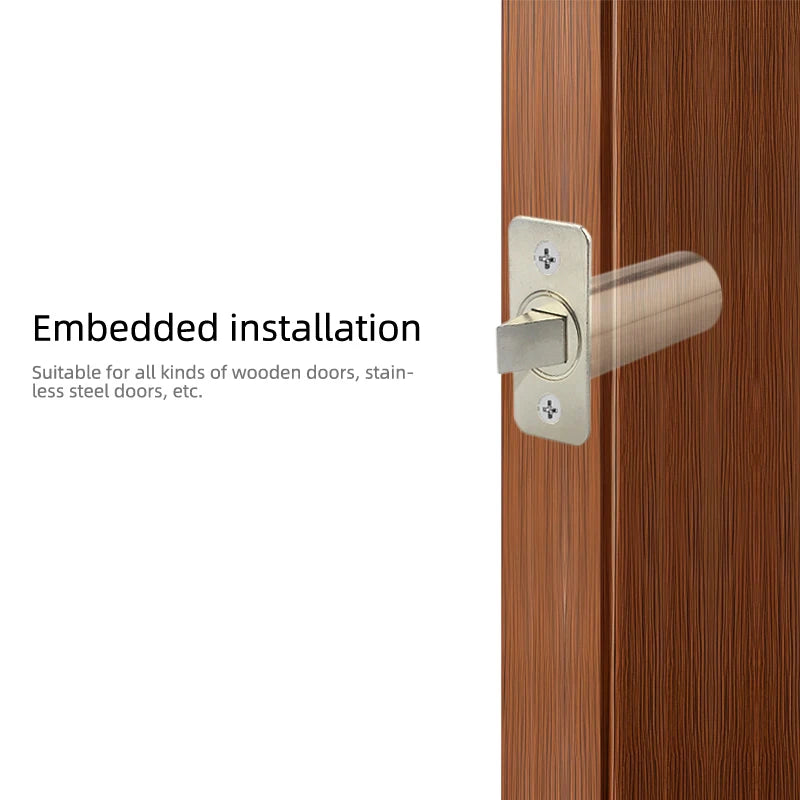

- Drilling Installation: Secure, permanent mounting via standard drilling — no surface-mount hardware required.
- Fast Response: Power-on time of ≤5 seconds for quick, reliable access control.
- Lightweight Build: Weighs only 140g, making it easy to handle and install.
- Low Suction Force: ≤1.5N draw force ensures smooth, gentle engagement without slamming.
Technical Specifications
| Model | LY-03T / LT-01 | Operating Voltage | DC 12V / DC 24V |
| Working Current | 1.8A (12V) / 1.5A (24V) | Working Mode | Power-on Unlock / Power-off Lock |
| Power-on Time | ≤5 seconds | Suction Force | ≤1.5N |
| Dimensions | 54 × 58 × 28 mm | Weight | 140g |
| Installation | Drilling installation (concealed/embedded) | ||
Important Usage Notes
This electric bolt lock is designed for instantaneous power-on use only. Keep the powered-on duration within 5 seconds. Do not operate continuously for extended periods or cycle it open/closed at high frequency, as this may cause damage to the lock mechanism.
Made in Mainland China.
For general guidance on electronic access control systems and installation safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltages does this electric bolt lock support?
A: This concealed electric bolt lock supports both DC 12V and DC 24V, making it compatible with a wide range of access control power supplies and systems.
Q: Is this lock fail-safe or fail-secure?
A: This lock operates in fail-secure mode — it locks when power is off and unlocks when power is applied. This means the door remains secured during a power outage, which is ideal for security-sensitive applications.
Q: What type of installation does this electric bolt lock require?
A: The LY-03T uses a drilling (concealed/embedded) installation method. It is designed to be hidden within the door or frame for a clean, discreet look. Standard drilling tools are required for mounting.
Q: Can I use this lock continuously or at high frequency?
A: No. This electromagnetic bolt lock is intended for instantaneous use only, with a maximum recommended power-on duration of 5 seconds per cycle. Continuous or high-frequency operation may cause damage to the lock and will void functionality.
