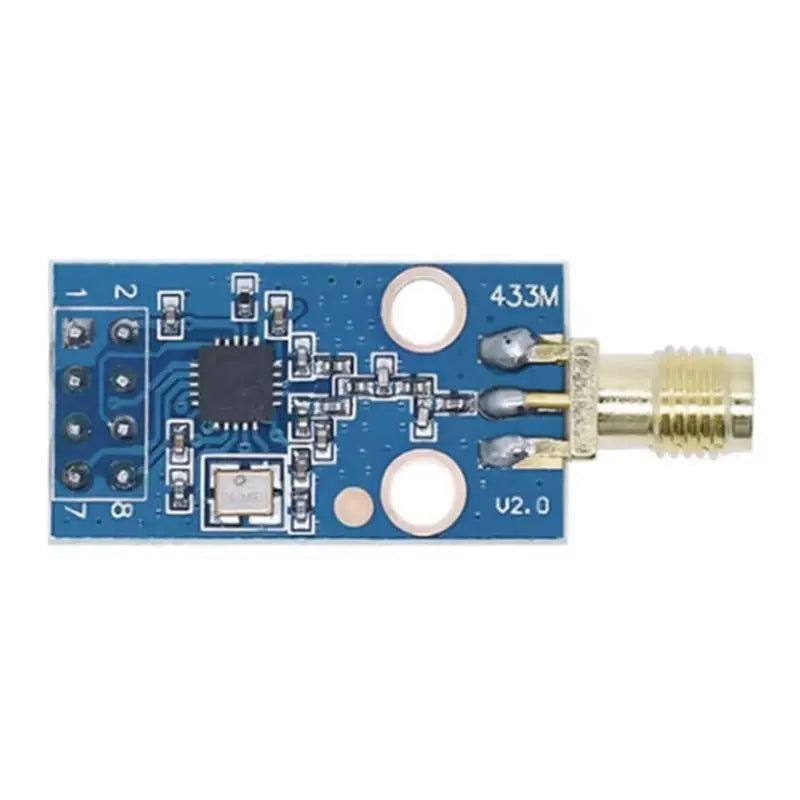

CC1101 433MHz Wireless Transceiver Module – Extended Range with SMA Interface
Upgrade your electronics projects with the industrial-grade CC1101 Wireless Transceiver Module (Model: E07-M1101D-SMA). Operating at 433MHz, this robust radio frequency (RF) transceiver delivers an impressive communication range of up to 400 meters, making it a top-tier choice for Arduino enthusiasts, IoT developers, and professional engineers who demand reliable long-distance wireless connectivity.
Made in Mainland China.
Key Features
- 433MHz RF Frequency: Reliable sub-GHz communication ideal for a wide range of wireless applications.
- Up to 400m Communication Range: Outperforms standard green-board modules for superior long-range performance.
- Standard SMA Antenna Interface: Includes a dedicated antenna — ready to use right out of the box.
- Low-Power Design: Working voltage of 1.9–3.6VDC makes it fully compatible with battery-powered systems and low-power development.
- Maximum Output Power: 10mW for efficient and stable signal transmission.
- All Industrial-Grade Components: Built for durability and consistent performance across diverse environments.
- PCB Construction: Black PCB board for neat integration into your project enclosure.
- Flexible Quantities: Available as a 1-set or 2-set pack to suit your project needs.
Technical Specifications
| Specification | Detail |
|---|---|

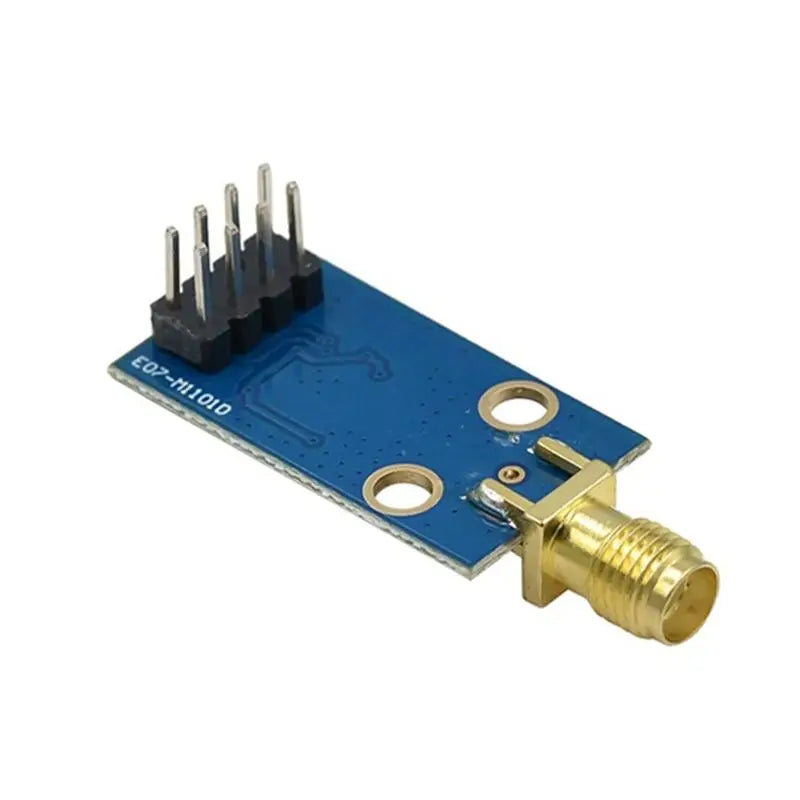

| Model | E07-M1101D-SMA |
| Operating Frequency | 433MHz |
| Communication Range | Up to 400 meters |
| Maximum Power | 10mW |
| Working Voltage | 1.9–3.6VDC |
| Antenna Interface | Standard SMA |
| Material | PCB |
| Color | Black |
Package Contents

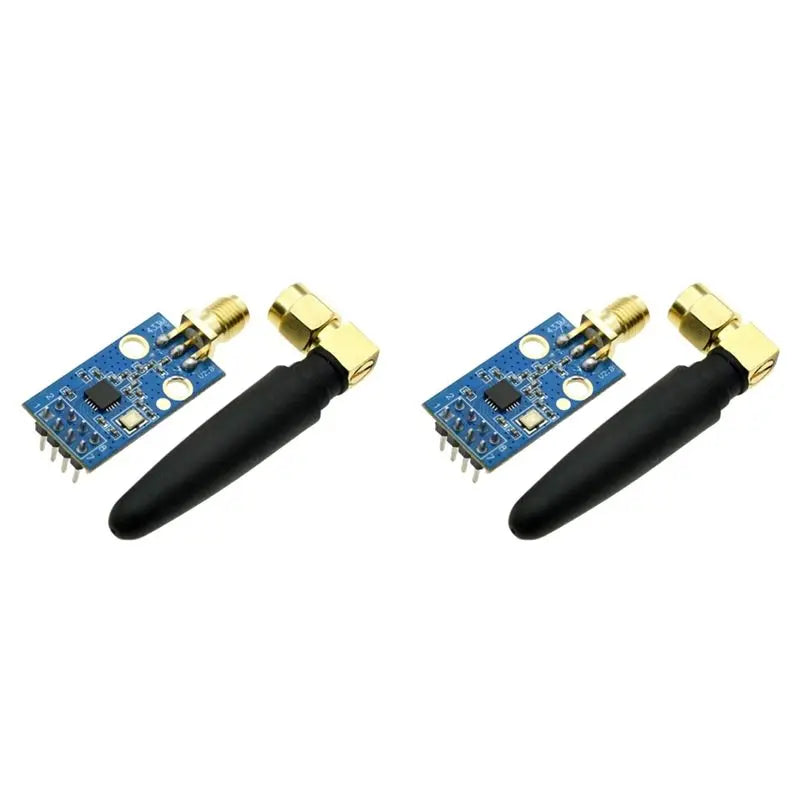

2-Set Pack includes:
- 2 × CC1101 Wireless Transceiver Module
- 2 × SMA Antenna
1-Set Pack includes:
- 1 × CC1101 Wireless Transceiver Module
- 1 × SMA Antenna
Note: Only the items listed above are included. Due to different production batches, minor differences in appearance or printed text may occur — this does not affect functionality. Color may vary slightly from photos due to screen display differences. Measurement tolerance: ±1–3cm.
Learn More About RF Communication Standards
For further technical background on radio frequency devices and electronic emissions standards, visit the FCC or refer to resources at NIST.gov for measurement and electronics standards.
Frequently Asked Questions
Q: Is the CC1101 433MHz wireless transceiver module compatible with Arduino?
A: Yes! The CC1101 wireless transceiver module is widely used in Arduino and other microcontroller-based projects. It communicates via SPI interface and is supported by several open-source libraries, making integration into your Arduino project straightforward.
Q: What is the maximum communication range of the CC1101 SMA module?
A: This industrial-grade CC1101 module (model E07-M1101D-SMA) supports a communication distance of up to 400 meters in open-air conditions. Actual range may vary depending on obstacles, interference, and environmental conditions.
Q: What voltage does the CC1101 wireless module require?
A: The module operates on a working voltage of 1.9–3.6VDC, making it ideal for battery-powered and low-power applications. It draws minimal current, which is excellent for projects that require long battery life.
Q: Does this module come with an antenna?
A: Yes! Each CC1101 module comes with a matching SMA antenna included in the package. You do not need to purchase an antenna separately — it's ready to use upon arrival.
