Install Cabinet Hinges Perfectly Every Time

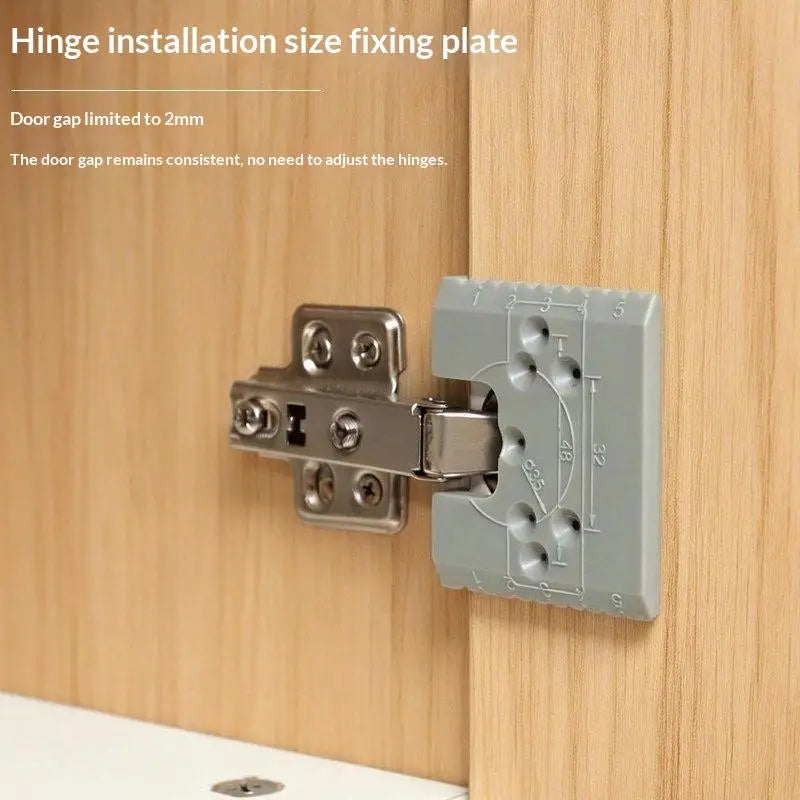

Stop second-guessing hinge placement on every door. This Cabinet Door Hinge Quick Positioning Jig is a must-have for woodworkers, cabinet makers, and dedicated DIYers who want consistently accurate results in a fraction of the time. With its built-in magnetic backing and precision 90° right-angle design, this compact tool locks into place and guides your screws to exactly the right spot — every single time.
Made in Mainland China.
Key Features
- Magnetic Backing: Snaps securely onto metal door frames and hinges for hands-free, slip-free alignment while you work.
- 90° Right-Angle Precision: Engineered to guarantee perfect perpendicular hinge placement, eliminating costly misalignment on cabinet doors and furniture panels.
- Durable ABS Construction: Made from tough, impact-resistant ABS plastic that stands up to the daily demands of active woodworking sessions.
- Speeds Up Installation: No more measuring and re-measuring — position, mark, and drill in seconds with confidence.
- Wide Application: Ideal for cabinet hinge installation, furniture assembly, shelving units, and all kinds of DIY home projects.
Specifications
| Material | ABS Plastic |

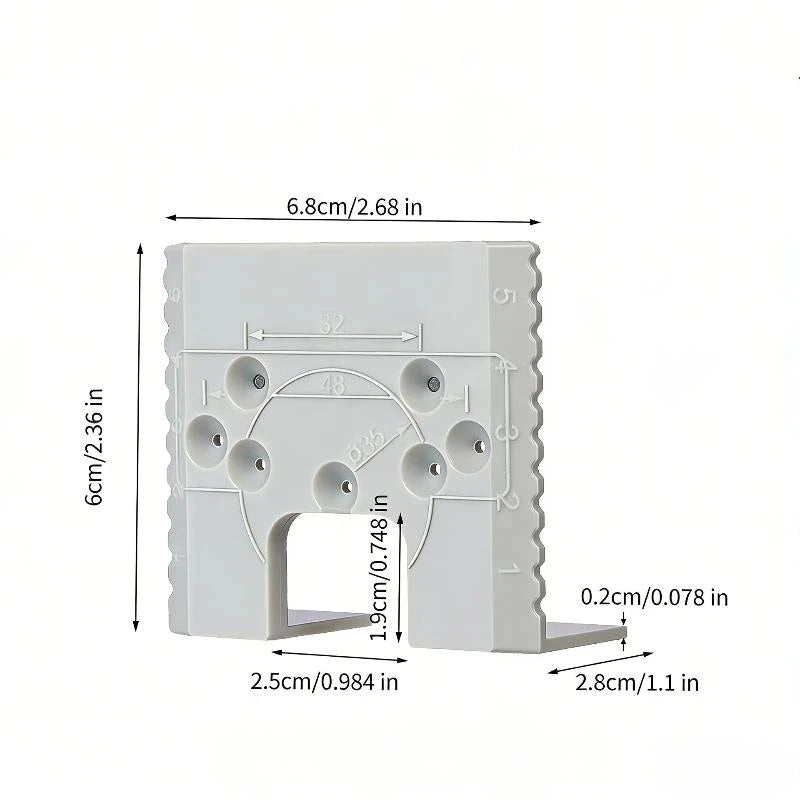

| Dimensions | Approx. 6.8 × 6 × 2.8 cm / 2.68 × 2.36 × 1.1 inches |
| Key Features | 90° right angle, magnetic backing |
| Applications | Cabinet hinge installation, furniture assembly, DIY projects |
| Package Includes | 1 × Door Hinge Positioning Jig |
Why You'll Love It
Whether you're a seasoned woodworker upgrading a kitchen or a weekend DIYer tackling a home improvement project, this hinge jig removes the guesswork and frustration from cabinet door installation. Its palm-sized form factor means it fits easily in a tool belt or workshop drawer, always ready when you need it.
For additional guidance on woodworking safety and best practices in the workshop, visit the OSHA Woodworking Safety resource.
Frequently Asked Questions
Q: What types of hinges is this cabinet hinge jig compatible with?
A: This hinge positioning jig is designed for standard cabinet door hinges used in most residential and furniture applications. The magnetic backing works best with metal hinges, and the 90° alignment guide suits the vast majority of face-frame and frameless cabinet installations.
Q: Do I need any additional tools to use this hinge jig?
A: The jig itself is the positioning and alignment aid — you will still need a drill or screwdriver and the appropriate screws to complete installation. The jig simply ensures your hinge is perfectly placed before you drive any fasteners, saving you time and preventing crooked doors.
Q: Is this hinge installation tool suitable for beginner DIYers?
A: Absolutely! This tool was designed with ease of use in mind. Beginners especially benefit from the magnetic snap-in positioning and the clear 90° guide, which takes the measurement guesswork out of cabinet hinge installation entirely.
Q: How durable is the ABS plastic construction?
A: ABS (Acrylonitrile Butadiene Styrene) is a high-impact engineering plastic widely used in tools and hardware accessories. It resists cracking and deformation under normal woodworking conditions, giving you reliable performance across many projects.
