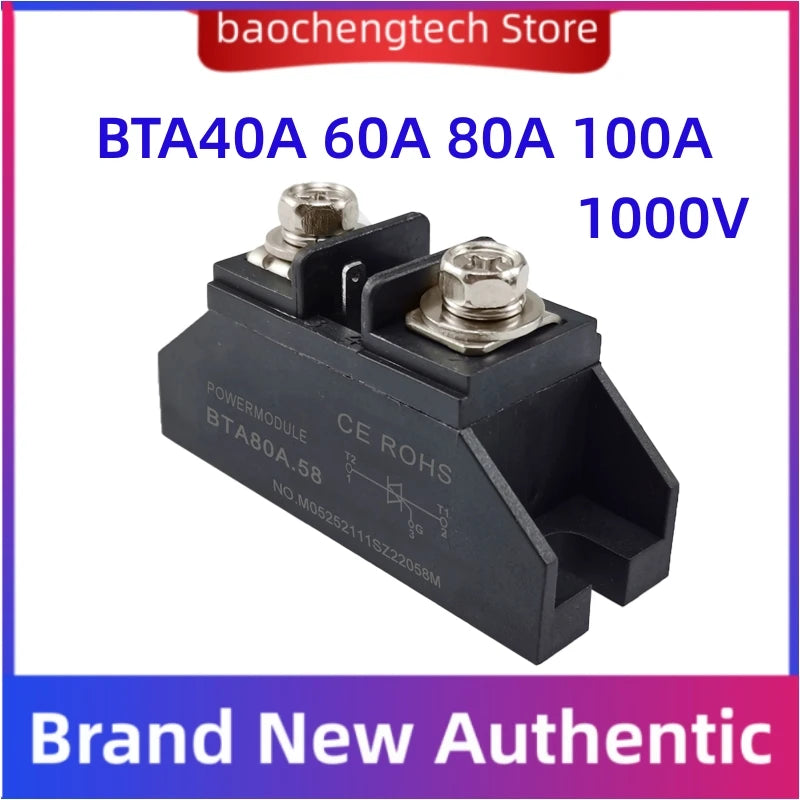

BTA High-Power Bidirectional Thyristor Module | 40A / 60A / 80A / 100A — 1000V

Upgrade your industrial and DIY power-control applications with this compact, high-performance bidirectional thyristor (TRIAC) module. Available in 40A, 60A, 80A, and 100A ratings at 1000V, this module is purpose-built for demanding applications such as spot welding machines, AC motor drives, power regulators, and industrial heating controls. Its small form factor and robust construction make it an excellent choice wherever efficient, reliable AC switching is required.

Key Features

• Current Options: 40A, 60A, 80A, or 100A on-state average current ratings
• Voltage Rating: 1000V maximum forward/reverse blocking voltage
• Bidirectional Operation: Conducts in both directions — ideal for AC load switching and phase control
• Compact Module Design: High power density in a small package for space-constrained builds
• Customizable: Available in various configurations to suit specific circuit requirements
• Brand New Condition: Factory-fresh components with no high-concern chemicals
• Made in Mainland China

Specifications

⚠️ Important Selection & Usage Guidelines

1. Choosing the Correct Current Rating

The marked current on this power module represents the average on-state value, not the continuous RMS operating value. Always leave adequate margin based on your actual working environment:

• Resistive loads: Apply a 2× to 2.5× margin — Actual Current (A) × 2 to 2.5 = Module Nominal Current (A)
• Inductive loads: Apply a 6× to 7× margin — Actual Current (A) × 6 to 7 = Module Nominal Current (A)

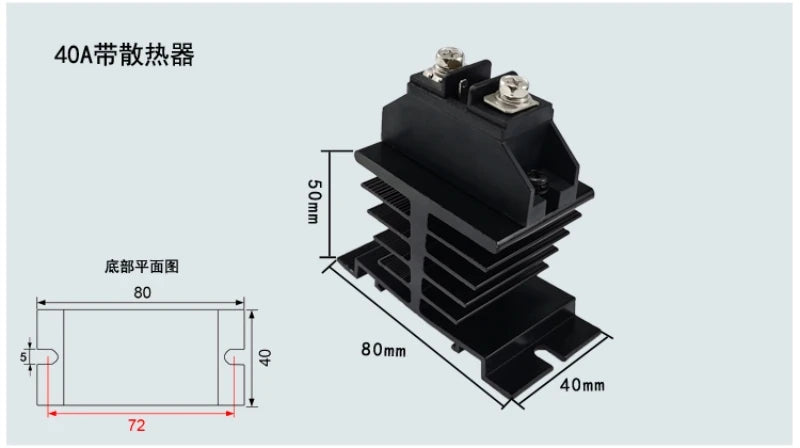

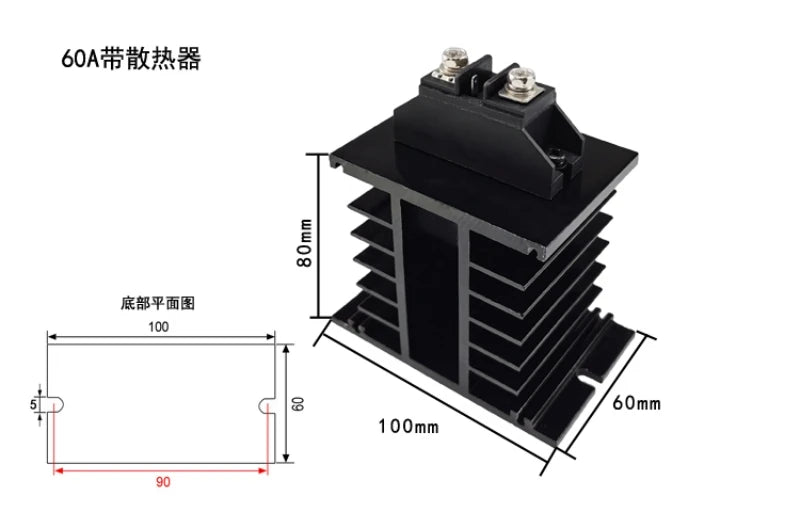

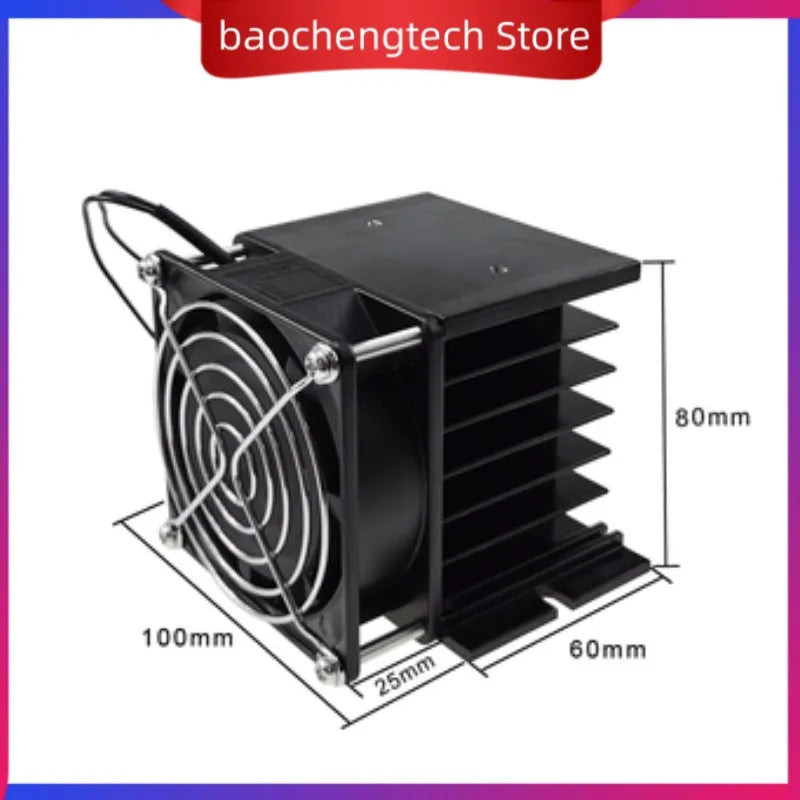

2. Heat Sink Requirement

When your actual working current exceeds 5A, a properly sized heat sink must be installed. Operating the module without adequate thermal management at higher currents may cause premature failure or damage to surrounding components.

Common Applications

• Spot welding machines
• AC motor speed control
• Industrial heating and temperature regulation
• Power dimming and phase control circuits
• Soft-start circuits for motors and transformers

For safe handling of electronic components and best practices in power electronics, refer to guidance from the U.S. Occupational Safety and Health Administration (OSHA) — Electrical Safety.

Frequently Asked Questions

Q: What is the difference between a bidirectional thyristor module and a standard SCR module?

A: A bidirectional thyristor (TRIAC) module can conduct current in both directions, making it ideal for controlling AC loads. A standard SCR (Silicon Controlled Rectifier) only conducts in one direction and is typically used in DC or half-wave AC applications. This BTA module is the preferred choice for full AC switching, motor control, and spot welding machines.

Q: Do I need a heat sink with this thyristor module?

A: Yes — if your operating current exceeds 5A, a suitable heat sink is required. Without proper thermal dissipation, the module may overheat and fail. The heat sink should be selected based on the module's actual power dissipation and the ambient temperature of your installation environment.

Q: How do I select the right current rating (40A, 60A, 80A, or 100A) for my application?

A: The rated current is the average on-state value, not the continuous RMS load current. For resistive loads, multiply your actual load current by 2 to 2.5 to determine the correct module rating. For inductive loads (motors, transformers, coils), multiply by 6 to 7 to ensure reliable, long-term operation.

Q: Is this module suitable for spot welding machines?

A: Yes. This high-power bidirectional thyristor module is specifically suited for spot welding machine applications due to its high current capacity, robust 1000V blocking voltage, and bidirectional AC switching capability. Ensure you select the appropriate current rating with proper margin for your specific welder's load characteristics.
