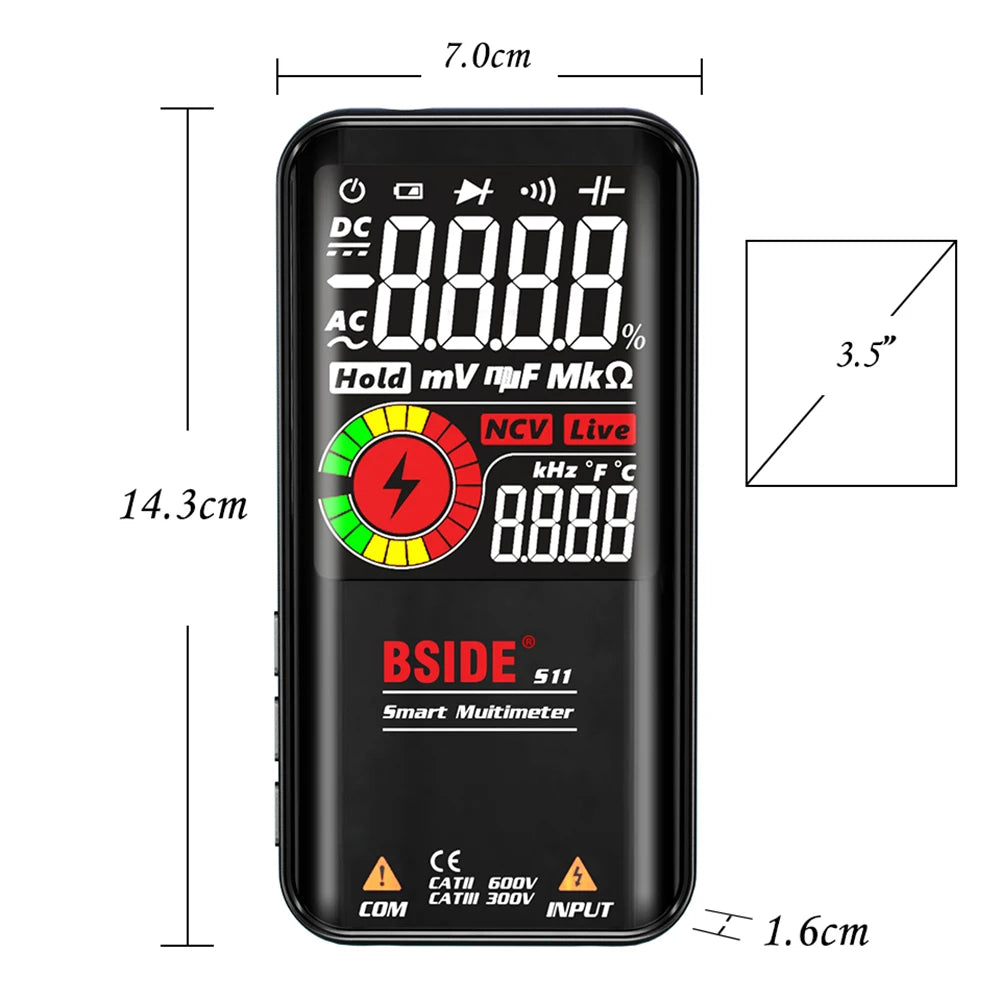

BSIDE S10/S11 Smart Digital Multimeter — 9999 Counts, 3.5" LCD Display
Meet the BSIDE S10/S11 Digital Multimeter — a next-generation, portable testing instrument built for electricians, hobbyists, engineers, and DIY enthusiasts alike. With its large 3.5-inch backlit LCD screen, intuitive one-button operation, and ultra-slim profile, this multimeter delivers professional-grade measurements in an ergonomic, carry-anywhere package. Available in Black (Rechargeable) and Red versions.
Why Choose the BSIDE S10/S11 Multimeter?
- 9999 Count High-Resolution Display — Captures precise readings with minimal rounding error across all measurement modes.
- Large 3.5" Backlit LCD — Easy-to-read in low-light environments thanks to the flash backlight feature.
- Non-Contact Voltage (NCV) Detection — Safely detect live AC voltage without direct probe contact; audible buzzer alert triggers instantly.
- AC & DC Voltage Measurement — DC: 0.8V–620V ±(0.5%+3); AC: 2.2V–620V ±(0.5%+5); Resolution: 0.001V.
- Resistance, Capacitance & Frequency — Wide measurement ranges covering 1Ω–60MΩ resistance, 1nF–99.99mF capacitance, and 1Hz–60KHz frequency.
- Diode & Continuity Testing — Auto-identifies diodes under 3.0V; buzzer sounds for continuity when resistance falls below 30Ω.
- Duty Cycle Measurement — 0.1%–99.9% ±(3.0%+5) for signal analysis and motor testing.
- One-Button Smart Switching — Effortlessly cycle through measurement modes with a single button press.
- Ultra-Thin, Portable Design — Slim body slips easily into a tool bag, pocket, or kit; perfect for field and bench use.
- Multiple Power Options — S10: 2×AAA 1.5V batteries (not included); S11: Built-in rechargeable 800mAh Li-ion with USB charging cable included.
Full Technical Specifications
| Display | 9999 Counts, 3.5-inch LCD with Backlight |
| DC Voltage | 0.8V–620V ±(0.5%+3); Resolution: 0.001V |
| AC Voltage | 2.2V–620V ±(0.5%+5); Resolution: 0.001V |
| Resistance | 1Ω–999.9Ω ±(2.0%+5); 1kΩ–60MΩ ±(1.0%+3); Res: 0.1Ω |
| Capacitance | 1nF–999.9nF ±(6.0%+5); 1µF–99.99mF ±(3.0%+3); Res: 0.001nF |
| Frequency | 1Hz–1000Hz ±(1.0%+5); 1KHz–60KHz ±(1.0%+5); Res: 0.001Hz |
| Duty Cycle | 0.1%–99.9% ±(3.0%+5); Resolution: 0.1% |
| NCV Detection | Buzzer + LCD bar display alarm |
| Continuity | Buzzer sounds when resistance < 30Ω |
| Operating Temperature | 0°C – 40°C |
| Operating Mode | Manual Range |
| Power (S10) | 2 × AAA 1.5V batteries (not included) |
| Power (S11) | Built-in 800mAh Li-ion rechargeable battery + USB cable |

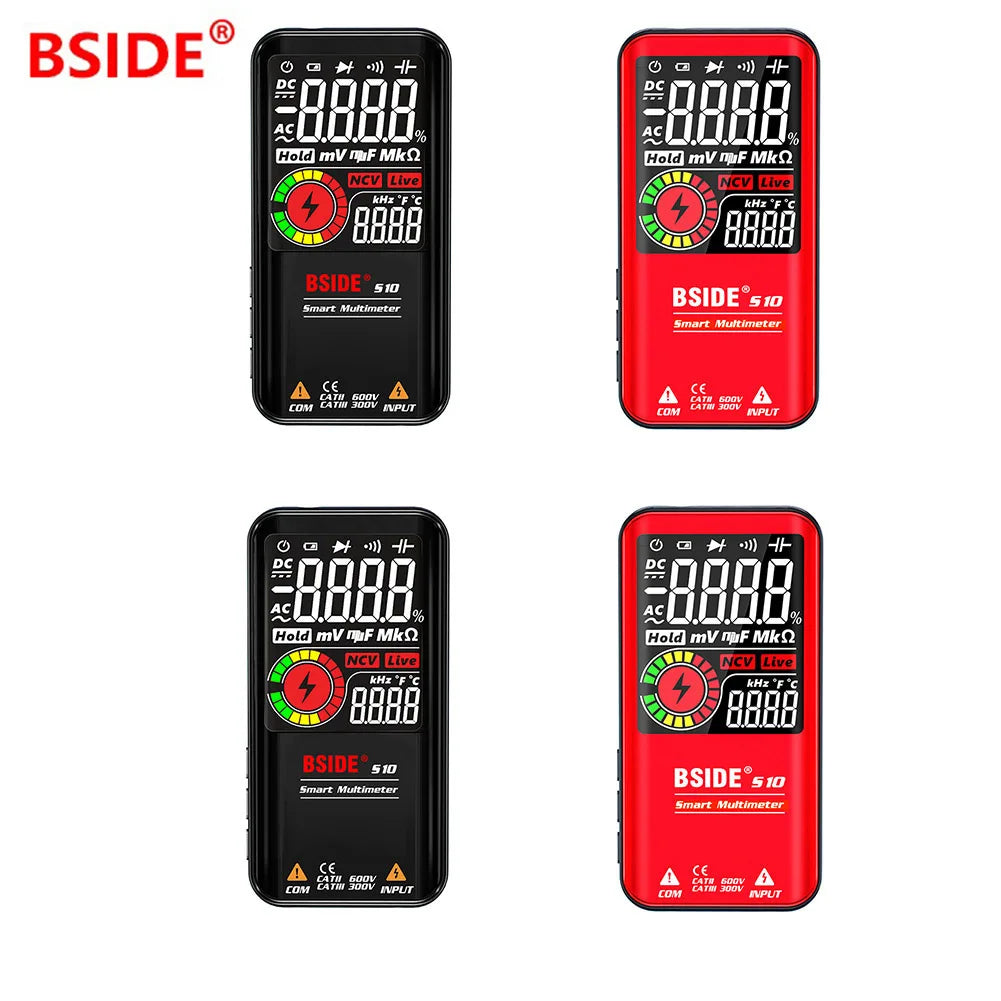

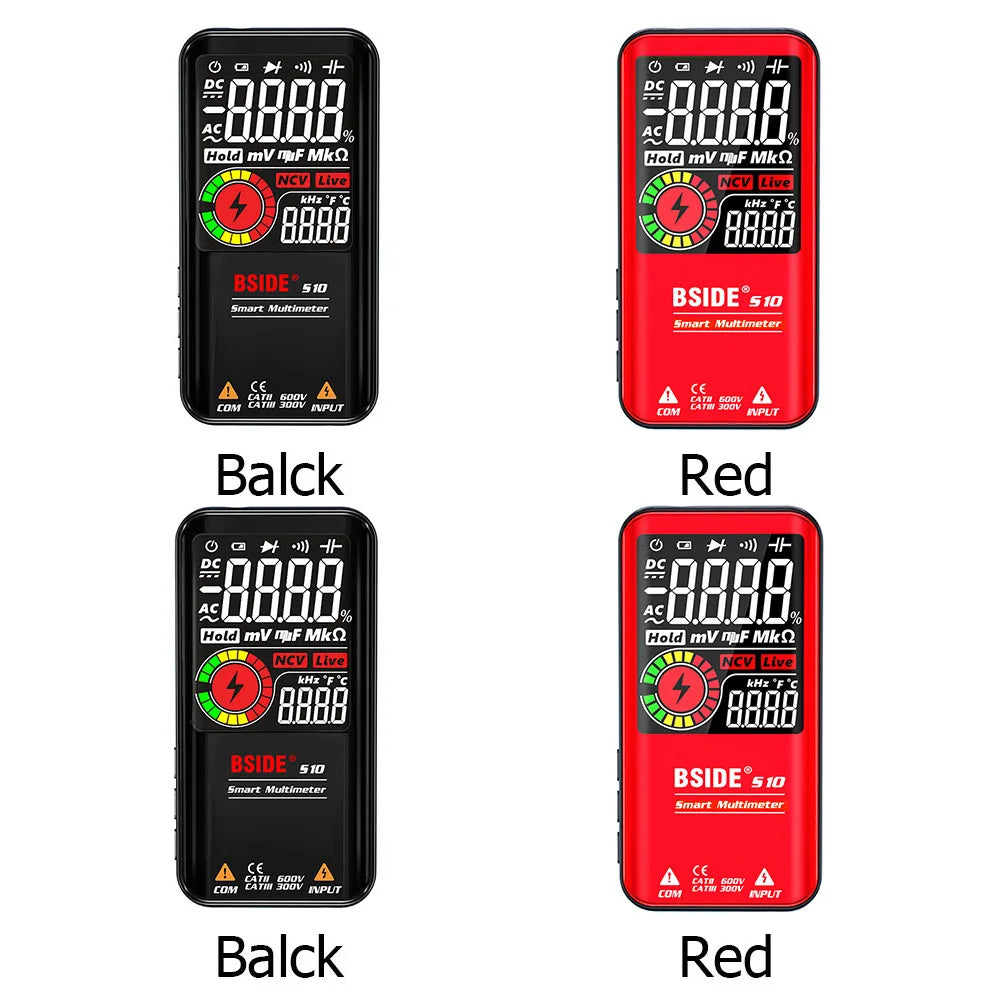

| Colors Available | Black (Rechargeable), Red |
| Country of Origin | Made in China |
What's in the Box?
- 1 × BSIDE Digital Multimeter (S10 or S11)
- 1 × Test Leads
- 1 × English User Manual
- 1 × Packing Box
- 1 × USB Charging Cable (S11 only)
- 1 × Protective Shell (S11 only)
Safe Electrical Testing — Best Practices
Always follow proper safety protocols when using a multimeter. For guidance on electrical safety in DIY and professional settings, refer to the OSHA Electrical Safety Guidelines. Additionally, the CPSC Electrical Safety Resource Center offers valuable tips for safe electrical work at home and on the job.
Frequently Asked Questions
Q: What is the difference between the BSIDE S10 and S11 digital multimeter?
A: Both the S10 and S11 share the same core measurement features — 9999 counts, 3.5" backlit LCD, AC/DC voltage, NCV detection, resistance, capacitance, and frequency. The key difference is power: the S10 uses 2×AAA batteries, while the S11 features a built-in 800mAh rechargeable Li-ion battery with a USB charging cable. The S11 also includes a protective shell for added durability.
Q: Does this multimeter measure non-contact voltage (NCV)?
A: Yes. The built-in NCV (Non-Contact Voltage) detection mode allows you to identify live AC voltage without touching the wire or terminal. When voltage is detected, the buzzer sounds and the LCD bar display alerts you in real time — a key safety feature for electricians and DIY users.
Q: What is the voltage measurement range of this digital multimeter?
A: The BSIDE S10/S11 measures DC voltage from 0.8V to 620V and AC voltage from 2.2V to 620V, both with a resolution of 0.001V — making it suitable for everything from low-voltage electronics to standard household and industrial circuits.
Q: Is a battery included with the multimeter?
A: The S10 model requires 2×AAA 1.5V batteries, which are not included. The S11 model includes a built-in rechargeable Li-ion battery (800mAh) and a USB charging cable, so it is ready to charge out of the box.
Q: Is this multimeter suitable as a gift for electricians or hobbyists?
A: Absolutely. The BSIDE S series is designed with a sleek, professional appearance, complete measurement functions, and an easy one-button interface — making it an excellent and practical gift for electricians, electronics enthusiasts, students, and home improvement hobbyists.
