Brushless Motor & 30A ESC Speed Controller Set for RC Drone
Brushless Motor & 30A ESC Speed Controller Set for RC Drone
Brushless Motor & 30A ESC Speed Controller Set for RC Drone
Upgrade your RC drone build with this versatile Brushless Motor and 30A ESC (Electronic Speed Controller) combo set. Available in a wide range of KV ratings — 930KV, 1000KV, 1200KV, 1400KV, 1800KV, 2200KV, and 2450KV — this set gives builders the flexibility to match the right motor to their frame size, propeller, and flight style. Whether you're assembling a freestyle quad, a long-range cruiser, or a photography drone, this matched motor-and-ESC pair ensures smooth throttle response and efficient power delivery.
Made in Mainland China.

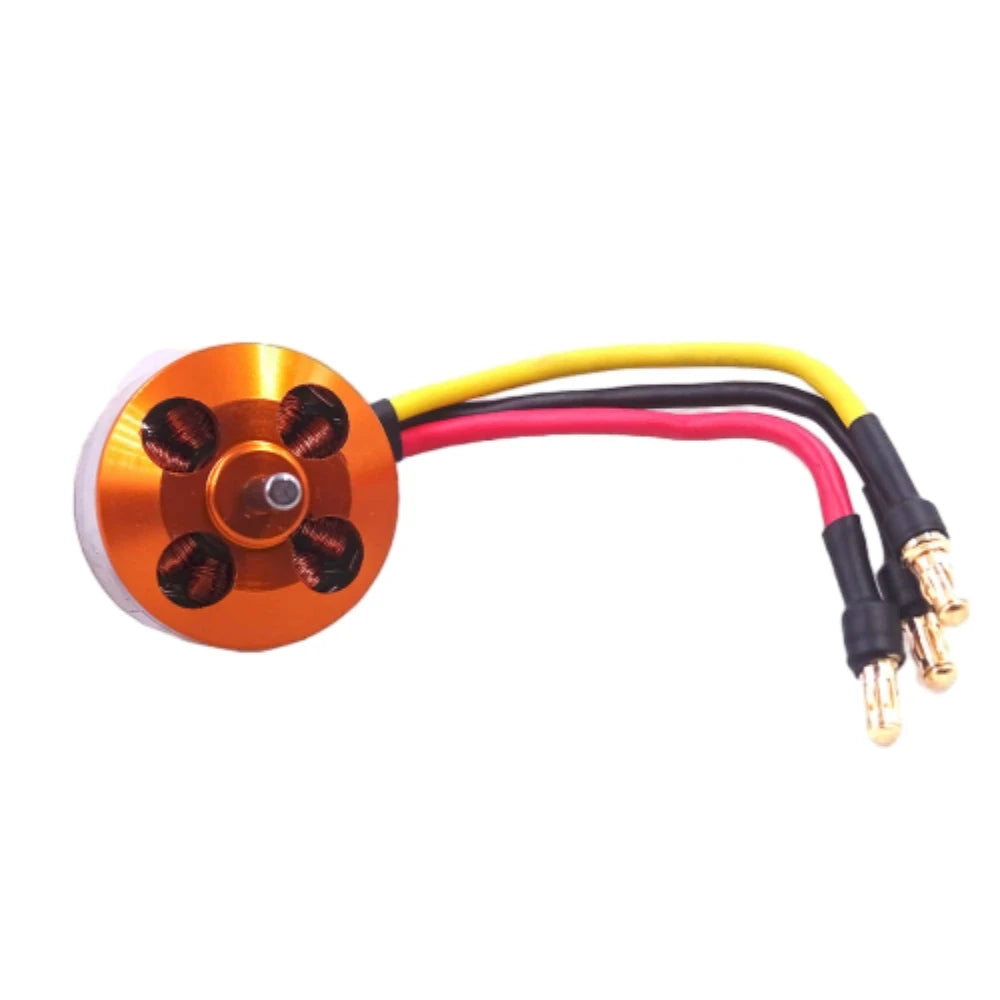

Brushless Motor Specifications
- Available KV Ratings: 930KV / 1000KV / 1200KV / 1400KV / 1800KV / 2200KV / 2450KV
- Max Efficiency: 80%
- 1000KV — Max Efficiency Current: 4–10A (>75%)
- Current Capacity: 12A / 60s
- No Load Current: 10V / 0.5A
- Compatible Cells: 2–3 Li-Poly
- Motor Dimensions: 2.5 × 3 cm
- Shaft Diameter: 2.5 mm
30A Brushless ESC Specifications
- Continuous Output: 30A | Burst Output: 40A (up to 10 seconds)
- Input Voltage: 2–4 cell Lithium battery or 5–9 cell NiCd/NiMH battery
- BEC: 1A / 5V (linear mode)
- Max Speed: 210,000 RPM (2-pole BLM) / 70,000 RPM (6-pole BLM) / 35,000 RPM (12-pole BLM)
- ESC Dimensions: 45 mm × 24 mm × 11 mm
Key Features
- Wide KV range selection to suit various drone frame sizes and flight goals
- High-efficiency brushless motor design for longer flight times and cooler operation
- Matched ESC with generous burst current capacity for responsive throttle control
- Compatible with both lithium and NiCd/NiMH battery types
- Compact, lightweight ESC fits neatly into tight drone frames
- Ideal for FPV racing, freestyle flying, aerial photography, and DIY drone builds

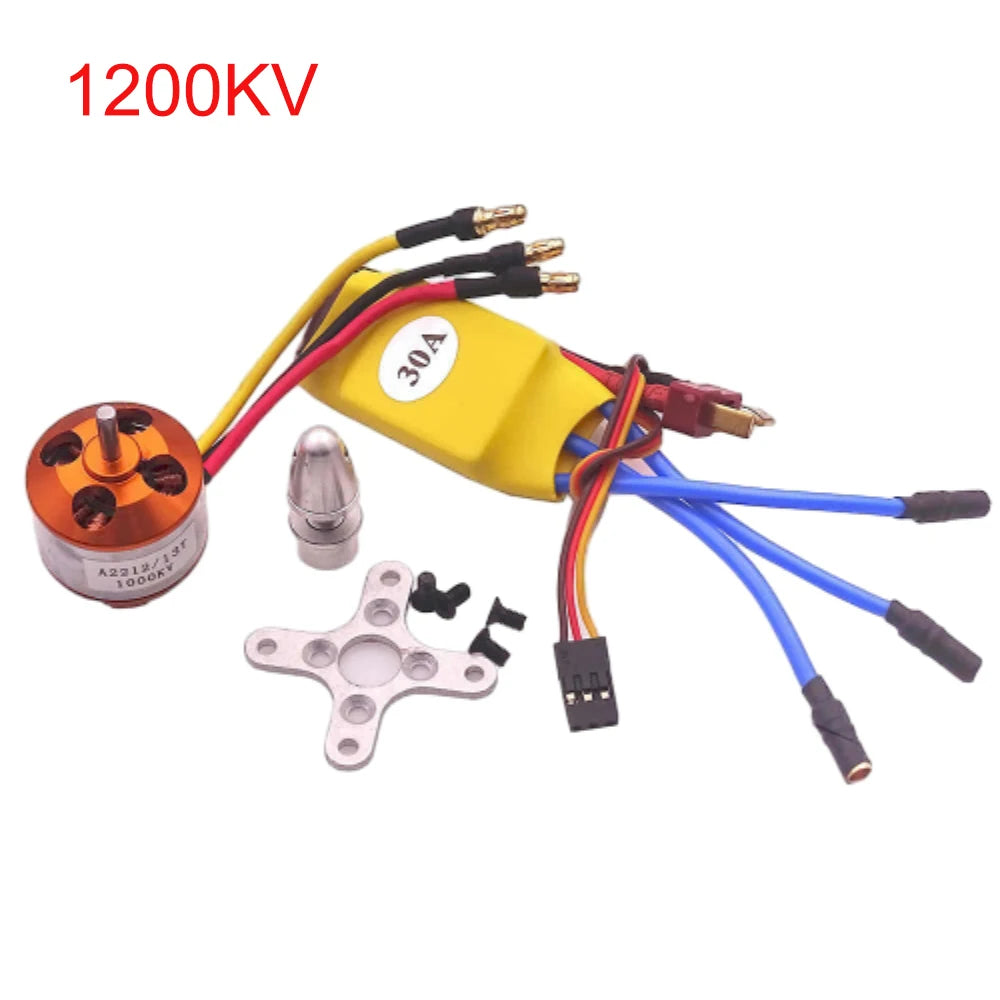

Package Includes
- 1× Brushless Motor (KV rating of your choice)
- 1× 30A Brushless ESC Motor Speed Controller
Notes
- Due to lighting and monitor variation, actual colors may differ slightly from product images.
- Please allow 1 mm–1 cm measurement tolerance due to manual measuring.
For more information on safe RC hobby practices, visit the U.S. Consumer Product Safety Commission (CPSC) for guidelines on safe use of electronic hobby products.
Frequently Asked Questions
Q: Which KV rating brushless motor should I choose for my RC drone?
A: KV rating determines how fast a motor spins per volt applied. Lower KV motors (e.g., 930KV–1200KV) are better suited for larger propellers and heavier drones such as photography rigs, while higher KV motors (e.g., 1800KV–2450KV) are ideal for smaller, faster FPV racing or freestyle drones with smaller propellers. Match the KV to your frame size and intended use for best performance.
Q: Is the 30A ESC compatible with lithium polymer (LiPo) batteries?
A: Yes. The included 30A brushless ESC supports 2–4 cell LiPo batteries as well as 5–9 cell NiCd/NiMH batteries, making it compatible with the most common power setups used in RC drone builds.
Q: Can this motor and ESC set be used for a first-time DIY drone build?
A: Absolutely. This combo set is a great choice for beginners and experienced builders alike. The matched motor and ESC simplify the component selection process — just pick your desired KV rating and you have a ready-to-wire power system for your quadcopter or multirotor frame.
Q: What does BEC mean on the ESC?
A: BEC stands for Battery Eliminator Circuit. The ESC includes a 1A/5V linear BEC, which powers your flight controller or receiver directly from the main battery — eliminating the need for a separate receiver battery pack.
